Plan 28134J
2-Story House Plan with Vaulted Master Suite - 1635 Sq Ft
Heated S.F.
1,635
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • This 2-Story house plan gives you 3 beds, 2.5 baths and 1,635 square feet of heated living space.
  • The formal and family entrances merge in the foyer for convenient access to the nearby powder bath and closet tucked beneath the staircase.
  • Spanning the entire width of the main level, discover an open great room, dining nook, and kitchen. A fireplace anchors the left wall and the optional covered patio offers an outdoor living space.
  • A loft greets you at the top of the stairs and leads to 3 bedrooms and the laundry room.
  • The master bedroom enjoys a vaulted ceiling, roomy closet, and attached bathroom with a dual-sink vanity.
  • Related Plan: Get an alternate exterior with house plan 28071J.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Story House Plan with Vaulted Master Suite - 1635 Sq Ft

  • 1,635

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

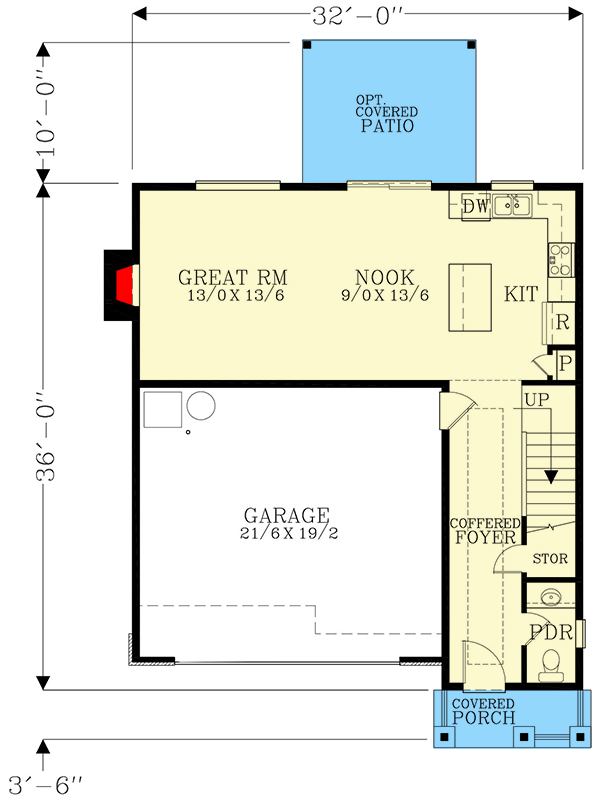

  • Main Level

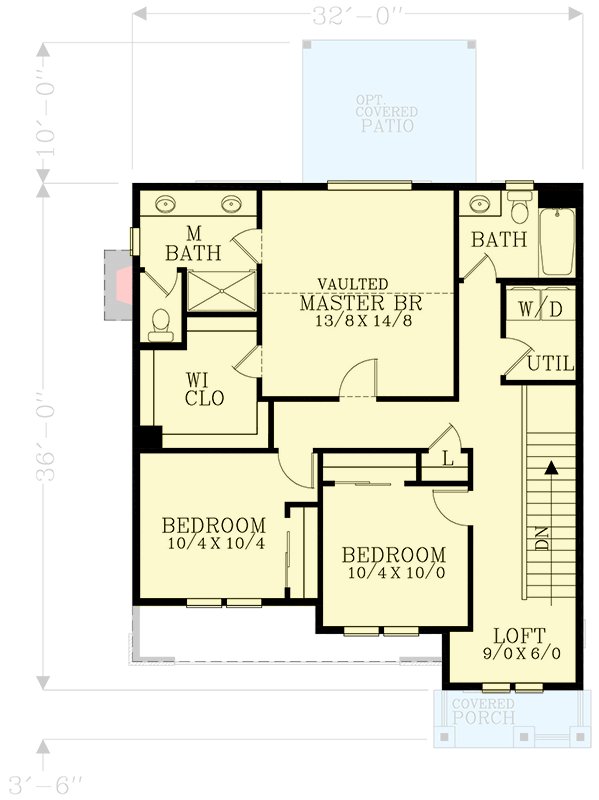

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,635 sq. ft.
  • 1st Floor: 658 sq. ft.
  • 2nd Floor: 977 sq. ft.

Dimensions

  • Width: 32' 0"
  • Depth: 36' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 420 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Post/Beam

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 8
  • Secondary Pitch: 12 on 6
  • Framing Type: Truss
