2-Story House Plan with Vaulted Master Suite and Bonus Room

Plan 69208AM

  • 2,300

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

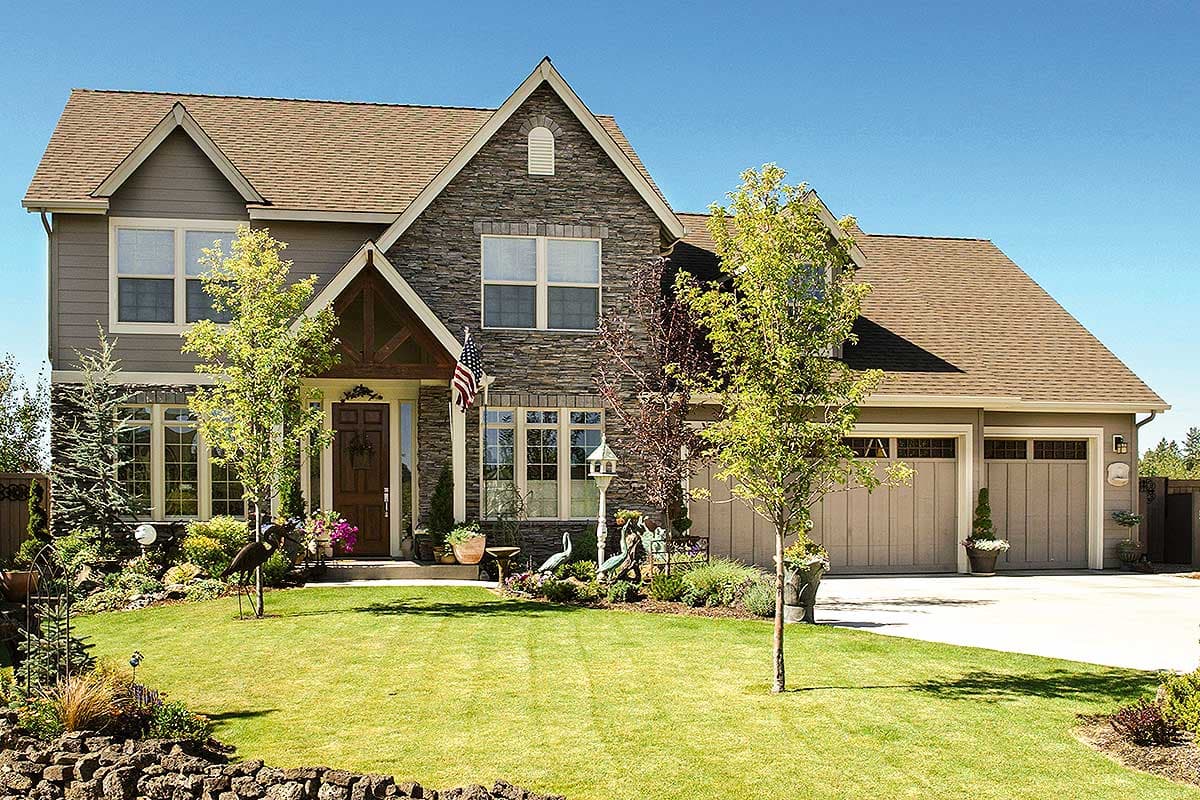

  • The wonderful permanence of stone brings a fine face to this comfortable plan. A covered entry opens to a foyer with nine-foot ceiling. It is flanked by a formal dining room and a den (or Bedroom 4).
  • Both the dining room and den feature nine-foot ceilings also, and allow for optional built-ins. The great room is straight ahead down a short hallway. It is warmed by a fireplace and contains a vaulted ceiling and double doors leading to the backyard. A casual breakfast nook is nearby, connecting with the gourmet-style kitchen.
  • Behind the three-car garage is a gigantic master suite with vaulted salon, walk-in closet and bath with spa tub and dual sinks. The laundry room sits at the entry to the garage, near a handy bench.
  • Upstairs are two additional bedrooms, sharing a full bath. A cozy loft area overlooks the great room below.
  • If you like, you may develop bonus space over the three-car garage at a later time.
  • Related Plan: For a version without the bonus room, see house plan 69209AM.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

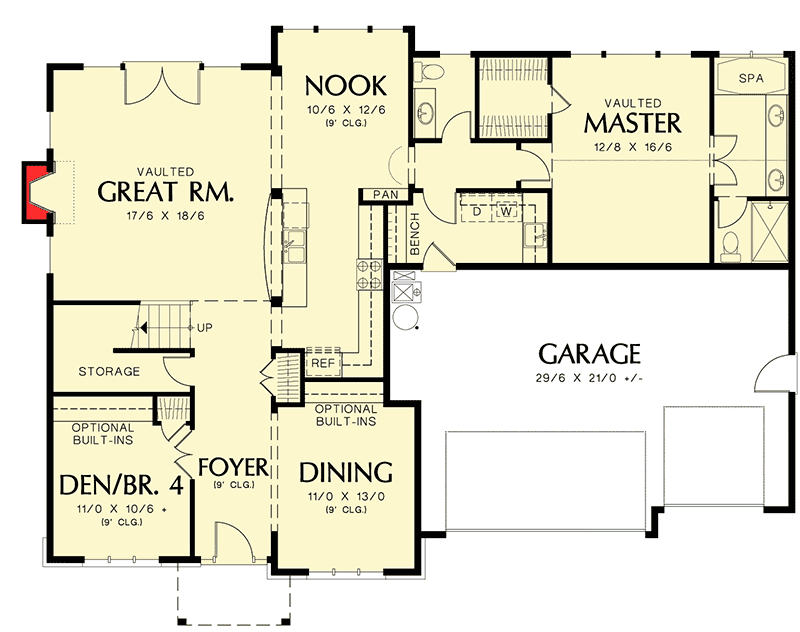

2-Story House Plan with Vaulted Master Suite and Bonus Room - 69208AM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

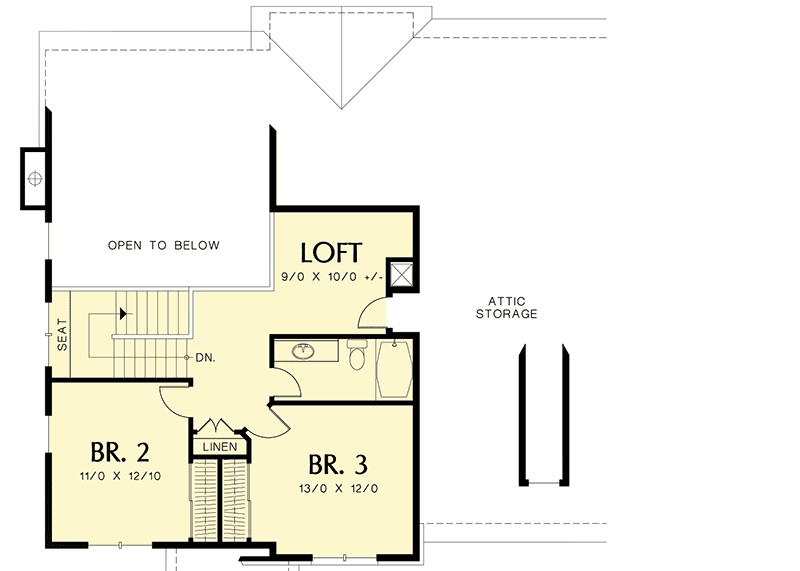

2-Story House Plan with Vaulted Master Suite and Bonus Room - 69208AM floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

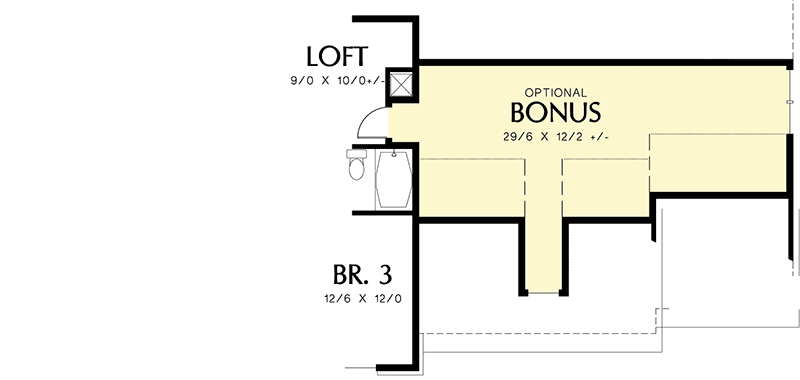

2-Story House Plan with Vaulted Master Suite and Bonus Room - 69208AM floor plan - Bonus Option

Architectural Style

Plan Collections

2-Story House Plan with Vaulted Master Suite and Bonus Room

  • 2,300

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Bonus Option

Plan Details

Square Footage Breakdown

  • Total: 2,300 sq. ft.
  • 1st Floor: 1,701 sq. ft.
  • 2nd Floor: 599 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 48' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 655 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
