Plan 28137J

2-Story Modern Home Plan with Flex Room and Upstairs Laundry - 1894 Sq Ft

Heated S.F.
1,894
Beds
5
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 28137J

Main Level
Main Level
2nd Floor
2nd Floor

Plan 28137J

M-F 9am-5pm EST |

1-203-761-8500

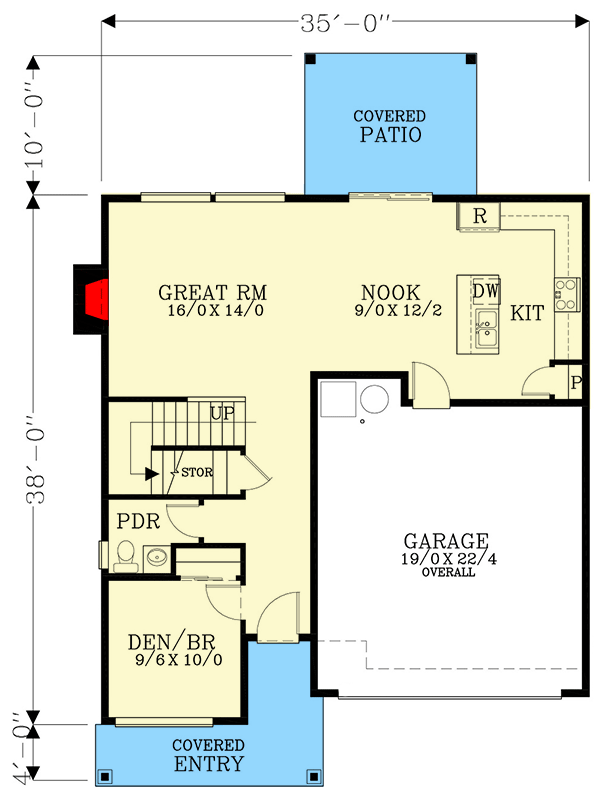

Main Level

Plan 28137J: 2-Story Modern Home Plan with Flex Room and Upstairs Laundry - 1894 Sq Ft - Floor Plan - Main Level - Contemporary, Modern, Northwest

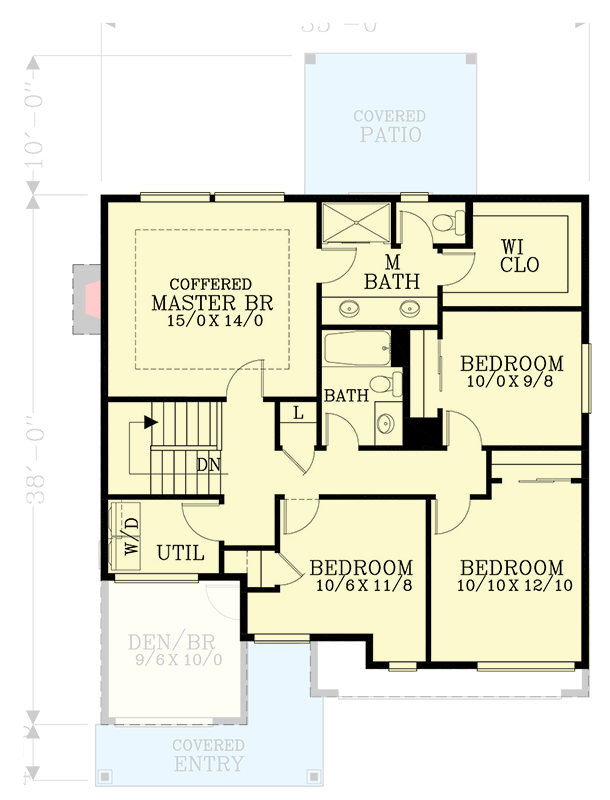

2nd Floor

Plan 28137J: 2-Story Modern Home Plan with Flex Room and Upstairs Laundry - 1894 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

  • This 2-story modern house plan gives you 4 beds plus a flex room, 2.5 baths and 1,894 square feet of heated living space.
  • Enter from the forward-facing, double garage to the kitchen or step in off the front porch with a closet just past the powder room and the flex room to your left.
  • Ahead, the great room features a cozy fireplace, as well as two side-by-side windows that offer rearward views. The kitchen has an island and sliding doors open to the covered patio in back.
  • Upstairs, discover a tray ceiling above the master bedroom, which is accompanied by a 4-fixture bathroom and walk-in closet. Three more bedrooms share a bath. Laundry completes the floor.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,894 sq. ft.

1st Floor

843 sq. ft.

2nd Floor

1,051 sq. ft.

Porch, Front

90 sq. ft.

Covered Patio

120 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

38' 0"

Max Ridge Height

27' 5"

Garage

Type

Attached

Area

412 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Coffered

8' 0''

Bedroom 1

Vaulted

11' 0''

Roof Details

Primary Pitch

12 on 4

Secondary Pitch

12 on 4

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Breakfast Nook

Den

Flex Room

Laundry - Upstairs

Master Suite - Upstairs
