Plan 89008AH

2-Story Modern House Plan with 3 Upstairs Bedrooms and Laundry - 1634 Sq Ft

Heated S.F.
1,634
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 89008AH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 89008AH

M-F 9am-5pm EST |

1-203-761-8500

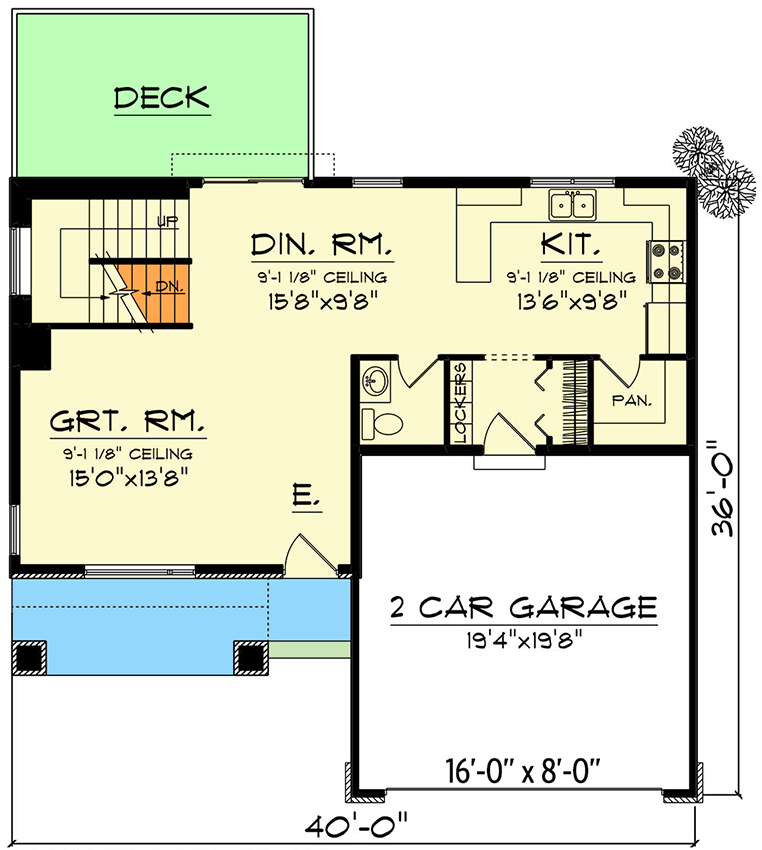

Main Level

Plan 89008AH: 2-Story Modern House Plan with 3 Upstairs Bedrooms and Laundry - 1634 Sq Ft - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern

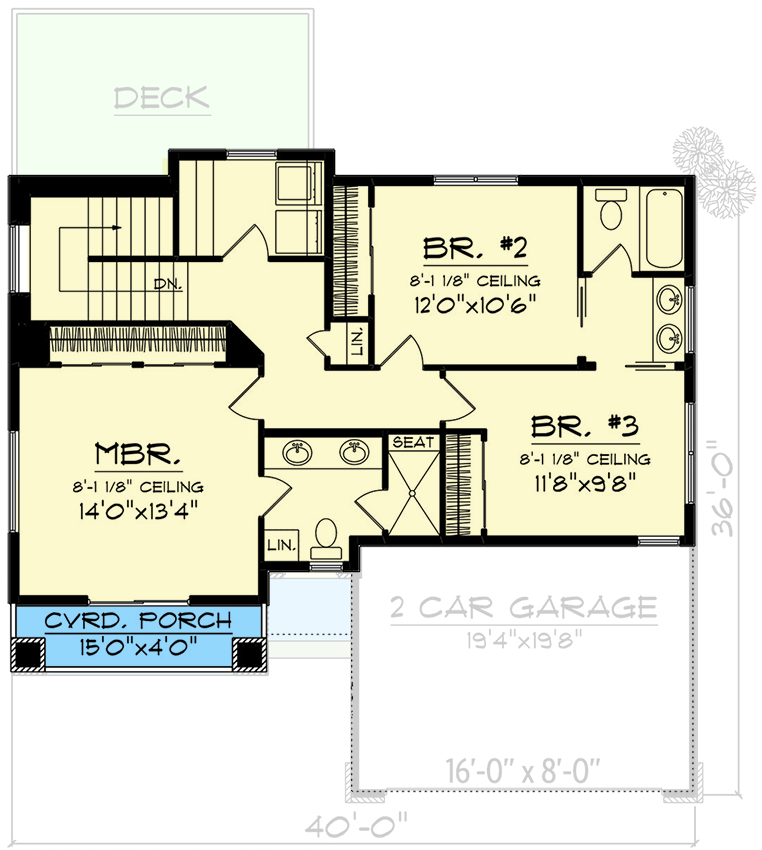

2nd Floor

Plan 89008AH: 2-Story Modern House Plan with 3 Upstairs Bedrooms and Laundry - 1634 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Modern

Plan Details

A modern exterior with the perfect blend of materials create a façade that is unique and clean, and at 1,634 square feet, this 2-story home is a perfect starter home for buyers. The entry opens directly into the great room that is located at the front of the home to your left. The kitchen and dining room are adjacent to the great room to the right of the home behind the garage. The master suite lies to the front of the home with a private porch. Two additional bedrooms share a Jack-and-Jill bathroom. The laundry is located on the second floor for easy access.

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,634 sq. ft.

1st Floor

782 sq. ft.

2nd Floor

852 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

36' 0"

Max Ridge Height

24' 9"

Garage

Type

Attached

Area

397 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Flat

8' 0''

Master Bath

Flat

8' 0''

Laundry Room

Flat

8' 0''

Bedroom 2

Flat

8' 0''

Bedroom 3

Flat

8' 0''

Bath 2

Flat

8' 0''

Balcony

Flat

8' 0''

Great Room

Flat

9' 0''

Dining Room

Flat

9' 0''

Kitchen

Flat

9' 0''

Pantry

Flat

9' 0''

Powder Room/Half Bath

Flat

9' 0''

Mudroom

Flat

9' 0''

Foyer

Flat

9' 0''

Garage

Flat

9' 0''

Rear Porch

0' 0''

Garage Door Dimensions

8' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Jack & Jill Bath

Laundry - Upstairs

Master Suite - Upstairs

Mudroom
