Plan 28027J
2-Story New American Craftsman House Plan Under 2000 Square Feet
Heated S.F.
1,909
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 28027J

Main Level
slide image 0
2nd Floor
slide image 1

Plan 28027J

1-800-854-7852

1-262-521-4596

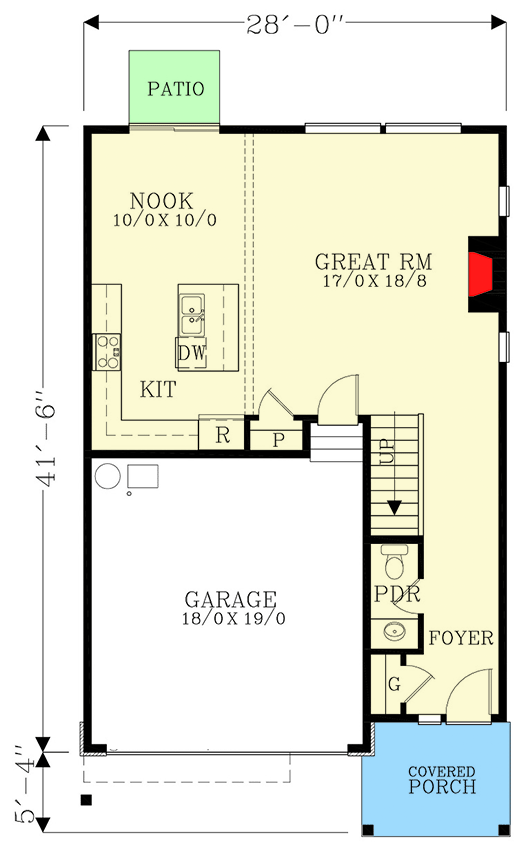

Main Level
floor plan image Main Level

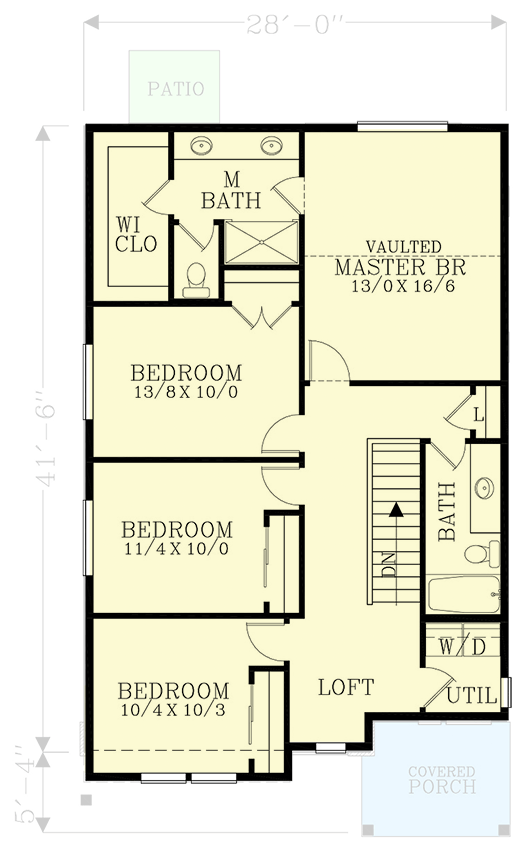

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 2-story New American Craftsman house plan gives you 4 beds, 2.5 baths and 1,909 square feet of heated living space. A 2-car 342 square foot front-facing garage is adjacent to the covered entry.
  • The foyer has views that extend all the way through to the back of the home where the great room with fireplace is open to the kitchen and eating nook. Sliding doors in the dining area take you to an open patio.
  • All the bedrooms are located on the second floor as is laundry for your convenience.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,909 sq. ft.

1st Floor

774 sq. ft.

2nd Floor

1,135 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

43' 6"

Max Ridge Height

28' 8"

Garage

Type

Attached

Area

342 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Square Footage Breakdown

Total Heated Area

1,909 sq. ft.

1st Floor

774 sq. ft.

2nd Floor

1,135 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

43' 6"

Max Ridge Height

28' 8"

Garage

Type

Attached

Area

342 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss
