Plan 365028PED 2-Story New American Craftsman Plan with Vaulted Great Room

1,946 3 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

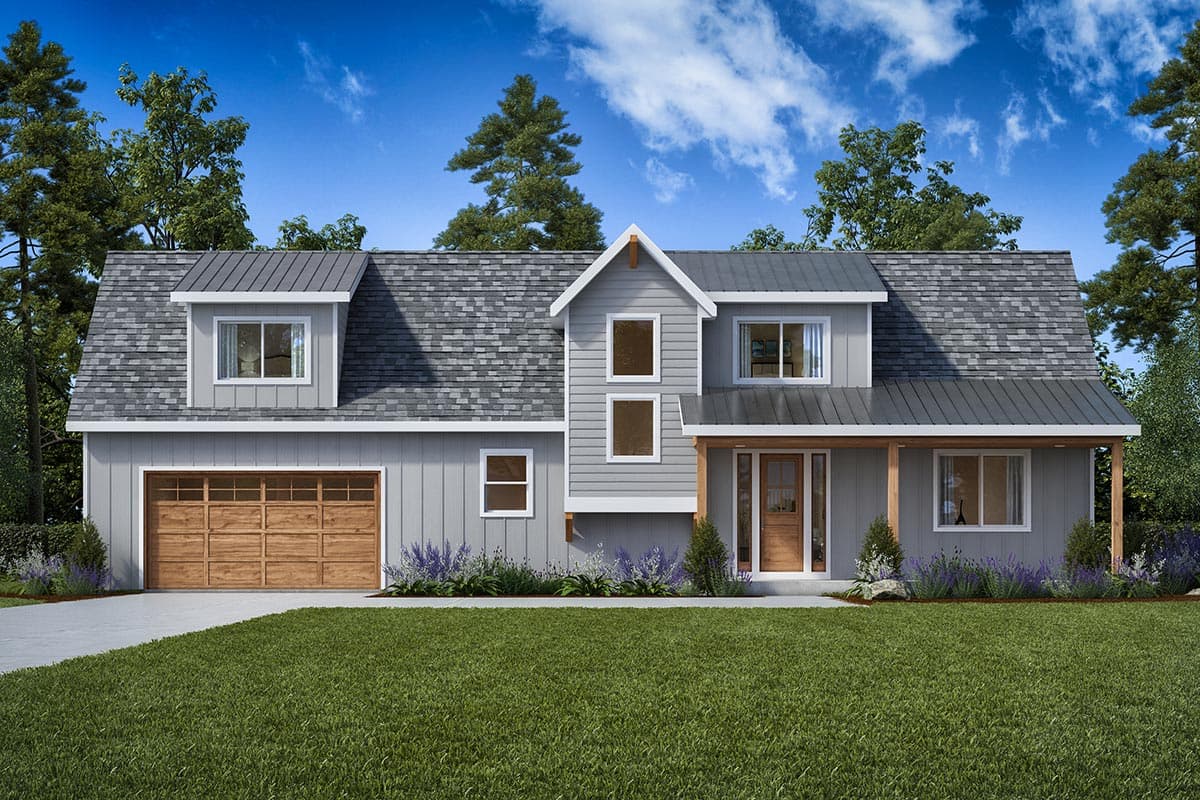

2-Story New American Craftsman Plan with Vaulted Great Room

Plan 365028PED

  • 1,946

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This compact and efficient home plan delivers a New American Craftsman design with a spacious main level that combines the great room, dining area, and kitchen.
  • A vaulted ceiling crowns the great room that overlooks front and rear porches, and the adjoining kitchen features an island and generous pantry nearby.
  • The 2-car garage opens into the house to discover a built-in bench, coat closet, and powder bath in the mud hall.
  • Three bedrooms can be found upstairs with the largest reserved for the homeowner and separated from the secondary bedrooms. The master bathroom enjoys a dual-sink vanity, toilet room, and freestanding tub.
  • Bedrooms 2 and 3 share a full bathroom and have access to a hidden nook that would serve as the perfect playroom.

Each plan set includes the following:

  • Cover sheet with general information
  • Detailed floor plans for each floor

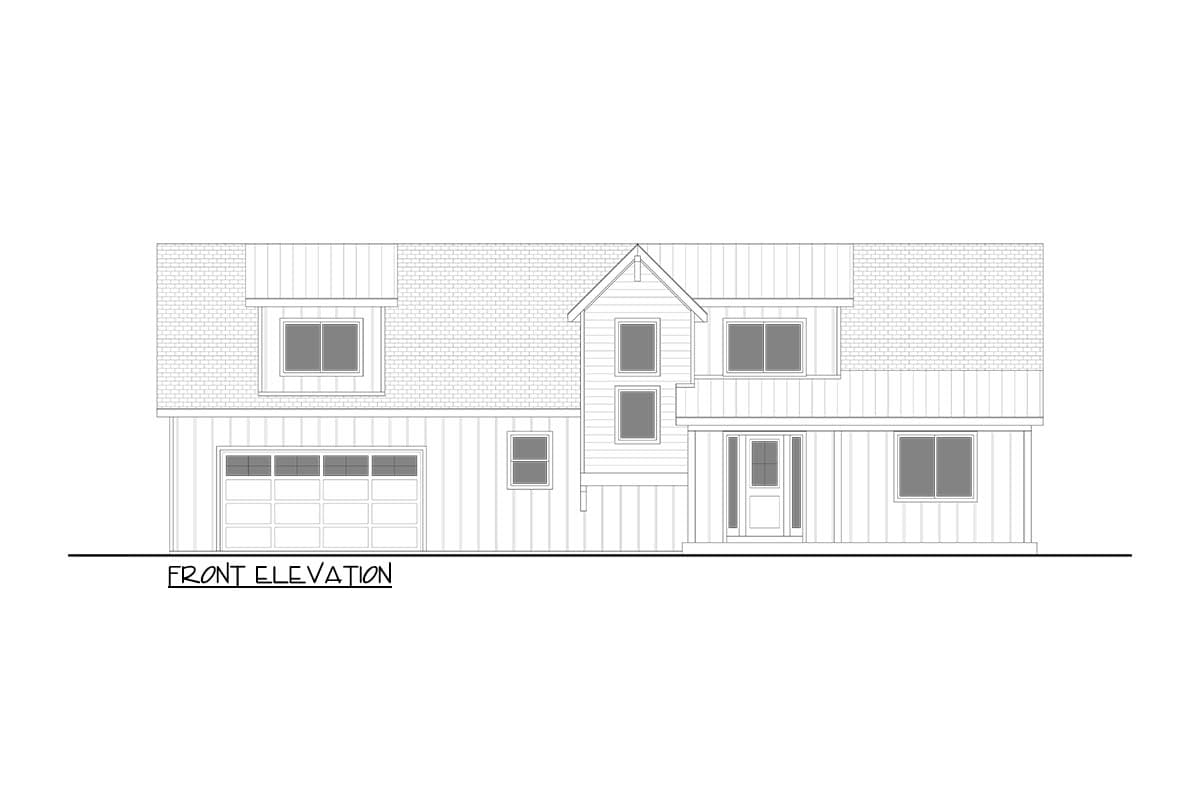

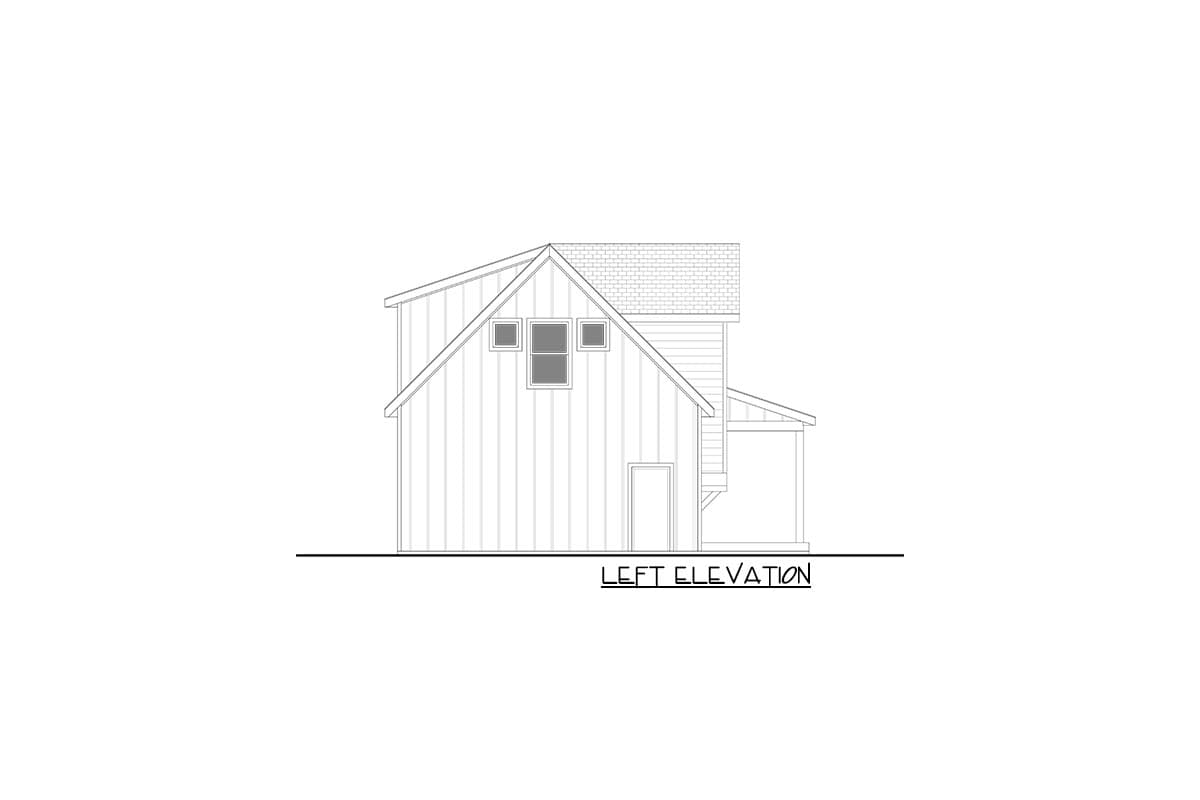

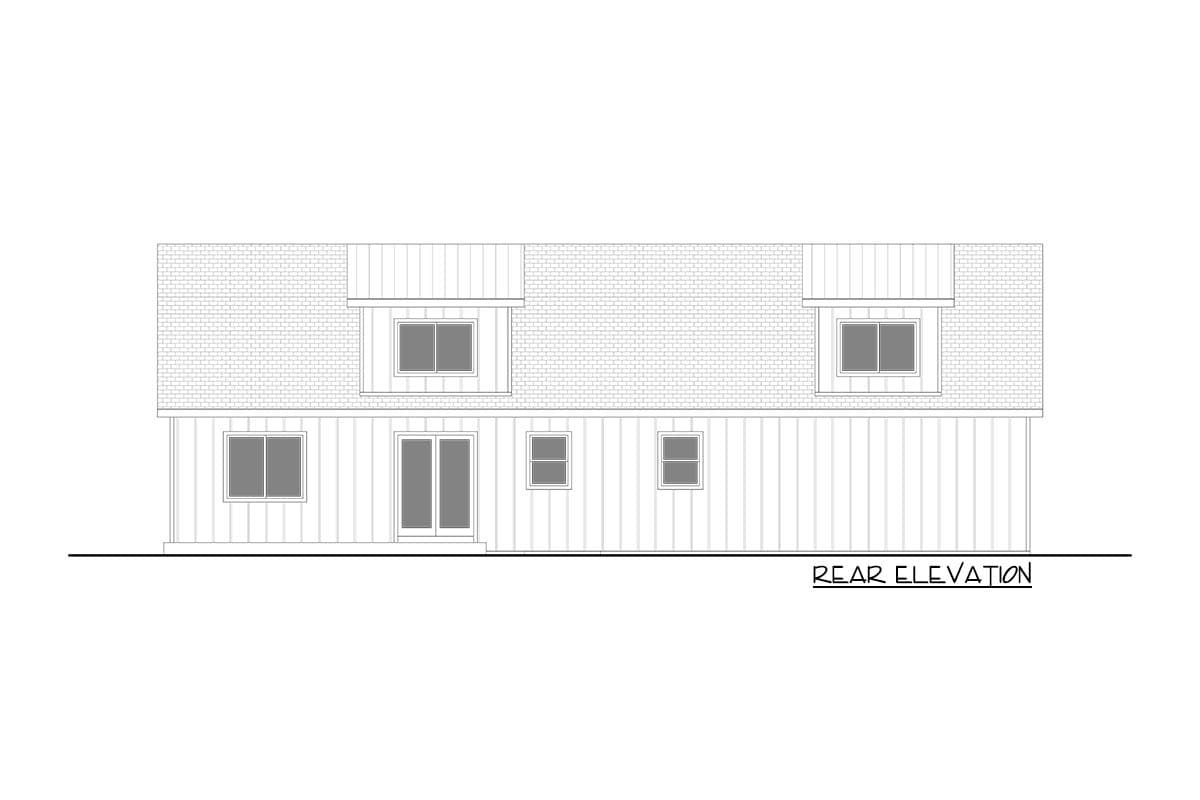

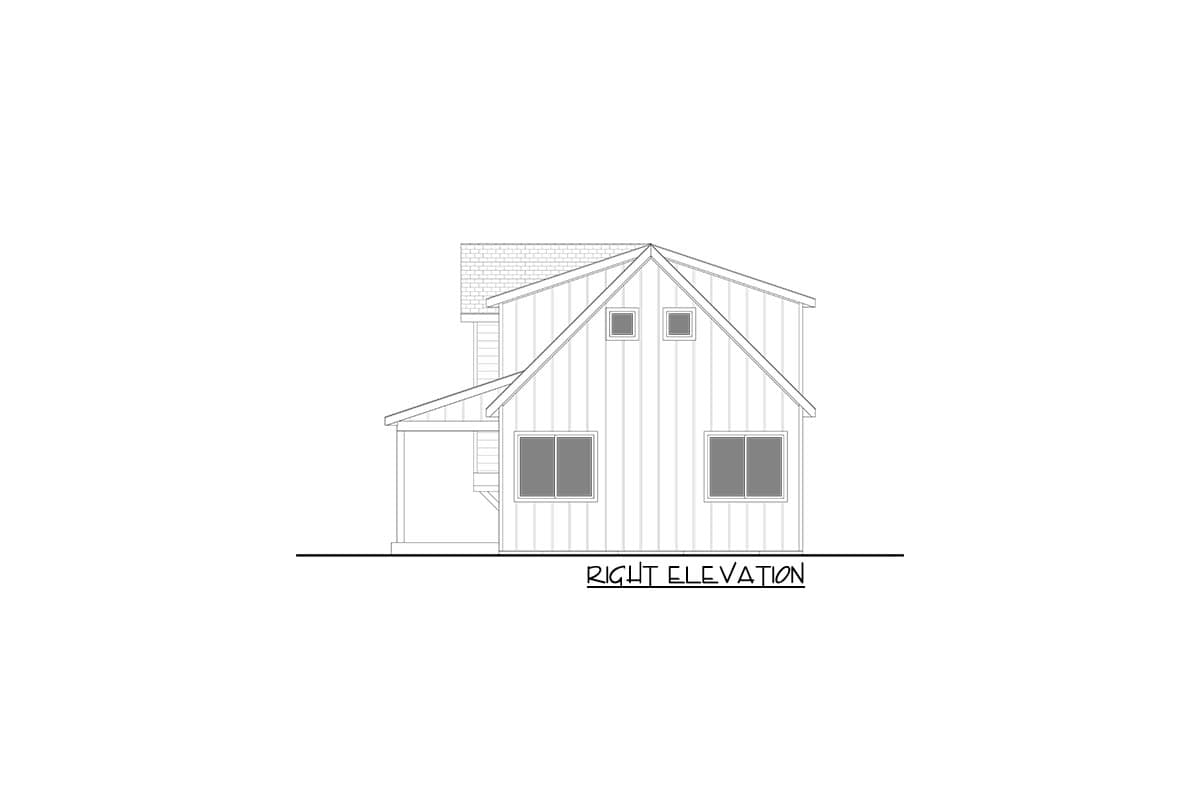

  • Elevations for each side of the home
  • Roof plan
  • Building section and details
  • Electrical schematic plans for each floor
  • Foundation plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

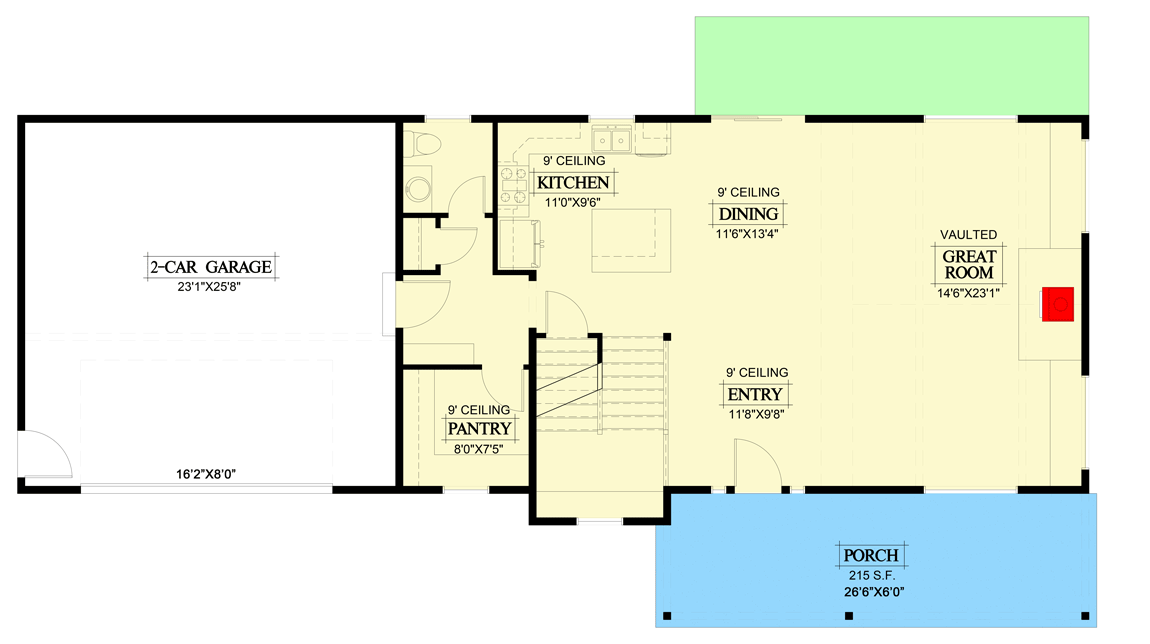

2-Story New American Craftsman Plan with Vaulted Great Room - 365028PED floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

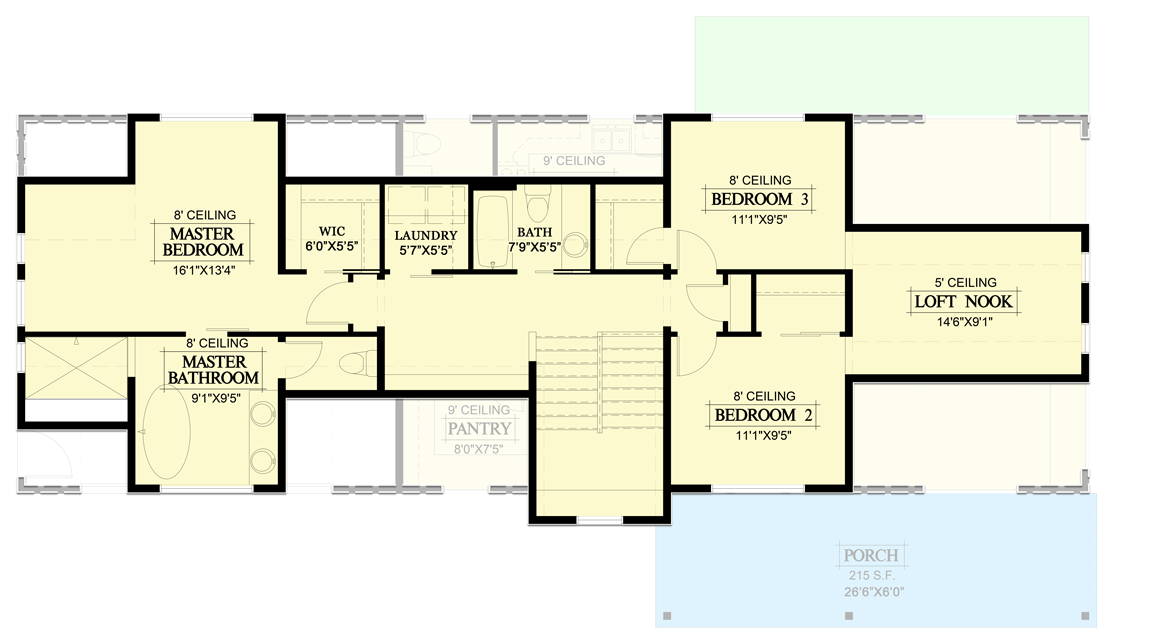

2-Story New American Craftsman Plan with Vaulted Great Room - 365028PED floor plan - 2nd Floor

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

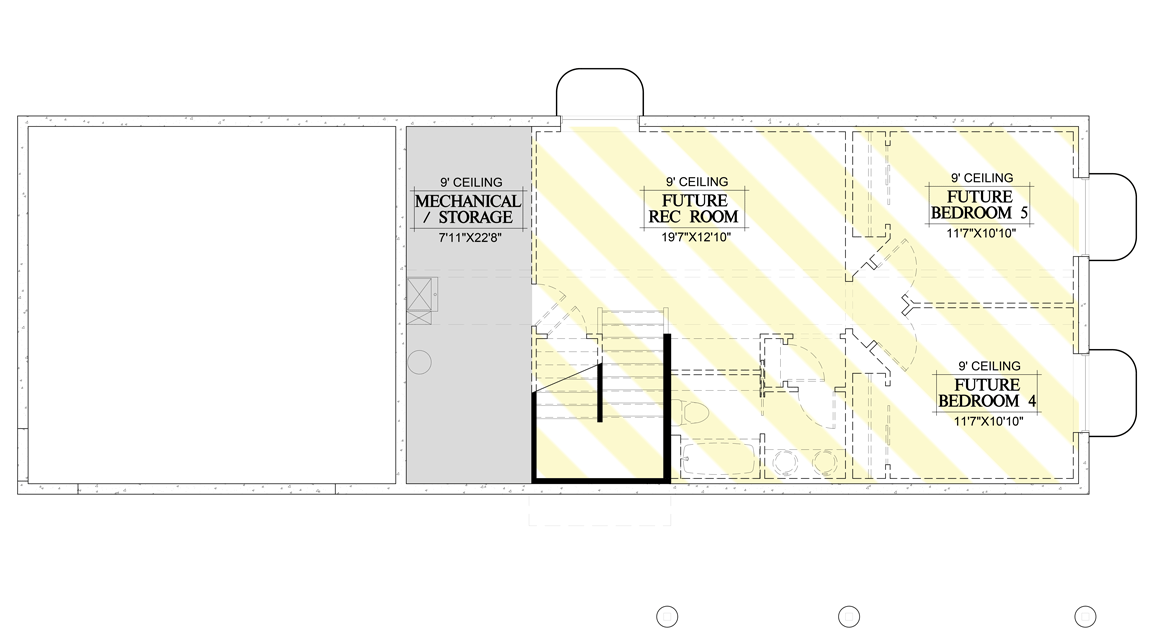

2-Story New American Craftsman Plan with Vaulted Great Room - 365028PED floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,946 sq. ft.
  • 1st Floor: 1,074 sq. ft.
  • 2nd Floor: 872 sq. ft.
  • Porch, Front: 215 sq. ft.
  • Loft: 136 sq. ft.
  • Optional Lower Level: 849 sq. ft.
  • Basement Unfinished: 1,056 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 32' 0"
  • Max ridge height: 24' 4"

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 1" First Floor / 9' 1" Second Floor / 8' 1"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

2-Story New American Craftsman Plan with Vaulted Great Room

  • 1,946

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,497
  • CAD + PDF - Single Build $2,197
  • View all purchase option online

About This Plan

  • This compact and efficient home plan delivers a New American Craftsman design with a spacious main level that combines the great room, dining area, and kitchen.
  • A vaulted ceiling crowns the great room that overlooks front and rear porches, and the adjoining kitchen features an island and generous pantry nearby.
  • The 2-car garage opens into the house to discover a built-in bench, coat closet, and powder bath in the mud hall.
  • Three bedrooms can be found upstairs with the largest reserved for the homeowner and separated from the secondary bedrooms. The master bathroom enjoys a dual-sink vanity, toilet room, and freestanding tub.
  • Bedrooms 2 and 3 share a full bathroom and have access to a hidden nook that would serve as the perfect playroom.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,946 sq. ft.
  • 1st Floor: 1,074 sq. ft.
  • 2nd Floor: 872 sq. ft.
  • Porch, Front: 215 sq. ft.
  • Loft: 136 sq. ft.
  • Optional Lower Level: 849 sq. ft.
  • Basement Unfinished: 1,056 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 32' 0"
  • Max ridge height: 24' 4"

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 1" First Floor / 9' 1" Second Floor / 8' 1"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
Plan 365028PED
View this and more for this plan by visiting www.architechtecturaldesigns.com/365028PED
|
