Plan 770507JME 2-Story New American Home Plan with Optional In-Law Suite above Garage

3,147 4-6 3.5 - 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2-Story New American Home Plan with Optional In-Law Suite above Garage

Plan 770507JME

  • 3,147

    Heated s.f.

  • 4-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

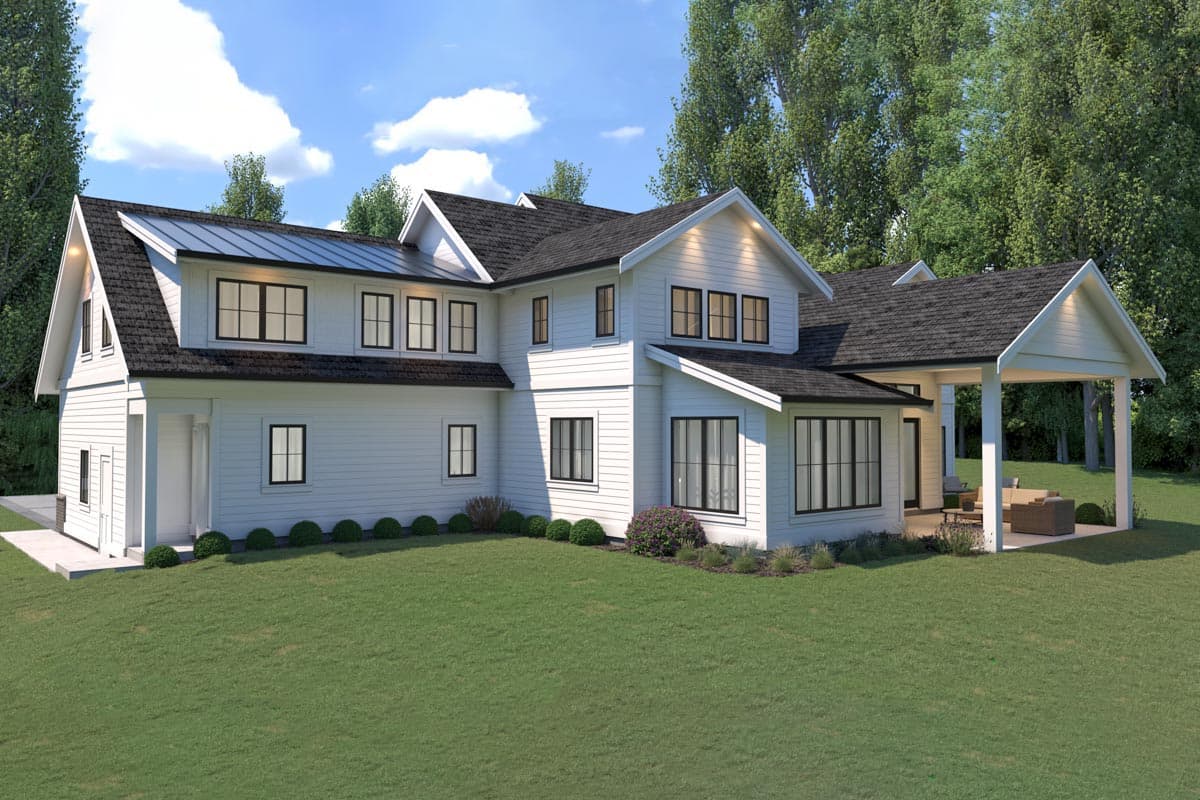

  • Craftsman details adorn the exterior of this 2-Story New American home plan that presents 3 front-entry garage bays with an in-law suite overhead.
  • A grand fireplace surrounded by builtins anchors the left wall of the great room and overlooks the 20'6" by 16' covered patio, while a den near the foyer provides a more secluded space to relax.
  • The kitchen island includes a level eating bar and the walk-in pantry can be found in the adjacent mudroom.
  • Enjoy the convenience of a main-level master bedroom that features a private deck, walk-in closet, and 5-fixture bathroom. Upstairs, three sizable bedrooms surround a loft.
  • Finish the 2-bedroom apartment for an additional 959 square feet of living space. The private exterior entrance behind the garage makes this perfect for in-laws, boomerang children, or an income property.
  • DELIVERY NOTE: Please allow 3 to 5 days for delivery if it includes Readable Reverse.

This plan includes the following details:

  • Cover sheet
  • Foundation plan
  • Floor plans
  • Floor joist layout
  • Roof truss layout
  • Sections
  • Elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

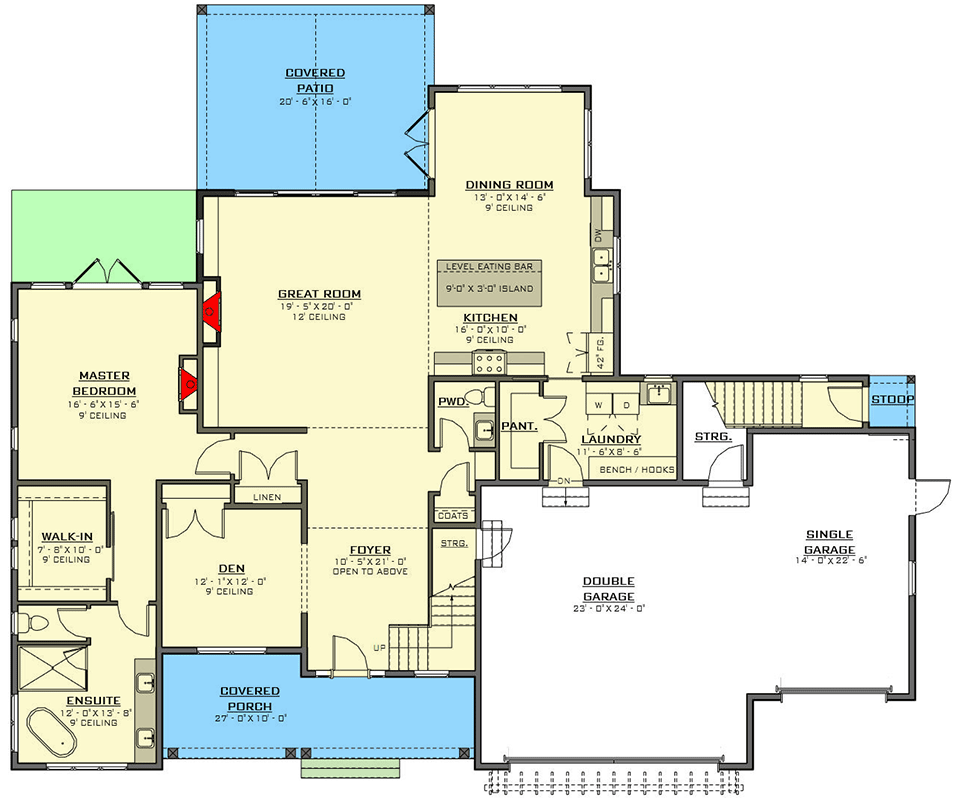

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Story New American Home Plan with Optional In-Law Suite above Garage - 770507JME floor plan - Main Level

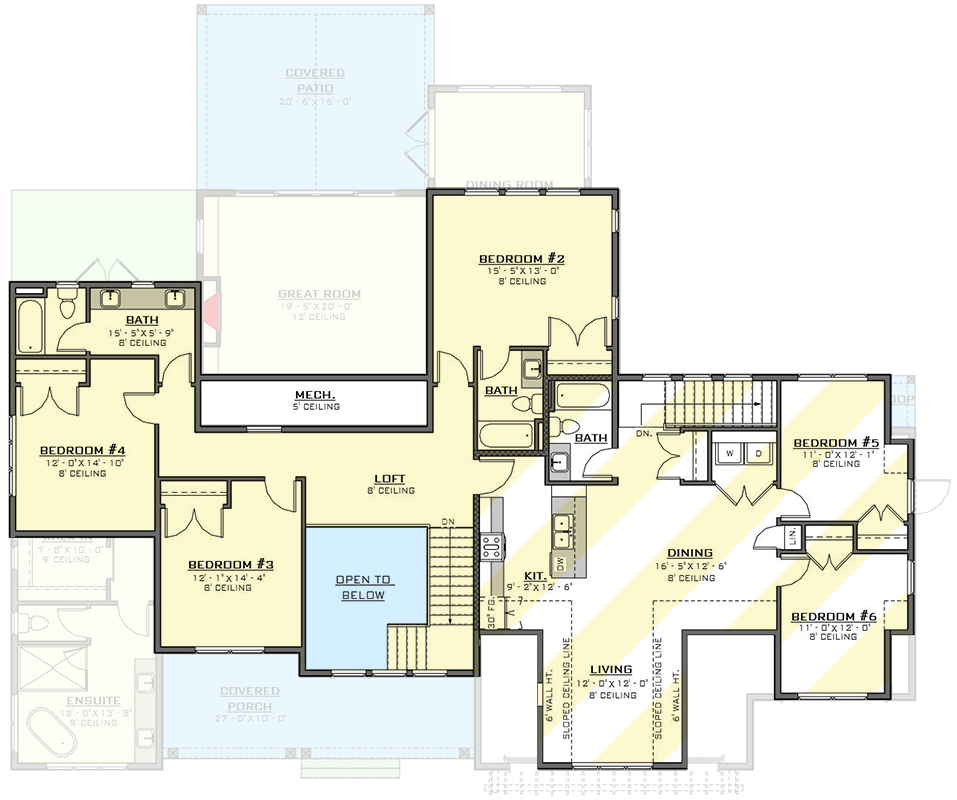

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Story New American Home Plan with Optional In-Law Suite above Garage - 770507JME floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,147 sq. ft.
  • 1st Floor: 2,118 sq. ft.
  • 2nd Floor: 1,029 sq. ft.
  • Covered Patio: 324 sq. ft.
  • Porch, Combined: 539 sq. ft.
  • Porch, Front: 215 sq. ft.
  • Apartment: 959 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 0"
  • Depth: 66' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 1031 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

2-Story New American Home Plan with Optional In-Law Suite above Garage

  • 3,147

    Heated s.f.

  • 4-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,795
  • CAD + PDF - Single Build $2,295
  • CAD Unlimited + PDF $2,795
  • View all purchase option online

About This Plan

  • Craftsman details adorn the exterior of this 2-Story New American home plan that presents 3 front-entry garage bays with an in-law suite overhead.
  • A grand fireplace surrounded by builtins anchors the left wall of the great room and overlooks the 20'6" by 16' covered patio, while a den near the foyer provides a more secluded space to relax.
  • The kitchen island includes a level eating bar and the walk-in pantry can be found in the adjacent mudroom.
  • Enjoy the convenience of a main-level master bedroom that features a private deck, walk-in closet, and 5-fixture bathroom. Upstairs, three sizable bedrooms surround a loft.
  • Finish the 2-bedroom apartment for an additional 959 square feet of living space. The private exterior entrance behind the garage makes this perfect for in-laws, boomerang children, or an income property.
  • DELIVERY NOTE: Please allow 3 to 5 days for delivery if it includes Readable Reverse.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,147 sq. ft.
  • 1st Floor: 2,118 sq. ft.
  • 2nd Floor: 1,029 sq. ft.
  • Covered Patio: 324 sq. ft.
  • Porch, Combined: 539 sq. ft.
  • Porch, Front: 215 sq. ft.
  • Apartment: 959 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 0"
  • Depth: 66' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 1031 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
Plan 770507JME
View this and more for this plan by visiting www.architechtecturaldesigns.com/770507JME
|
