Plan 666206RAF
2-Story Northwest Home Plan with Open Main Level
Heated S.F.
3,008
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 666206RAF

Main Level
slide image 0
2nd Floor
slide image 1

Plan 666206RAF

1-800-854-7852

1-262-521-4596

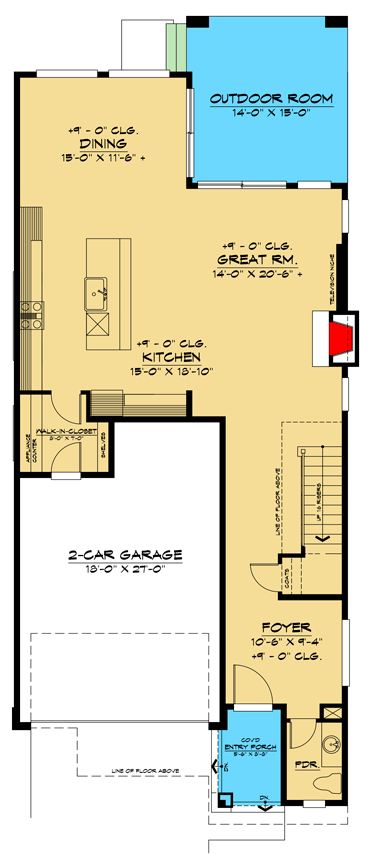

Main Level
floor plan image Main Level

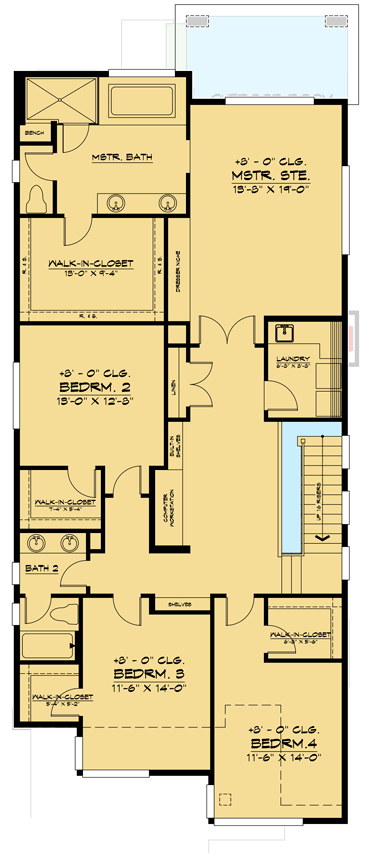

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A blend of modern siding materials are topped by a sloped roof to form this 2-story Northwest home plan.
  • An open living space consumes the main level which is oriented to take advantage of the back porch and surrounding views.
  • The heart of the home includes an island with a breakfast bar and the nearby mudroom makes unloading groceries that much easier.
  • Four bedrooms and the laundry room are located upstairs, with each bedroom including a walk-in closet.
  • French doors open to the master suite that features a spa bath and walk-in closet.
What's Included
  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,008 sq. ft.

1st Floor

1,199 sq. ft.

2nd Floor

1,809 sq. ft.

Porch, Front

43 sq. ft.

Porch, Rear

213 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

66' 0"

Max Ridge Height

23' 7"

Garage

Type

Attached

Area

465 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

1.5 on 12

Secondary Pitch

1 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Square Footage Breakdown

Total Heated Area

3,008 sq. ft.

1st Floor

1,199 sq. ft.

2nd Floor

1,809 sq. ft.

Porch, Front

43 sq. ft.

Porch, Rear

213 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

66' 0"

Max Ridge Height

23' 7"

Garage

Type

Attached

Area

465 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

1.5 on 12

Secondary Pitch

1 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom
