Plan 801131PM

2-Story Transitional Duplex House Plan with Side By Side 1748 Square Foot 2 Bed Units

Heated S.F.
3,496
Units
2
Width
Depth

Floor Plan

Plan 801131PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 801131PM

M-F 9am-5pm EST |

1-203-761-8500

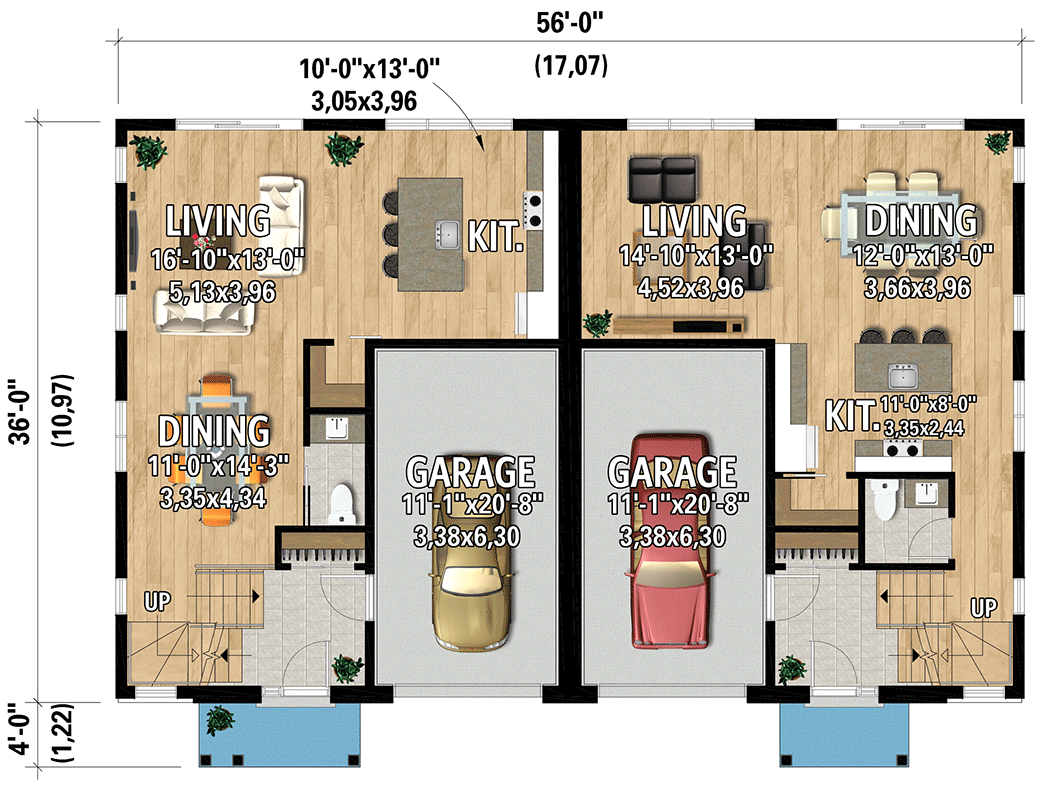

Main Level

Plan 801131PM: 2-Story Transitional Duplex House Plan with Side By Side 1748 Square Foot 2 Bed Units - Floor Plan - Main Level - New American, Transitional

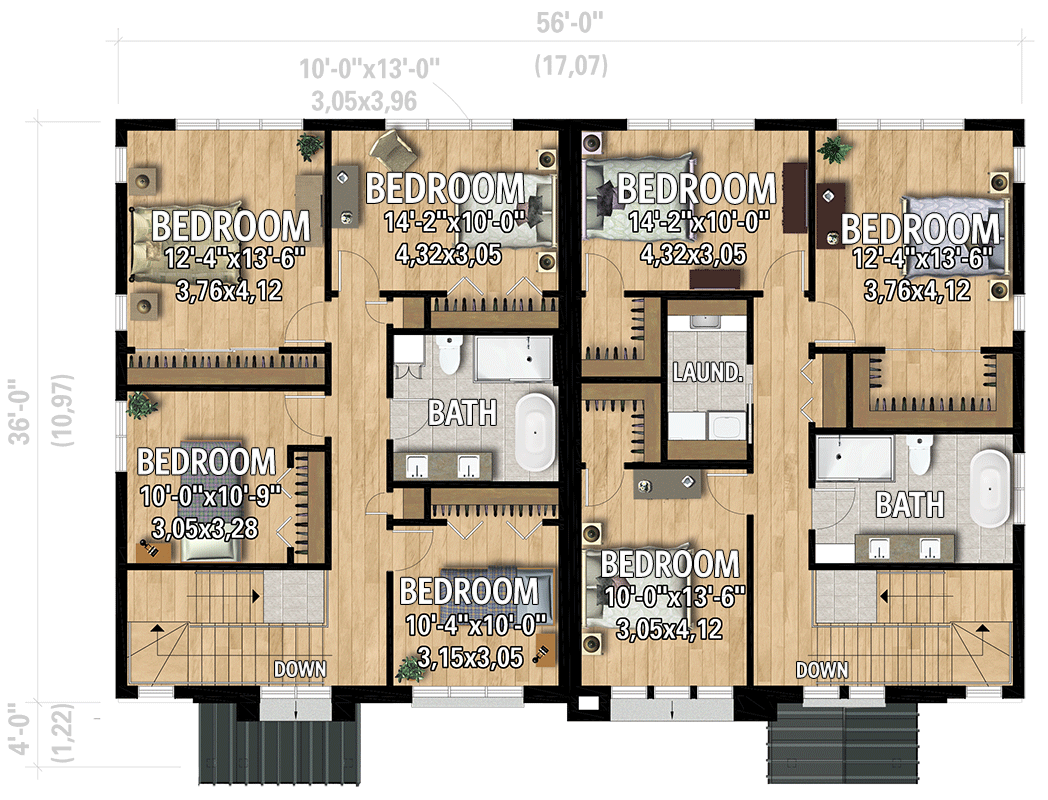

2nd Floor

Plan 801131PM: 2-Story Transitional Duplex House Plan with Side By Side 1748 Square Foot 2 Bed Units - Floor Plan - 2nd Floor - New American, Transitional

Plan Details

  • This Transitional-style duplex house plan gives you nearly identical side-by-side units, each with 1,748 square feet of heated living (740 square feet on the main floor and 1,008 square feet upstairs) and a 268 square foot 1-car garage. Each unit has 2 beds and 1.5 baths.
  • The first floor of both units is completely open-concept and has a washroom, the kitchen, the living room, the dining room and access to the garage.
  • On the second floor, the left unit has four bedrooms and a complete bathroom. The laundry area for this unit is in the basement.
  • The right unit has three bedrooms, all with walk-in closets, a laundry corner and a bathroom.
  • NOTE: Please allow 15 to 20 business days for plan delivery.
Unit A
Heated Area
1,748Sq. Ft.
740 Sq. Ft. 1st
1008 Sq. Ft. 2nd
Beds
4Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
268 Sq. Ft.
Dimensions
28'width
36'depth
36'height
Unfinished Areas
268 Sq. Ft. Garage
Unit B
Heated Area
1,748Sq. Ft.
1480 Sq. Ft. 1st
2016 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
268 Sq. Ft.
Dimensions
28'width
36'depth
36'height
Unfinished Areas
268 Sq. Ft. Garage

What's Included

Please note this plan is designed to the National Building Code of Canada.

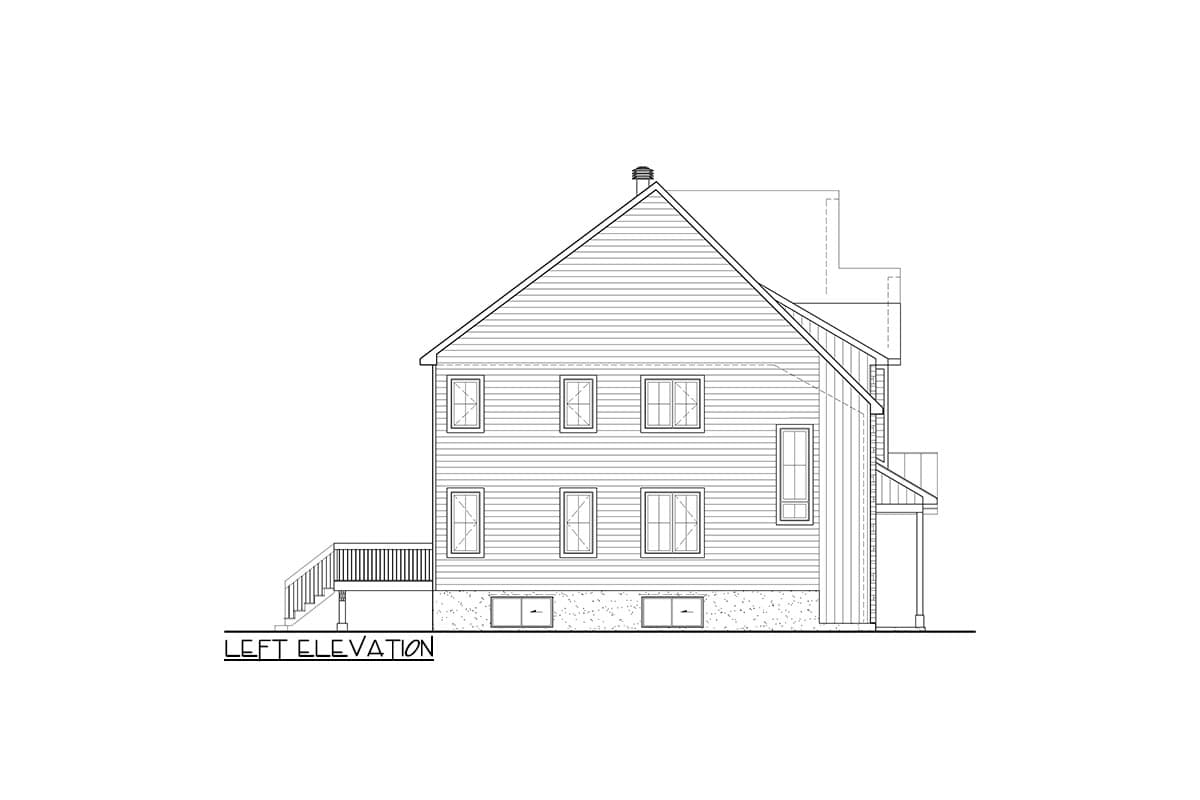

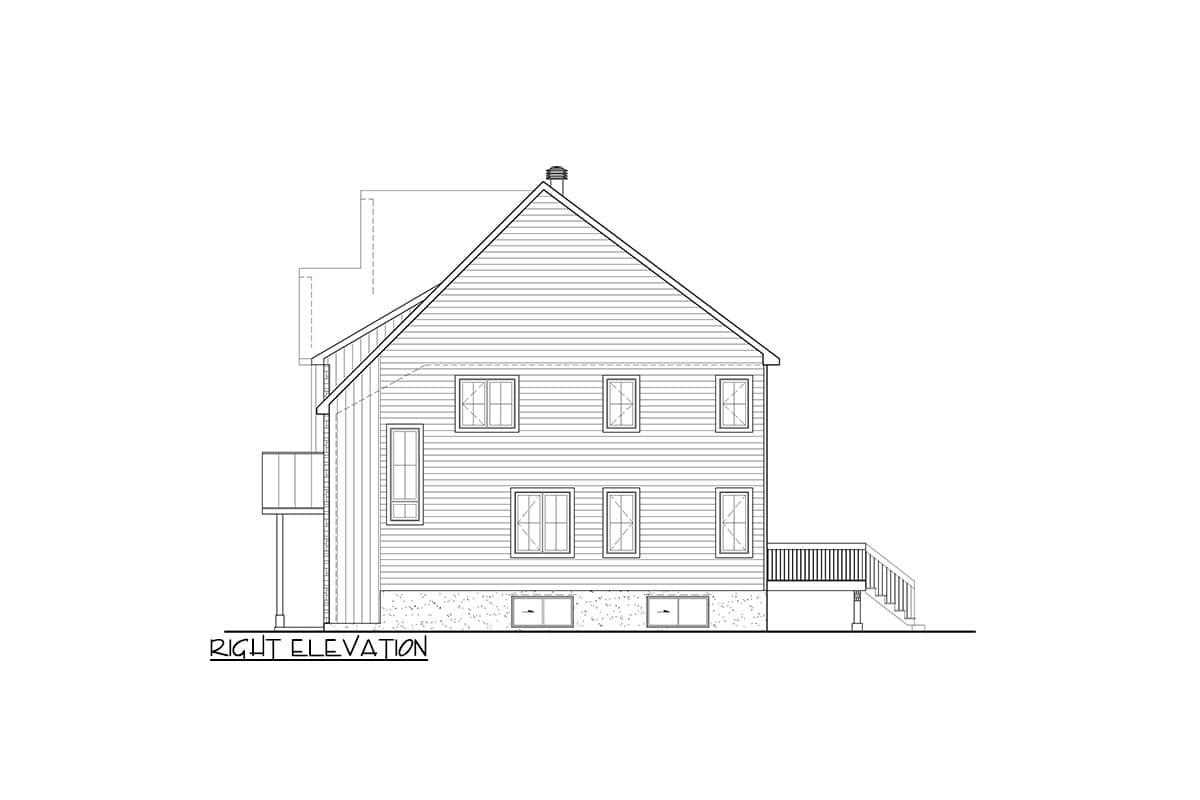

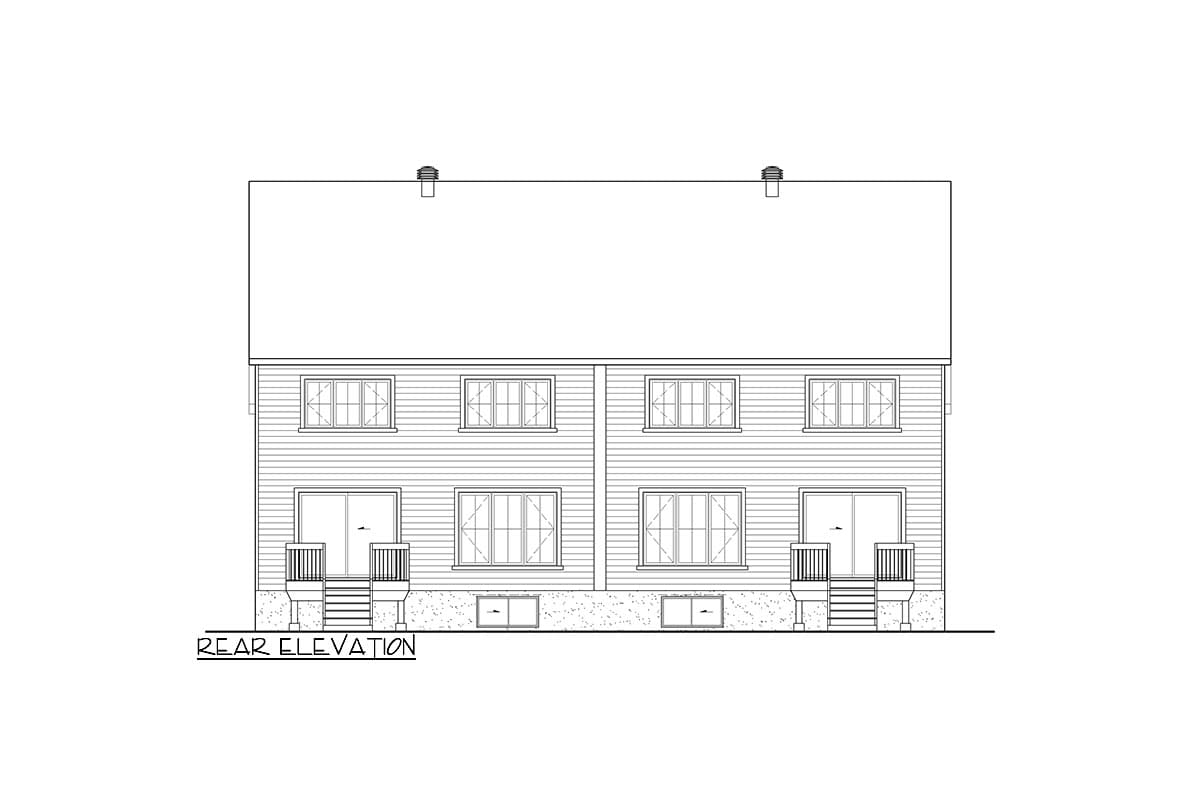

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,496 sq. ft.

1st Floor

1,480 sq. ft.

2nd Floor

2,016 sq. ft.

Beds/Baths

Bedrooms

7

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 0"

Depth

36' 0"

Max Ridge Height

36' 7"

Garage

Type

Attached

Area

536 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Architectural Style

New American

Transitional

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

3,496 sq. ft.

1st Floor

1,480 sq. ft.

2nd Floor

2,016 sq. ft.

Beds/Baths

Bedrooms

7

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 0"

Depth

36' 0"

Max Ridge Height

36' 7"

Garage

Type

Attached

Area

536 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Architectural Style

New American

Transitional

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Canadian House Plans
