Plan 801079PM 2-Story Transitional Farmhouse Plan with Over 3,000 Square Feet of Living Space

2-Story Transitional Farmhouse Plan with Over 3,000 Square Feet of Living Space

Plan 801079PM

  • 3,096

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Stories

  • 2

    Cars

  • With just over 3,000 square feet of living space, this 2-story Transitional Farmhouse plan gives you 4 bedrooms and 3.5 baths, as well as a 2-car garage.
  • The heart of the home is centrally located and anchored by an elongated island with seating for six. The open-concept layout creates a simple flow in between the shared spaces, while a home office tucked into the corner provides a quieter space for work / study.
  • Coat closets are conveniently located in the mudroom and main-entry vestibule to organize bags, shoes, and outerwear.
  • Four bedrooms reside upstairs, encircling the central laundry room.
  • The primary bedroom is filled with natural light and includes a pass-thru closet that leads to the 5-fixture bathroom.

Plan sets include the following:

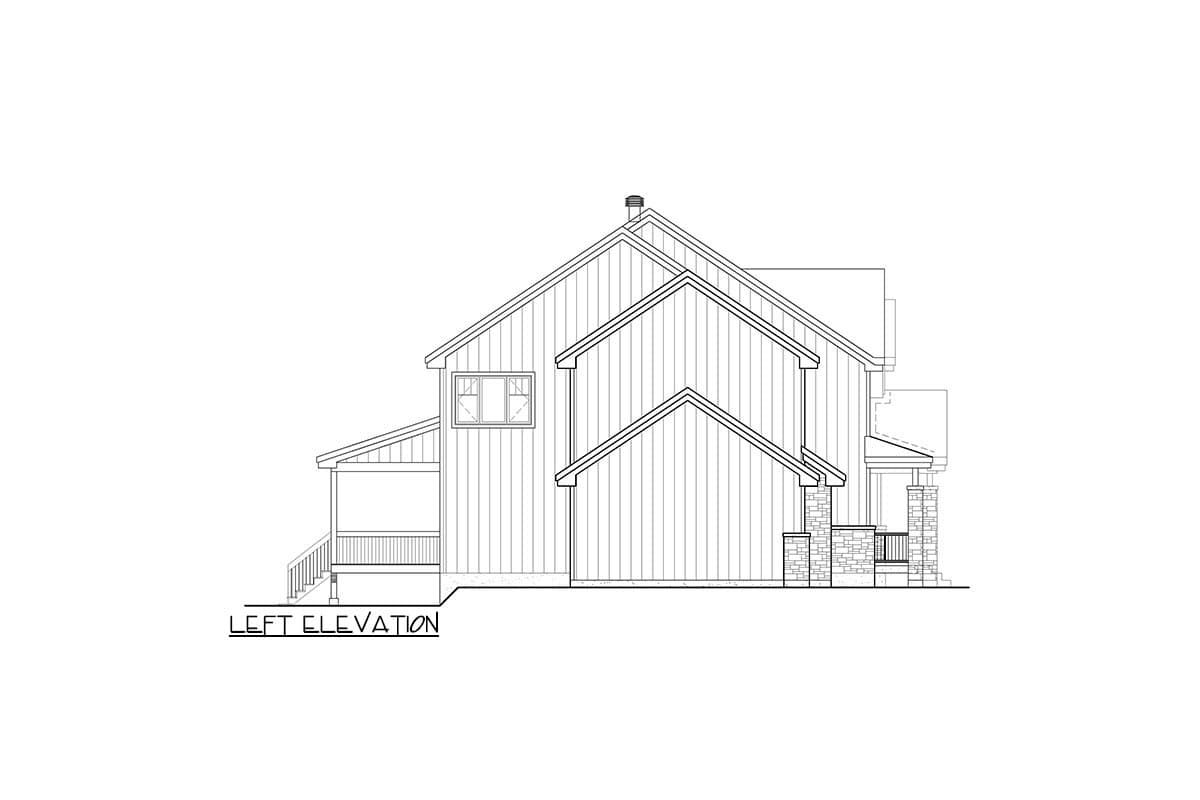

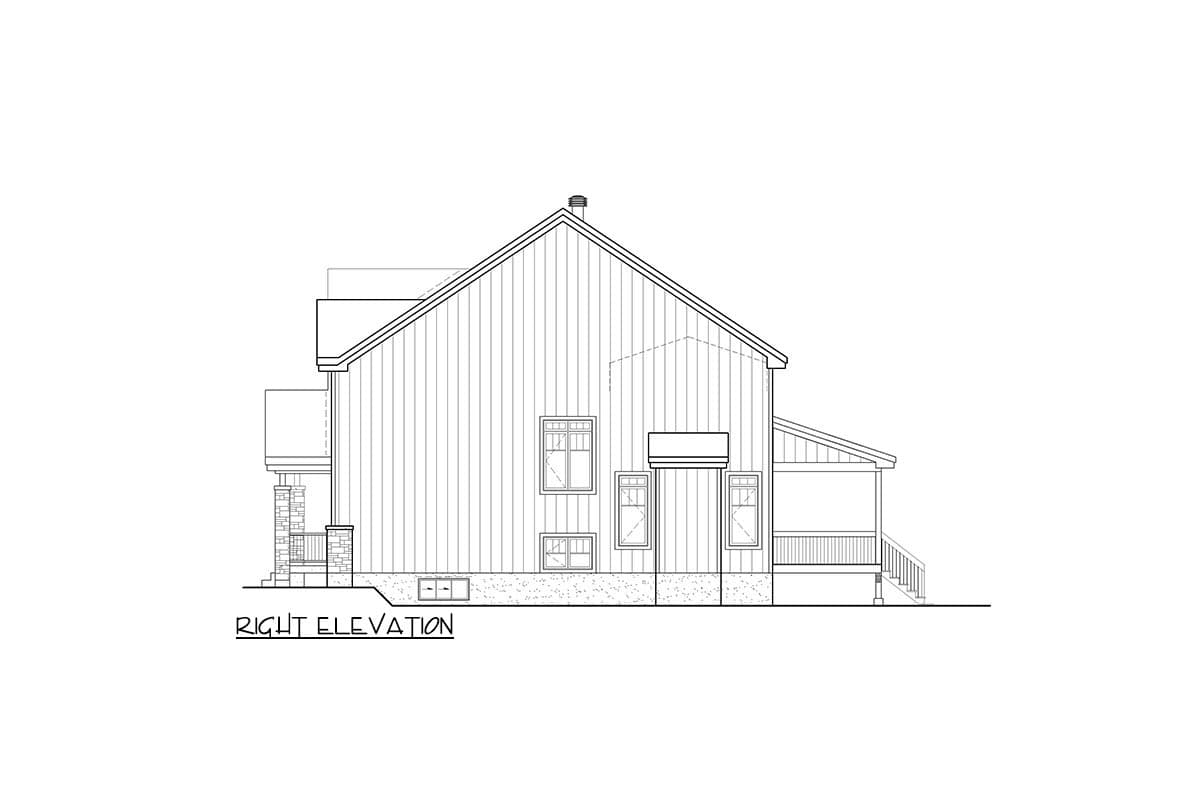

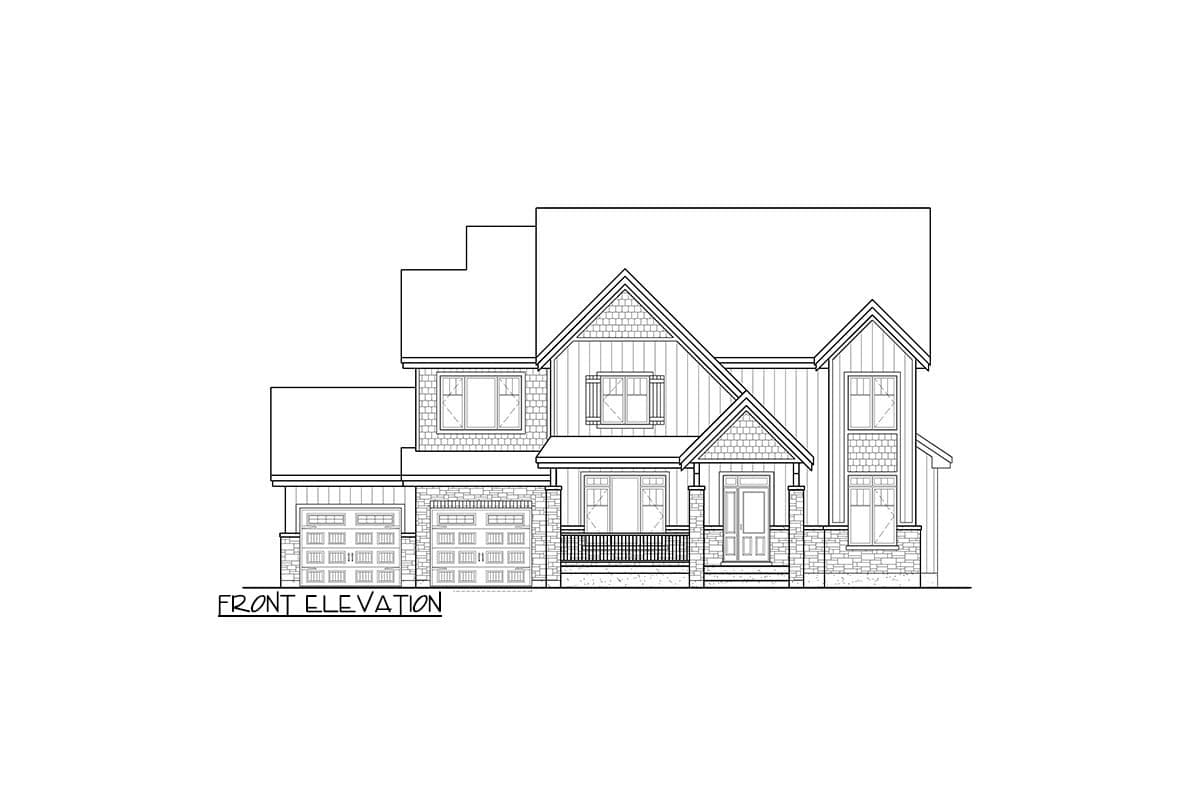

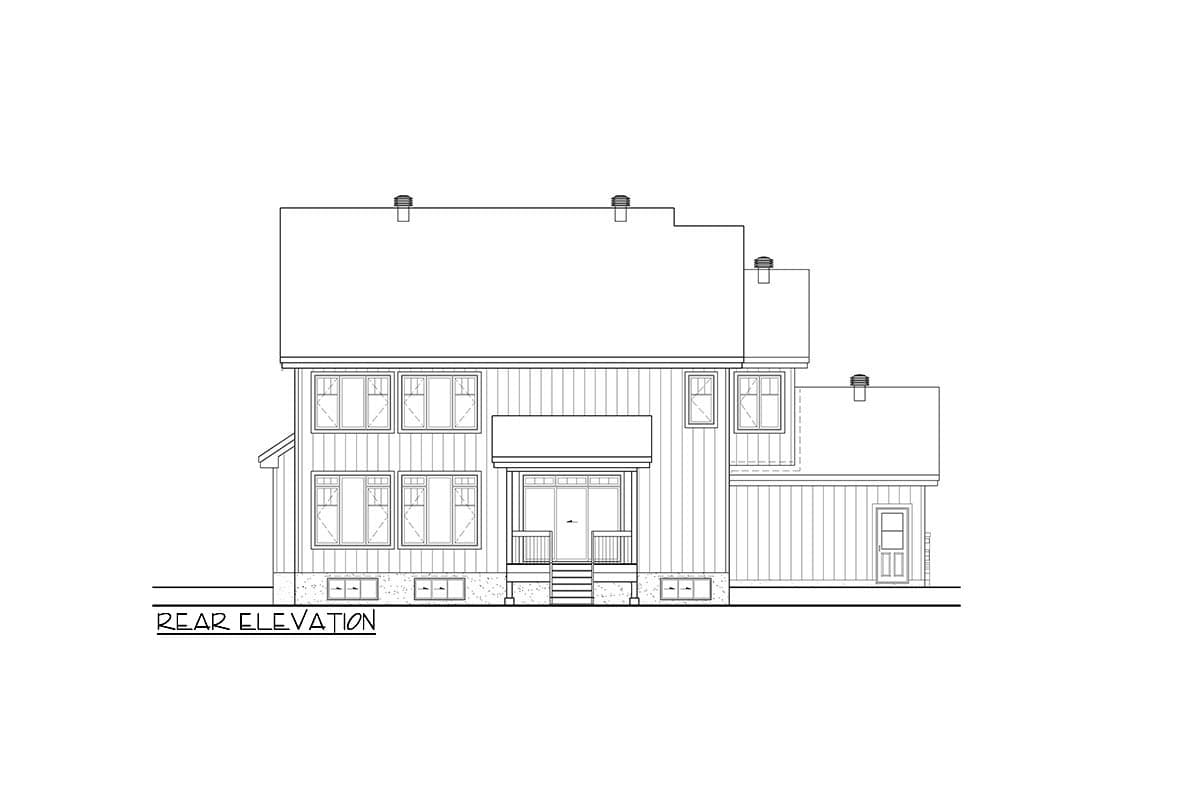

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

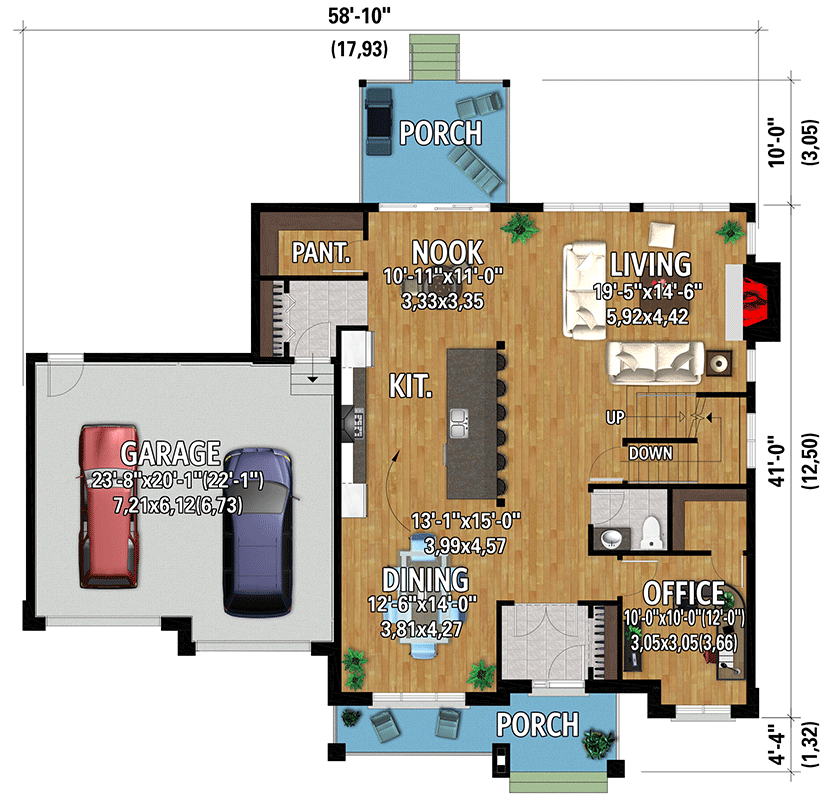

2-Story Transitional Farmhouse Plan with Over 3,000 Square Feet of Living Space - 801079PM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

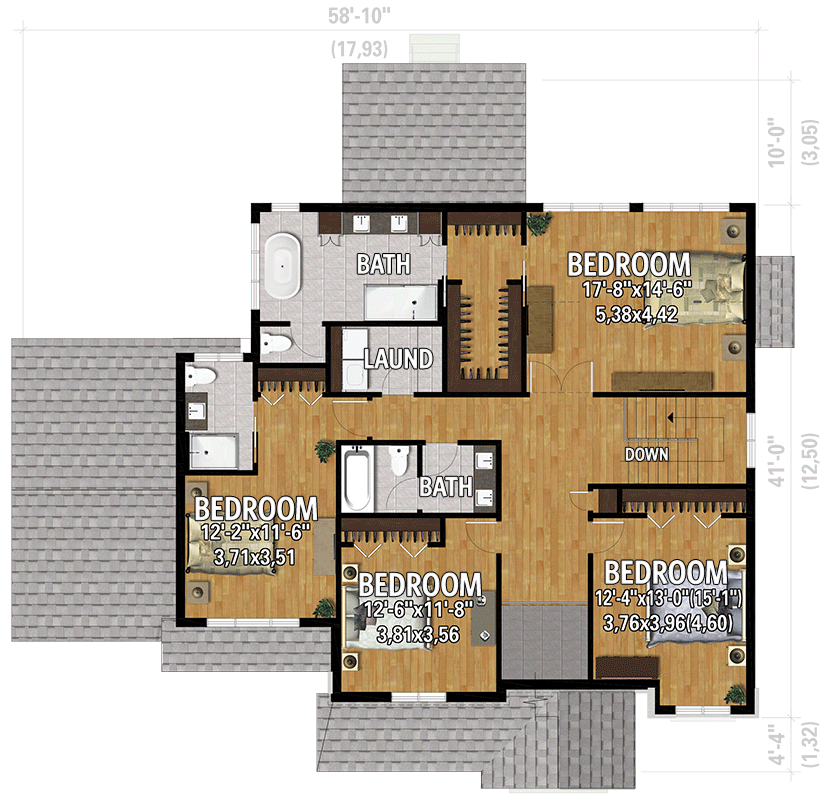

2-Story Transitional Farmhouse Plan with Over 3,000 Square Feet of Living Space - 801079PM floor plan - 2nd Floor

Plan details

2-Story Transitional Farmhouse Plan with Over 3,000 Square Feet of Living Space

  • 3,096

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • 5 Sets $1,395
  • 5 Sets + PDF $1,540
  • 5 Set + PDF + Materials List $1,680
  • CAD + PDF - Single-Build $2,370
  • View all purchase option online

About This Plan

  • With just over 3,000 square feet of living space, this 2-story Transitional Farmhouse plan gives you 4 bedrooms and 3.5 baths, as well as a 2-car garage.
  • The heart of the home is centrally located and anchored by an elongated island with seating for six. The open-concept layout creates a simple flow in between the shared spaces, while a home office tucked into the corner provides a quieter space for work / study.
  • Coat closets are conveniently located in the mudroom and main-entry vestibule to organize bags, shoes, and outerwear.
  • Four bedrooms reside upstairs, encircling the central laundry room.
  • The primary bedroom is filled with natural light and includes a pass-thru closet that leads to the 5-fixture bathroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,096 sq. ft.
  • 1st Floor: 1,424 sq. ft.
  • 2nd Floor: 1,672 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 10"
  • Depth: 41' 0"
  • Max ridge height: 34' 11"

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
