2-Story Transitional Home Plan with Large Media Room Above

Plan 623286DJ

This plan plants 3 trees

4,139
Heated s.f.
5
Beds
3.5
Baths
2
Stories
2
Cars

This impeccable two-story house plan seamlessly blends modern comfort, convenience, and privacy. The captivating exterior design hints at the elegance within, while the soaring two-story ceiling in the main floor's foyer sets the stage for what's to come.
Inside, the heart of the home unfolds with an open-concept great room, kitchen, and dining area. Perfect for gatherings, the great room is bathed in natural light through expansive doors offering picturesque views. The gourmet kitchen boasts top-of-the-line appliances, ample counter space, and a central island doubling as a breakfast bar.
A walk-in pantry and a convenient mudroom with a bench and locker system add functionality. An attached two-car garage ensures easy access.
The main floor also features a secluded in-law suite and a cozy study. Upstairs, the master suite offers relaxation with a spacious bedroom, walk-in closet, and a luxurious ensuite bathroom.
Three additional bedrooms share a well-appointed hall bathroom. The second floor boasts a generous media room, perfect for entertainment.

Each plan set includes:

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical wall section
Typical Stair section
Cabinets are shown on all plans.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

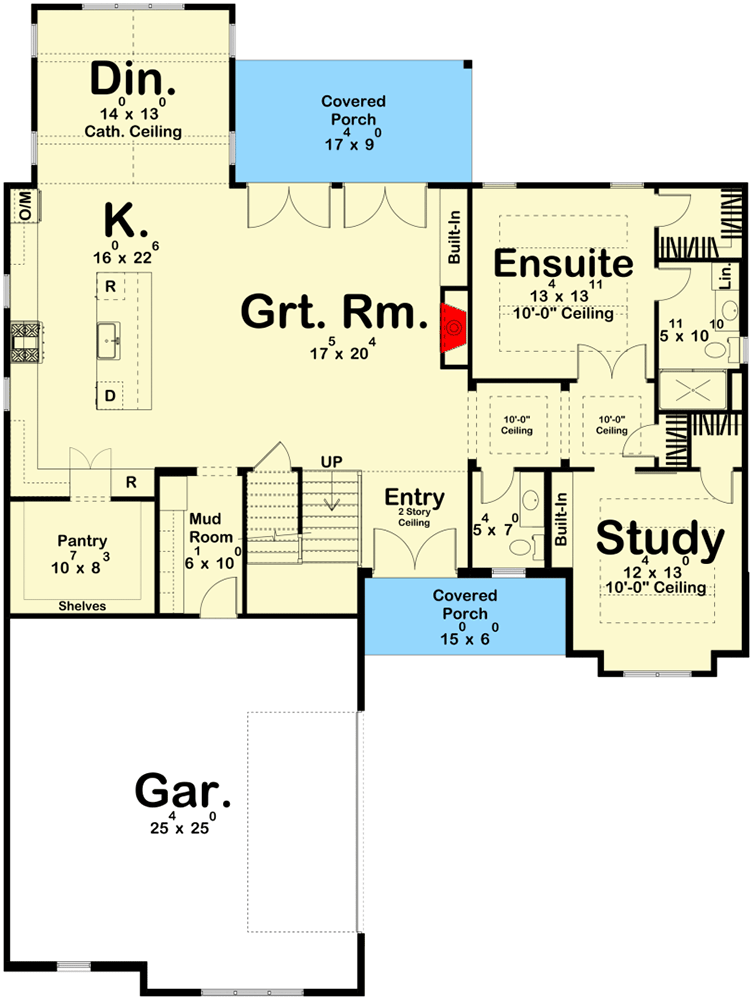

2-Story Transitional Home Plan with Large Media Room Above - 623286DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

2-Story Transitional Home Plan with Large Media Room Above - 623286DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 4,139 sq. ft.
1st Floor: 1,898 sq. ft.
2nd Floor: 2,241 sq. ft.

Porch, Combined: 246 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Optional Foundations: Walkout, Crawl, Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 54' 0"
Depth: 72' 0"
Max ridge height: 32' 0"

Garage

Type: Attached
Area: 691 sq. ft.
Count: 2 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 6 on 12

Architectural Style

Special features
