2-Story Transitional House Plan with Laundry On Both Floors - 2891 Sq Ft
Heated S.F.
2,891
Beds
5-7
Baths
3.5 - 5.5
Stories
2
Cars
3
Tour
Videos
What's Included
Floor Plan
PRINT PLANS

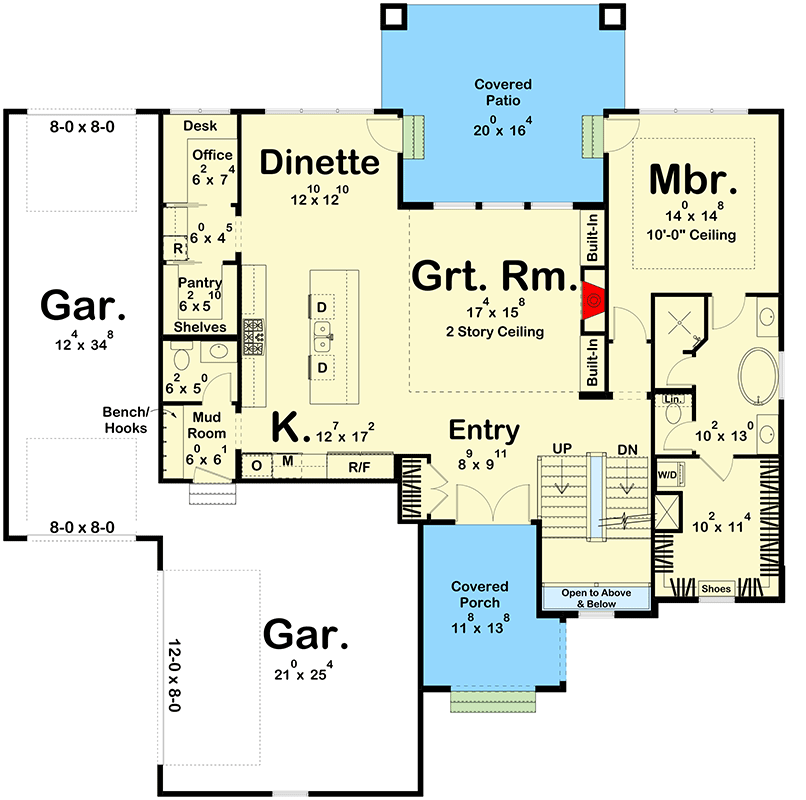

Main Level
Reverse Floor Plan
2-Story Transitional House Plan with Laundry On Both Floors - 2891 Sq Ft - 623315DJ floor plan - Main Level

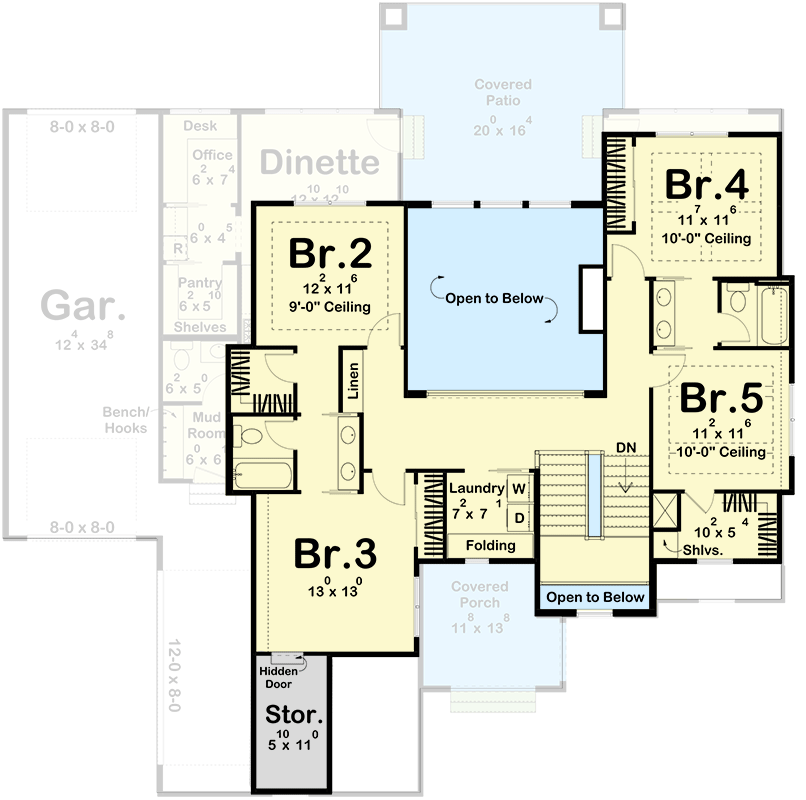

2nd Floor
Reverse Floor Plan
2-Story Transitional House Plan with Laundry On Both Floors - 2891 Sq Ft - 623315DJ floor plan - 2nd Floor

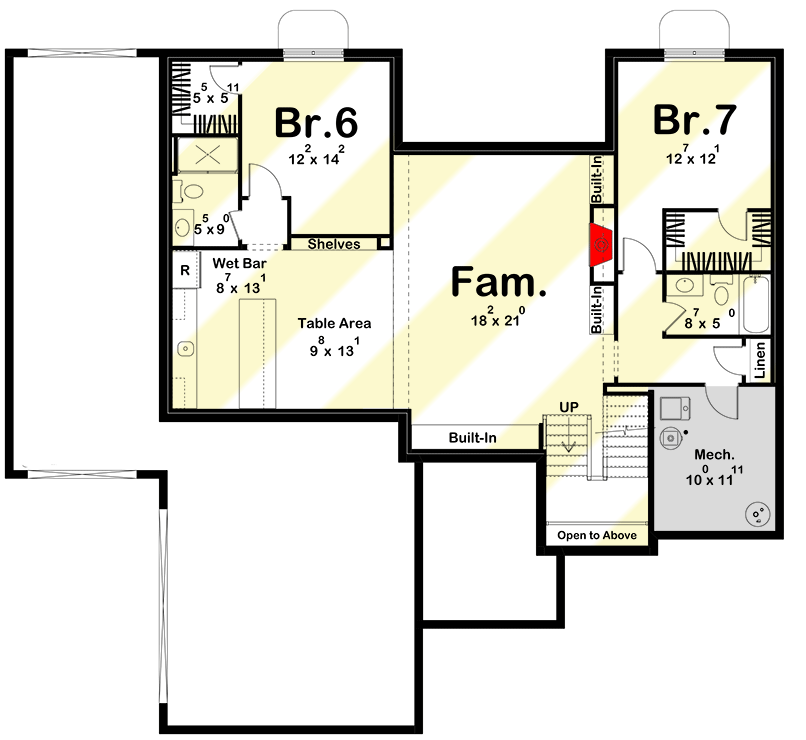

Finished Lower Level Layout Option (+$295)
Reverse Floor Plan
2-Story Transitional House Plan with Laundry On Both Floors - 2891 Sq Ft - 623315DJ floor plan - Finished Lower Level Layout Option (+$295)
Plan Details
  • This 2-story Transitional house plan gives you 5 beds with the master on main and 4 upstairs bedrooms with 2 Jack and Jill baths and a total of 2891 square feet of heated living. Laundry on both floors - including a unit in the master suite - is a great convenience in this beautiful house plan.
  • As you step through the French doors into the foyer, you are greet with views of the open concept main area featuring a 2-story great room with fireplace, an island kitchen and a dining space with outdoor access.
  • The living area is designed for relaxation and socializing, with a cozy fireplace. The high ceilings and thoughtfully placed windows create an airy ambiance.
  • The master bedroom features large windows and outdoor access, while the en-suite bathroom is a spa-like retreat with a luxurious soaking tub, a walk-in shower, and dual vanities.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
