2030 Square Foot Contemporary 4-Bed House Plan with Open Concept Main Floor
Heated S.F.
2,030
Beds
4
Baths
2.5
Stories
2
What's Included
Plan Details
  • This light-bathed contemporary house plan gives you 4 beds - 1 on the main floor and 3 on the walkout basement - and 2,030 square feet of heated living.
  • The open-concept ground floor gets amazing natural light and enjoys views through the large windows in the master suite and the dining room.
  • An island in the kitchen seats up to four comfortably and is open to the dining room living rooms. A fireplace separates the dining room and the living room.
  • A private bathroom and a walk-in closet are connected to the master bedroom. A shower room with a washer and dryer completes the floor.
  • Sliding doors in the living room take you to a deck with stairs taking you down to the yard.
  • The finished walkout level has sliding doors that open to the family room.
  • NOTE: Please allow 15 business days for plan delivery.
What's Included

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

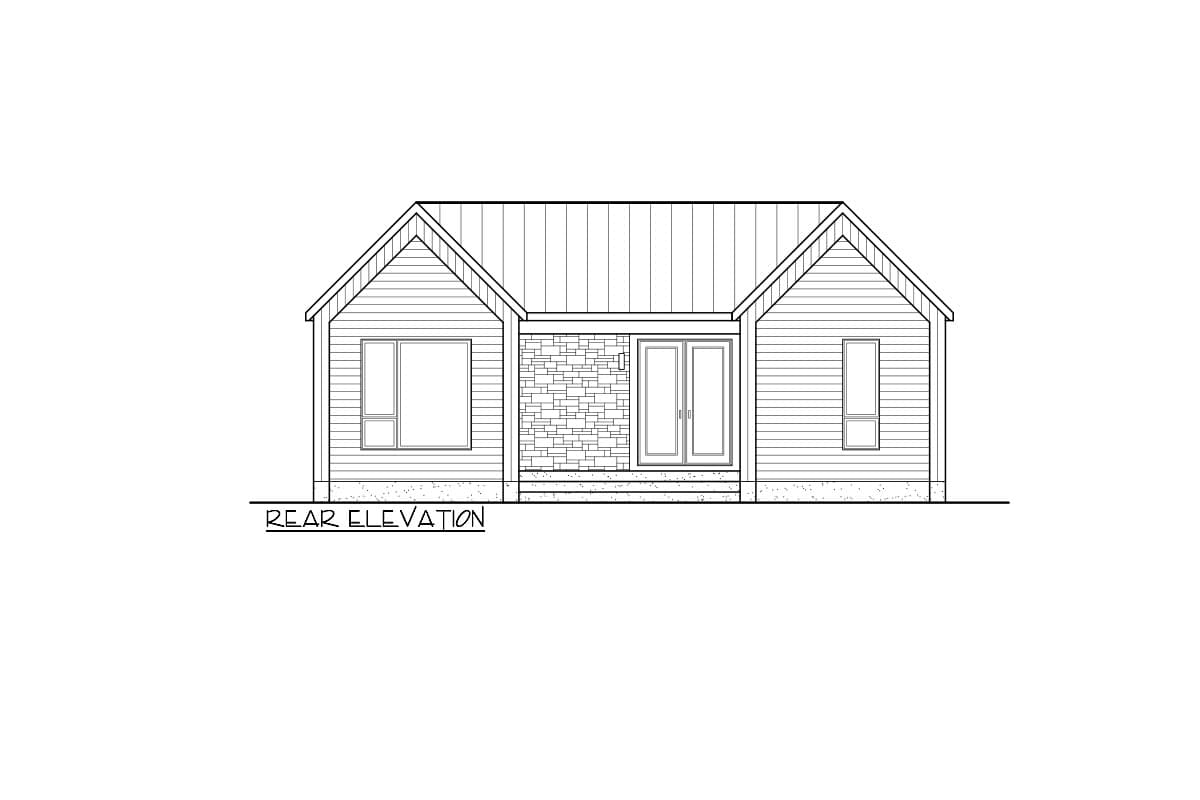

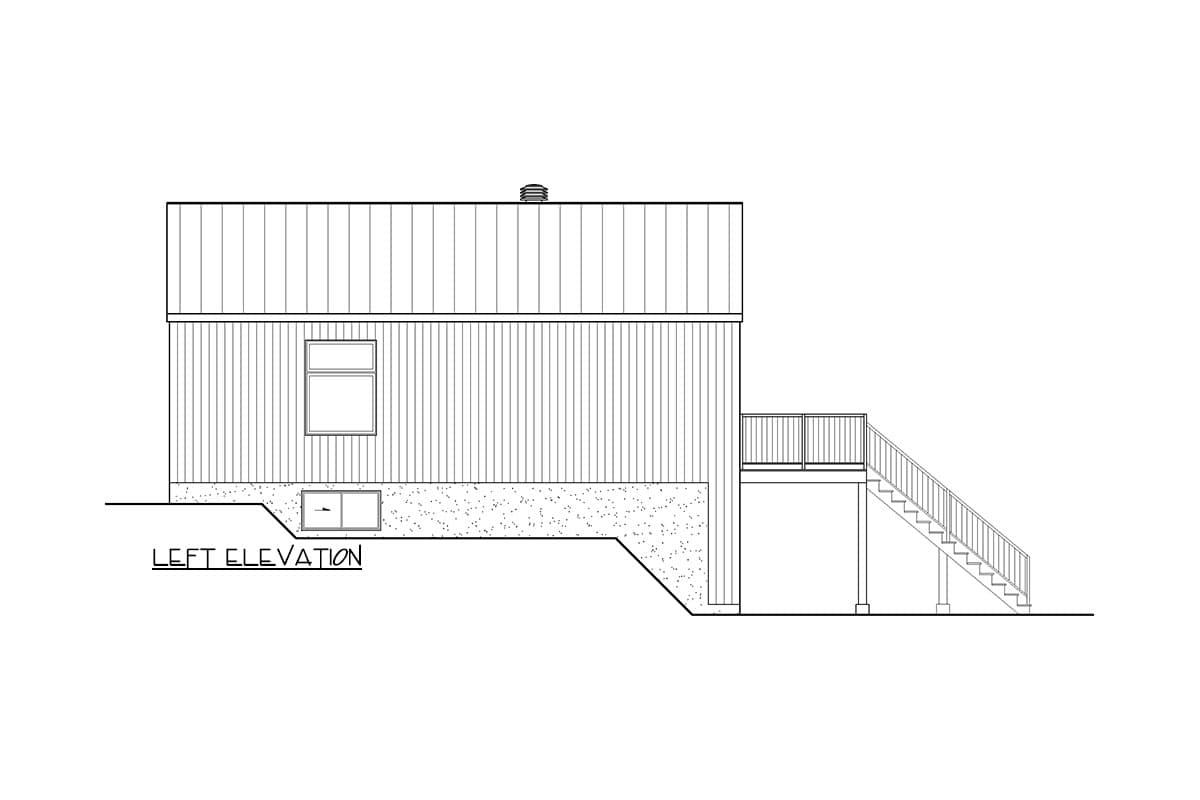

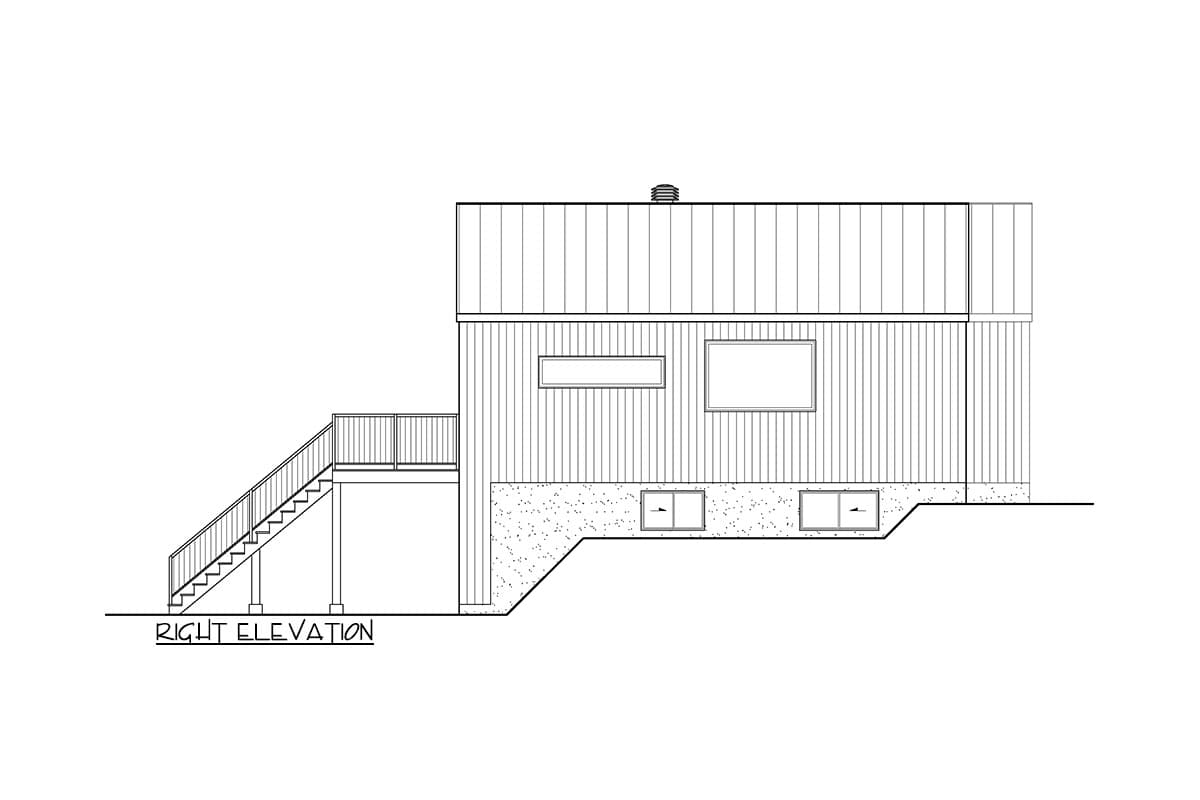

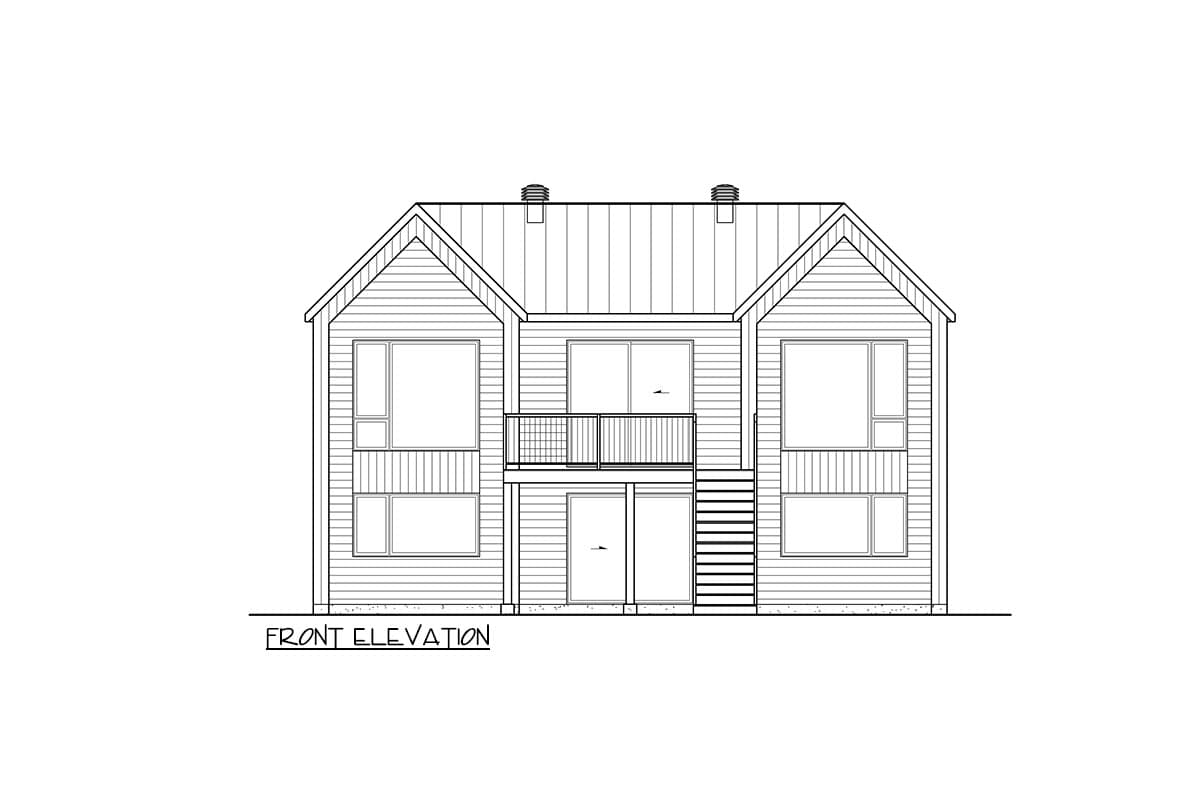

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

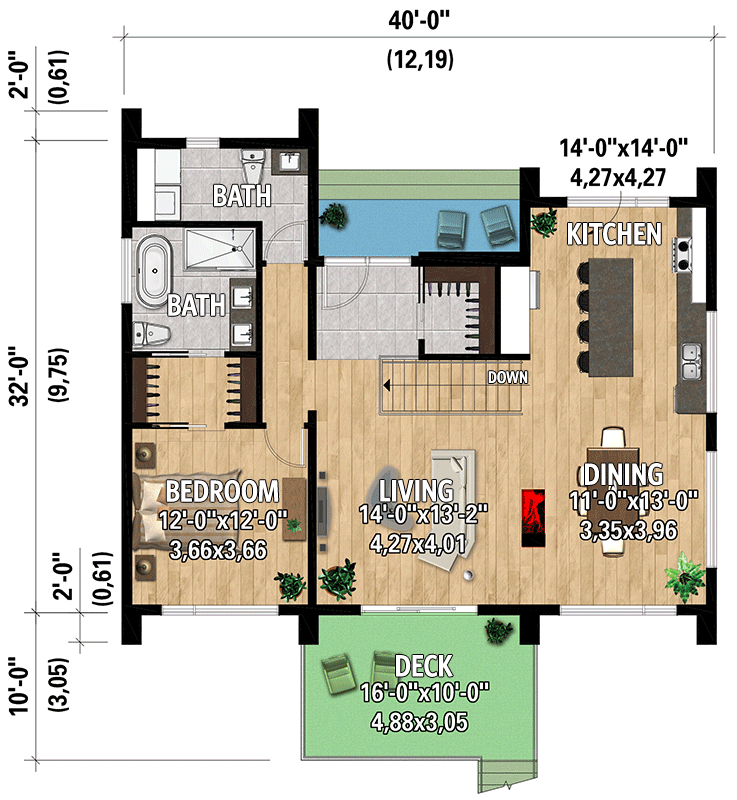

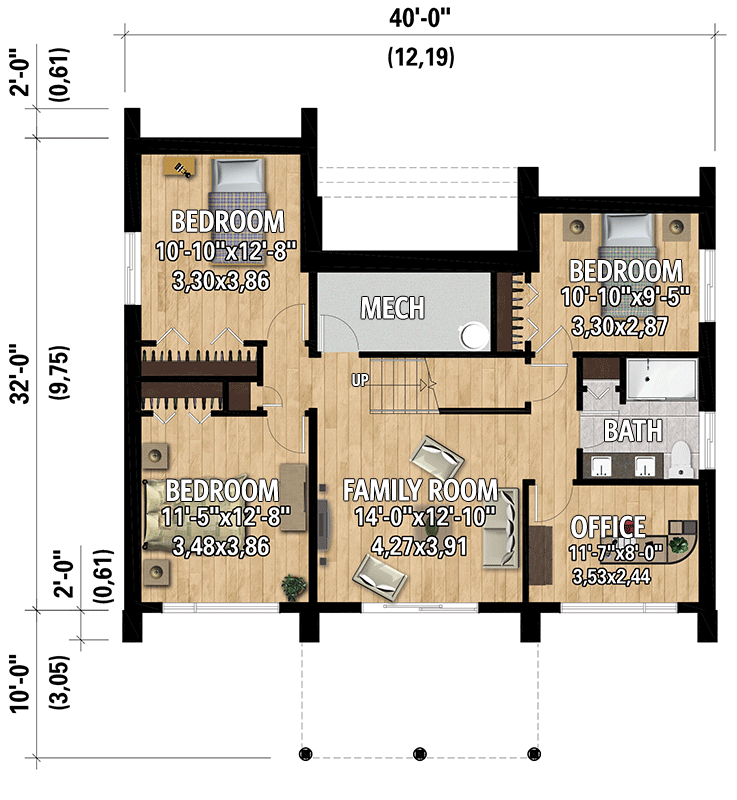

  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
