2062 Square Foot Split Bedroom Craftsman House Plan

Plan 54036LK

2,062
Heated s.f.
3
Beds
2
Baths
1
Stories
2
Cars

This 2,062 square foot one-story mountain Craftsman house plan has a split bed layout and gives you 3 bedrooms, 2 baths and a 2-car garage. Porches front and back extend your enjoyment to shady fresh air spaces.
Entry through the front door which is centered on the porch and discover a wide open floor plan with nothing obstructing your view through to the back of the great room. Dormers to either side of the center gable covered entry let light into this space.
The kitchen has a large island and a walk-in pantry that is located near the garage entrance, making unloading groceries a breeze.
The master suite occupies the entire right side of the home and has outdoor access, a sitting area, a large walk-in closet and a five-fixture bath. Across the home, Beds 2 and 3 share a bath.
Related Plan: Get an alternate exterior with house plan 54037LK.

Each plan set includes the following:

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

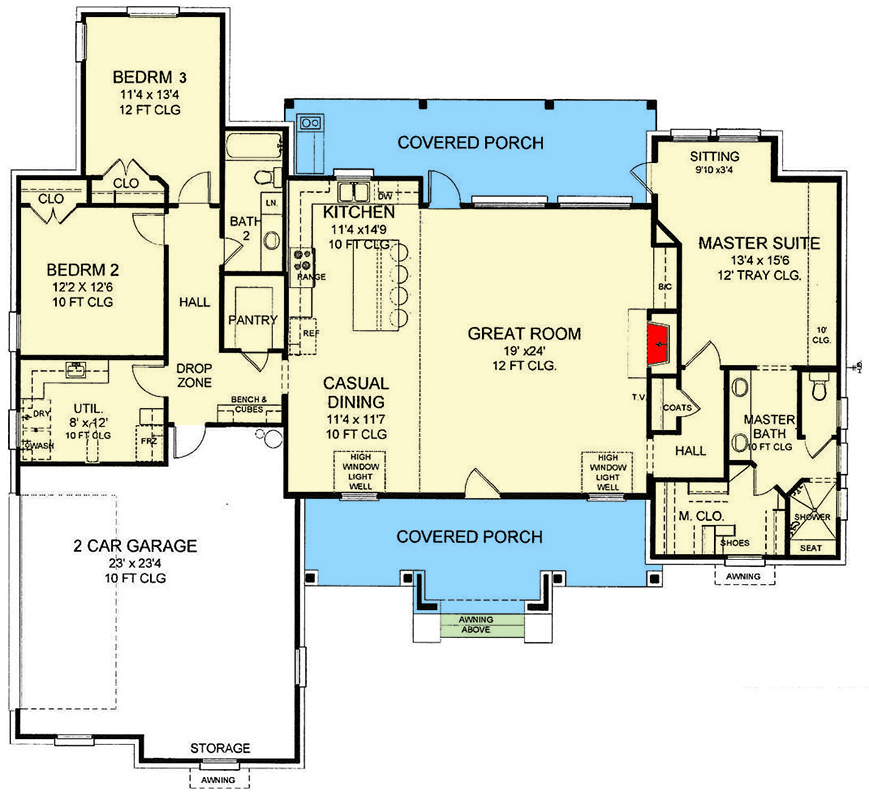

2062 Square Foot Split Bedroom Craftsman House Plan - 54036LK floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 2,062 sq. ft.
1st Floor: 2,062 sq. ft.

Porch, Combined: 482 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2

Foundation Type

Standard Foundations: Slab

Optional Foundations: Crawl, Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 70' 0"
Depth: 64' 0"
Max ridge height: 25' 0"

Garage

Type: Attached
Area: 641 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 10' 0"

Roof Details

Primary Pitch: 8 on 12
Secondary Pitch: 10 on 12

Framing Type: Stick
