Plan 54037LK 2066 Square Foot 3 Bed Craftsman House Plan with Single Floor Living

2,066 3 2 1 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2066 Square Foot 3 Bed Craftsman House Plan with Single Floor Living

Plan 54037LK

  • 2,066

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 2,066 square foot one-story Craftsman house plan has a split bed layout and gives you 3 bedrooms, 2 baths and a 2-car garage. Porches front and back extend your enjoyment to shady fresh air spaces.
  • Entry through the front door which is centered on the porch and discover a wide open floor plan with nothing obstructing your view through to the back of the great room with 11' tray ceiling. Windows line the back wall and a door takes you to the back porch.
  • The kitchen has a large island and a walk-in pantry that is located near the garage entrance, making unloading groceries a breeze.
  • The master suite occupies the entire right side of the home and has outdoor access, a sitting area, a large walk-in closet and a five-fixture bath. Across the home, Beds 2 and 3 share a bath.
  • Related Plan: Get an alternate exterior with house plan 54036LK.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
  • ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
  • BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
  • INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
  • NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

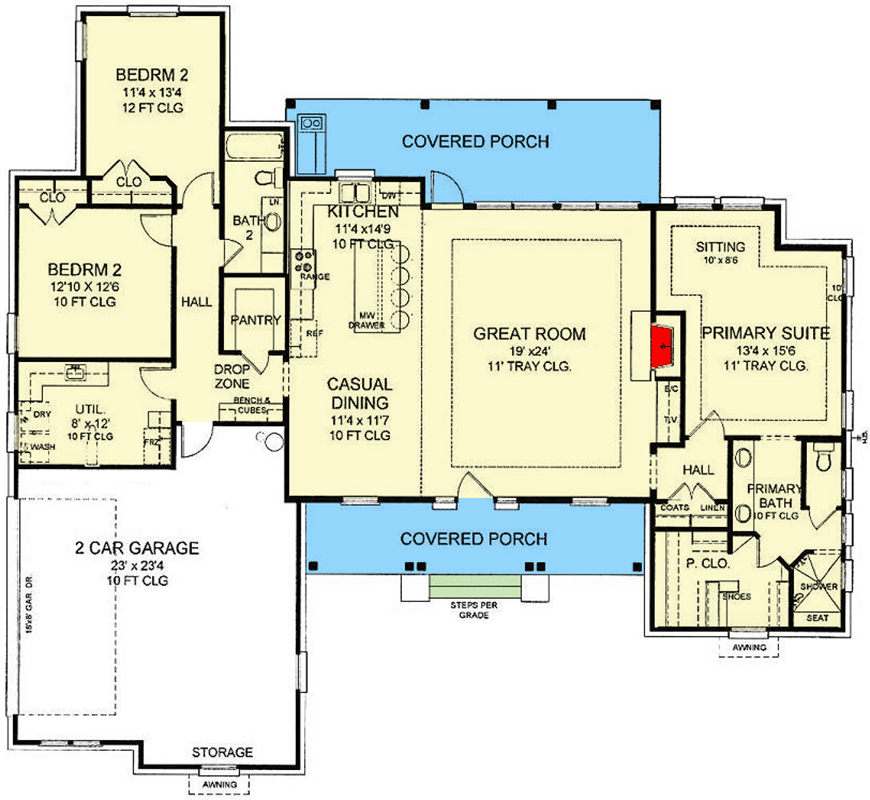

2066 Square Foot 3 Bed Craftsman House Plan with Single Floor Living - 54037LK floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

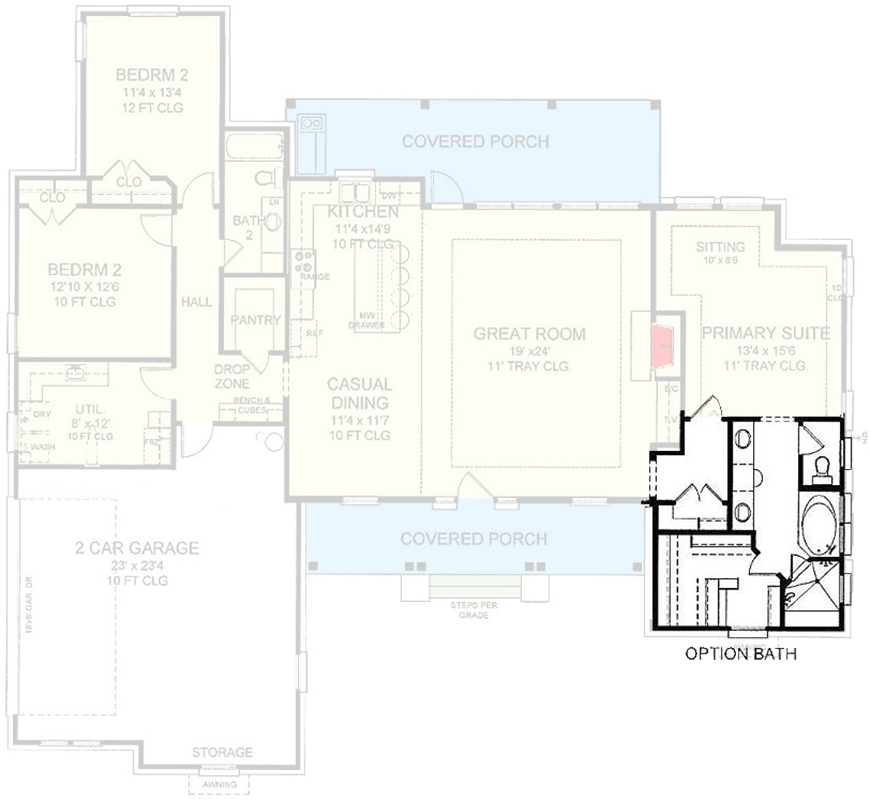

2066 Square Foot 3 Bed Craftsman House Plan with Single Floor Living - 54037LK floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,066 sq. ft.
  • 1st Floor: 2,066 sq. ft.
  • Porch, Combined: 416 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 0"
  • Depth: 64' 0"

Garage

  • Type: Attached
  • Area: 641 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

2066 Square Foot 3 Bed Craftsman House Plan with Single Floor Living

  • 2,066

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • CAD - Single-Build $2,995
  • View all purchase option online

About This Plan

  • This 2,066 square foot one-story Craftsman house plan has a split bed layout and gives you 3 bedrooms, 2 baths and a 2-car garage. Porches front and back extend your enjoyment to shady fresh air spaces.
  • Entry through the front door which is centered on the porch and discover a wide open floor plan with nothing obstructing your view through to the back of the great room with 11' tray ceiling. Windows line the back wall and a door takes you to the back porch.
  • The kitchen has a large island and a walk-in pantry that is located near the garage entrance, making unloading groceries a breeze.
  • The master suite occupies the entire right side of the home and has outdoor access, a sitting area, a large walk-in closet and a five-fixture bath. Across the home, Beds 2 and 3 share a bath.
  • Related Plan: Get an alternate exterior with house plan 54036LK.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,066 sq. ft.
  • 1st Floor: 2,066 sq. ft.
  • Porch, Combined: 416 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 0"
  • Depth: 64' 0"

Garage

  • Type: Attached
  • Area: 641 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Stick
Plan 54037LK
View this and more for this plan by visiting www.architechtecturaldesigns.com/54037LK
|
