2146 Square Foot 2-Bed Lake House Plan with Wraparound Deck and Vaulted Open Floor Plan
Heated S.F.
2,146
Beds
2-5
Baths
2.5 - 4.5
Stories
1
Cars
2
Tour
Flyer
Videos
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

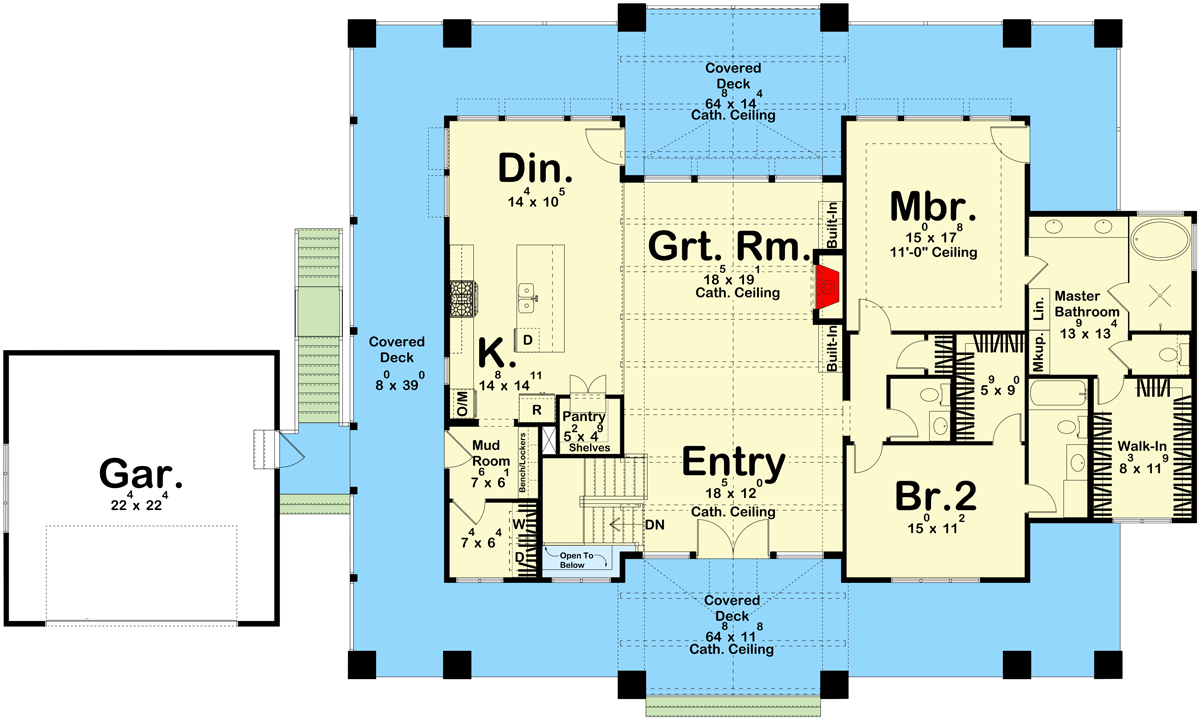

2146 Square Foot 2-Bed Lake House Plan with Wraparound Deck and Vaulted Open Floor Plan - 623249DJ floor plan - Main Level
Optional Lower Level
Reverse Floor Plan
2146 Square Foot 2-Bed Lake House Plan with Wraparound Deck and Vaulted Open Floor Plan - 623249DJ floor plan - Optional Lower Level
Plan Details
  • This 2 bed, 2 bath mountain or lake house plan gives you 2,146 square feet of heated living space and an additional 1,684 square feet of covered outdoor space. A 529 square foot semi-attached garage has room for two cars and is connected by a covered breezeway. The exterior has wood columns with stone bases supporting the roof of the outdoor space that surrounds the home on three sides and the exterior is clad in shingles. Enter the home through the large covered and vaulted entryway and your eyes are drawn to the exposed curved trusses above.
  • French doors open to a dramatic space that is open front to back that sits under a vaulted ceiling - the vault thoughtfully centered on the doors and extends through to the back deck - with exposed trusses.
  • The spacious kitchen is open to the dining room and great room and the combined area serves as a central hub in the home. The island doubles as a breakfast bar and the dining area has direct outdoor access.
  • The master bedroom has views to the back and access to the outdoors. The ensuite bath has two vanities, a spa-like soaking tub, a walk-in shower, private toilet and large walk-in closet. Bed 2 has its own bath and a walk-in closet.
  • Related Plan: Get a similar version with house plan 62358DJ (3,013 sq. ft.).
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2146 Square Foot 2-Bed Lake House Plan with Wraparound Deck and Vaulted Open Floor Plan

  • 2,146

    Heated s.f.

  • 2-5

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,146 sq. ft.
  • 1st Floor: 2,146 sq. ft.

Dimensions

  • Width: 100' 0"
  • Depth: 58' 0"
  • Max ridge height: 23' 10"

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 529 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
