2200 Square Foot Transitional House Plan with Raised Study

Plan 421507CHD

  • 2,203

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 2-story Transitional house plan comes in at just 31'10" wide, making it great for narrower lots. It gives you 3 beds, 2.5 baths and 2,203 square feet and has a 2-car garage in back.
  • To the left of the foyer, steps lead to a raised study - a great place for you work from home needs - with a ceiling that is open to above.
  • The dining room gets great light from windows on two walls and has access to the kitchen past the walk-in pantry as well as to the living room with fireplace.
  • A large covered patio in back expands your living to the outdoors and has room for a grill and furniture.
  • Three bedrooms - all with walk-in closets - and two bathrooms, including the master bath with two vanities, completes the upstairs.
  • A 2-car detached garage gives you 470 square feet of storage space for your vehicles.
  • Related Plan: Get an alternate narrow house plan with raised study with house plan 421504CHD.

Each plan set includes the following:

  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

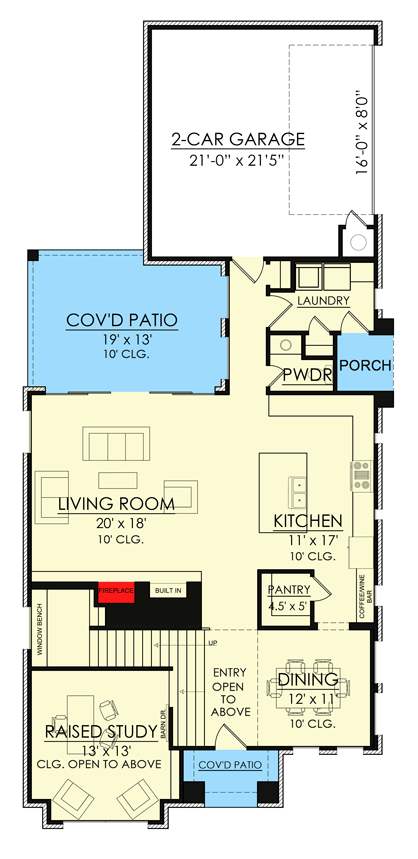

2200 Square Foot Transitional House Plan with Raised Study - 421507CHD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

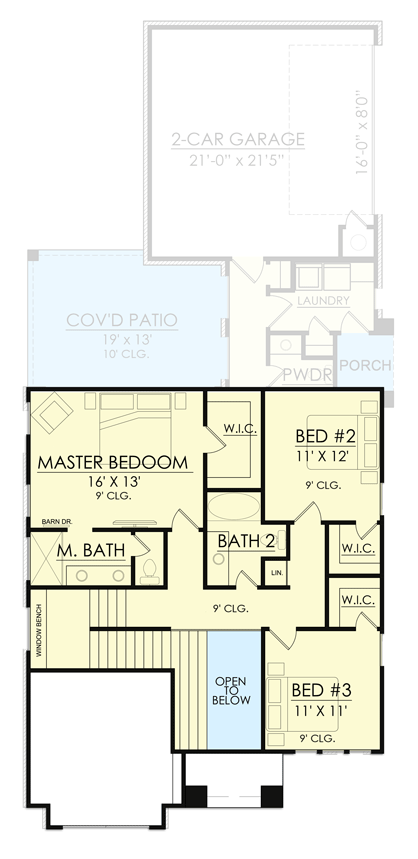

2200 Square Foot Transitional House Plan with Raised Study - 421507CHD floor plan - 2nd Floor
