Transitional Tudor House Plan Under 2900 Square Feet and Under 32-Feet Wide
Heated S.F.
2,889
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • This 2-story Transitional house plan comes in at just 31'7" wide, making it great for your narrow lot needs. It gives you 3 beds, 2.5 baths and 2,889 square feet and has a 2-car detached rear-facing garage.
  • Inside, a study is located at the stair landing giving you a private place for your work from home needs.
  • The dining room gets great light from the windows that meet seamlessly at the front-right corner and has access to the kitchen past the walk-in pantry as well as to the great room with fireplace.
  • A large covered patio in back expands your living to the outdoors and has room for a grill and furniture.
  • At the top of the stairs, a bonus room - factored into the total living area - can be used as a family or media room. The master suite is located in front and has a roomy walk-in closet located off the four-fixture bath. In back, two bedrooms share a bath.
  • A 2-car detached garage gives you 470 square feet of storage space for your vehicles.
  • Related Plan: Get an alternate version with an attached garage with house plan 421507CHD.

What's Included
  • Cover Page
  • Foundation Plan with Notes and Footing Details

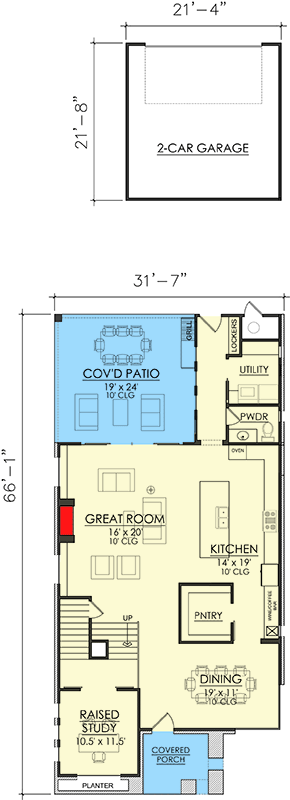

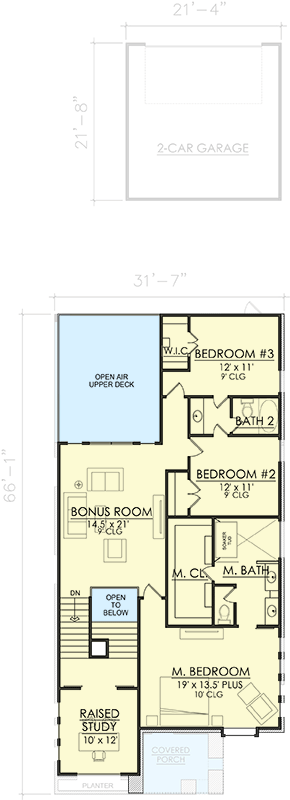

  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
