Plan 29920LDG

2300 Square Feet Mediterranean Home Plan with Optional Second Level

Heated S.F.
2,390
Beds
3 - 4
Baths
3.5
Stories
1
Cars
2

Floor Plan

Plan 29920LDG

Main Level
Main Level
2nd Floor
2nd Floor

Plan 29920LDG

M-F 9am-5pm EST |

1-203-761-8500

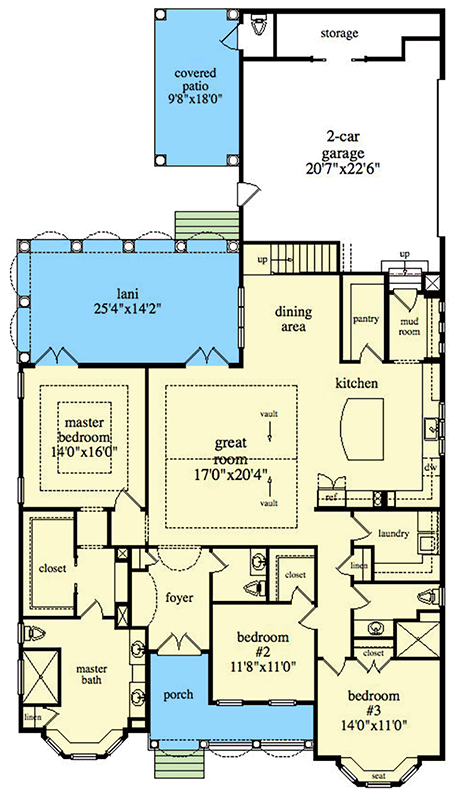

Main Level

Plan 29920LDG: 2300 Square Feet Mediterranean Home Plan with Optional Second Level - Floor Plan - Main Level - Florida-Style, Mediterranean, Southern

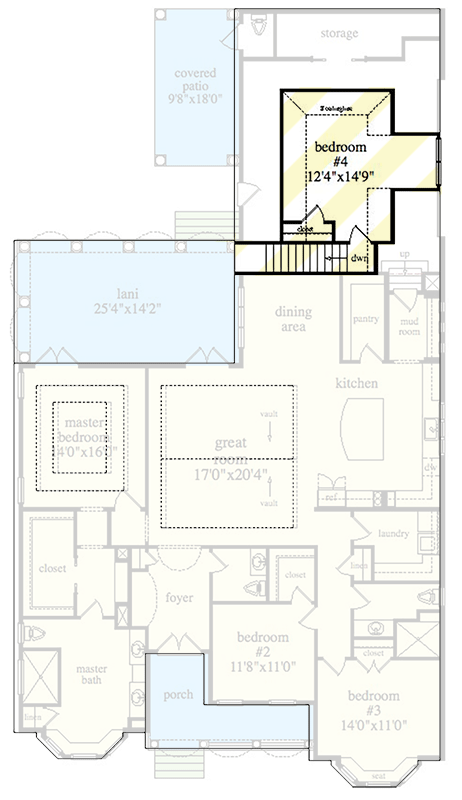

2nd Floor

Plan 29920LDG: 2300 Square Feet Mediterranean Home Plan with Optional Second Level - Floor Plan - 2nd Floor - Florida-Style, Mediterranean, Southern

Plan Details

  • This is a great ranch on slab with a stucco exterior. The garage is located in the rear of the house with side entry access for 2 cars.
  • It has a front covered porch, a rear covered patio and a Lani which is accessible from both the vaulted great room and master suite.
  • The open floor plan has a split bedroom layout meaning that the secondary bedrooms are located away from the master suite for privacy.
  • The kitchen is large and open to the vaulted great room and dining area. The plan also features a large walk-in pantry, a mud room and a laundry room.
  • The master bath has a large shower.
  • Optionally, there is a bonus room above the garage with is perfect for a fourth bedroom or an office.

What's Included

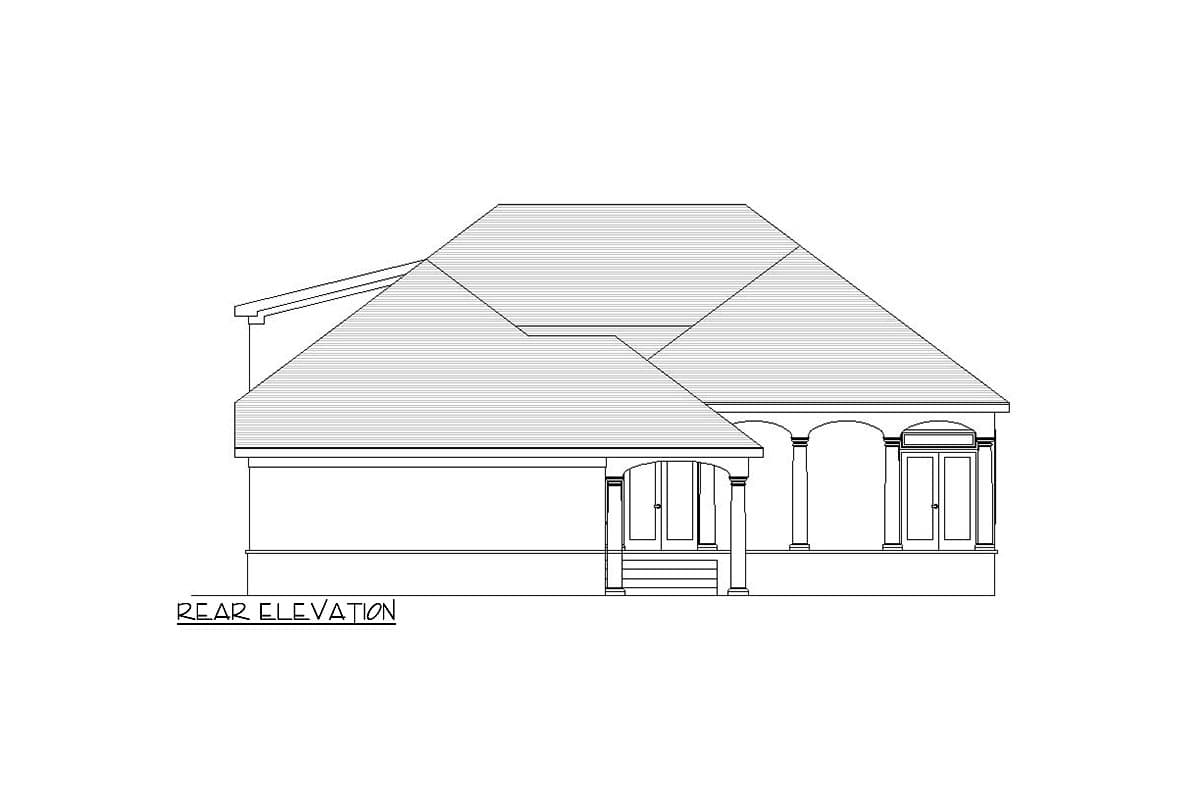

  • All Four Elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section (Typical Wall, Stairs (if applicable))
  • Typical Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,390 sq. ft.

1st Floor

2,390 sq. ft.

Bonus

260 sq. ft.

Porch, Front

130 sq. ft.

Porch, Combined

130 sq. ft.

Lanai

350 sq. ft.

Covered Patio

170 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 8"

Depth

88' 10"

Max Ridge Height

23' 4"

Garage

Type

Attached

Area

513 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick Or Truss

Architectural Style

Florida-Style

Mediterranean

Southern

Special Features

Bedrooms - Split

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,390 sq. ft.

1st Floor

2,390 sq. ft.

Bonus

260 sq. ft.

Porch, Front

130 sq. ft.

Porch, Combined

130 sq. ft.

Lanai

350 sq. ft.

Covered Patio

170 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 8"

Depth

88' 10"

Max Ridge Height

23' 4"

Garage

Type

Attached

Area

513 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick Or Truss

Architectural Style

Florida-Style

Mediterranean

Southern

Special Features

Bedrooms - Split

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry
