24' Wide 3 Bed House Plan with 2-Car Garage - 2219 Sq Ft

Name: Plan 72757DA: 24' Wide 3 Bed House Plan with 2-Car Garage - 2219 Sq Ft
Brand: Architectural Designs
SKU: 72757DA
Price: 2360.0 USD
Availability: InStock

Heated S.F.

2,219

Beds

Baths

Stories

Cars

Floor Plan

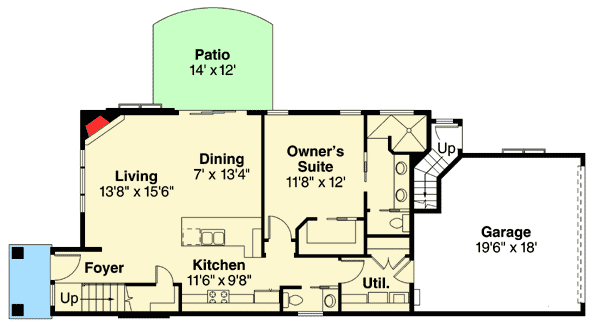

Main Level

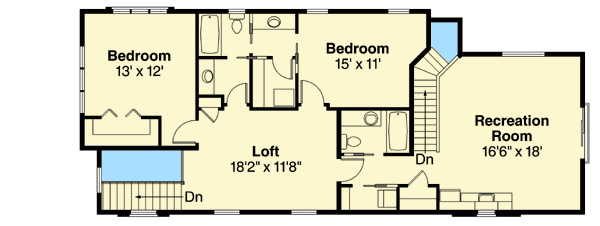

2nd Floor

Plan Details

This narrow lot house plan - just 24' wide - gives you 3 beds, 3 baths and 2,219 square feet of heated living space and 345 square foot 2-car garage.
Architectural Designs primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

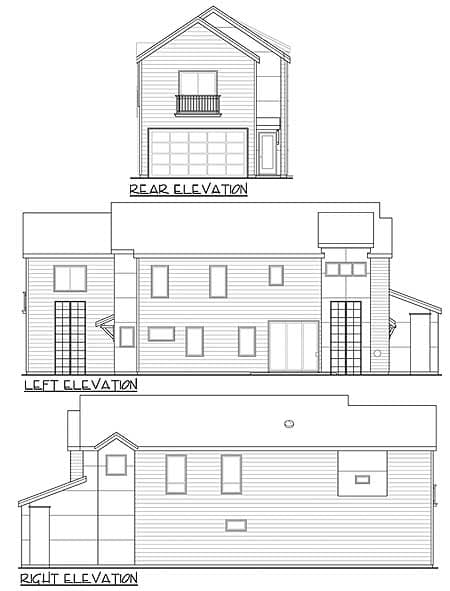

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
