2435 Square Foot 2-Bed Craftsman Home Plan with Vaulted Great and Dining Rooms
Heated S.F.
2,435
Beds
2
Baths
2.5
Stories
1
Cars
2
Tour
Flyer
What's Included
Plan Details
  • This 2465 square foot Craftsman home plan gives you one-level living with 2 beds, 2 full and 1 half baths, and a 2-car side-entry garage. A covered porch with a decorative shed dormer adds to the Craftsman appeal.
  • The great room and dining rooms are both vaulted and each open to the kitchen with large island with counter seating. Sliding doors in the dining room take you to the covered patio in back. A pocket office and roomy walk-in pantry are both conveniently located by the kitchn.
  • The master suite occupies the entire left side of the home. A five-fixture bath opens to the roomy walk-in closet which has direct laundry access. Across the home, the guest room has a walk-in closet and its own private bathroom with shower.

What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2435 Square Foot 2-Bed Craftsman Home Plan with Vaulted Great and Dining Rooms

  • 2,435

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

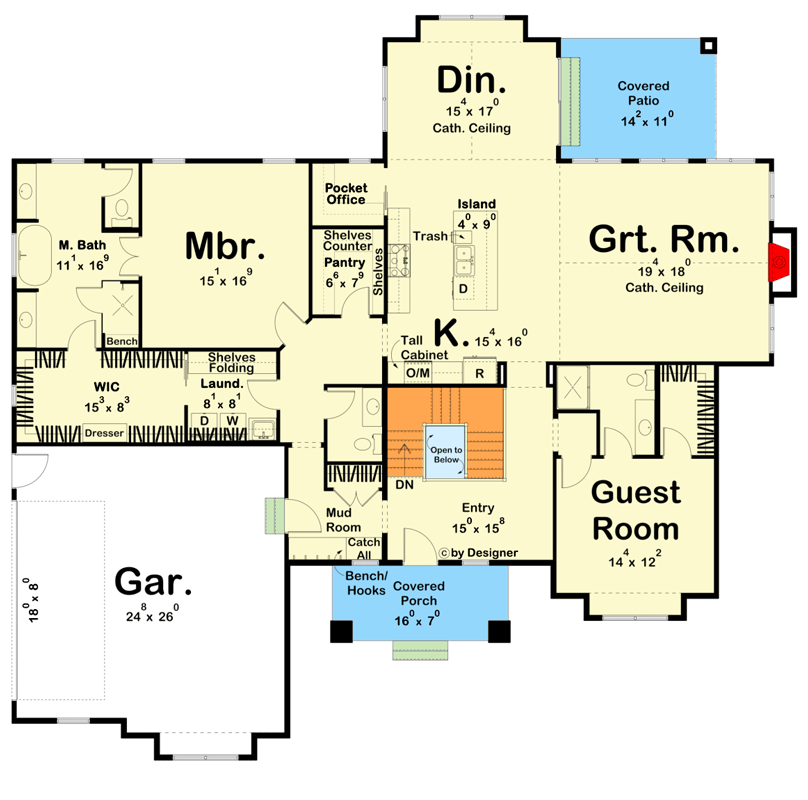

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,435 sq. ft.
  • 1st Floor: 2,435 sq. ft.

Dimensions

  • Width: 71' 0"
  • Depth: 67' 4"
  • Max ridge height: 25' 11"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 658 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 On 12; 4 on 12
