Plan 623245DJ
2569 Square Foot Barndominium-Style House Plan with Side and Rear Garage Access
Heated S.F.
2,569
Beds
3
Baths
3
Stories
2
Cars
4
Tour
What's Included
Plan Details
  • This versatile barndominium-style carriage house plan blends the rustic charm of a barn with the modern comforts of a home. This two-story structure offers a spacious and functional layout, designed to accommodate both your living needs and storage requirements.
  • As you enter the home, you are greeted by a bench and locker drop zone. There is a convenient bathroom for your comfort and a concrete safe room, offering peace of mind during severe weather or emergency situations. There is a large garage on the main floor, providing ample space to house your vehicles, recreational equipment, or serve as a workshop.
  • Ascending the staircase to the upper level, you'll find yourself in the heart of the home—an open and inviting great room that combines the living, kitchen, and dining areas into a single expansive space. This open concept design allows for seamless interaction and easy entertaining, making it the perfect gathering place for family and friends.
  • The kitchen is thoughtfully designed with modern appliances, ample counter space, and a functional island, ensuring that every culinary endeavor is a delight.
  • Three bedrooms, each offering a private sanctuary for rest and relaxation, are in a split layout. The master bedroom boasts its own luxurious bathroom, complete with a walk-in shower, soaking tub, elegant fixtures, and a spacious walk-in closet, providing a tranquil retreat within the home. The other two bedrooms are located on the opposite side of the house and share a well-appointed hall bathroom, ensuring privacy and convenience for all occupants.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

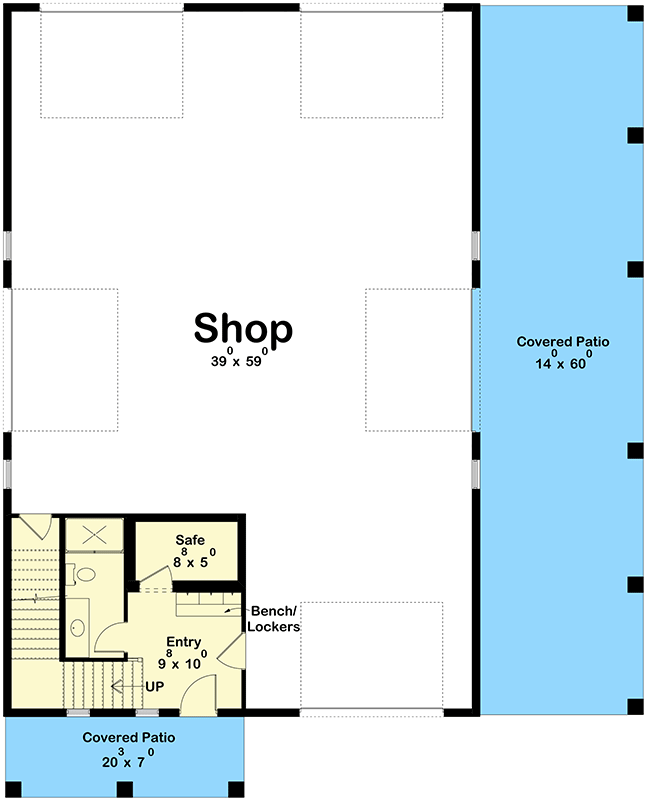

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2569 Square Foot Barndominium-Style House Plan with Side and Rear Garage Access

  • 2,569

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 4

    Car garage

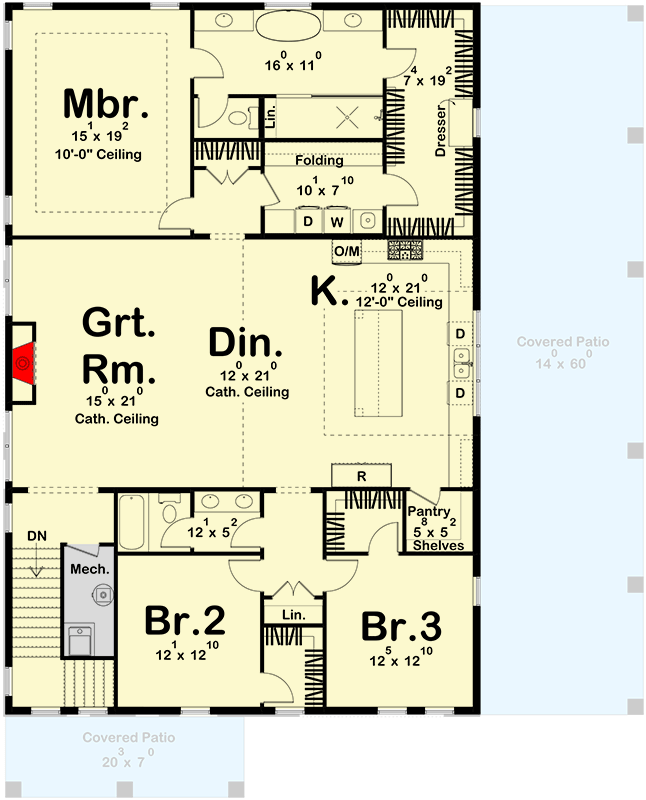

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,569 sq. ft.
  • 1st Floor: 282 sq. ft.
  • 2nd Floor: 2,287 sq. ft.

Dimensions

  • Width: 54' 0"
  • Depth: 67' 0"
  • Max ridge height: 32' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 2054 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear, Side, Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12
