Plan 52330WM

27 Foot Wide 2124 Square Foot 4 Bed House Plan with 2 Car Garage

Heated S.F.
2,124
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 52330WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52330WM

M-F 9am-5pm EST |

1-203-761-8500

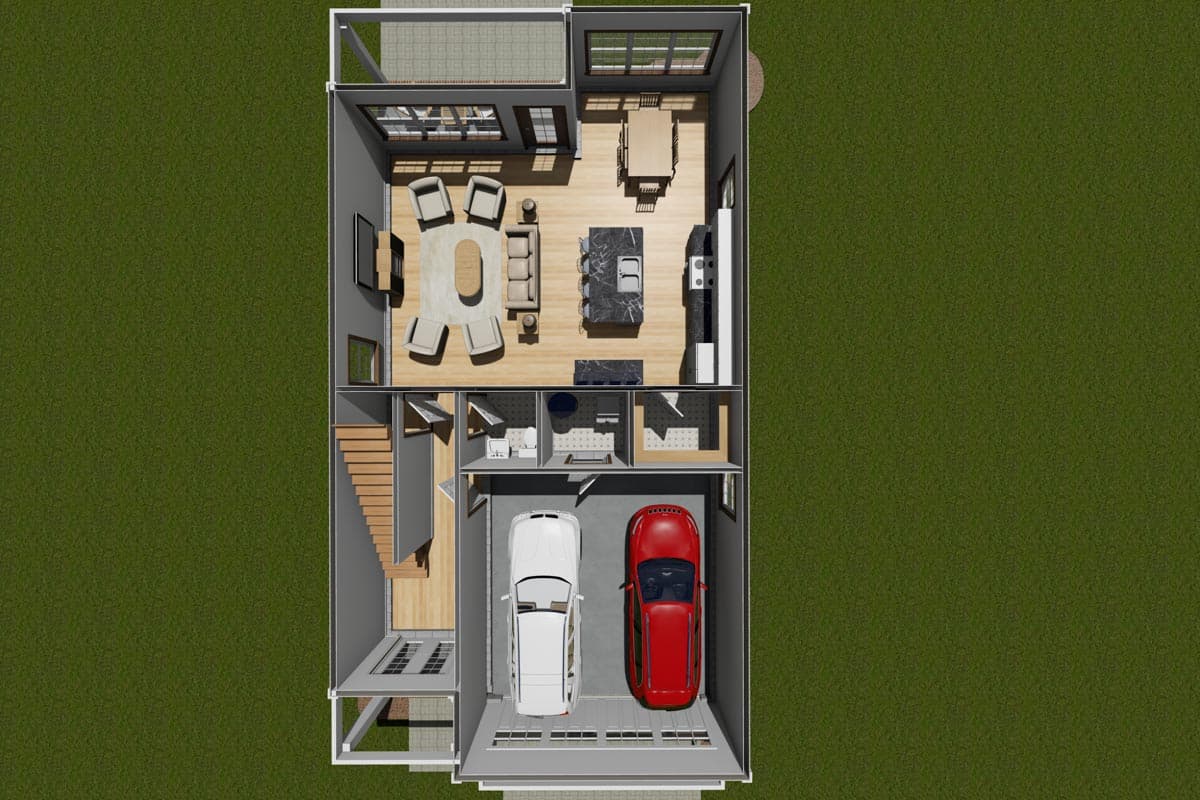

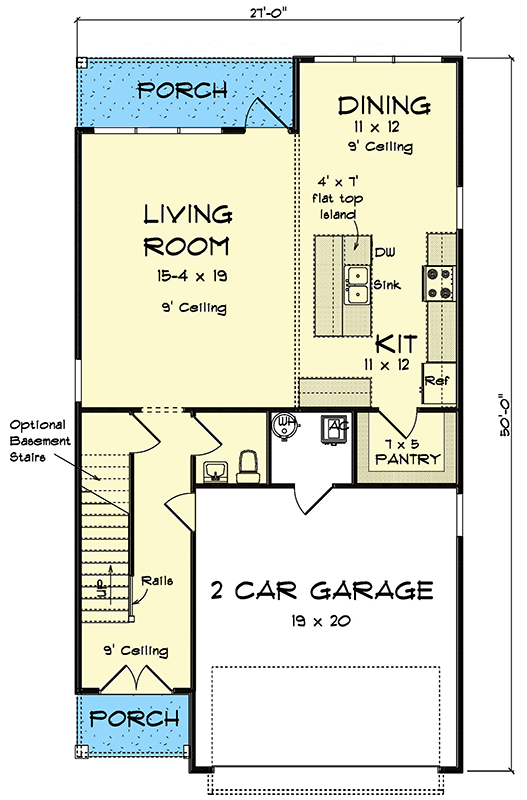

Main Level

Plan 52330WM: 27 Foot Wide 2124 Square Foot 4 Bed House Plan with 2 Car Garage - Floor Plan - Main Level - Traditional

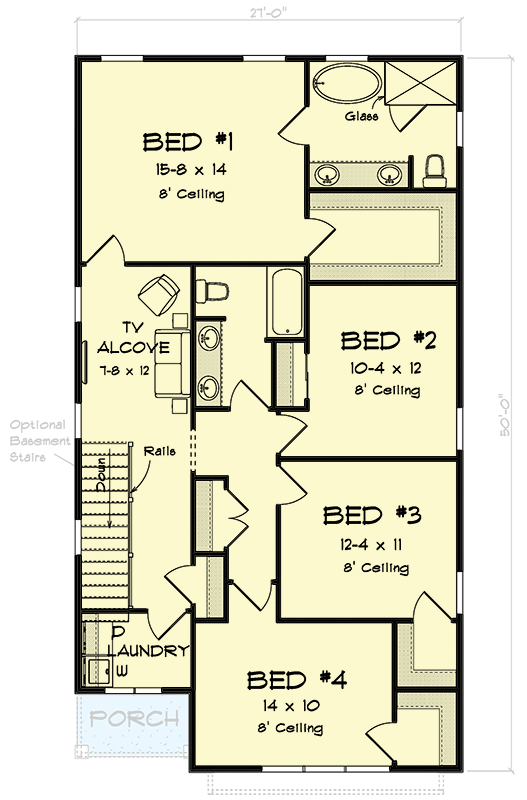

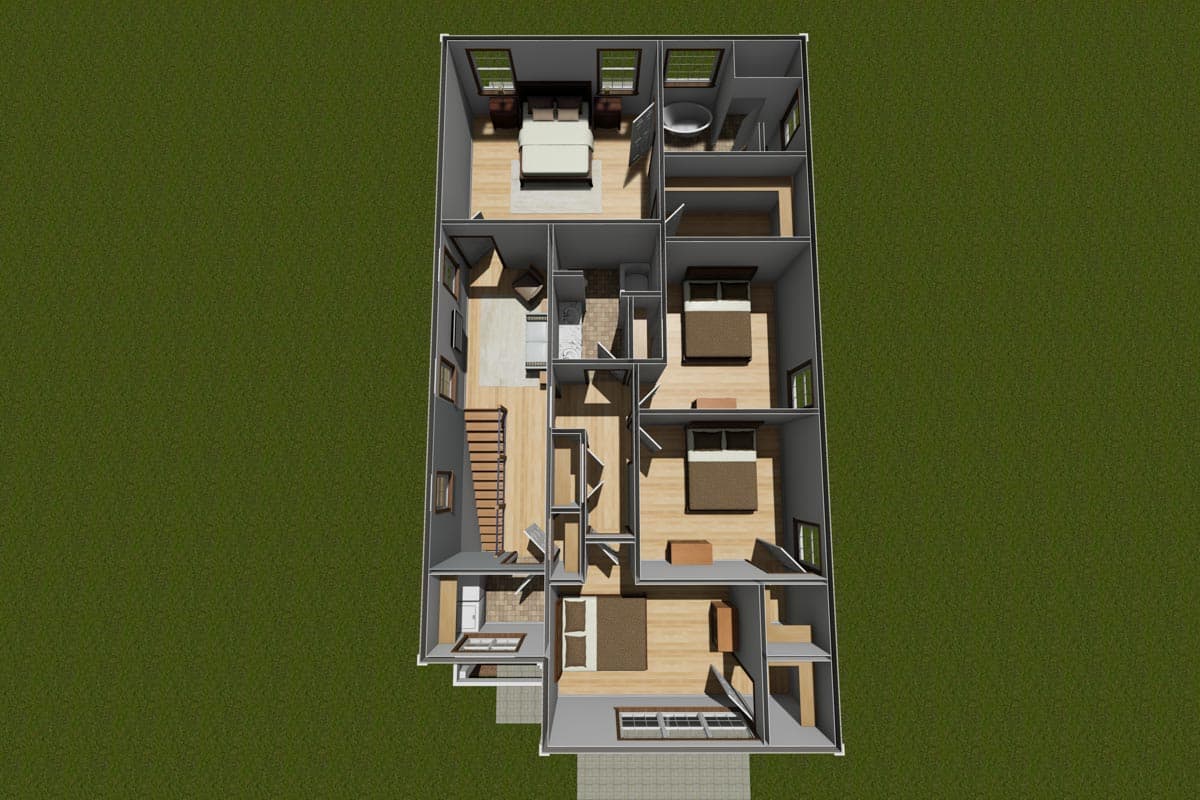

2nd Floor

Plan 52330WM: 27 Foot Wide 2124 Square Foot 4 Bed House Plan with 2 Car Garage - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This 27-foot-wide house plan gives you 4 beds, 2.5 baths and 2,124 square feet of heated living plus a 2-car 400 square foot garage.
  • All four bedrooms are upstairs - as is the laundry - and an alcove giving you a space to enjoy outside of the bedrooms.
  • French doors open off the front porch and there's access to the home from the garage.
  • Past the powder room, the back of the home is open side to side with the living room on the left and the kitchen and dining area on the right.
  • Windows are located on either side of a door centered on the back wall taking you out back.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,124 sq. ft.

1st Floor

818 sq. ft.

2nd Floor

1,306 sq. ft.

Porch, Front

36 sq. ft.

Porch, Rear

77 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

27' 0"

Depth

50' 0"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

400 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Loft

Master Suite - Upstairs

Walk-in Pantry
