Plan 623282DJ 2790 Square Foot Modern Cottage with All 4 Bedrooms Upstairs

2,790 4 3.5 2 3
watch
video Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2790 Square Foot Modern Cottage with All 4 Bedrooms Upstairs

Plan 623282DJ

  • 2,790

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This modern cottage-style two-story house plan has a mixed material exterior and gives you 2,790 square feet of heated living space with four bedrooms, four bathrooms and a three-car 790 square foot garage. Multiple courtyard and covered patio spaces make the most of outdoor living.

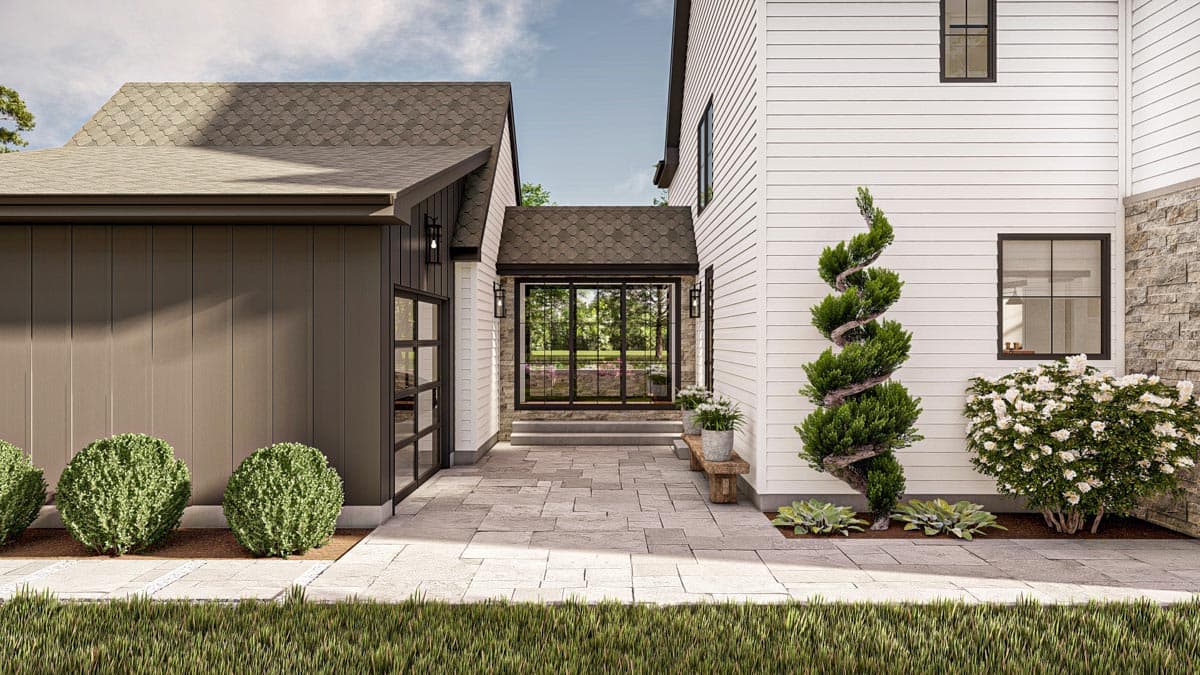

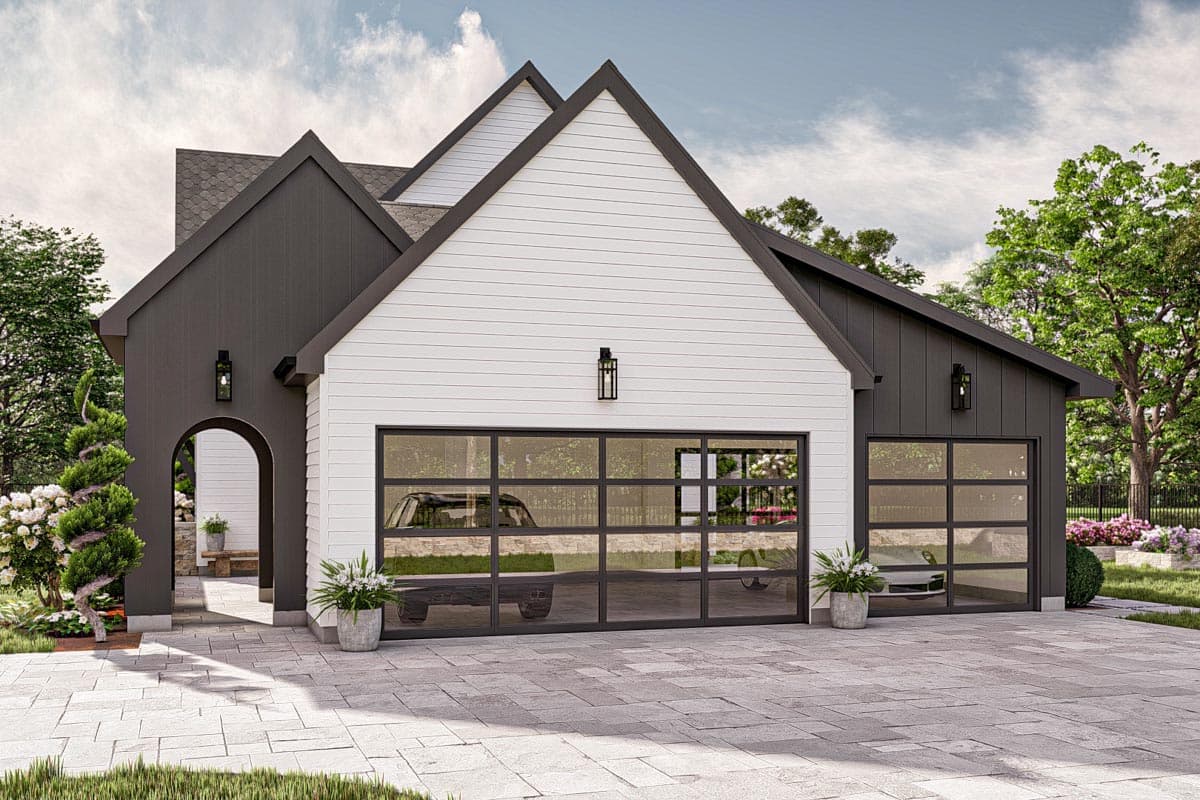

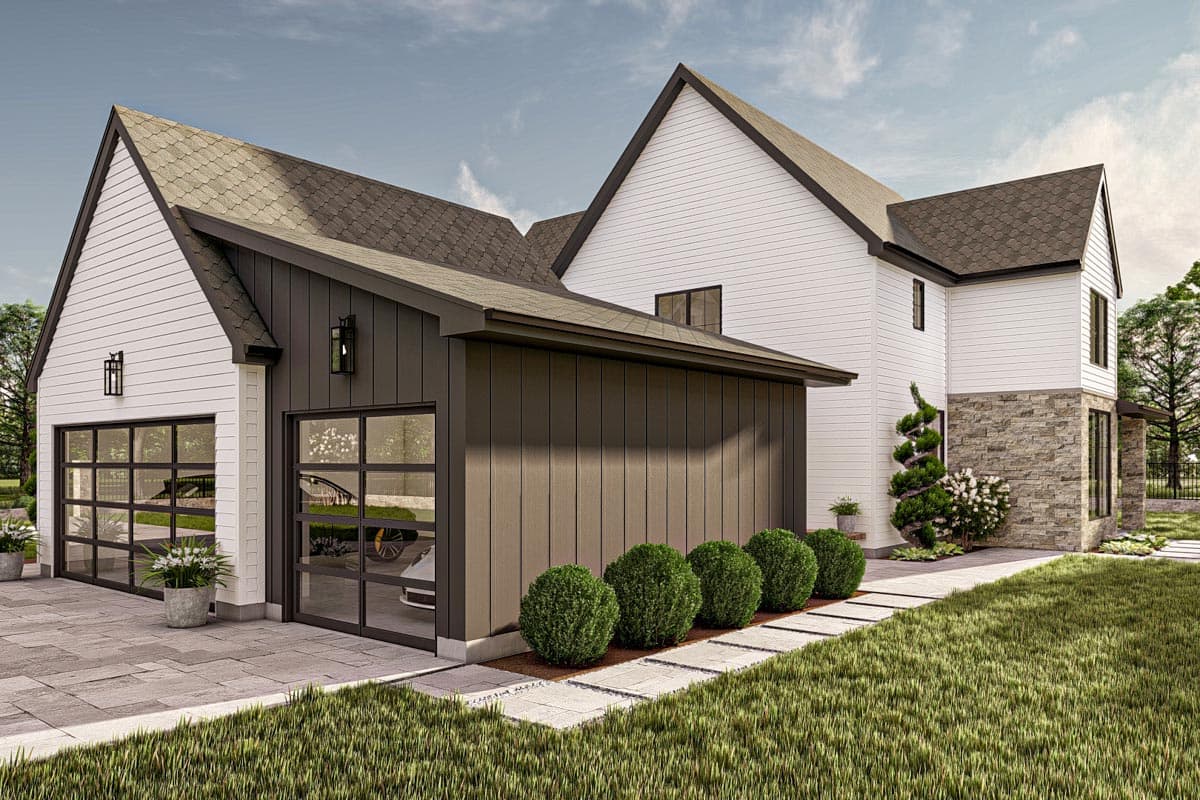

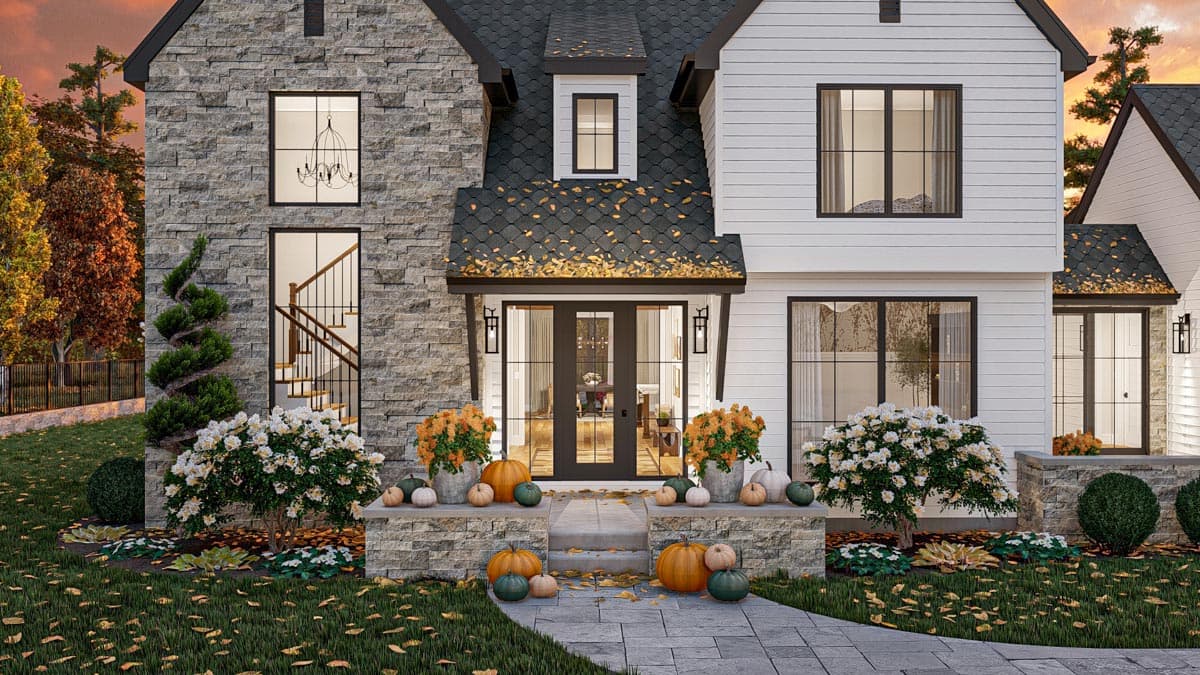

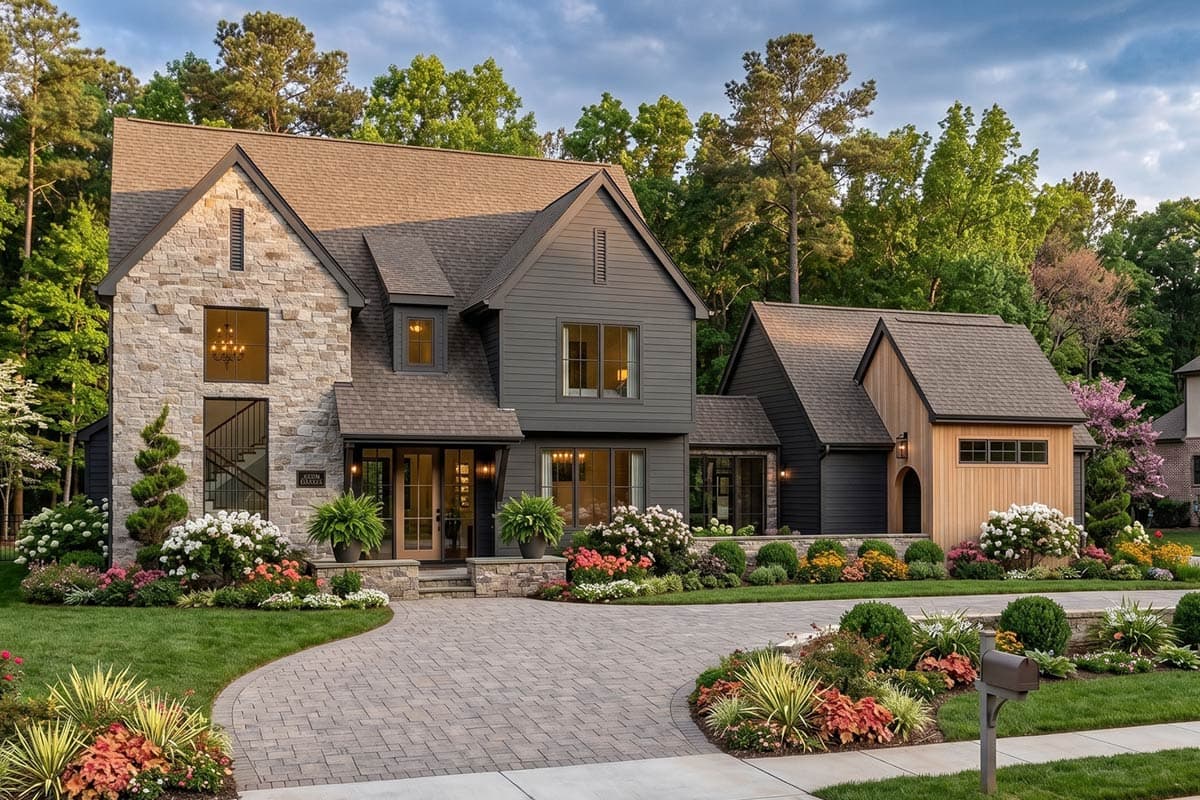

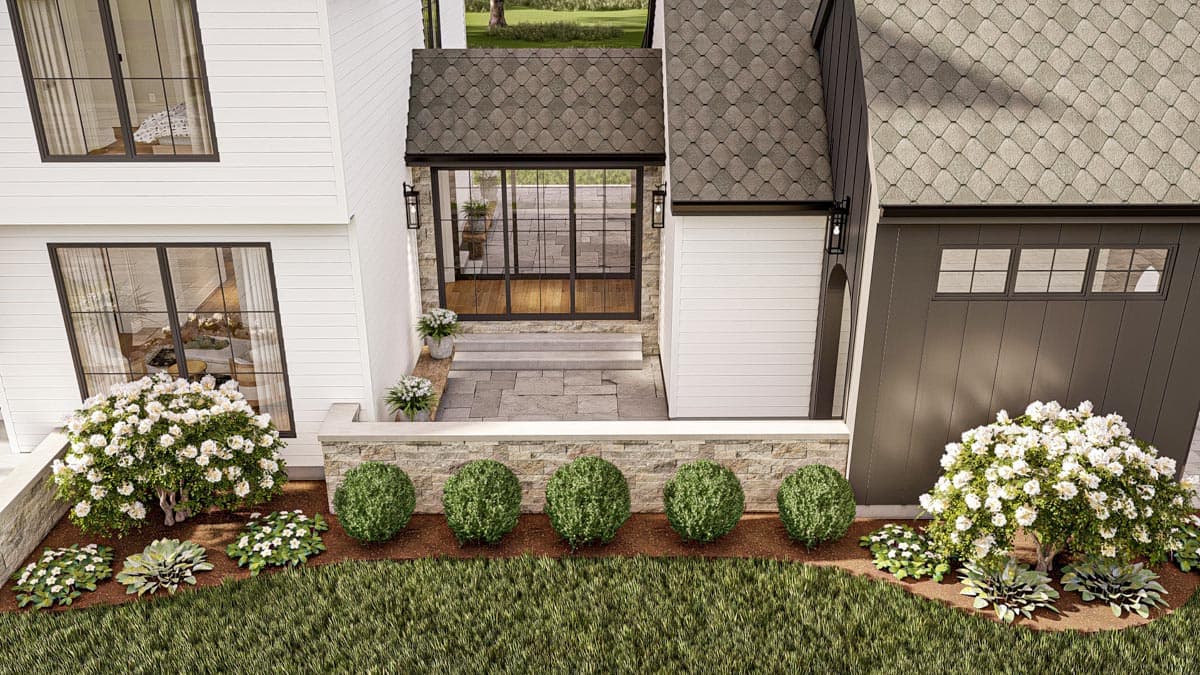

  • A welcoming front porch with a shed roof and decorative brackets welcomes your guests to the home. A mix of stone, siding, and large windows create a visually appealing façade. The 3-car garage is connected to the main house through a breezeway, adding both convenience and architectural interest.
  • To the right of the foyer, a spacious living room can be used as a home office or formal dining area. The main living area consists of an open-concept kitchen and great room, providing a seamless flow for entertaining and family gatherings. Large windows and sliding glass doors flood the space with natural light and offer views of the surrounding patio areas.

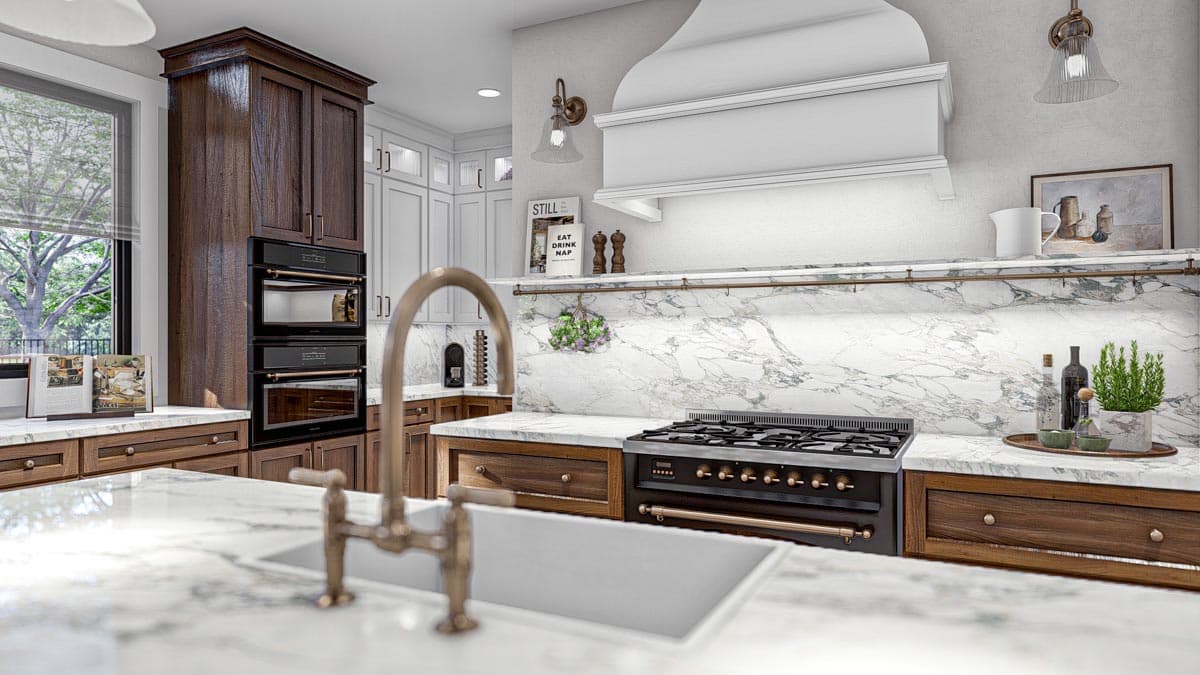

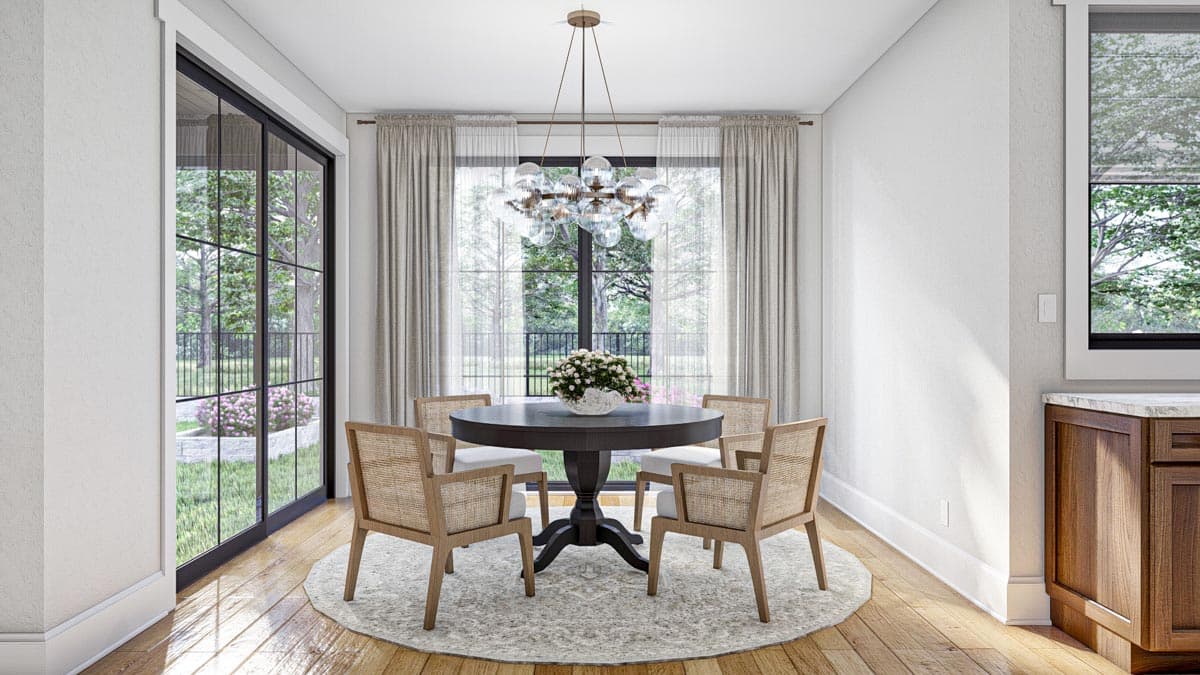

  • The kitchen with center island with a breakfast bar opens directly to the great room with fireplace. The adjacent dining area has convenient access to the outdoor patio for al fresco dining.
  • A mudroom with storage and bench seating provides a transition space between the garage and the main living area. A half bathroom on the main floor adds to the home's practicality.

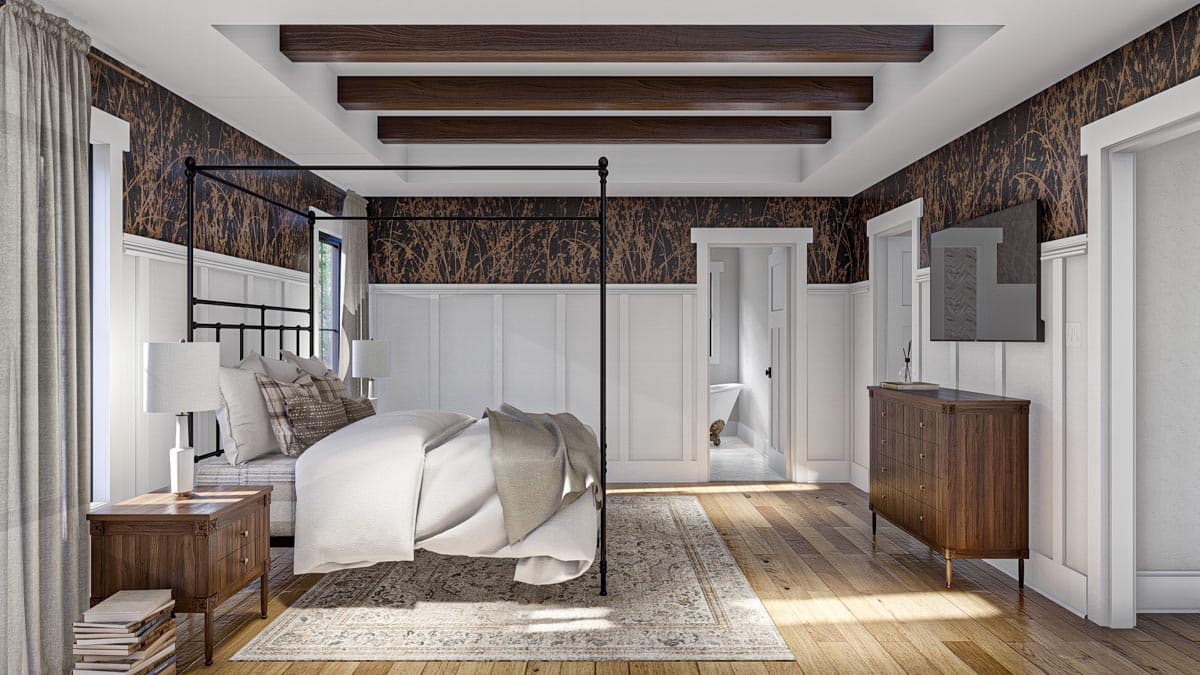

  • All four bedrooms are located upstairs, as is laundry for your convenience.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

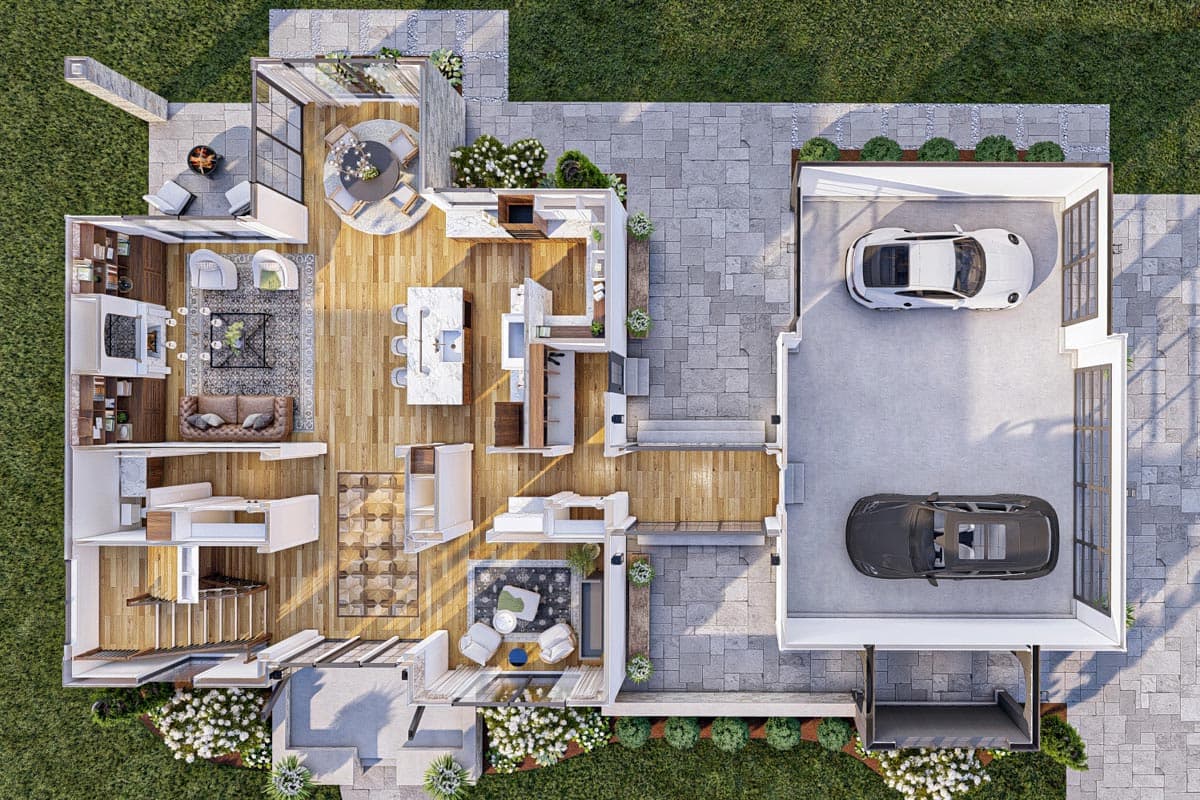

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

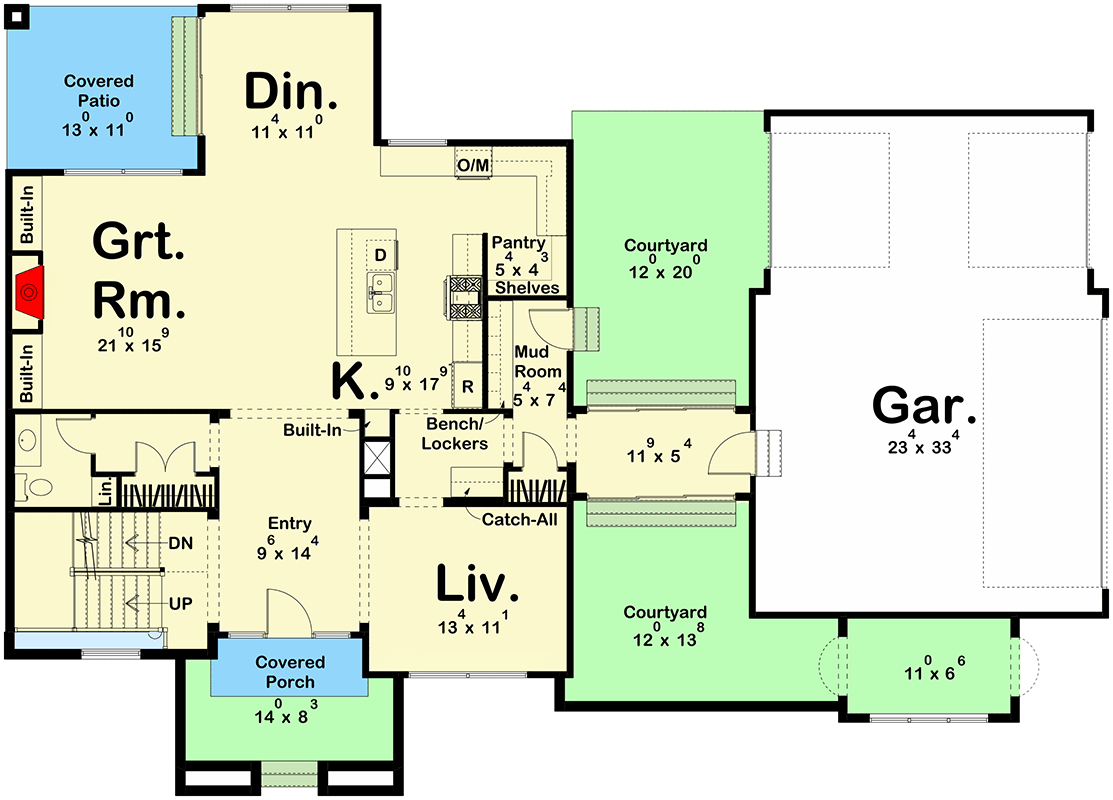

2790 Square Foot Modern Cottage with All 4 Bedrooms Upstairs - 623282DJ floor plan - Main Level

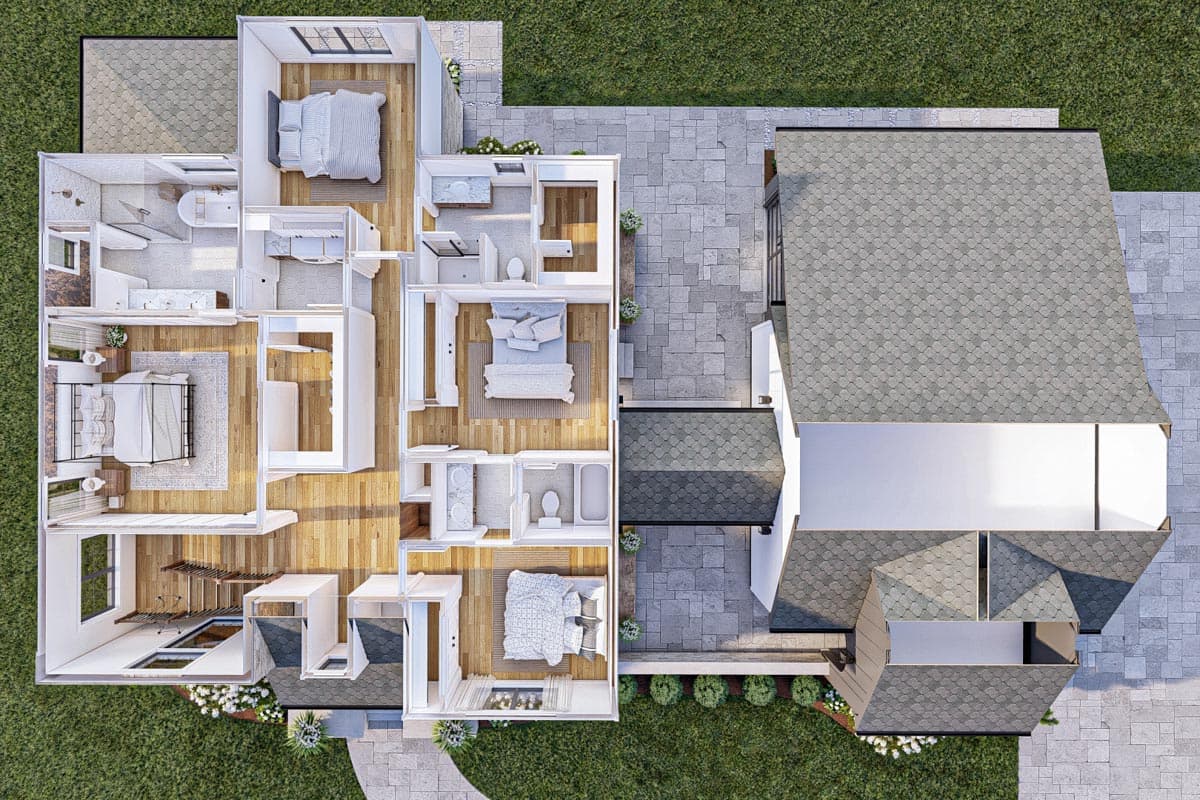

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

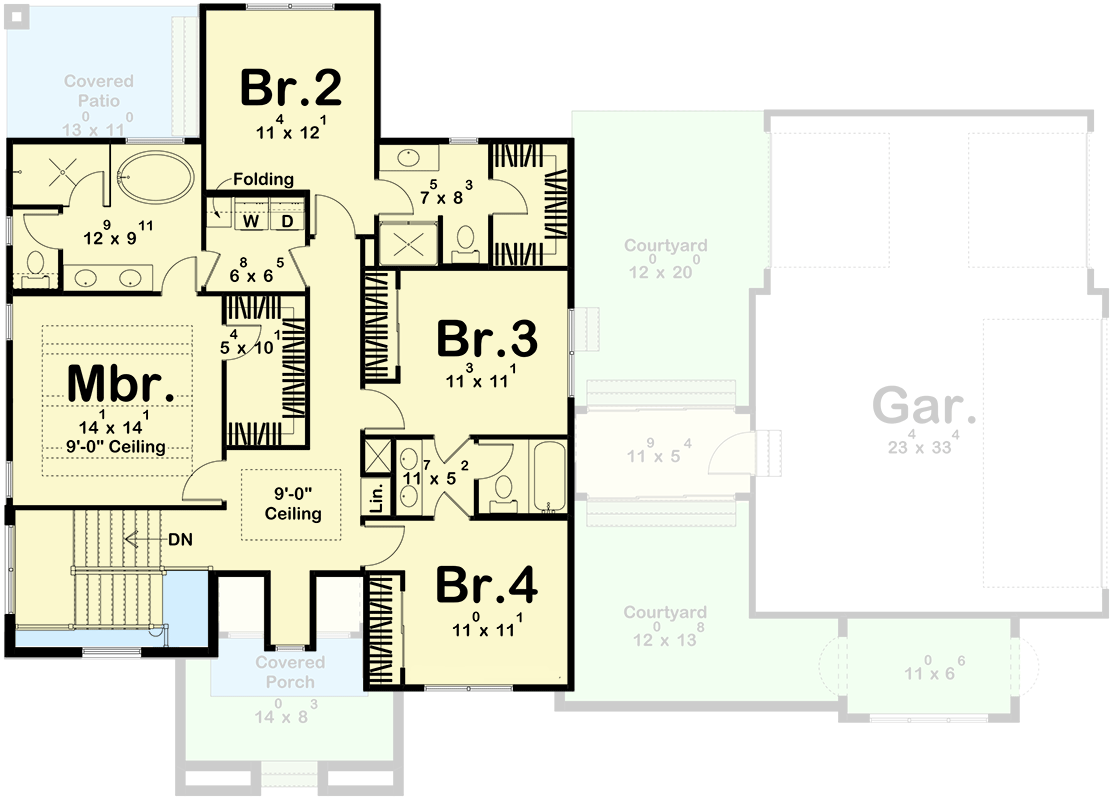

2790 Square Foot Modern Cottage with All 4 Bedrooms Upstairs - 623282DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,790 sq. ft.
  • 1st Floor: 1,479 sq. ft.
  • 2nd Floor: 1,311 sq. ft.
  • Porch, Combined: 252 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 0"
  • Depth: 53' 0"
  • Max ridge height: 33' 2"

Garage

  • Type: Attached
  • Area: 790 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 14 on 12

Architectural Style

Special features

2790 Square Foot Modern Cottage with All 4 Bedrooms Upstairs

  • 2,790

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,600
  • 5 Sets + PDF $1,850
  • PDF - Unlimited Build $2,100
  • CAD + PDF - Single-Build $2,100
  • CAD Unlimited + PDF $2,600
  • View all purchase option online

About This Plan

  • This modern cottage-style two-story house plan has a mixed material exterior and gives you 2,790 square feet of heated living space with four bedrooms, four bathrooms and a three-car 790 square foot garage. Multiple courtyard and covered patio spaces make the most of outdoor living.
  • A welcoming front porch with a shed roof and decorative brackets welcomes your guests to the home. A mix of stone, siding, and large windows create a visually appealing façade. The 3-car garage is connected to the main house through a breezeway, adding both convenience and architectural interest.
  • To the right of the foyer, a spacious living room can be used as a home office or formal dining area. The main living area consists of an open-concept kitchen and great room, providing a seamless flow for entertaining and family gatherings. Large windows and sliding glass doors flood the space with natural light and offer views of the surrounding patio areas.
  • The kitchen with center island with a breakfast bar opens directly to the great room with fireplace. The adjacent dining area has convenient access to the outdoor patio for al fresco dining.
  • A mudroom with storage and bench seating provides a transition space between the garage and the main living area. A half bathroom on the main floor adds to the home's practicality.
  • All four bedrooms are located upstairs, as is laundry for your convenience.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,790 sq. ft.
  • 1st Floor: 1,479 sq. ft.
  • 2nd Floor: 1,311 sq. ft.
  • Porch, Combined: 252 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 0"
  • Depth: 53' 0"
  • Max ridge height: 33' 2"

Garage

  • Type: Attached
  • Area: 790 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 14 on 12
