3 Bed 1741 Square Foot One-Story House Plan with Split Bedroom Layout

Heated S.F.
1,741
Beds
3
Baths
2
Stories
1
Cars
2

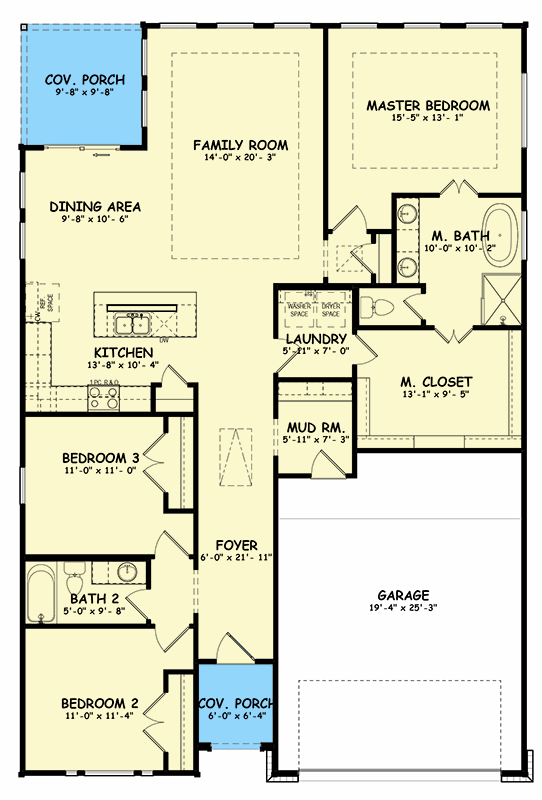

Floor Plan

Plan 100312GHR

Main Level
Main Level

Plan 100312GHR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 100312GHR: 3 Bed 1741 Square Foot One-Story House Plan with Split Bedroom Layout - Floor Plan - Main Level - New American, Ranch

Plan Details

  • This 3-bed, 2 bath house plan gives you 1,741 square feet of heated living and a 2-car 505 square foot garage.
  • The exterior has a tasteful blend of vertical and horizontal siding and a touch of stone.
  • A split bedroom layout maximizes your privacy with the master bedroom located in back having direct laundry access from the large walk-in closet.
  • The family room has a tray ceiling and is open to the kitchen and dining area.
  • Sliding doors open from the dining area to the covered porch in back.
  • Related Plan: Get a smaller version and an alternate exterior with house plan 100334GHR (1,657 sq. ft.).
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,741 sq. ft.

1st Floor

1,741 sq. ft.

Porch, Front

41 sq. ft.

Porch, Rear

93 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

60' 0"

Max Ridge Height

19' 6"

Garage

Type

Attached

Area

505 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 1"

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

New American

Ranch

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,741 sq. ft.

1st Floor

1,741 sq. ft.

Porch, Front

41 sq. ft.

Porch, Rear

93 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

60' 0"

Max Ridge Height

19' 6"

Garage

Type

Attached

Area

505 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 1"

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

New American

Ranch

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive
