Plan 51177MM

3 Bed Acadian with Options

1,657 3 3 1 2-3
Pageloader

3 Bed Acadian with Options

Plan 51177MM

  • 1,657

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2-3

    Cars

  • This 3 bed Acadian style house plan gives you two covered porches and a side entry garage with storage.
  • The great room has gas logs as well as built-in cabinets and 10' ceilings. The space is open to the kitchen and has front porch access.
  • The kitchen has a large island with counter seating.
  • The master bedroom has 10' tray ceilings and the bath has dual vanities, tub, shower and a walk-in closet. Two more beds are located across the home.
  • The rear covered porch provides a great space for those summer cookouts and is accessible to the kitchen.
  • The 2-car garage has access to the porch and a dedicated storage room.
  • Related Plans: Get more room plus a bonus room with house plan 51090MM.
  • Downsize and get 3 bedrooms with house plan 51163MM (1,888 sq. ft.) and house plan 51126MM (1,641 sq. ft. and no bonus room).
  • Get alternate exteriors with house plans 51029MM and 51048MM.

Cover Sheet: Showing architectural rendering of residence.

Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.

Foundation Plan and Details: In general, each house plan set includes one foundation type.

Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.

Foundation types typically offered: (each type may or may not be available for a given design)

·       Slab: Slab is a type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the "water table" refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.

·       Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.

·       Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.



Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.

Roof Drainage Plan:
In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

Exterior Elevations:
In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.

Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

Specifications Form:
In general, each house plan set includes a blank short-form FHA/VA specifications document for your reference.

License to Build: Each set of construction plans include ONE license to build.

Plans include relevant building sections and details.

Plumbing diagrams and HVAC plans are not available for these homes since each county's code will vary and a licensed plumber and/or electrician must follow the codes.

Floor Plan

Plan details



3 Bed Acadian with Options

  • 1,657

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2 - 3

    Car garage

Buy This Plan
  • 1 Set $950
  • 5 Sets $1,015
  • PDF - single-use $1,125
  • 8 Sets $1,195
  • Reproducible Set $1,200
  • 5 Sets PLUS $1,210
  • CAD $1,680
  • View all purchase option online

About This Plan

  • This 3 bed Acadian style house plan gives you two covered porches and a side entry garage with storage.
  • The great room has gas logs as well as built-in cabinets and 10' ceilings. The space is open to the kitchen and has front porch access.
  • The kitchen has a large island with counter seating.
  • The master bedroom has 10' tray ceilings and the bath has dual vanities, tub, shower and a walk-in closet. Two more beds are located across the home.
  • The rear covered porch provides a great space for those summer cookouts and is accessible to the kitchen.
  • The 2-car garage has access to the porch and a dedicated storage room.
  • Related Plans: Get more room plus a bonus room with house plan 51090MM.
  • Downsize and get 3 bedrooms with house plan 51163MM (1,888 sq. ft.) and house plan 51126MM (1,641 sq. ft. and no bonus room).
  • Get alternate exteriors with house plans 51029MM and 51048MM.

Floor Plans

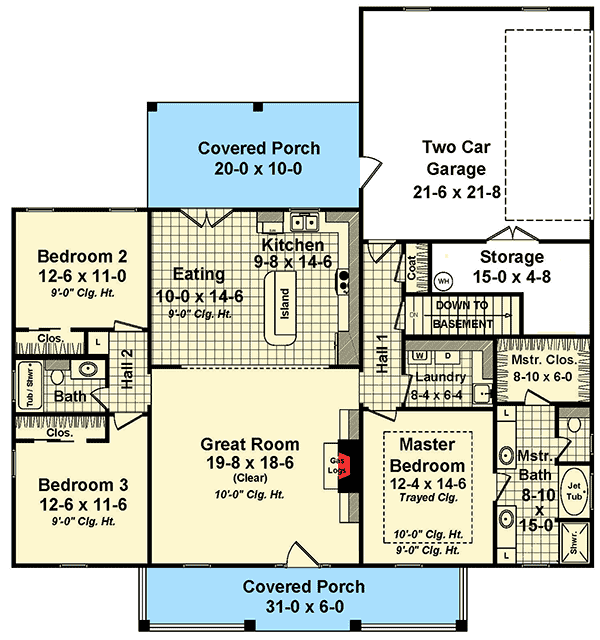

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,657 sq. ft.
  • 1st Floor: 1,657 sq. ft.
  • Storage: 106 sq. ft.
  • Basement Unfinished: 1,805 sq. ft.
  • Porch, Front: 186 sq. ft.
  • Porch, Rear: 200 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 59' 0"
  • Max ridge height: 23' 9"

Garage

  • Type: Attached
  • Area: 486 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

  • Acadian
  • French Country

Special features

  • 1st Floor Master Suite
  • CAD Available
  • PDF
  • Split Bedrooms

Plan Collections

  • Photo Gallery
  • USDA Approved
