Plan 135095GRA 3-Bed Barndominium-style House Plan with Oversized Garage and Covered Porch

3-Bed Barndominium-style House Plan with Oversized Garage and Covered Porch

Plan 135095GRA

  • 3,399

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 3-bedroom Barndominium-style house plan boasts a modern farmhouse style with its timber-framed gables and ribbed metal roof. The wraparound porch provides plenty of outdoor living space, complete with a cathedral ceiling and fireplace.
  • The heart of the home is located just off the entryway with an oversized island in the center and a walk-in pantry offering plenty of storage space. A two-story ceiling crowns the combined dining and living rooms.
  • The master bedroom boasts a deluxe ensuite with a separate tub and tile shower, along with a dresser island in the walk-in closet and a pocket door that connects to the laundry room.
  • A craft room rounds out the main level, while upstairs, bedrooms 2 and 3 each have a walk-in closet.
  • The left side of the home is consumed by the oversized garage and workshop, which features a safe room and rear overhead door.
  • The exterior finish is spec'd for corrugated metal siding.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

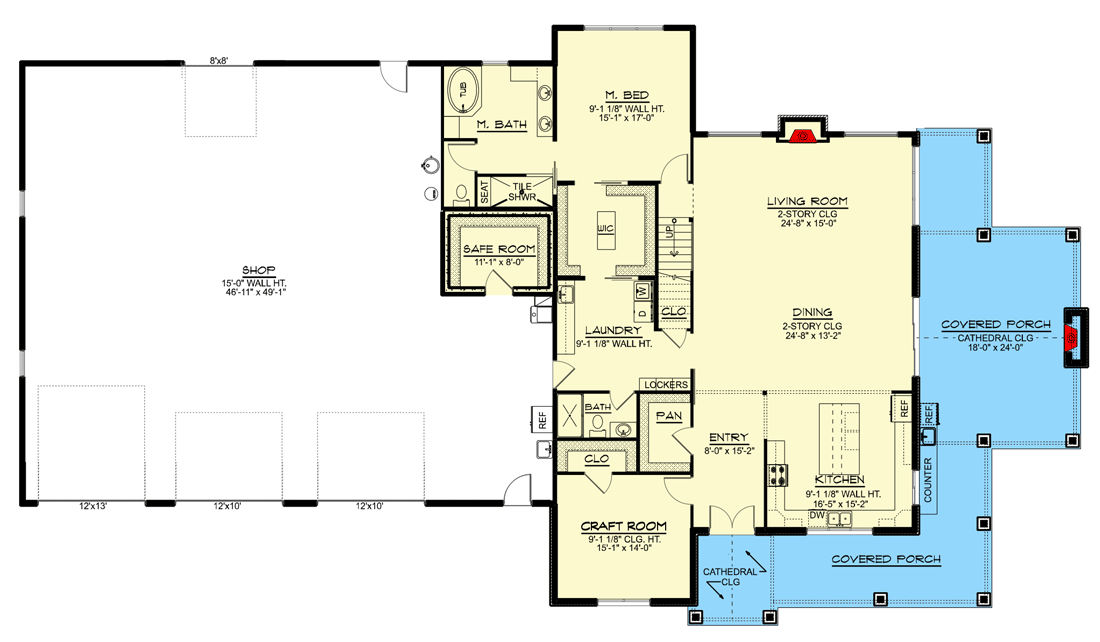

3-Bed Barndominium-style House Plan with Oversized Garage and Covered Porch - 135095GRA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

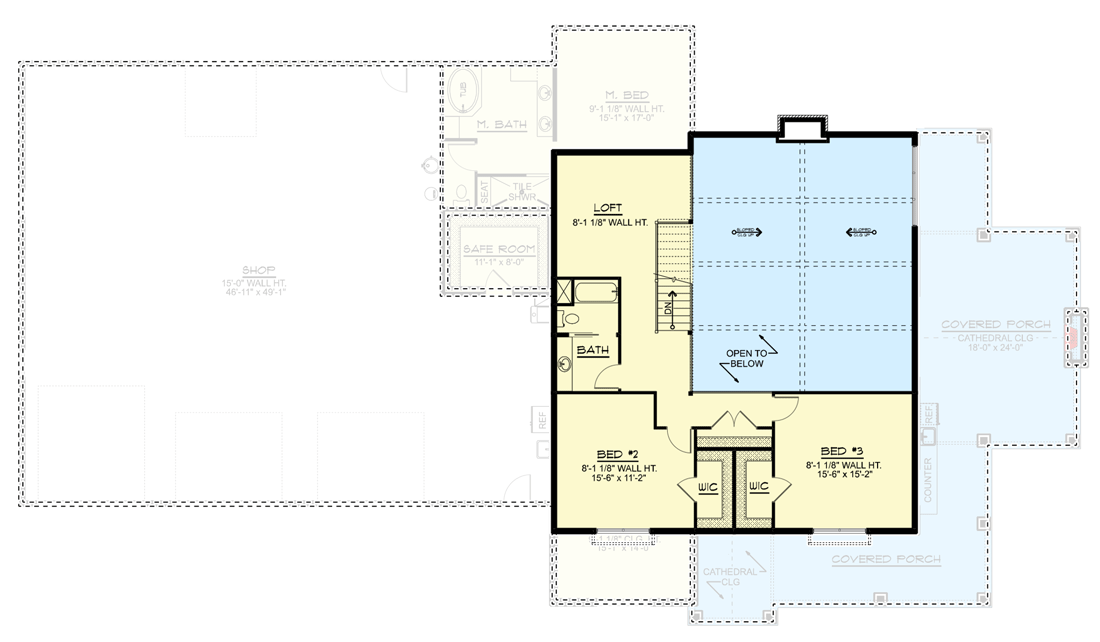

3-Bed Barndominium-style House Plan with Oversized Garage and Covered Porch - 135095GRA floor plan - 2nd Floor

Plan details

3-Bed Barndominium-style House Plan with Oversized Garage and Covered Porch

  • 3,399

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,250
  • 5 Sets $1,425
  • 5 Sets + PDF $1,500
  • PDF - Unlimited Build $1,750
  • CAD + PDF - Single-Build $2,500
  • CAD - Unlimited Build $3,000
  • View all purchase option online

About This Plan

  • This 3-bedroom Barndominium-style house plan boasts a modern farmhouse style with its timber-framed gables and ribbed metal roof. The wraparound porch provides plenty of outdoor living space, complete with a cathedral ceiling and fireplace.
  • The heart of the home is located just off the entryway with an oversized island in the center and a walk-in pantry offering plenty of storage space. A two-story ceiling crowns the combined dining and living rooms.
  • The master bedroom boasts a deluxe ensuite with a separate tub and tile shower, along with a dresser island in the walk-in closet and a pocket door that connects to the laundry room.
  • A craft room rounds out the main level, while upstairs, bedrooms 2 and 3 each have a walk-in closet.
  • The left side of the home is consumed by the oversized garage and workshop, which features a safe room and rear overhead door.
  • The exterior finish is spec'd for corrugated metal siding.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,399 sq. ft.
  • 1st Floor: 2,377 sq. ft.
  • 2nd Floor: 1,022 sq. ft.
  • Porch, Combined: 857 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 85' 0"
  • Depth: 50' 0"
  • Max ridge height: 30' 8"

Garage

  • Type: RV Garage, Attached
  • Area: 2789 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
