Plan 51966HZ
3-Bed Barndominium-Style House Plan with Vaulted Great Room - 2335 Sq Ft
Heated S.F.
2,335
Beds
3
Baths
2.5
Stories
1
Cars
3

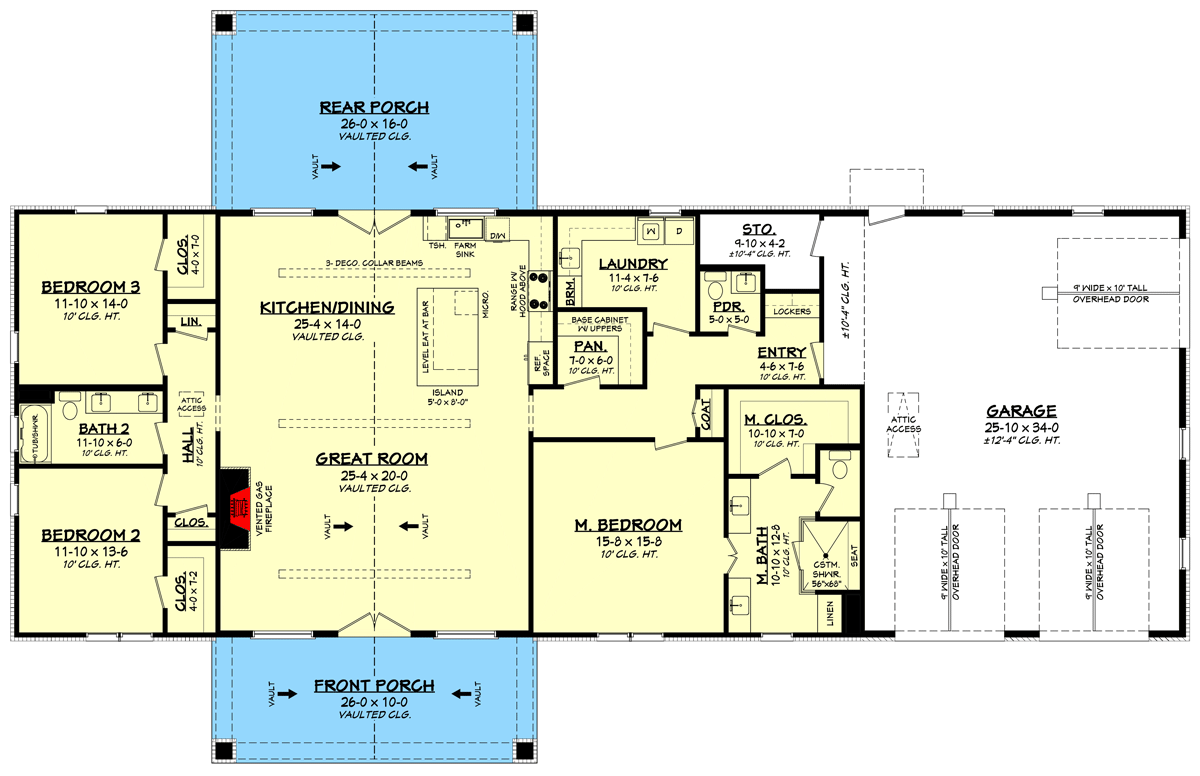

Floor Plan

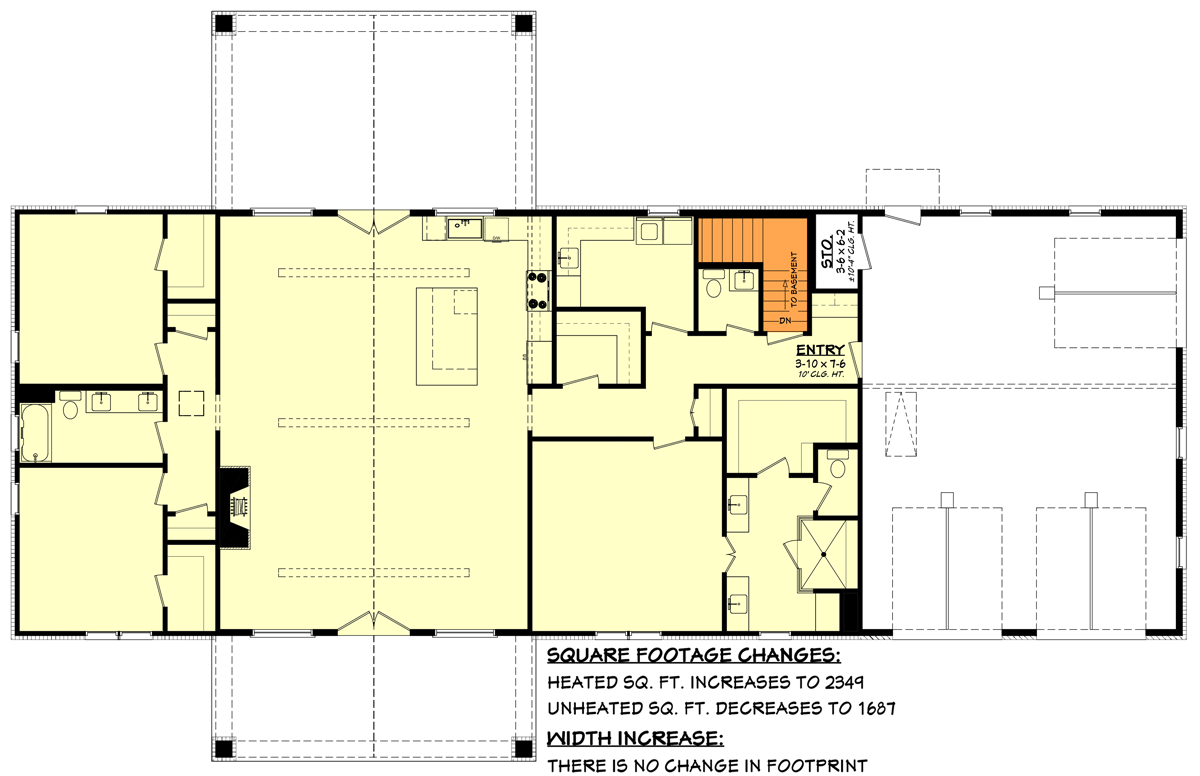

Main Floor - Basement Version
Reverse Floor Plan
3-Bed Barndominium-Style House Plan with Vaulted Great Room - 2335 Sq Ft - 51966HZ floor plan - Main Floor - Basement Version
Plan Details
  • This barndominium house plan - designed with stick-framed exterior walls - has charming craftsman features and provides 2,335 square feet of heated living space with 3 bedrooms and 2.5 baths, as well as an oversized 3-car garage with 9' x 10' bay doors and 969 square feet of unheated space.
  • Popular features include a vaulted ceiling in the main living area, large open kitchen with walk-in-pantry, split bedroom design, and a large rear porch.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation plan and details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

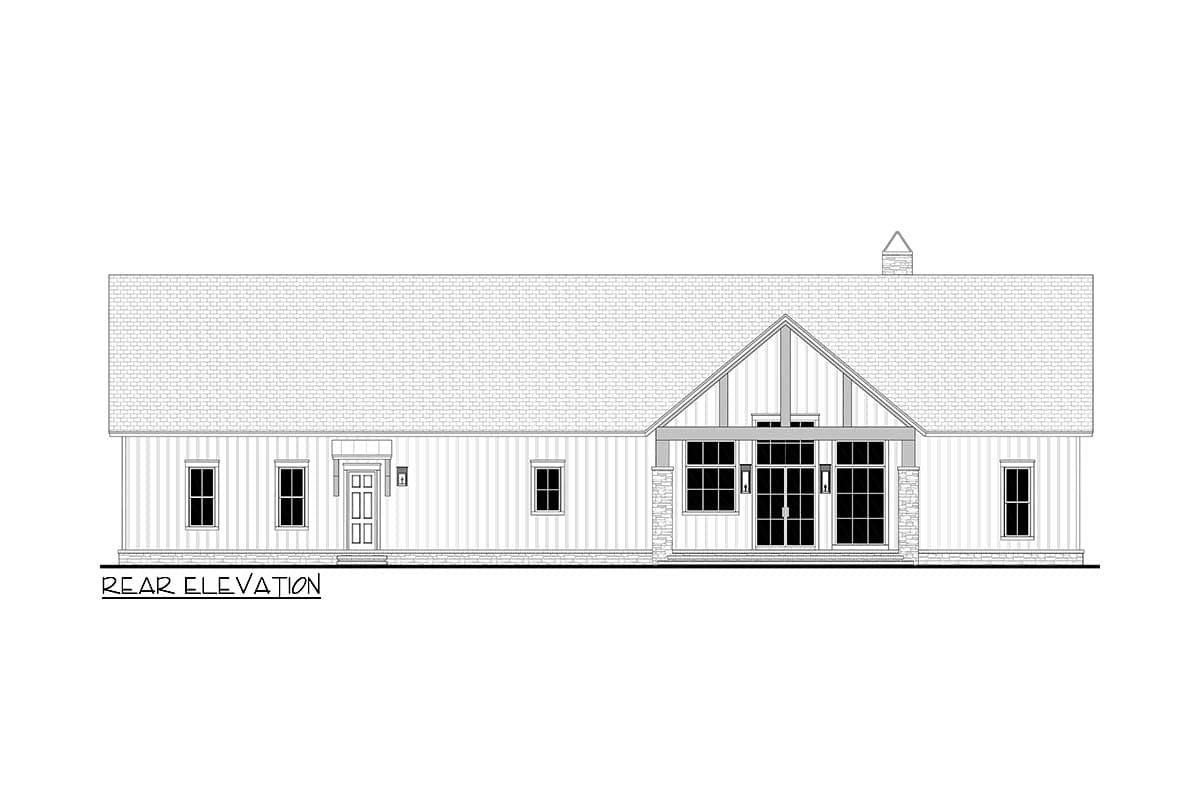

Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional notes
Page 8  Electrical plan with notes and legend
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Barndominium-Style House Plan with Vaulted Great Room - 2335 Sq Ft

  • 2,335

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Main Floor - Basement Version

Plan Details

Square Footage Breakdown

  • Total: 2,335 sq. ft.
  • 1st Floor: 2,335 sq. ft.

Dimensions

  • Width: 96' 0"
  • Depth: 61' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 969 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
