Plan 135222GRA

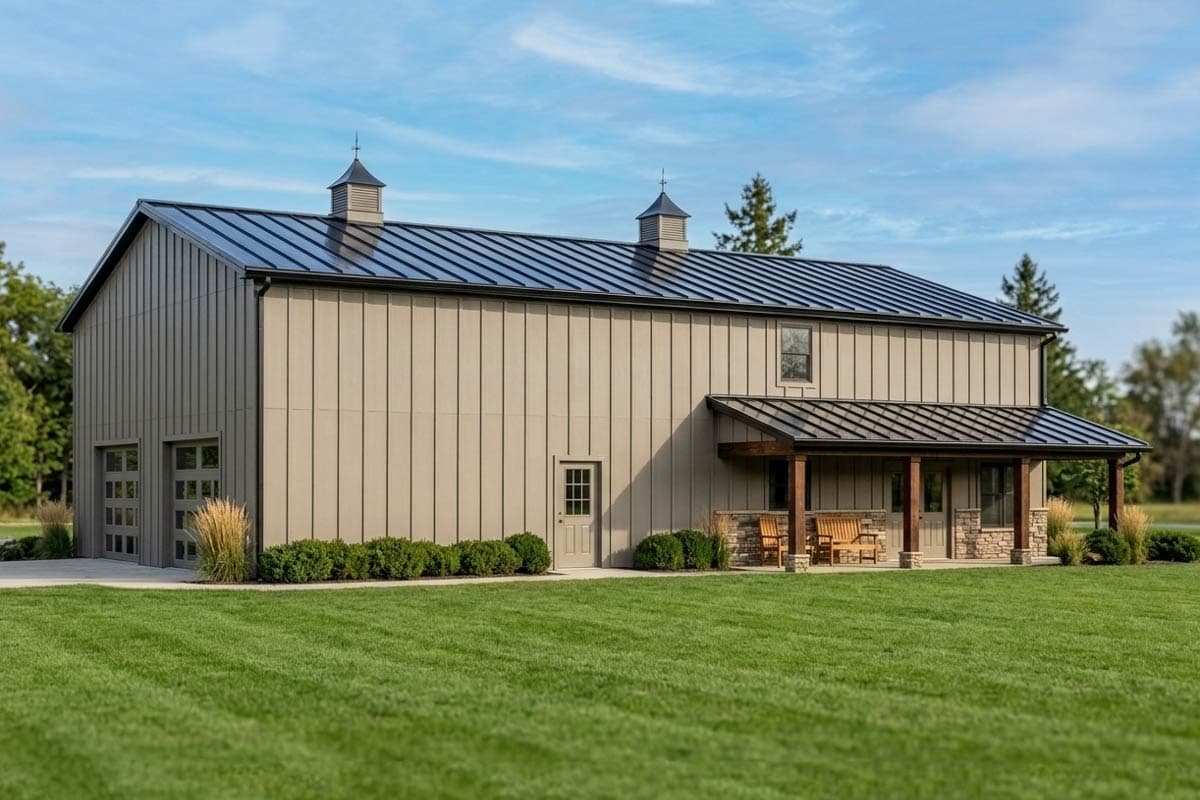

3-Bed Barndominium with Main Level Master and 1126 Square Foot Garage

Heated S.F.
2,212
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 135222GRA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 135222GRA

M-F 9am-5pm EST |

1-203-761-8500

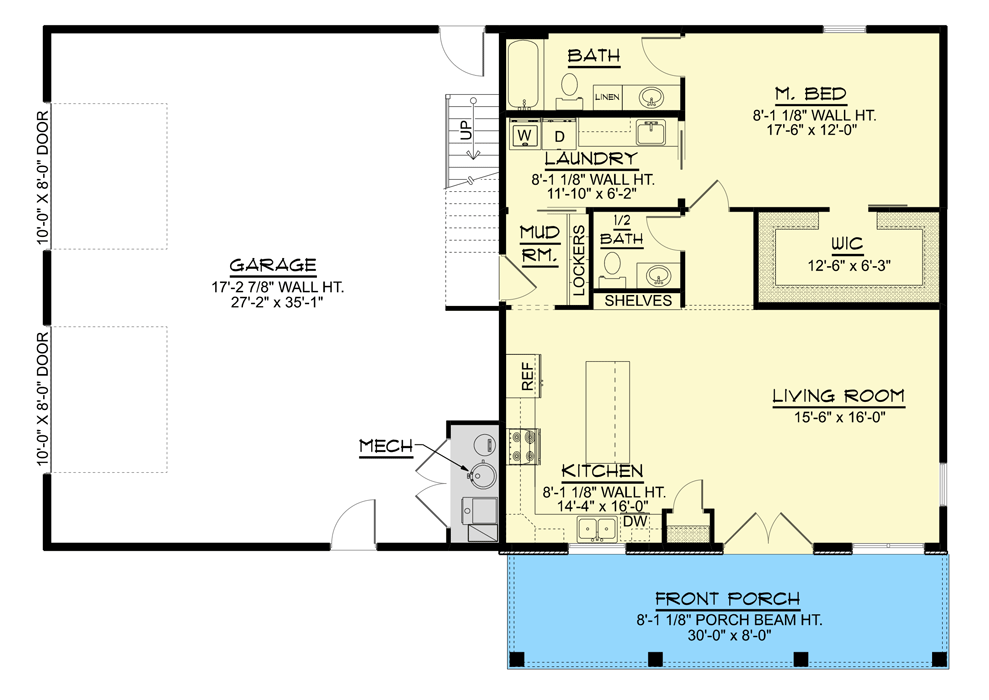

Main Level

Plan 135222GRA: 3-Bed Barndominium with Main Level Master and 1126 Square Foot Garage - Floor Plan - Main Level - Barndominium, Country, Farmhouse, Rustic, Traditional

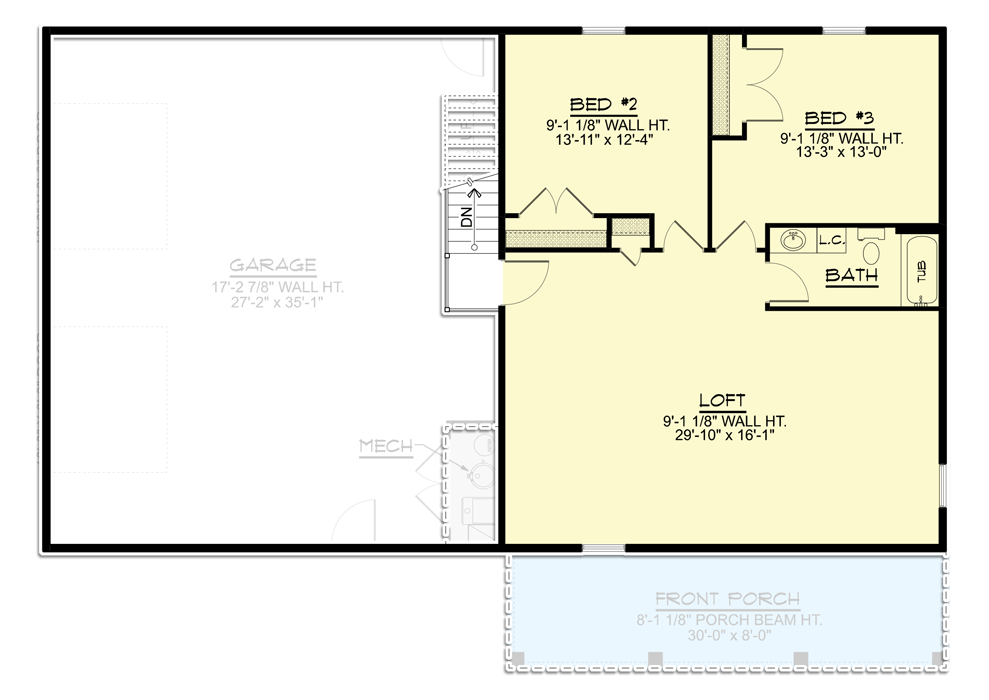

2nd Floor

Plan 135222GRA: 3-Bed Barndominium with Main Level Master and 1126 Square Foot Garage - Floor Plan - 2nd Floor - Barndominium, Country, Farmhouse, Rustic, Traditional

Plan Details

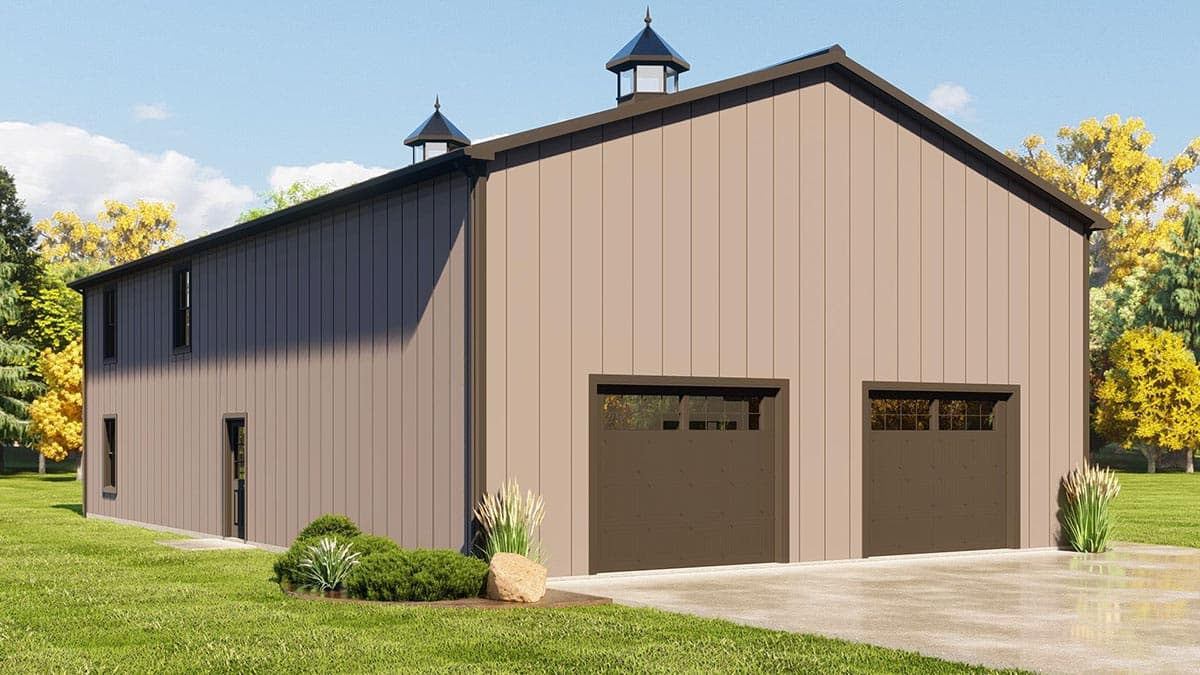

  • The left side of this Barndominium is where you'll find the 27' 2"-deep double garage.

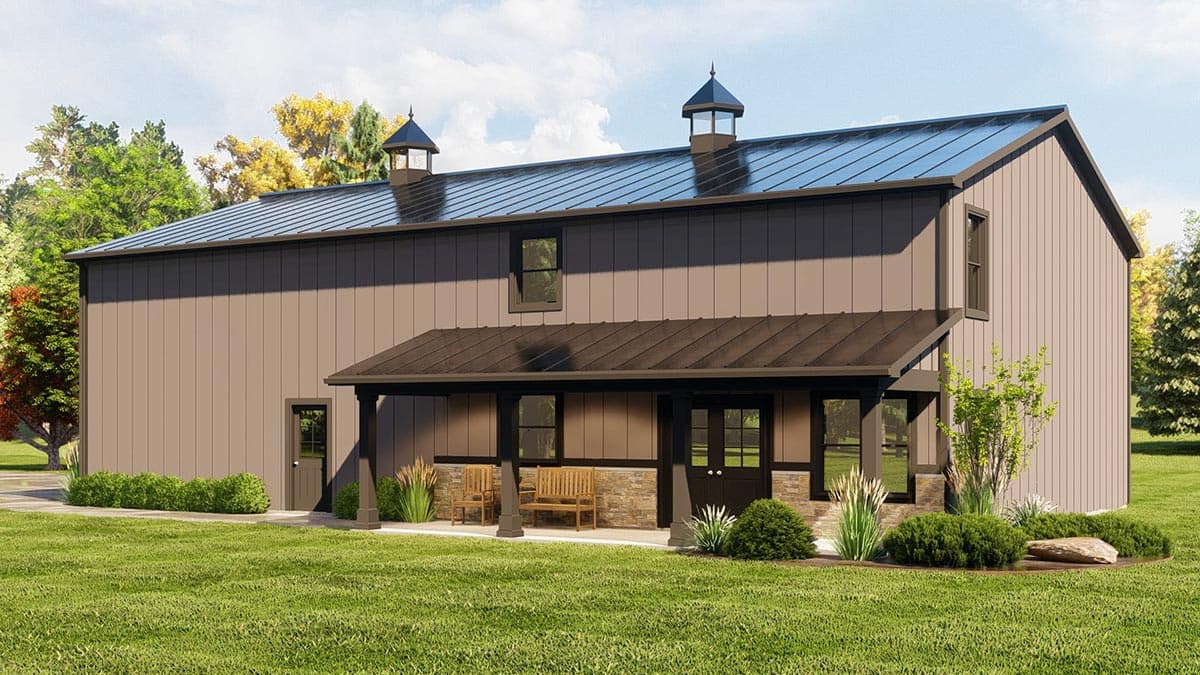

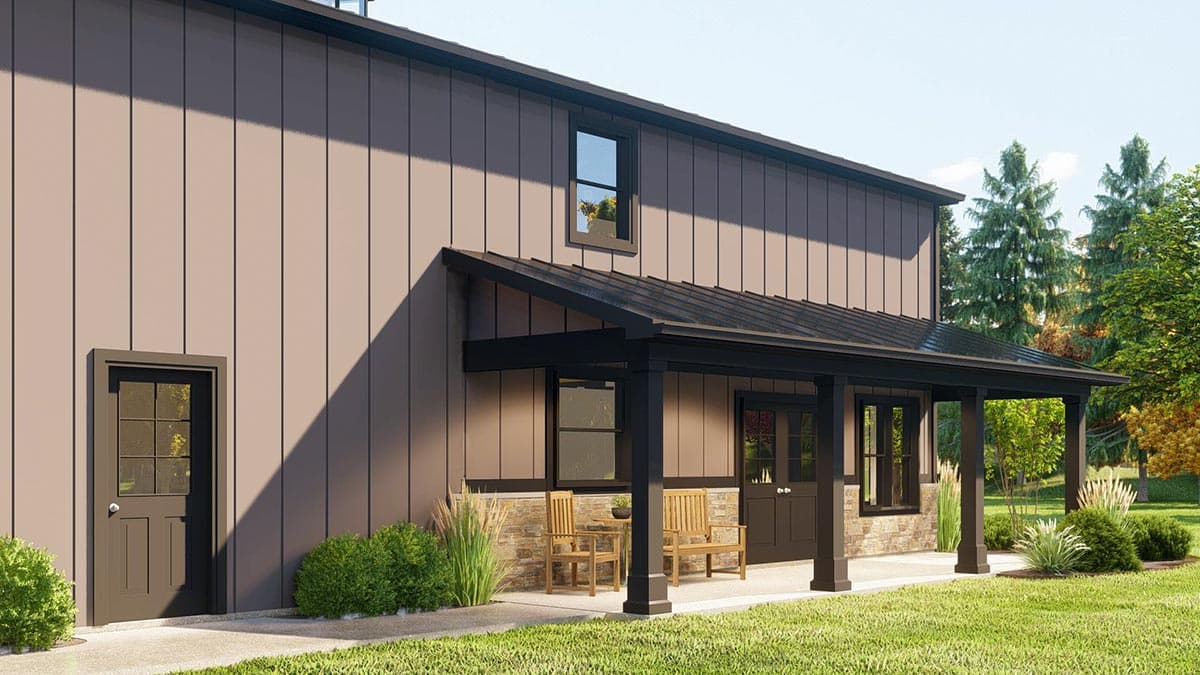

  • The 8'-deep front porch guides you into the living room that opens into the kitchen, anchored by an oversized island with a forward-facing view above the kitchen sink.
  • The master bedroom is conveniently located on the main level and includes a full bathroom and access to the laundry room.
  • Enter from the garage to find a mudroom to store your gear.
  • Upstairs, two bedrooms share a bathroom and a large loft can serve as a media room or playroom.

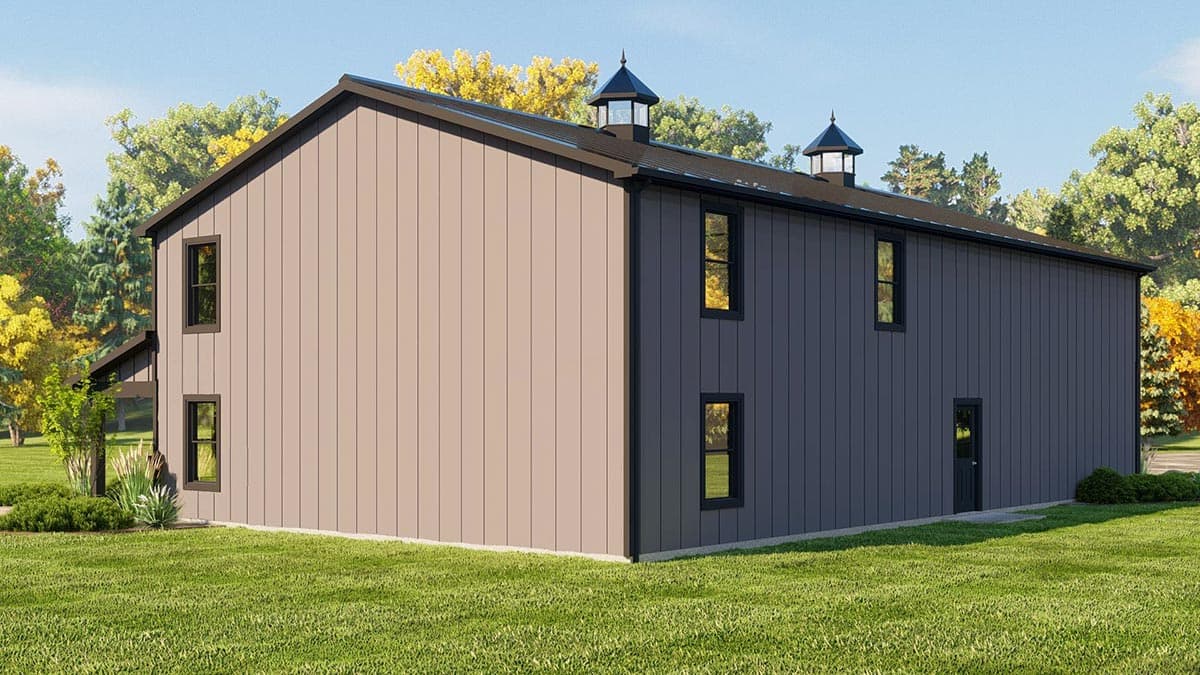

  • The exterior finish is spec'd for corrugated metal siding.
  • Related Plans: Get an alternate version with house plans 135075GRA, 135076GRA, 135205GRA and 135220GRA.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,212 sq. ft.

1st Floor

1,106 sq. ft.

2nd Floor

1,106 sq. ft.

Porch, Combined

240 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

44' 0"

Max Ridge Height

23' 9"

Garage

Type

Attached

Area

1126 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Barndominium

Country

Farmhouse

Rustic

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,212 sq. ft.

1st Floor

1,106 sq. ft.

2nd Floor

1,106 sq. ft.

Porch, Combined

240 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

44' 0"

Max Ridge Height

23' 9"

Garage

Type

Attached

Area

1126 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Barndominium

Country

Farmhouse

Rustic

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room
