Plan 66342WE 3 Bed Beauty with 2 Lanai

3,527 3 3.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3 Bed Beauty with 2 Lanai

Plan 66342WE

  • 3,527

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

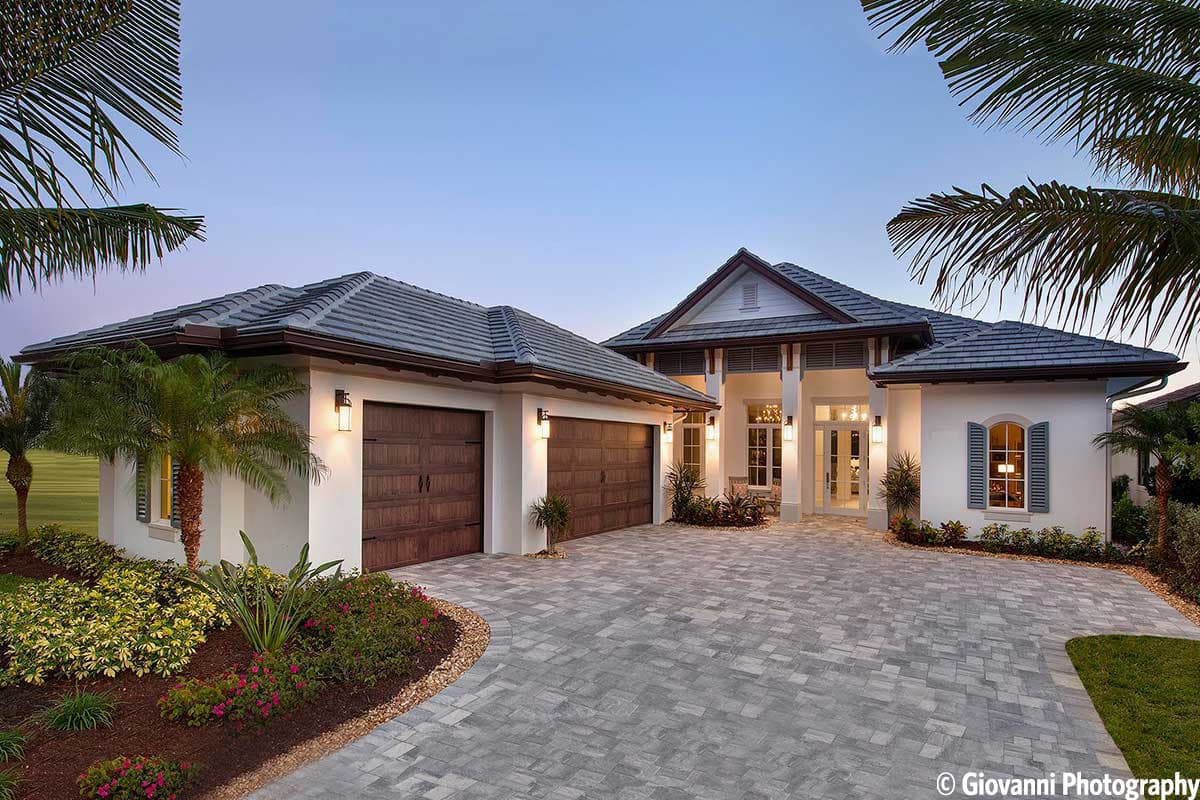

  • This 3 bed house plan has a stucco exterior with a covered entry with a 16' ceiling. Four tall columns support the attractive gable above.

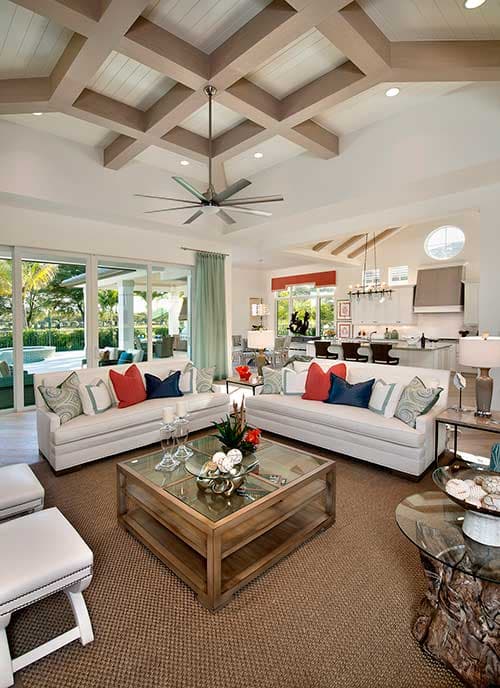

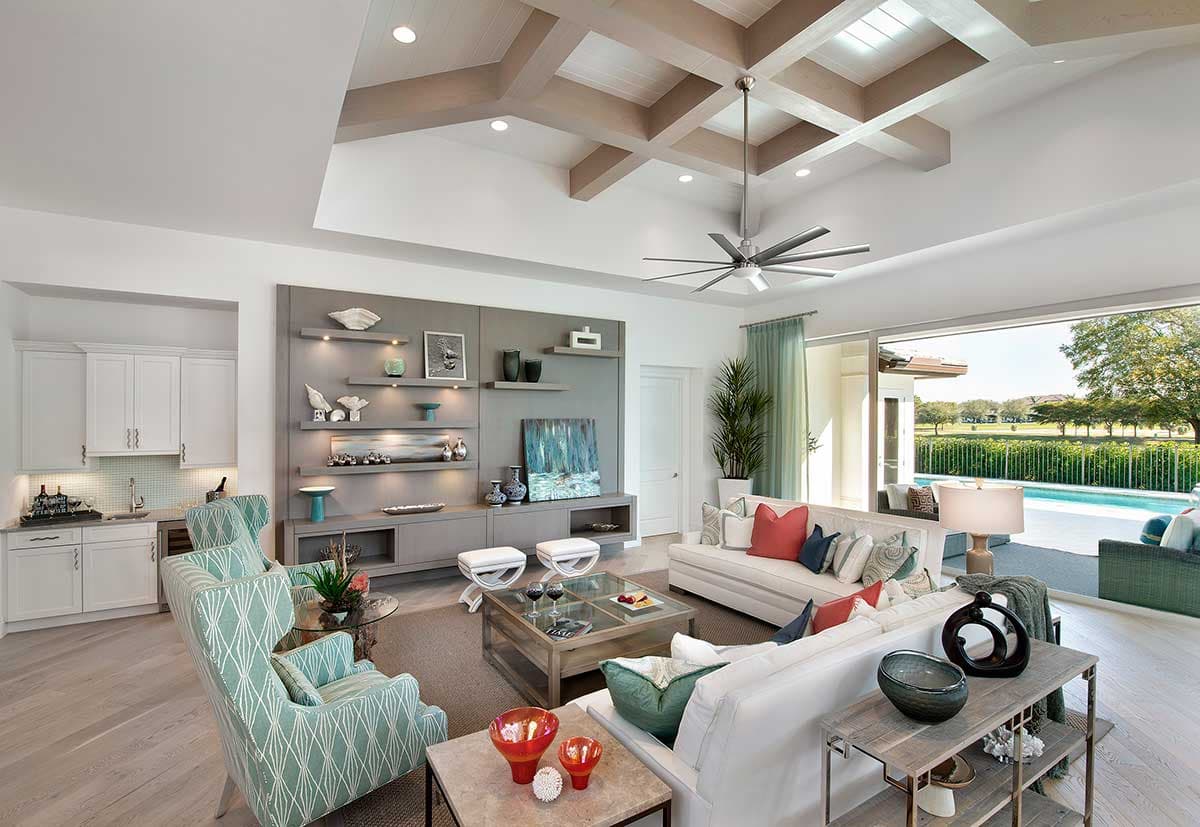

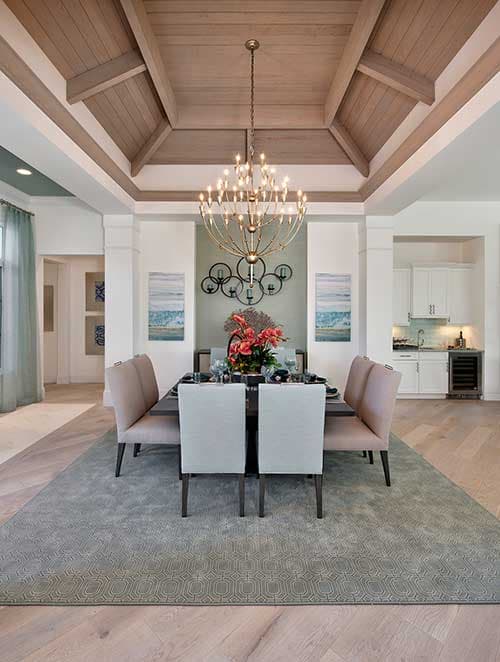

  • The foyer ceiling rises from 12' to 13' and leads you to the great room with a coffered and beamed ceiling and views to the kitchen and lanai in back. The back will slides wide open creating a great combined space for entertaining. The wet bar helps too.

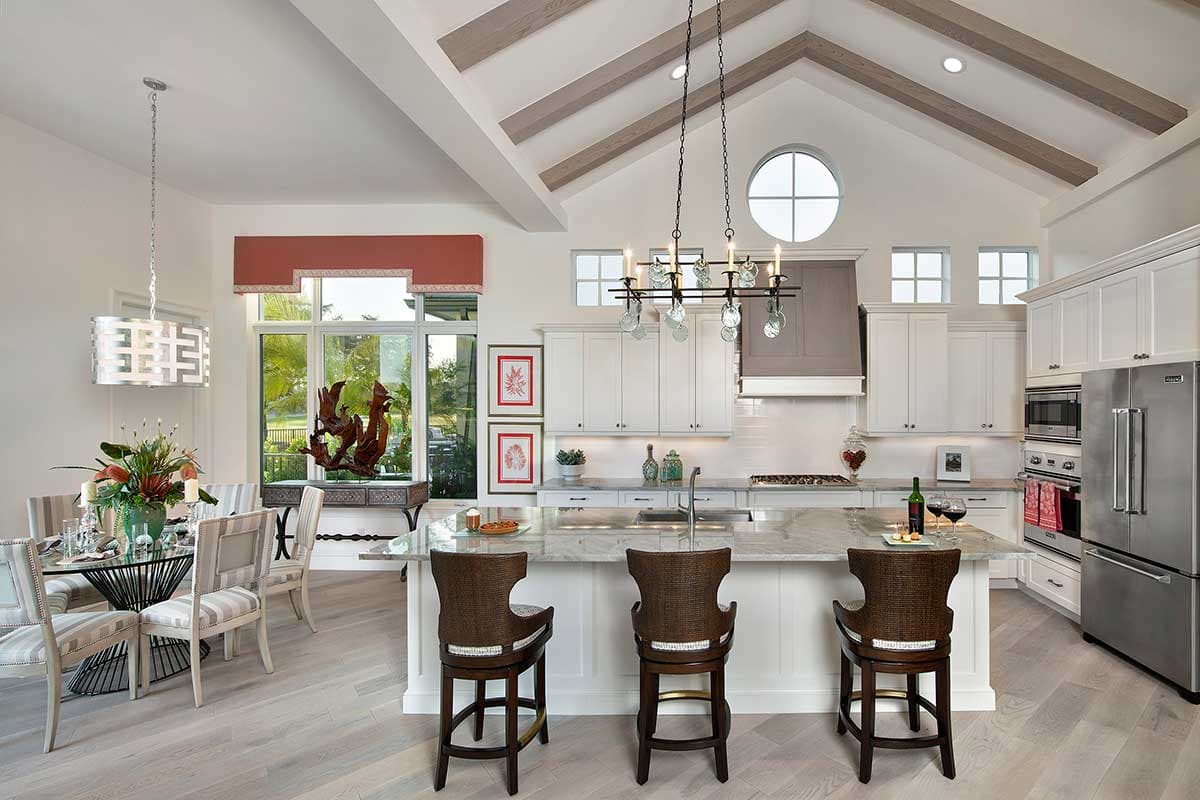

  • The kitchen has a vaulted ceiling, a walk-in pantry, island with seating and is open to the great room and dinette.

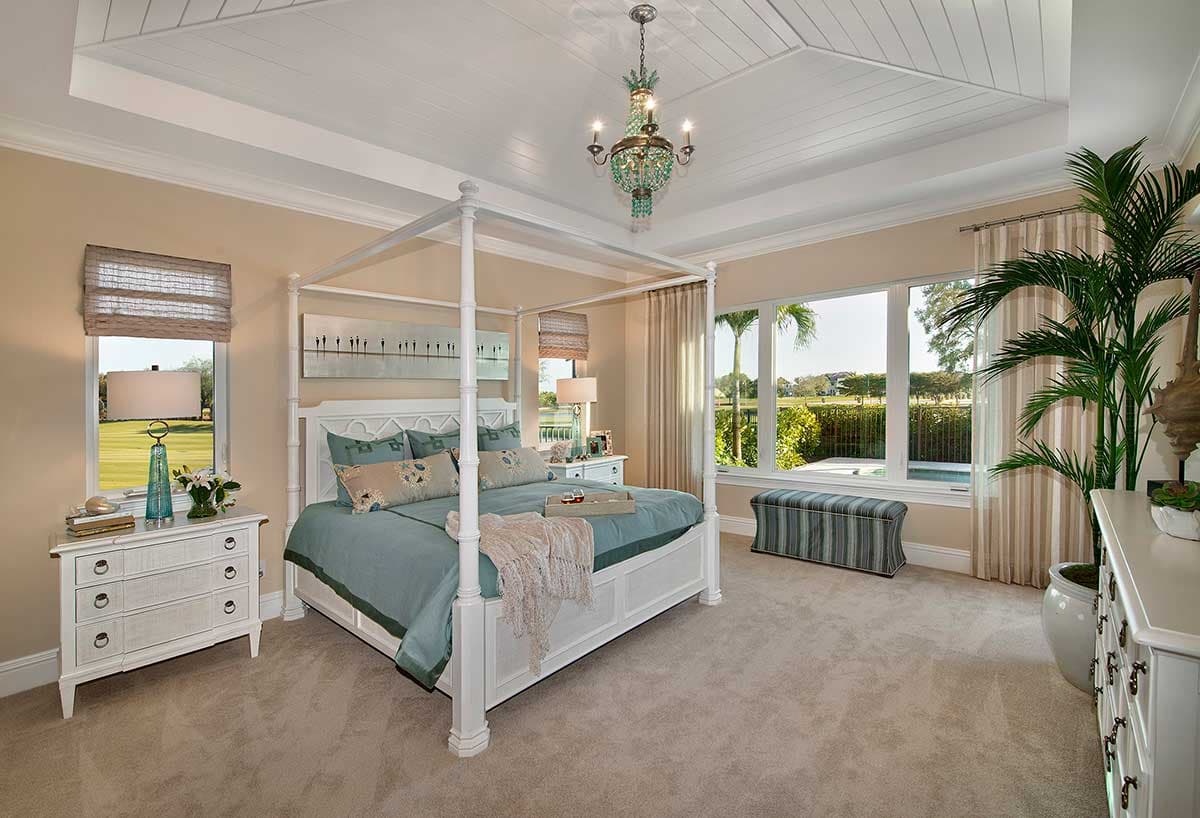

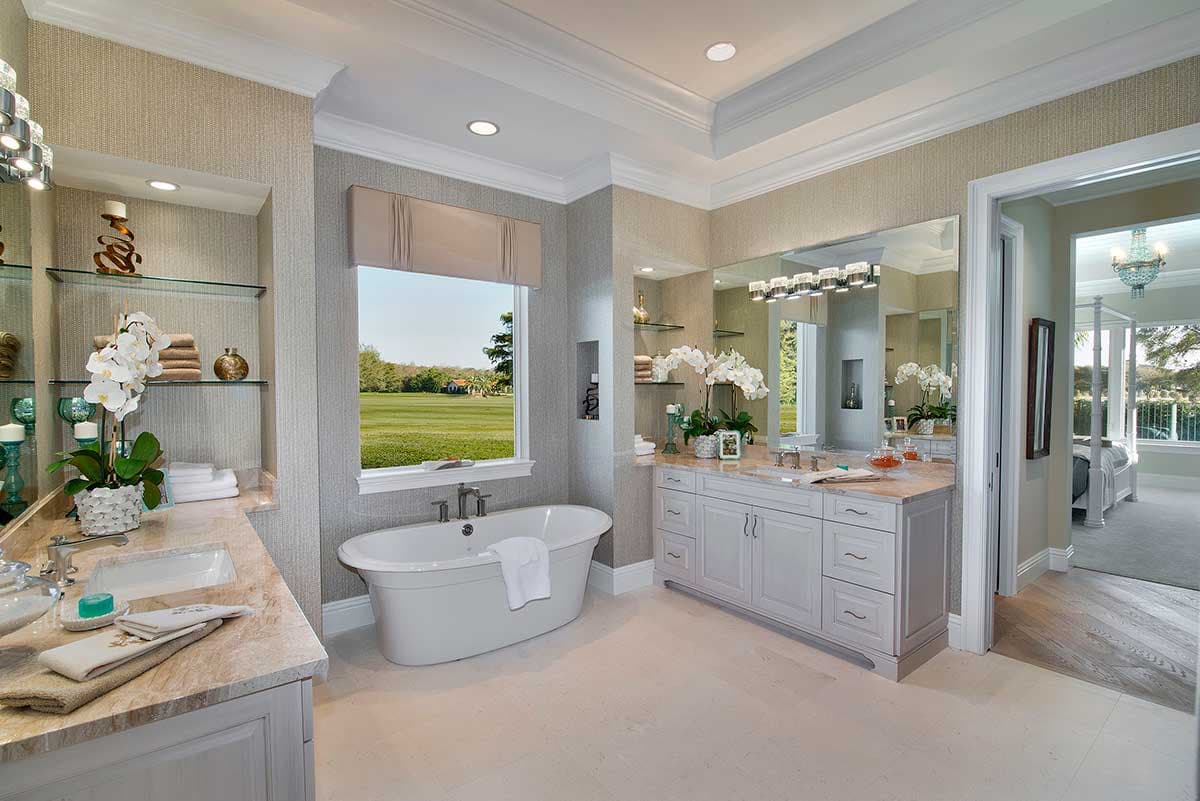

  • The master suite is located in back and has outdoor access and vaulted ceilings. The other bedrooms have flat 10' ceilings and their own baths.

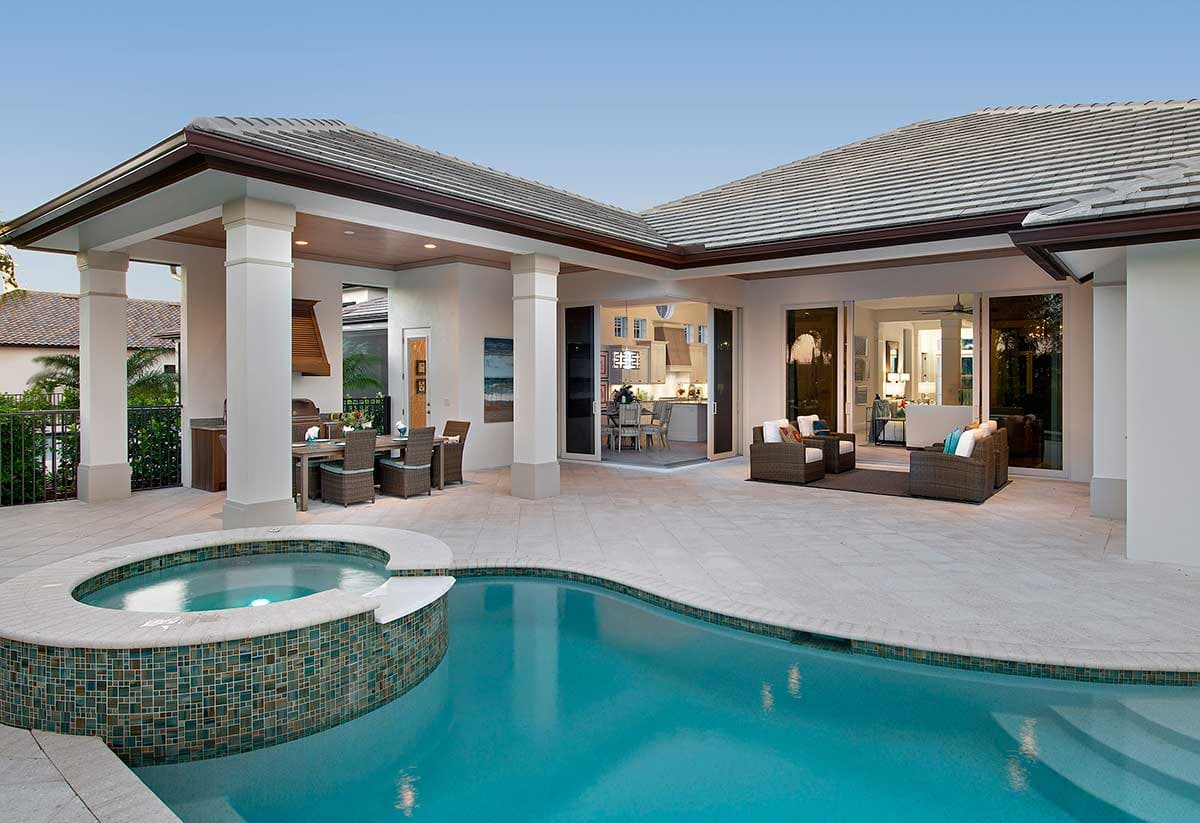

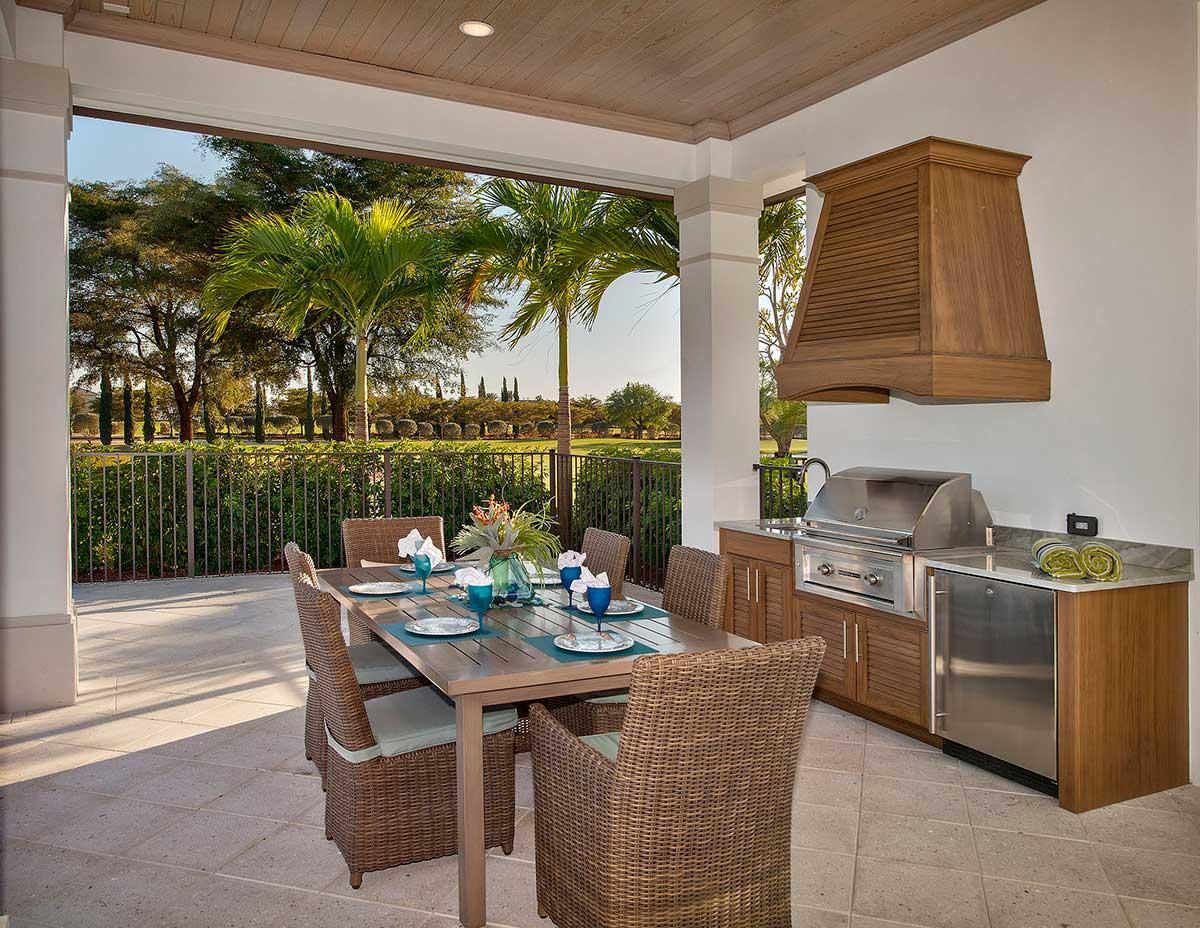

  • There are two covered lanai in back each with 12' ceilings. One has an outdoor kitchen and access to a bath and access to the house.
  • The study has access right off the foyer making it a great place to conduct business without traipsing through the home.
  • NOTE: This house plan is not for sale for use in Collier and Lee Counties, Florida without the prior written consent from the designer. Pricing will vary if permission is granted. Please contact us for more information.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

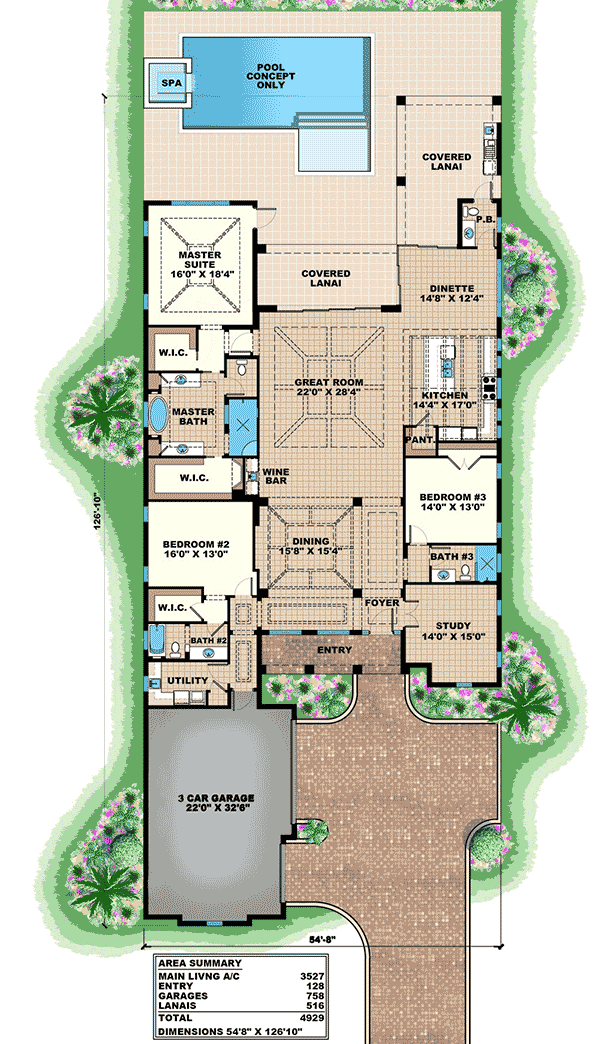

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3 Bed Beauty with 2 Lanai - 66342WE floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,527 sq. ft.
  • 1st Floor: 3,527 sq. ft.
  • Lanai: 516 sq. ft.
  • Porch, Front: 128 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 8"
  • Depth: 126' 10"
  • Max ridge height: 24' 5"

Garage

  • Type: Attached
  • Area: 758 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Room Details Ceiling Type Width Depth Height
Lanai Flat 12' 0"
Foyer Coffered 10' 11"
Entry Flat 16' 0"
Bedroom 2 Flat 10' 0"
Study Flat 12' 0"
Master Bath Cathedral 9' 1"
Dinette Flat 12' 0"
Bedroom 3 Flat 10' 0"
Great Room Coffered 10' 9"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

3 Bed Beauty with 2 Lanai

  • 3,527

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $1,500
  • PDF - Single-Build $1,500
  • CAD - Single-Build $1,500
  • View all purchase option online

About This Plan

  • This 3 bed house plan has a stucco exterior with a covered entry with a 16' ceiling. Four tall columns support the attractive gable above.
  • The foyer ceiling rises from 12' to 13' and leads you to the great room with a coffered and beamed ceiling and views to the kitchen and lanai in back. The back will slides wide open creating a great combined space for entertaining. The wet bar helps too.
  • The kitchen has a vaulted ceiling, a walk-in pantry, island with seating and is open to the great room and dinette.
  • The master suite is located in back and has outdoor access and vaulted ceilings. The other bedrooms have flat 10' ceilings and their own baths.
  • There are two covered lanai in back each with 12' ceilings. One has an outdoor kitchen and access to a bath and access to the house.
  • The study has access right off the foyer making it a great place to conduct business without traipsing through the home.
  • NOTE: This house plan is not for sale for use in Collier and Lee Counties, Florida without the prior written consent from the designer. Pricing will vary if permission is granted. Please contact us for more information.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,527 sq. ft.
  • 1st Floor: 3,527 sq. ft.
  • Lanai: 516 sq. ft.
  • Porch, Front: 128 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 8"
  • Depth: 126' 10"
  • Max ridge height: 24' 5"

Garage

  • Type: Attached
  • Area: 758 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
