Plan 660008JMD 3-Bed Coastal-style House Plan with Split-Bedroom Layout

3,119 3 3.5+ 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed Coastal-style House Plan with Split-Bedroom Layout

Plan 660008JMD

  • 3,119

    Heated s.f.

  • 3

    Beds

  • 3.5+

    Baths

  • 1

    Stories

  • 3

    Cars

  • From the street you will find an ascetically pleasing front façade with multiple roof lines and clean lines.
  • The double front entry doors will greet its owners with French doors leading to the study and further into the great room which is perfectly placed to the kitchen and dining areas.
  • An optional wine room is tucked behind the dining for ease of selecting a wine for dinner.  On the other side, the master will pamper you with vaulted ceilings and glass doors to the lanai.
  • Outside you have a covered area with a linear fireplace and outdoor kitchen which is perfect for entertaining
  • The master bathroom surrounds you in mirrors, tile and comes with a center soaking tub and walk around shower.
  • 2 additional bedrooms, each with their own bathrooms completes this home plan.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida.

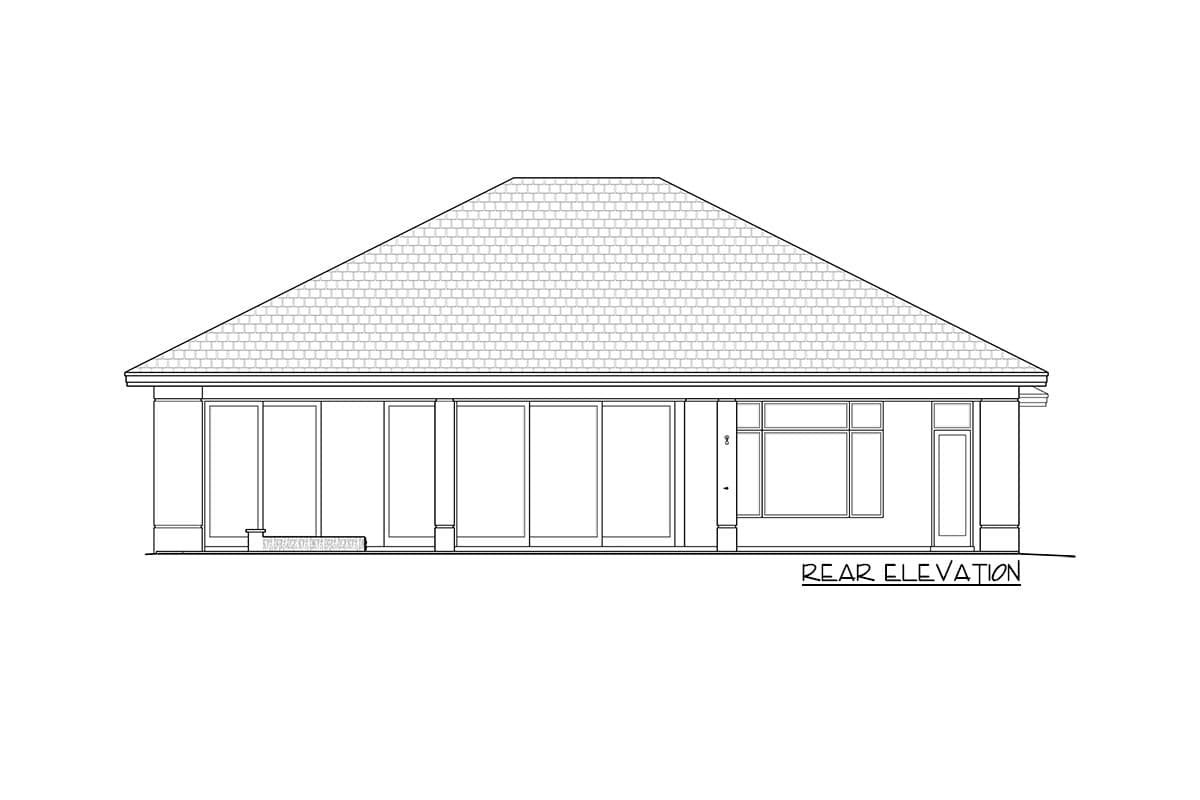

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

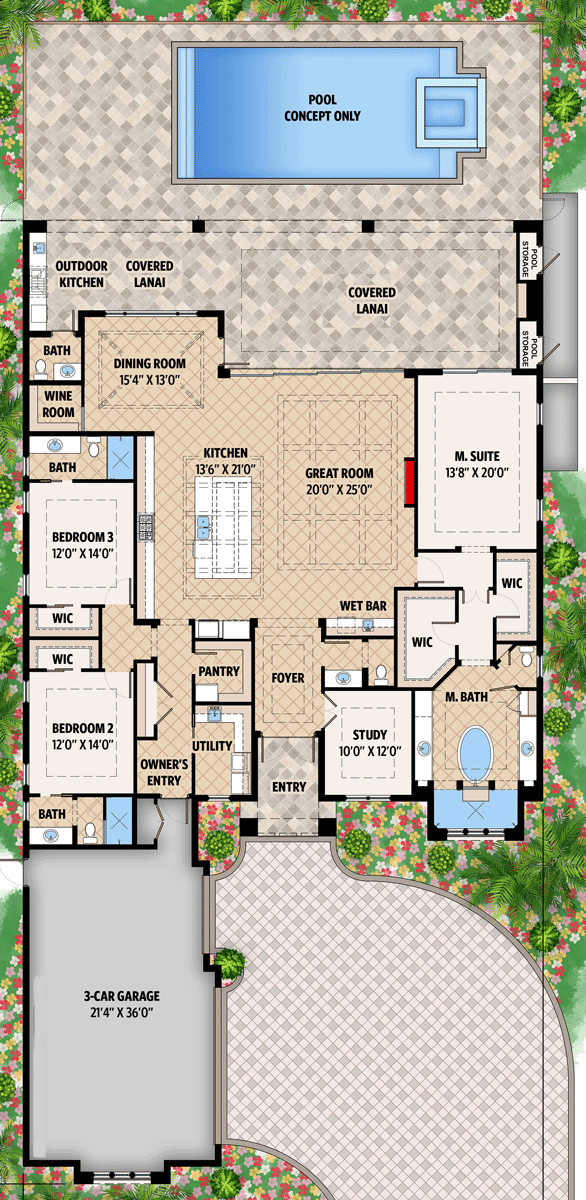

3-Bed Coastal-style House Plan with Split-Bedroom Layout - 660008JMD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,119 sq. ft.
  • 1st Floor: 3,119 sq. ft.
  • Lanai: 912 sq. ft.
  • Porch, Front: 95 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 6"
  • Depth: 110' 4"
  • Max ridge height: 25' 2"

Garage

  • Type: Attached
  • Area: 851 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 6"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

3-Bed Coastal-style House Plan with Split-Bedroom Layout

  • 3,119

    Heated s.f.

  • 3

    Beds

  • 3.5+

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD - Single-Build $2,750
  • PDF - Single-Build $2,750
  • View all purchase option online

About This Plan

  • From the street you will find an ascetically pleasing front façade with multiple roof lines and clean lines.
  • The double front entry doors will greet its owners with French doors leading to the study and further into the great room which is perfectly placed to the kitchen and dining areas.
  • An optional wine room is tucked behind the dining for ease of selecting a wine for dinner.  On the other side, the master will pamper you with vaulted ceilings and glass doors to the lanai.
  • Outside you have a covered area with a linear fireplace and outdoor kitchen which is perfect for entertaining
  • The master bathroom surrounds you in mirrors, tile and comes with a center soaking tub and walk around shower.
  • 2 additional bedrooms, each with their own bathrooms completes this home plan.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,119 sq. ft.
  • 1st Floor: 3,119 sq. ft.
  • Lanai: 912 sq. ft.
  • Porch, Front: 95 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 6"
  • Depth: 110' 4"
  • Max ridge height: 25' 2"

Garage

  • Type: Attached
  • Area: 851 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 6"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 660008JMD
View this and more for this plan by visiting www.architechtecturaldesigns.com/660008JMD
|
