Plan 54241HU 3-Bed Contemporary Home Plan with Courtyard

3,338 3 3.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed Contemporary Home Plan with Courtyard

Plan 54241HU

  • 3,338

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

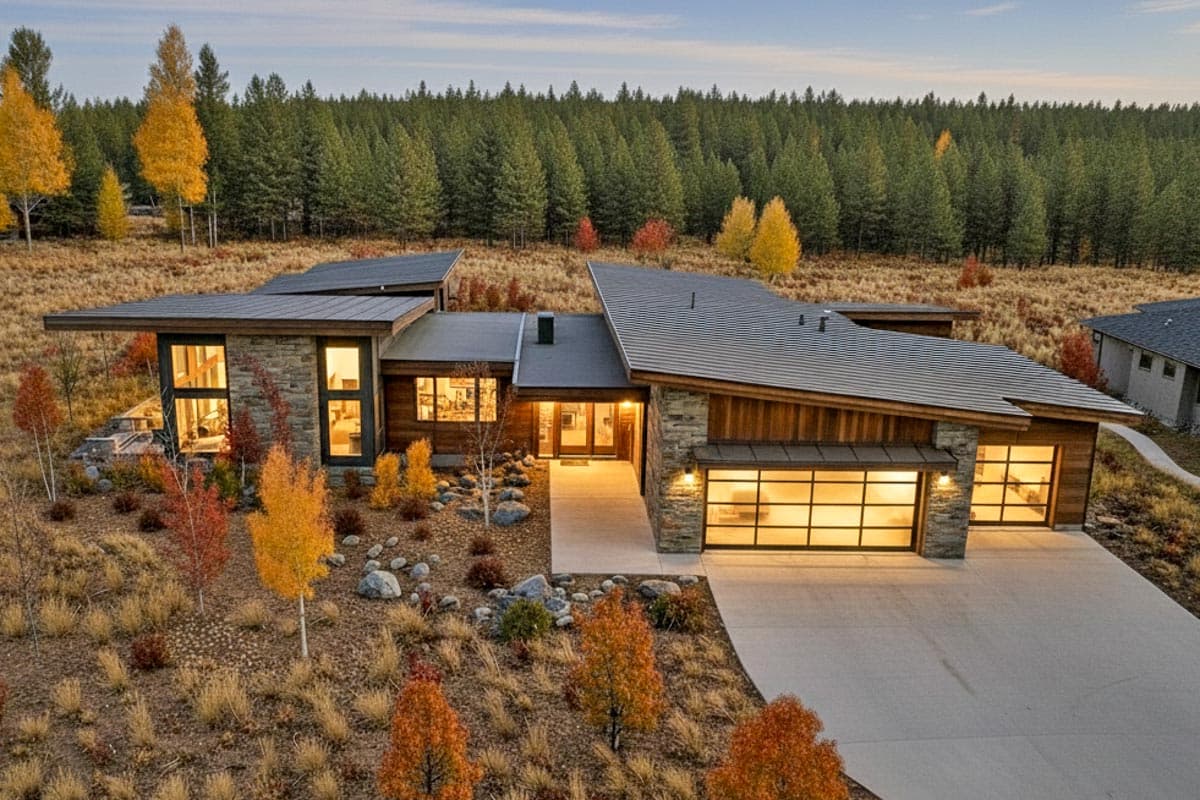

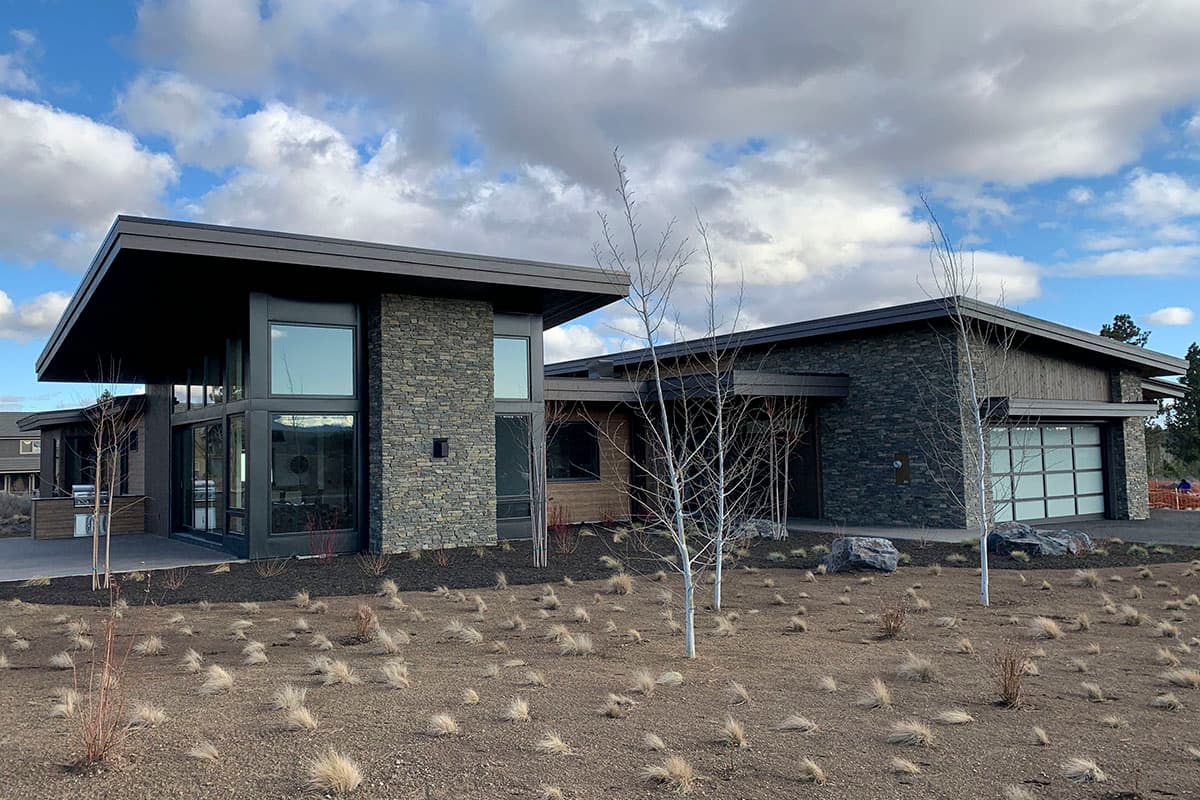

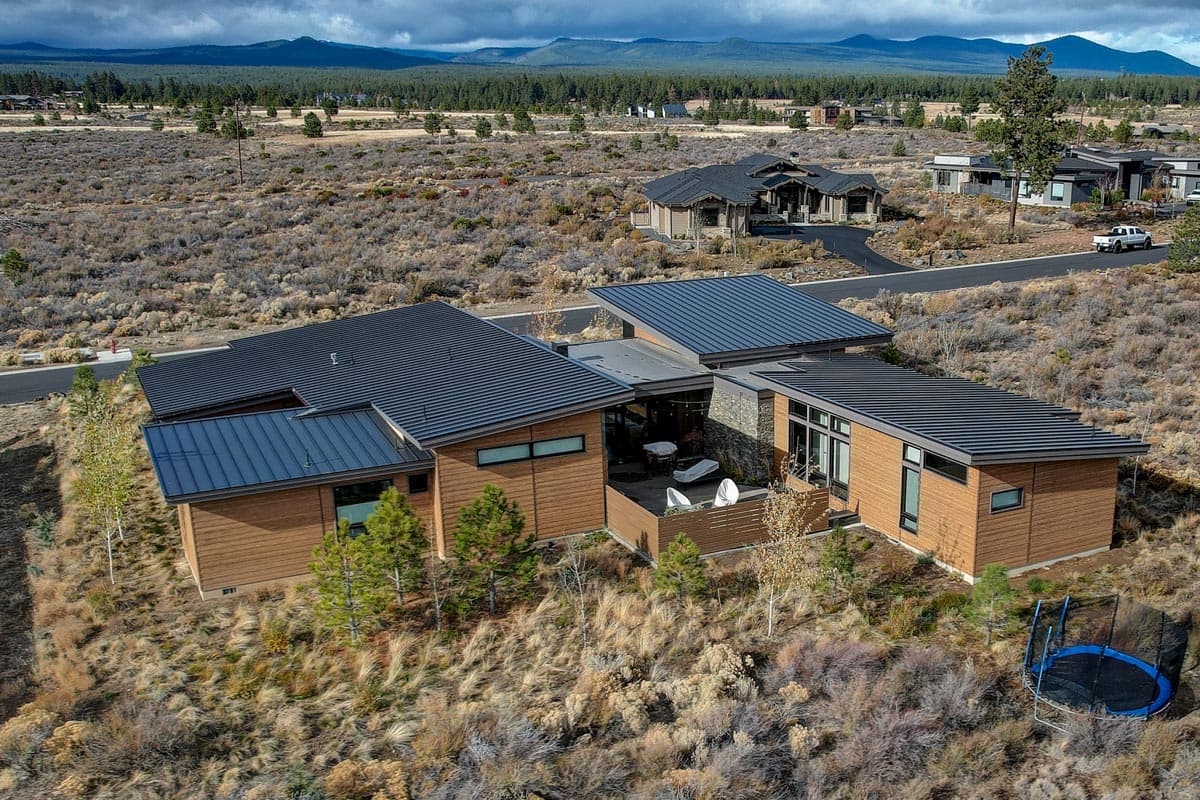

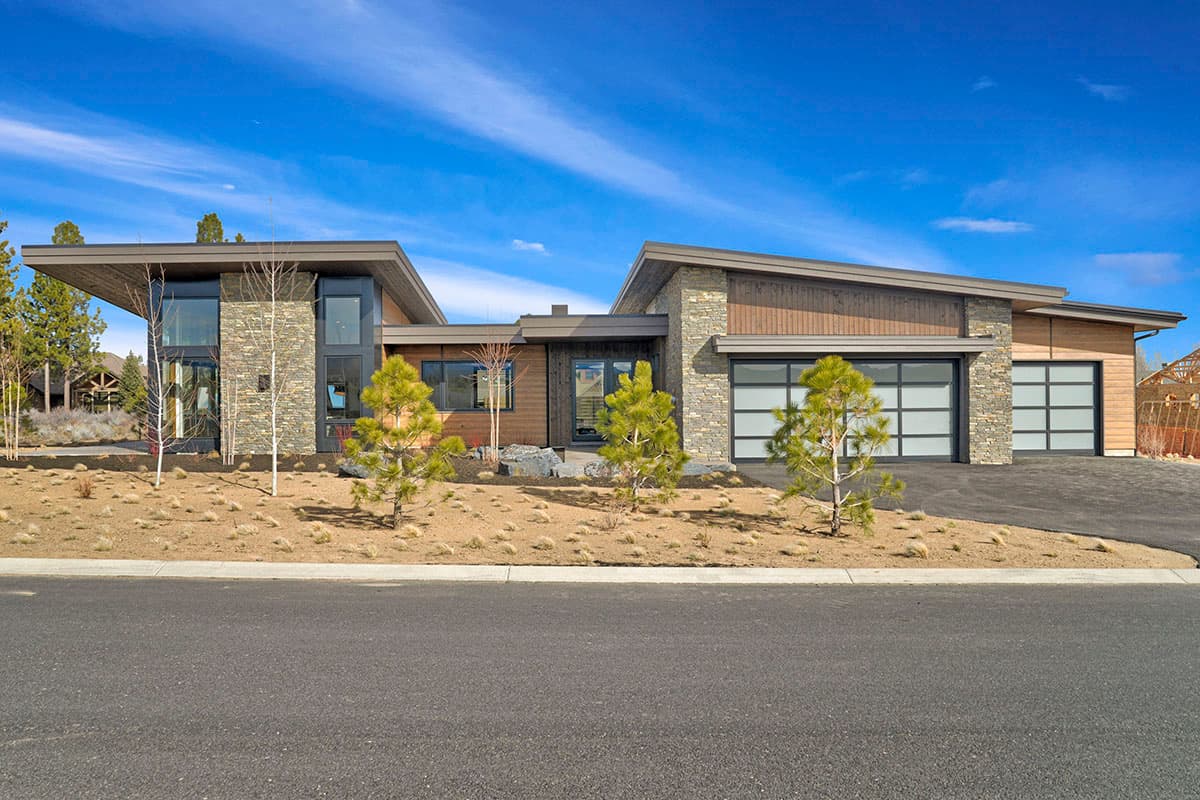

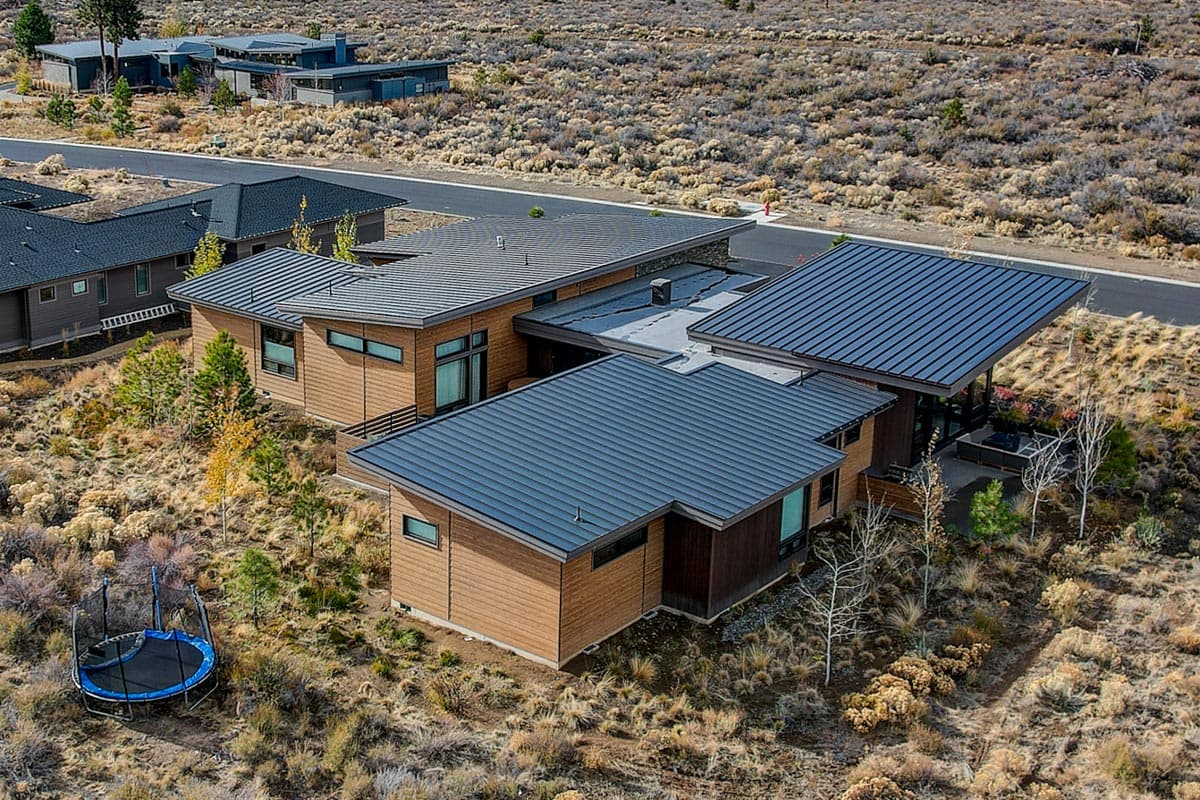

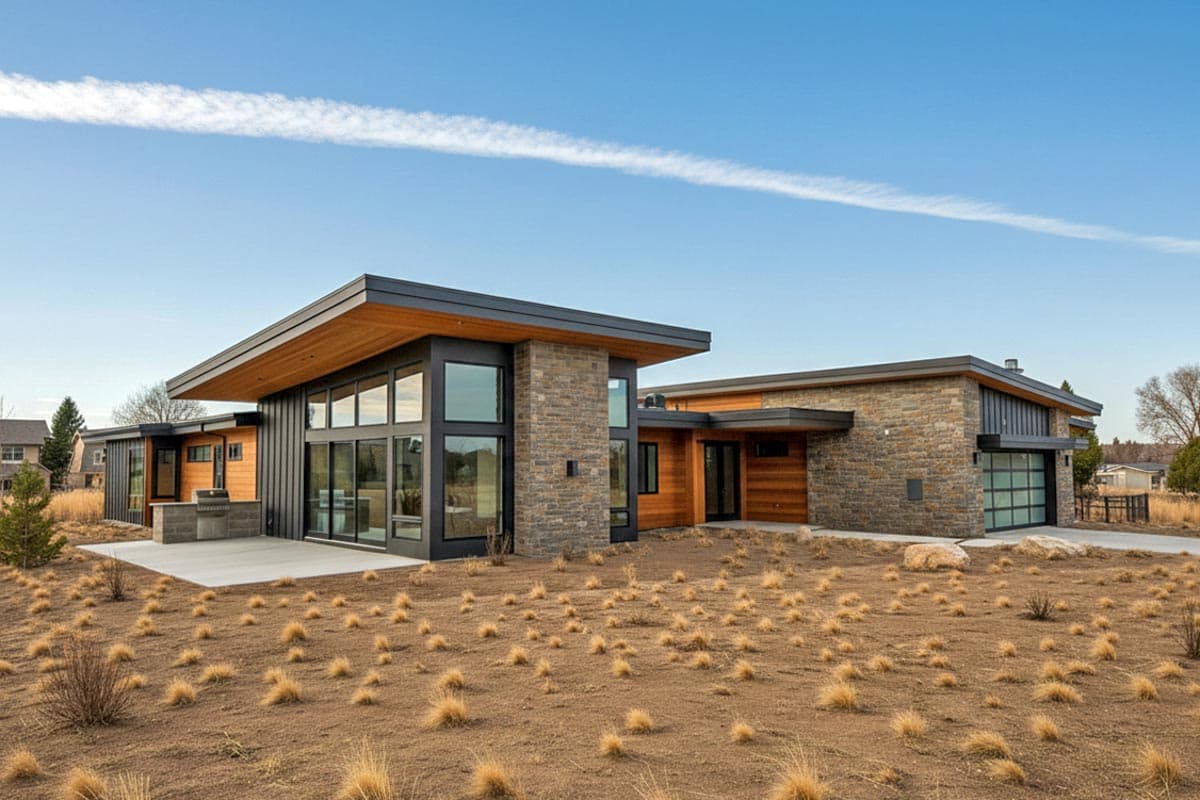

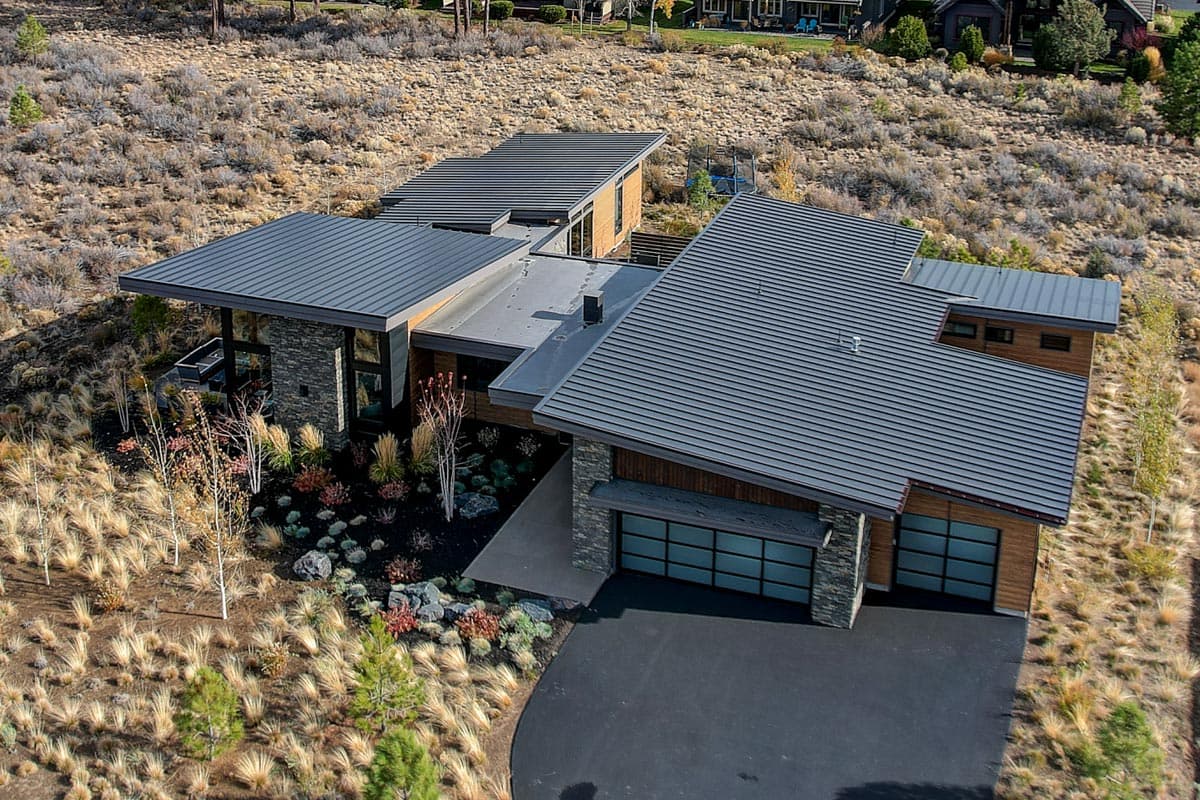

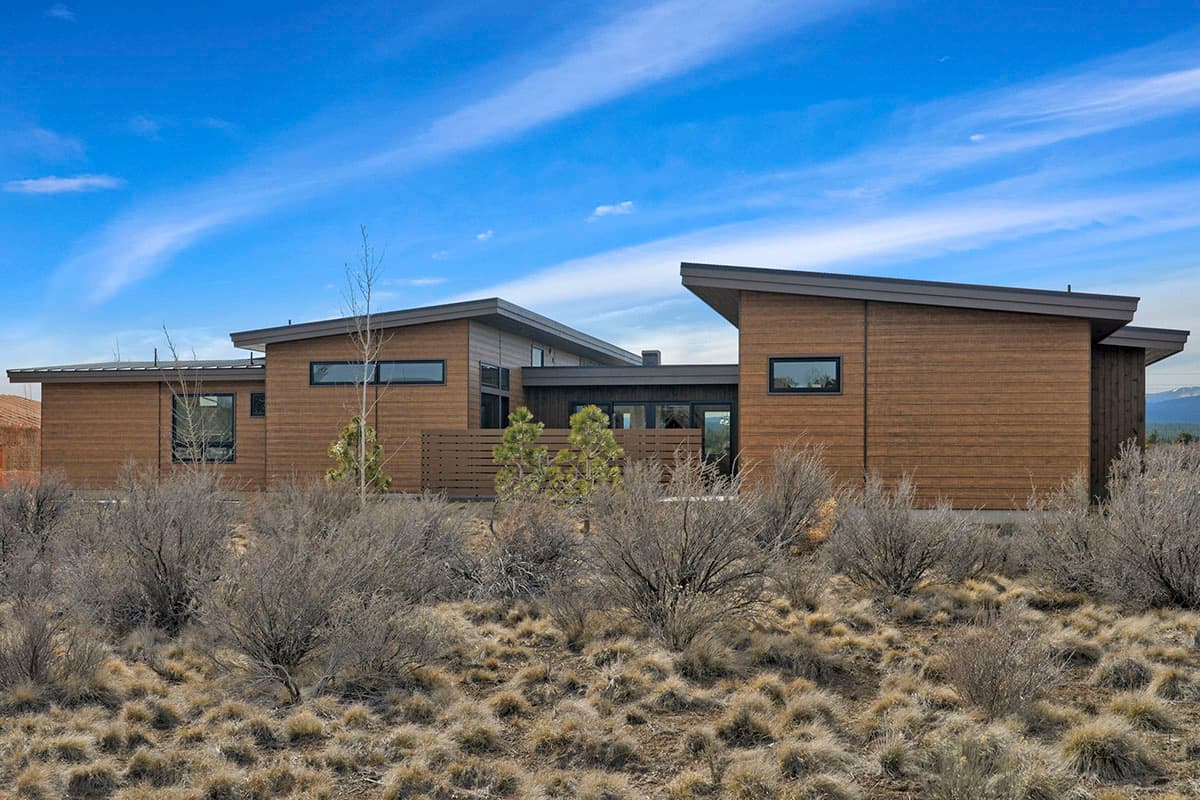

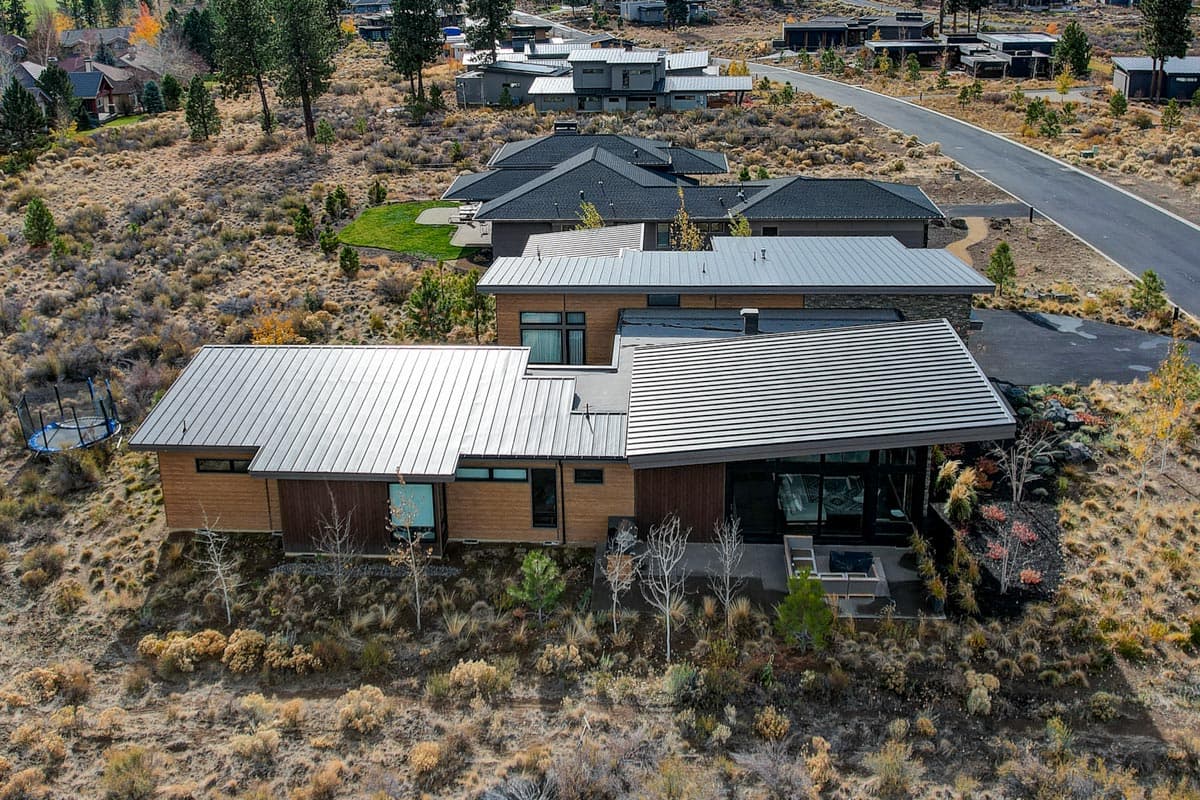

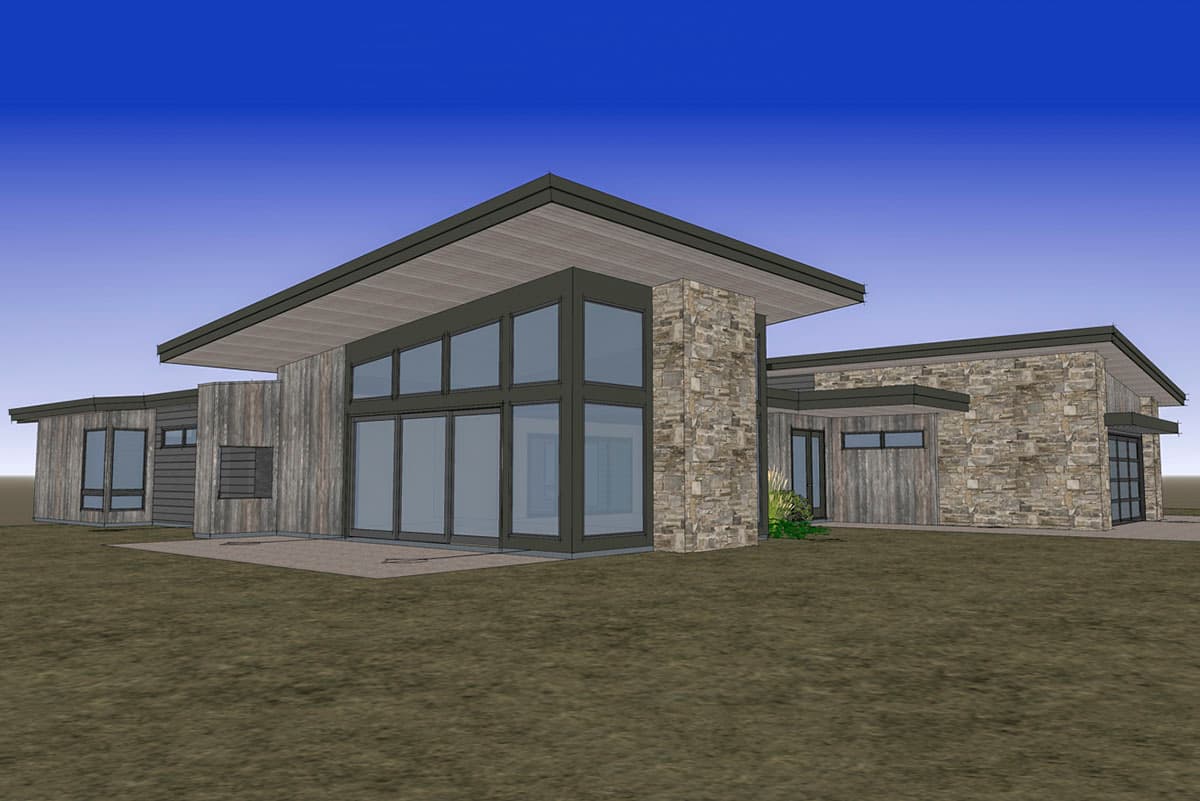

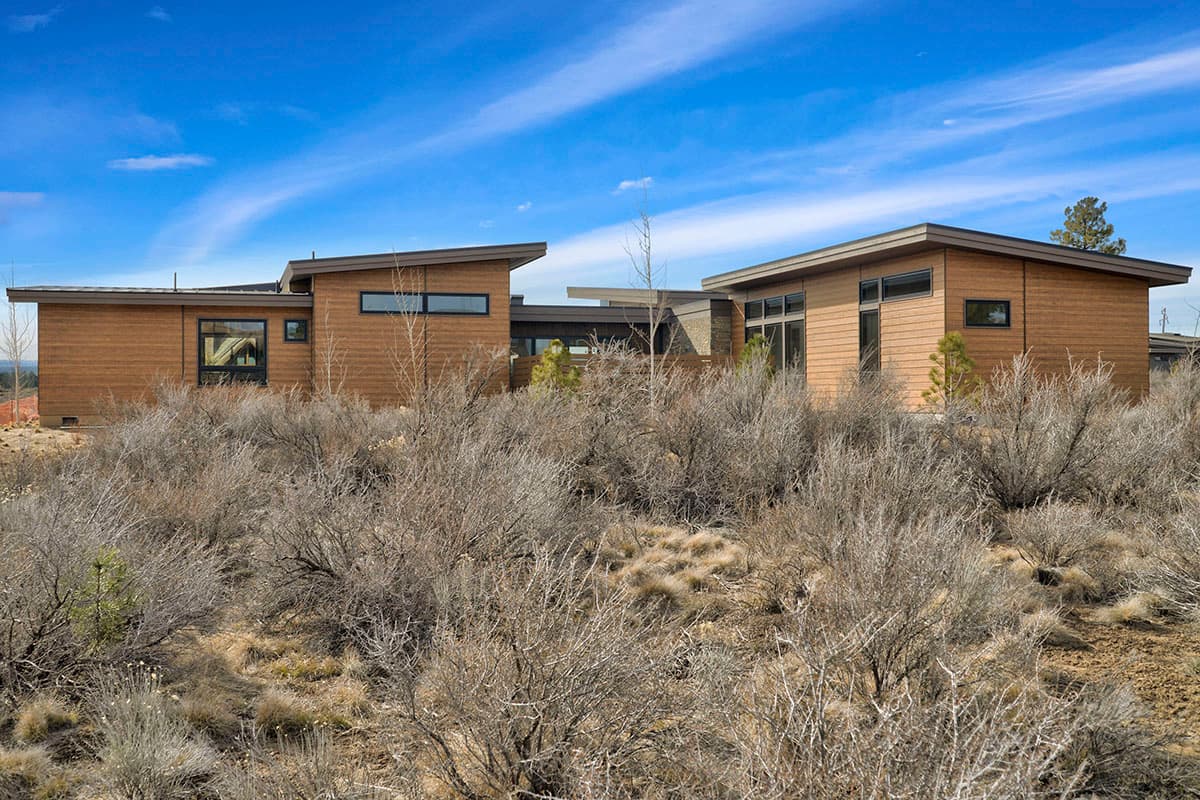

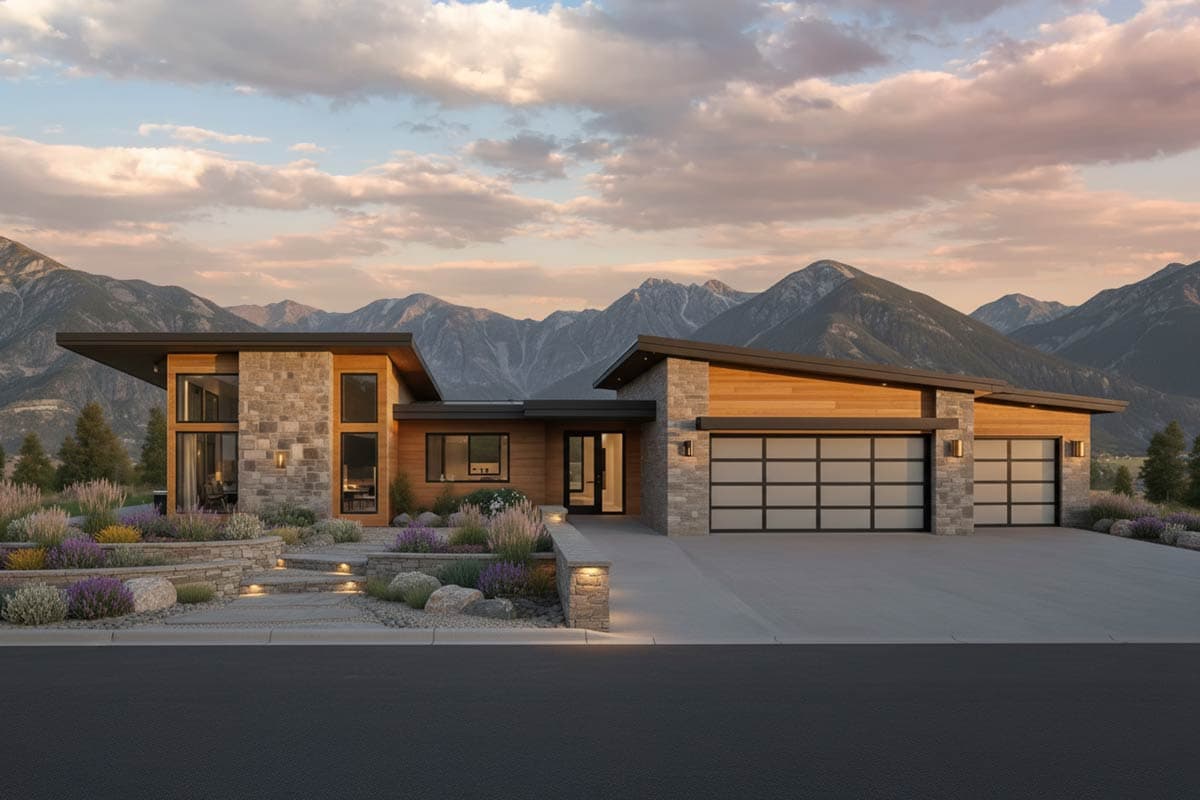

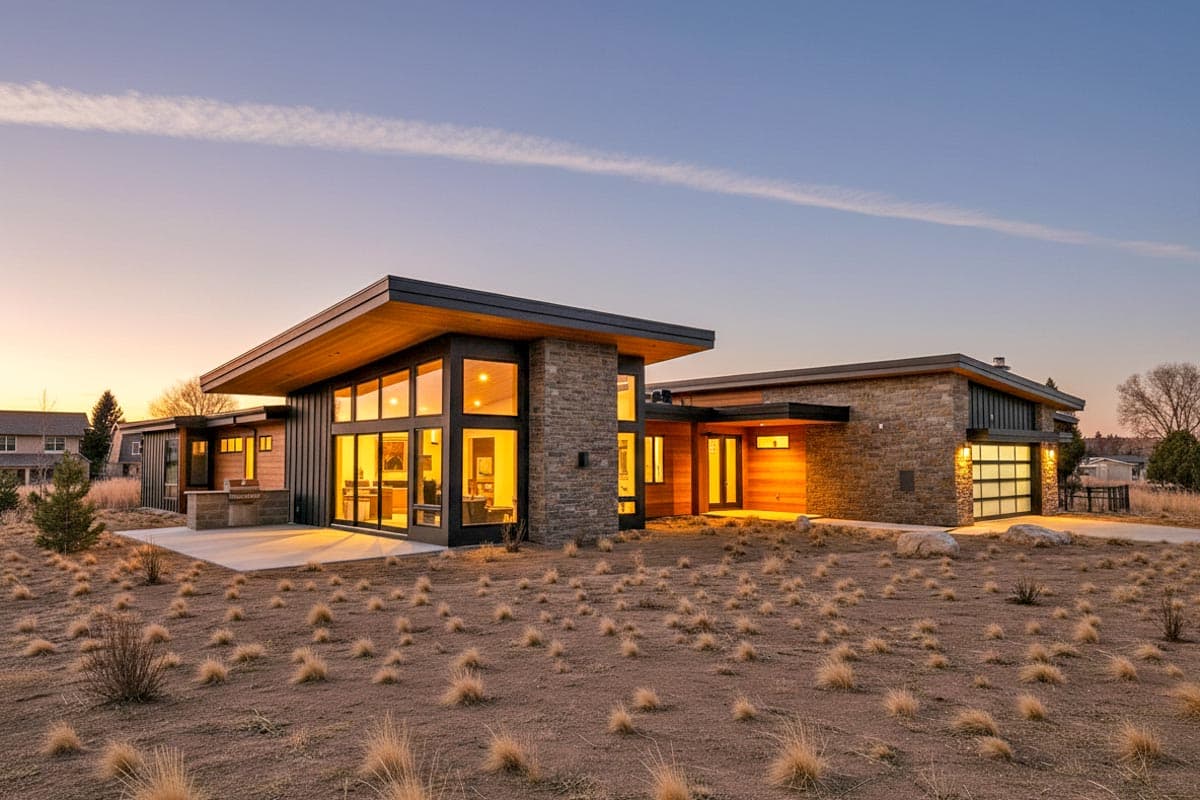

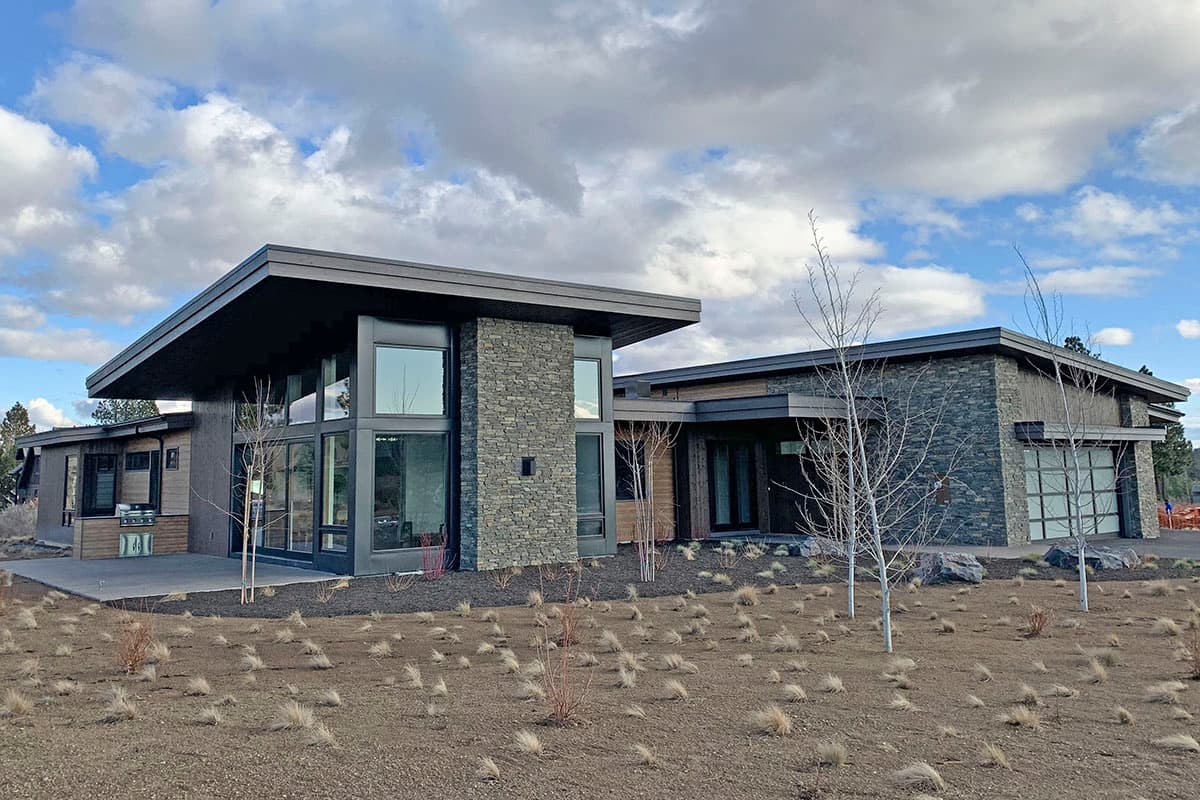

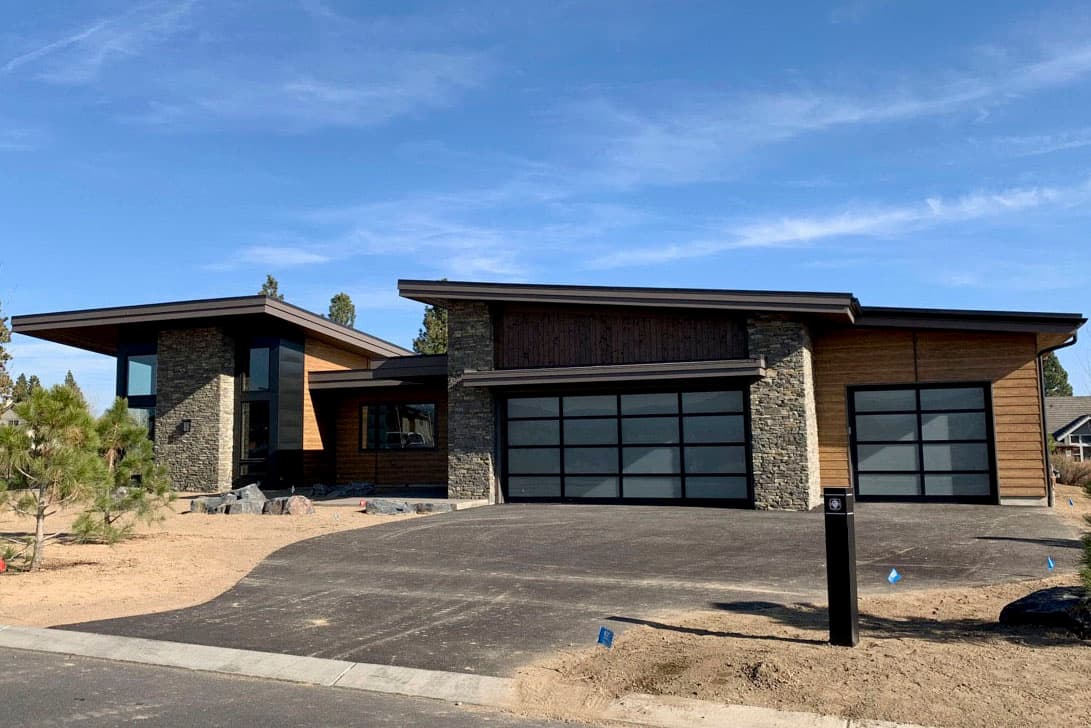

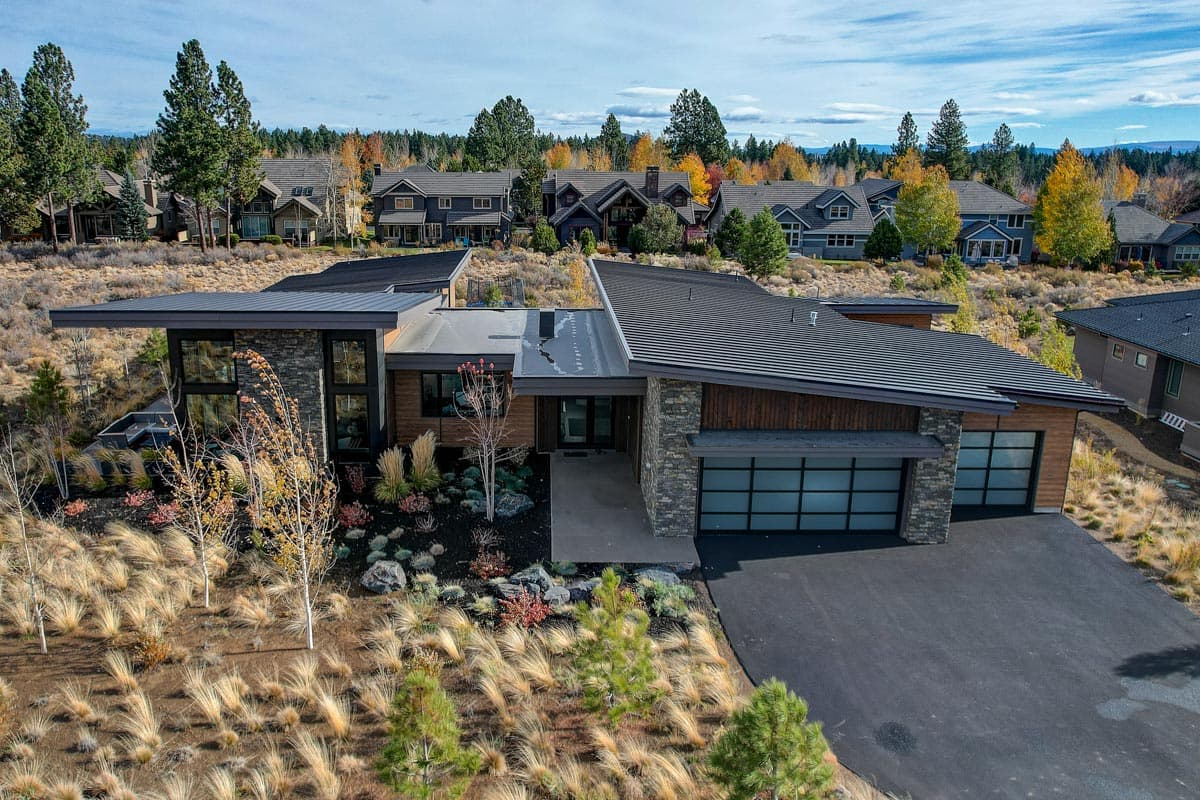

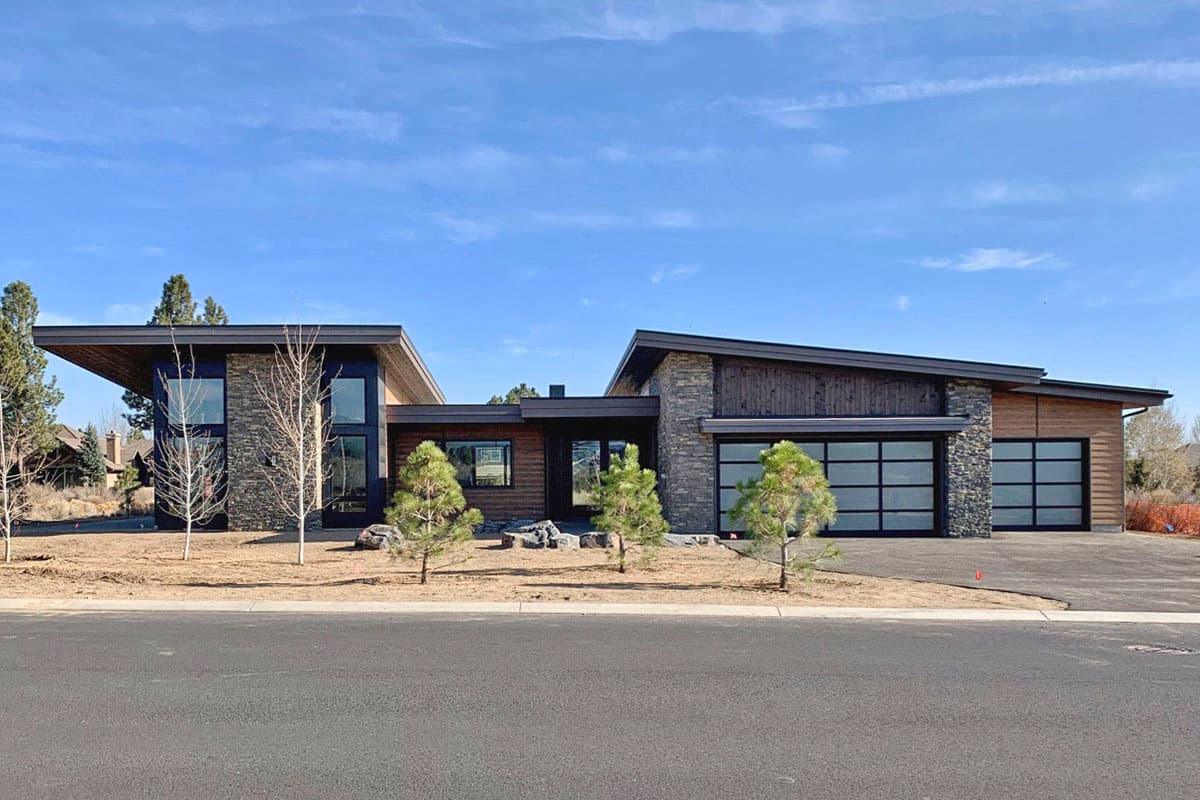

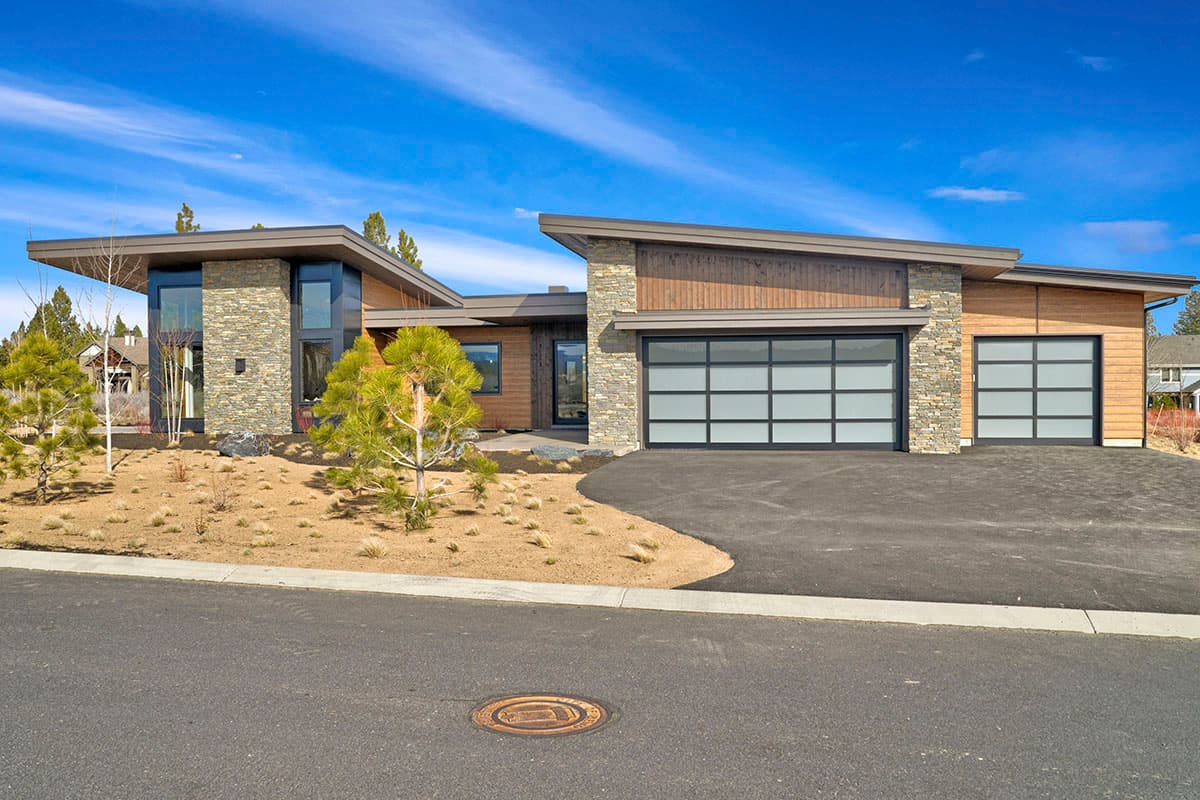

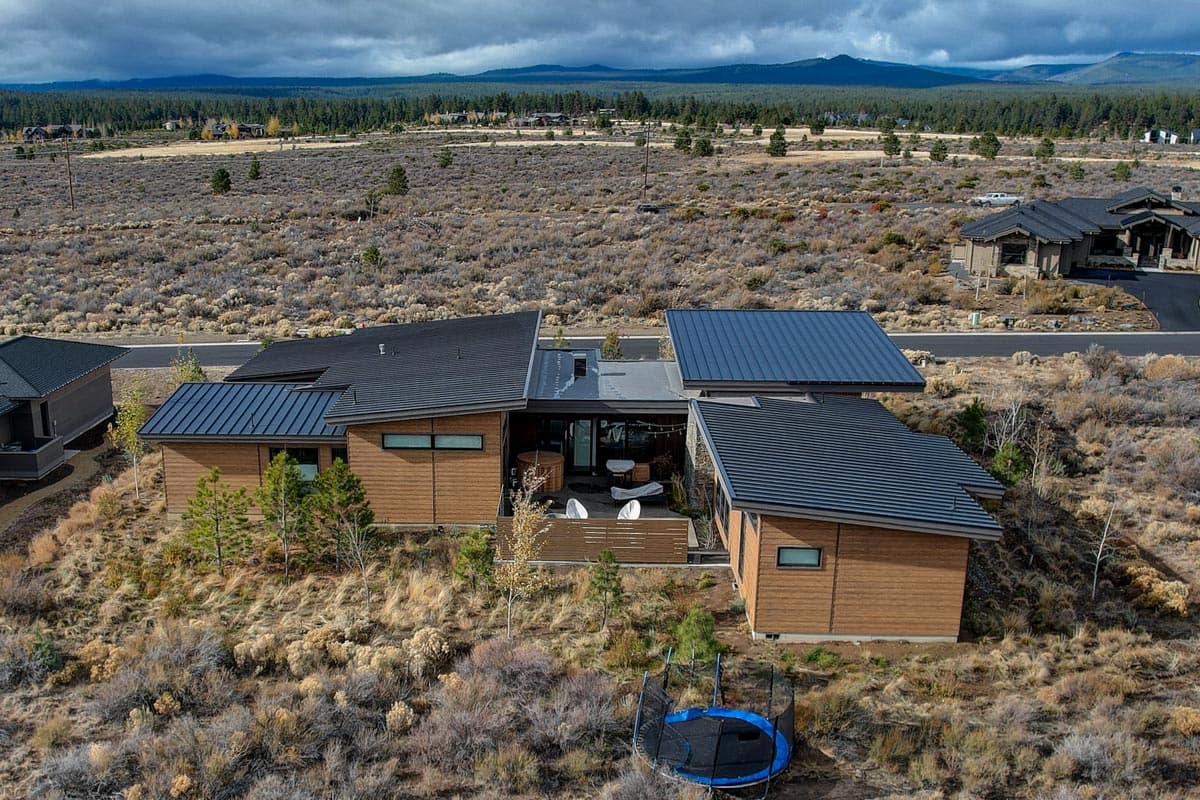

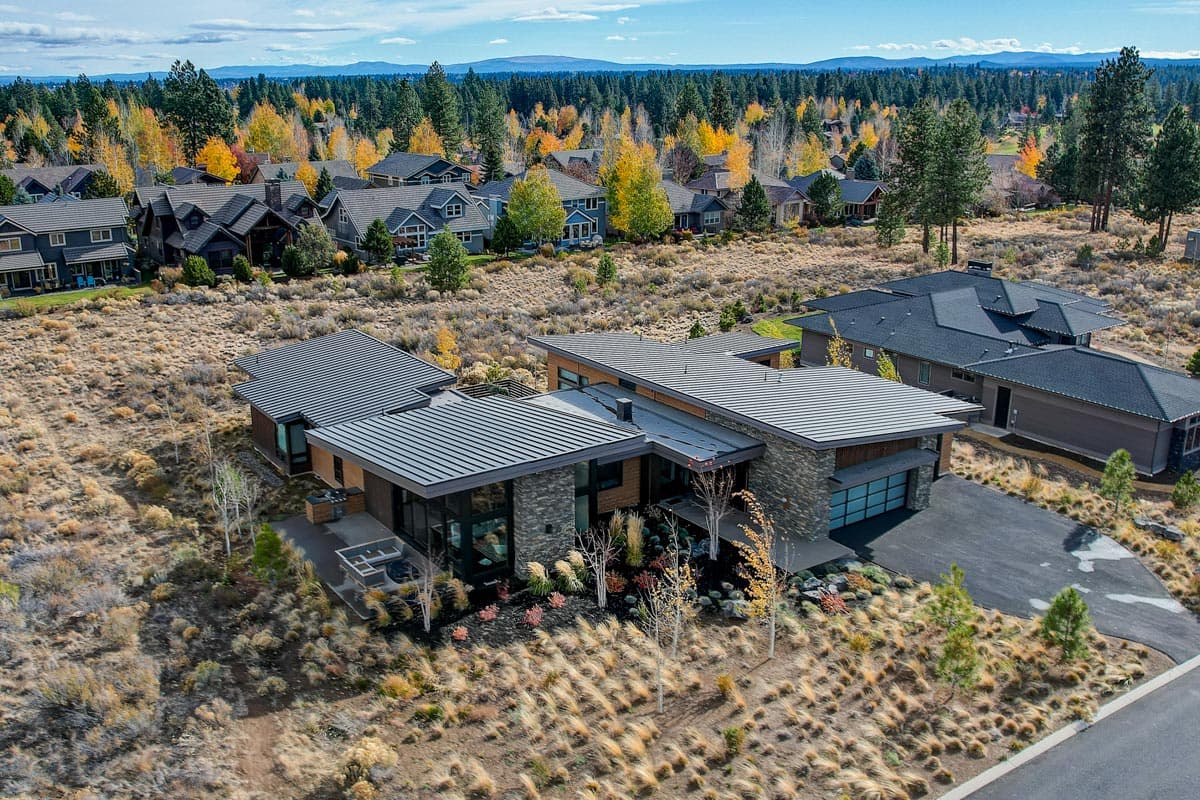

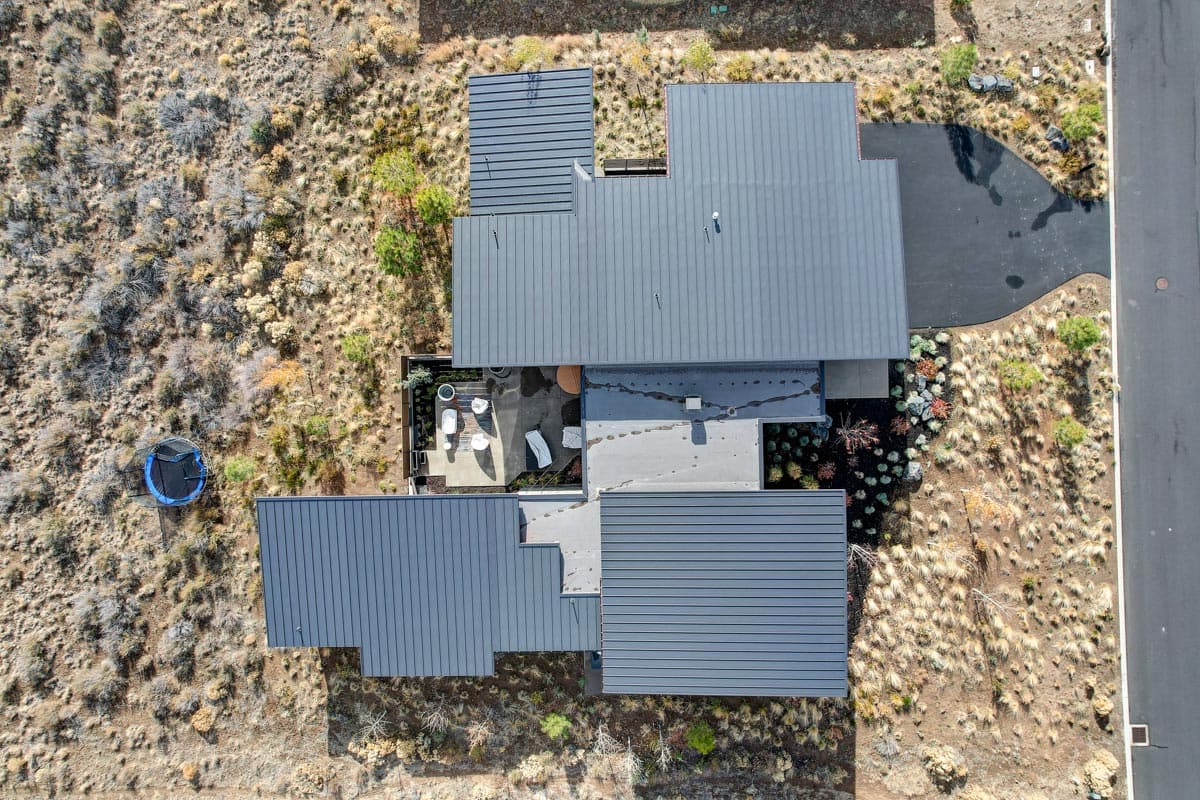

  • The sprawling footprint of this 3-bedroom, contemporary home plan creates a private courtyard in the center of the u-shape design, while the modern roof has a 6-degree primary pitch and a flat secondary pitch.

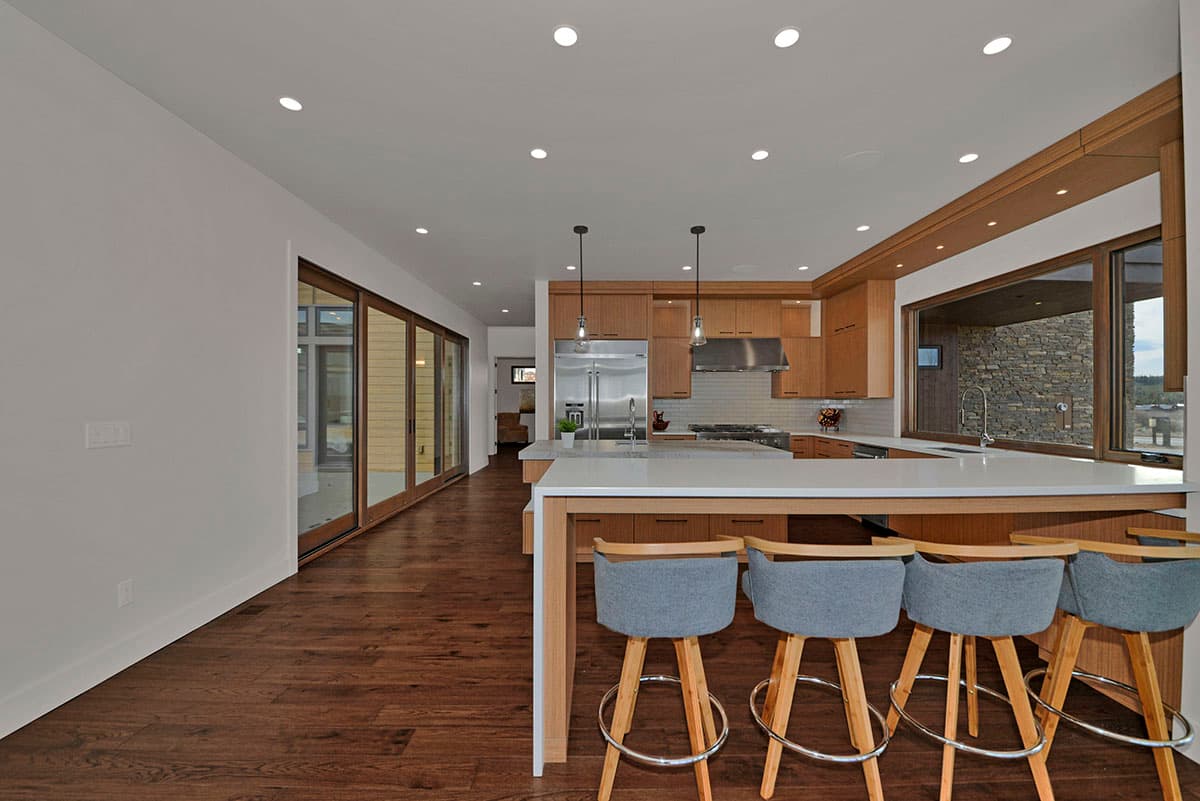

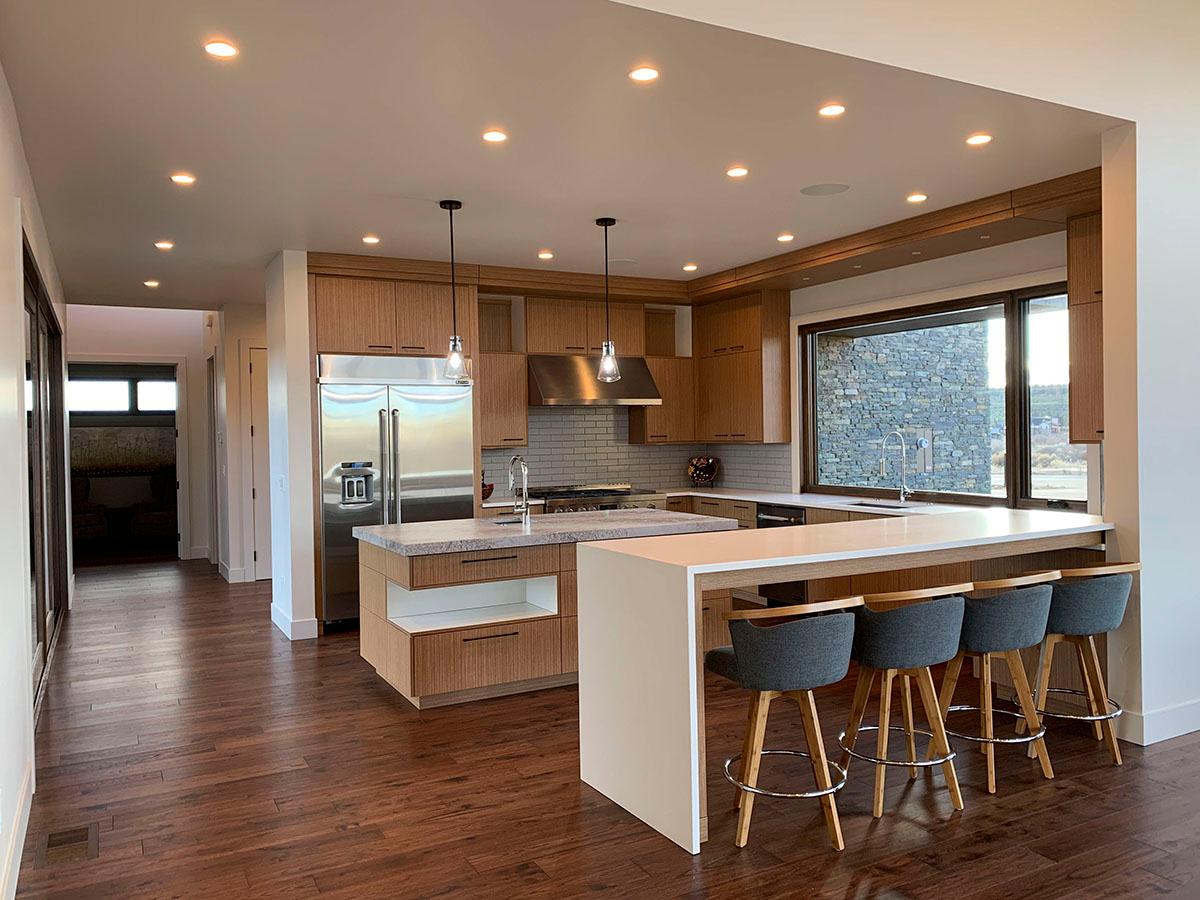

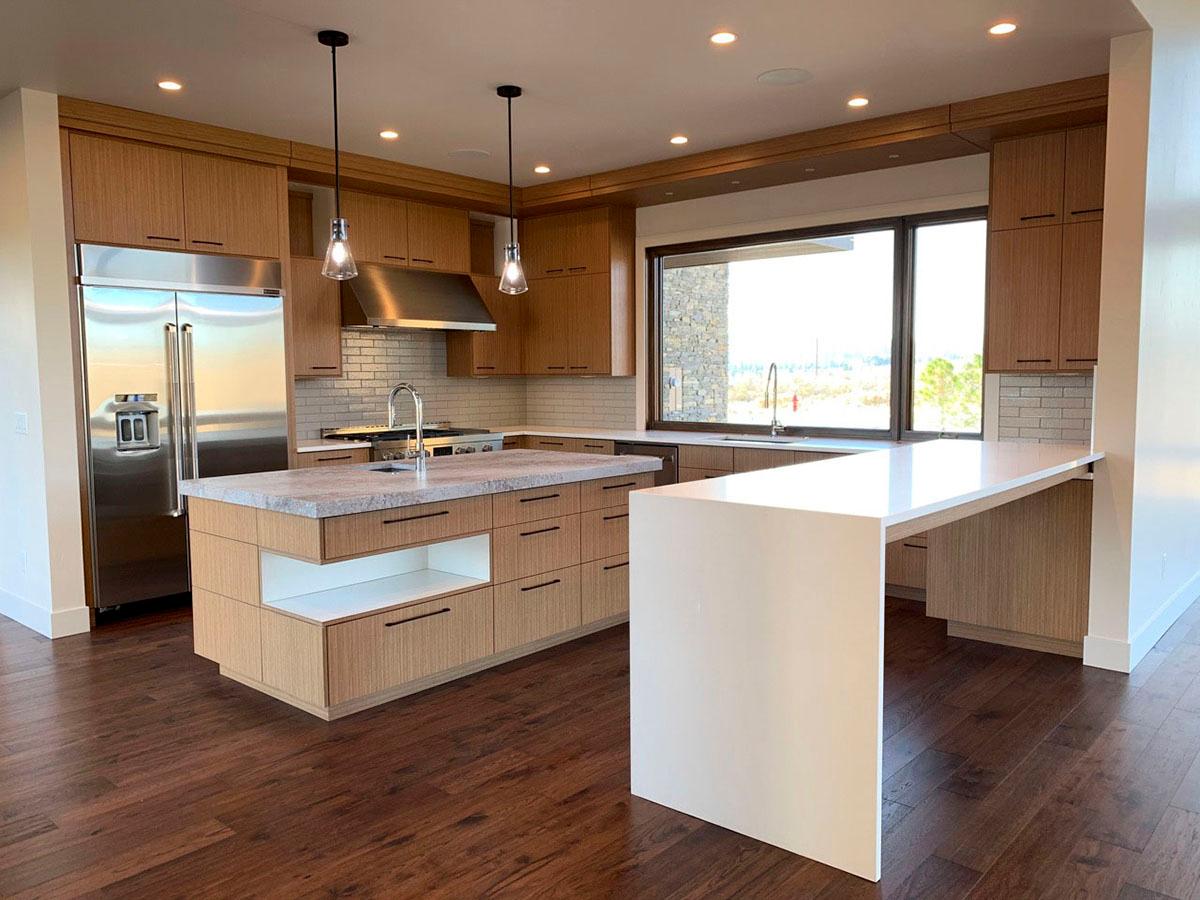

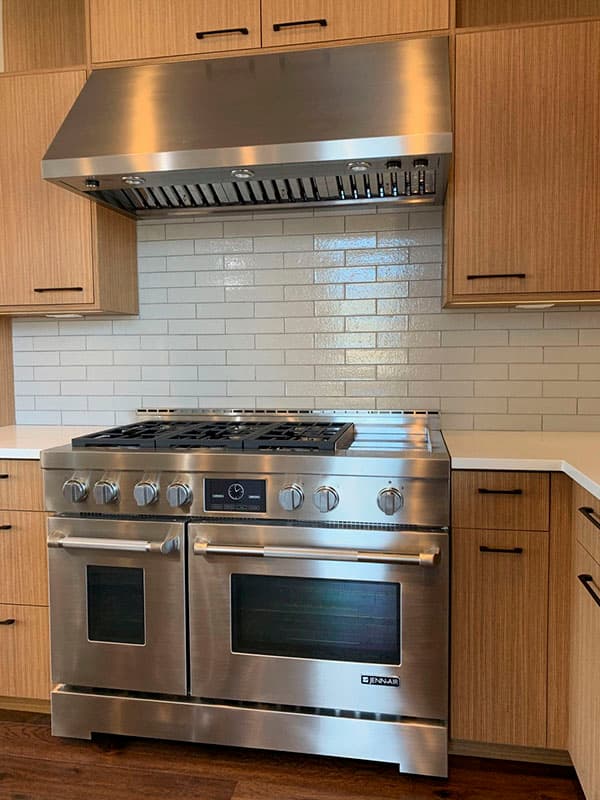

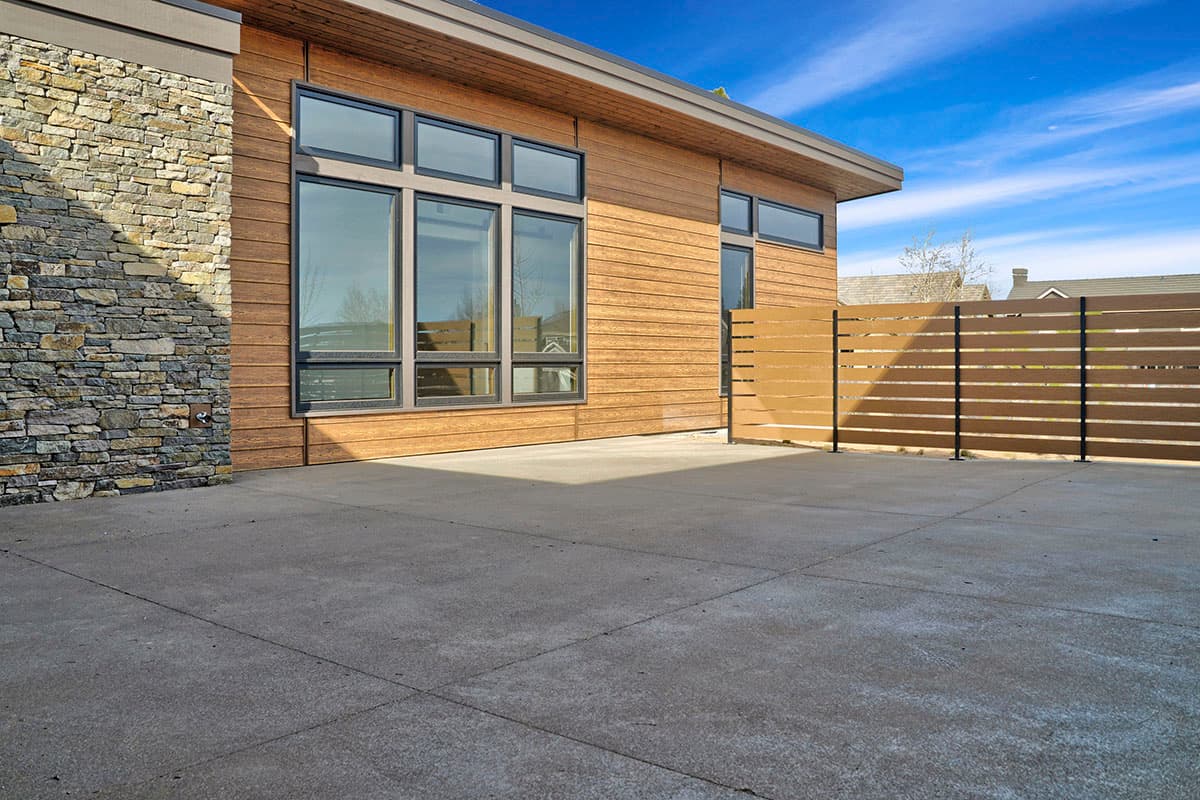

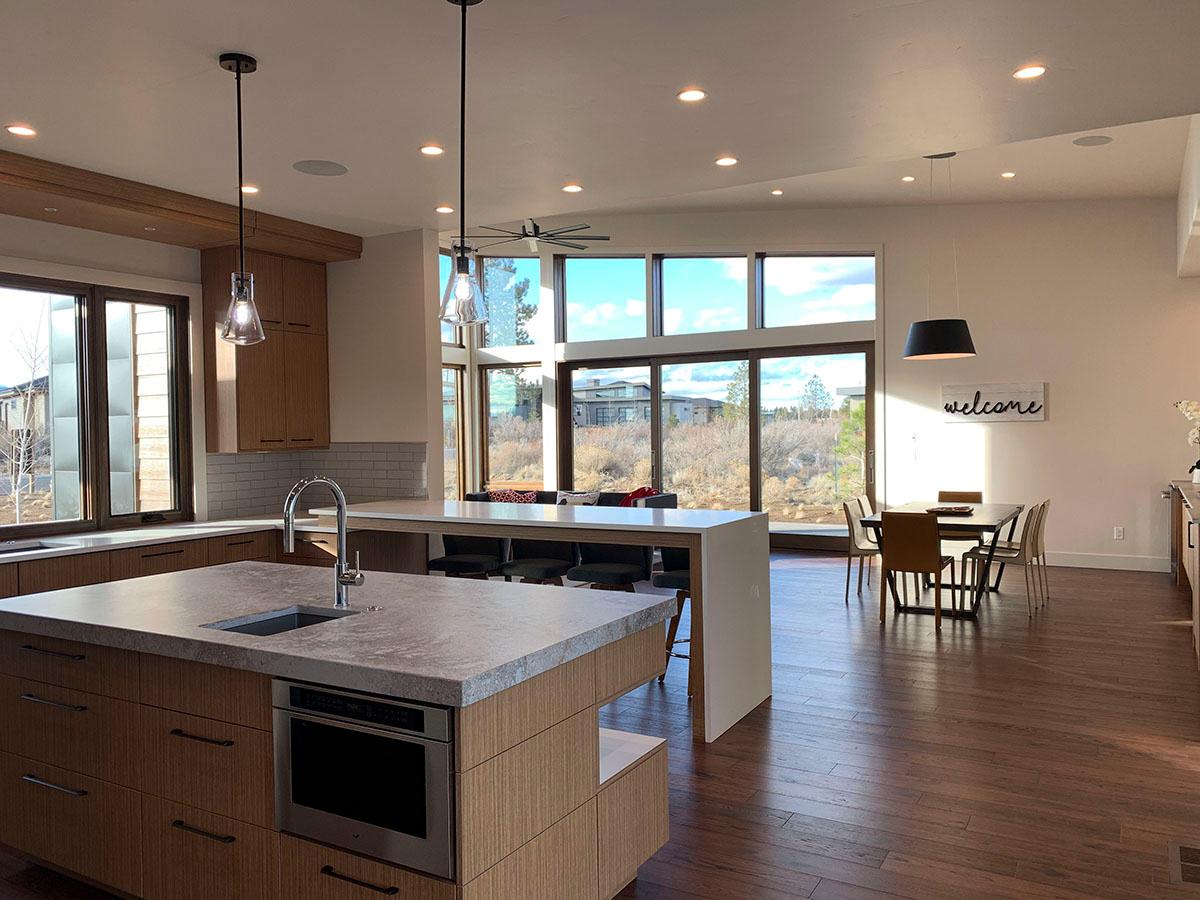

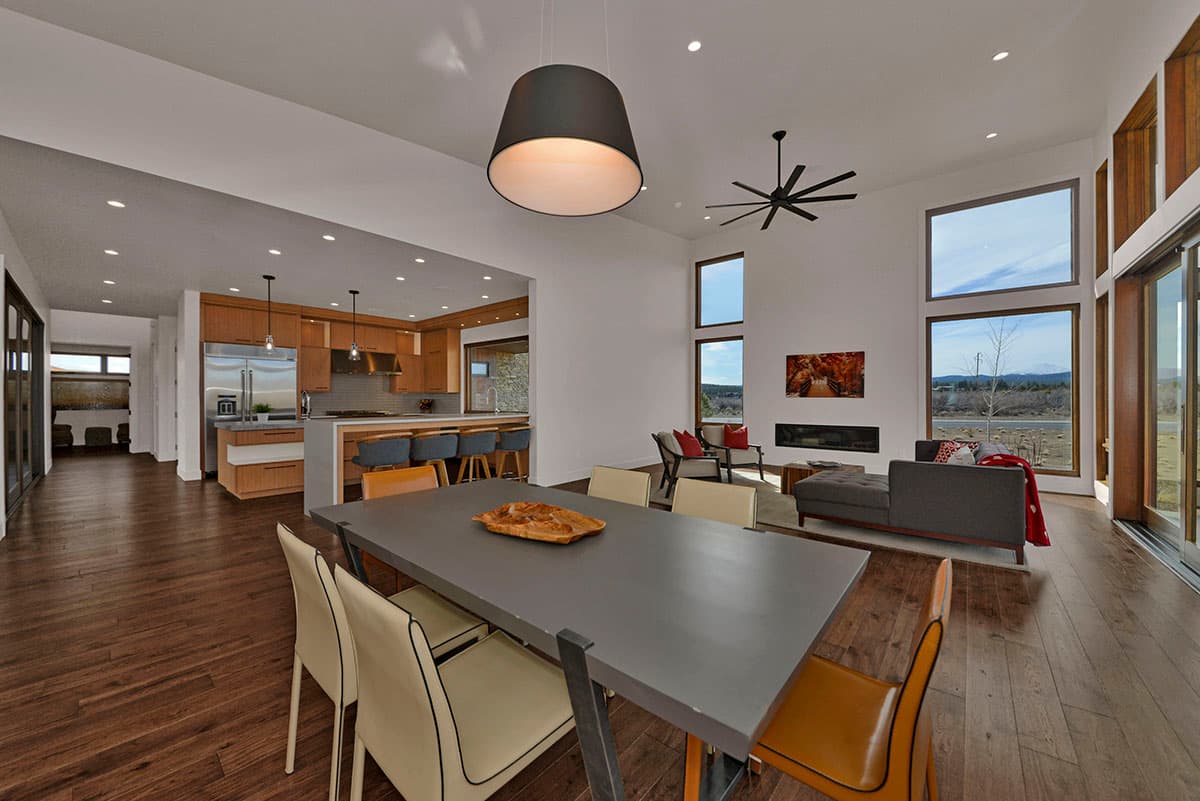

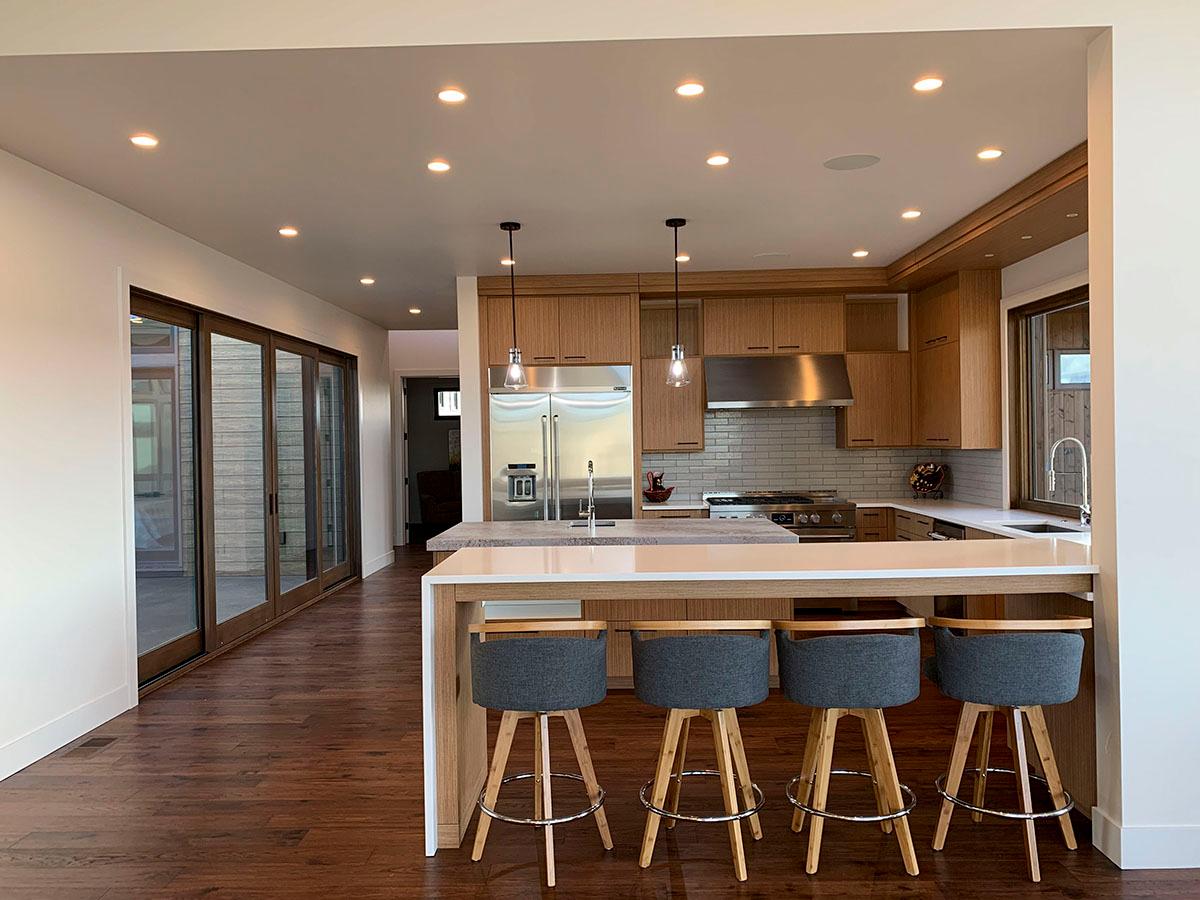

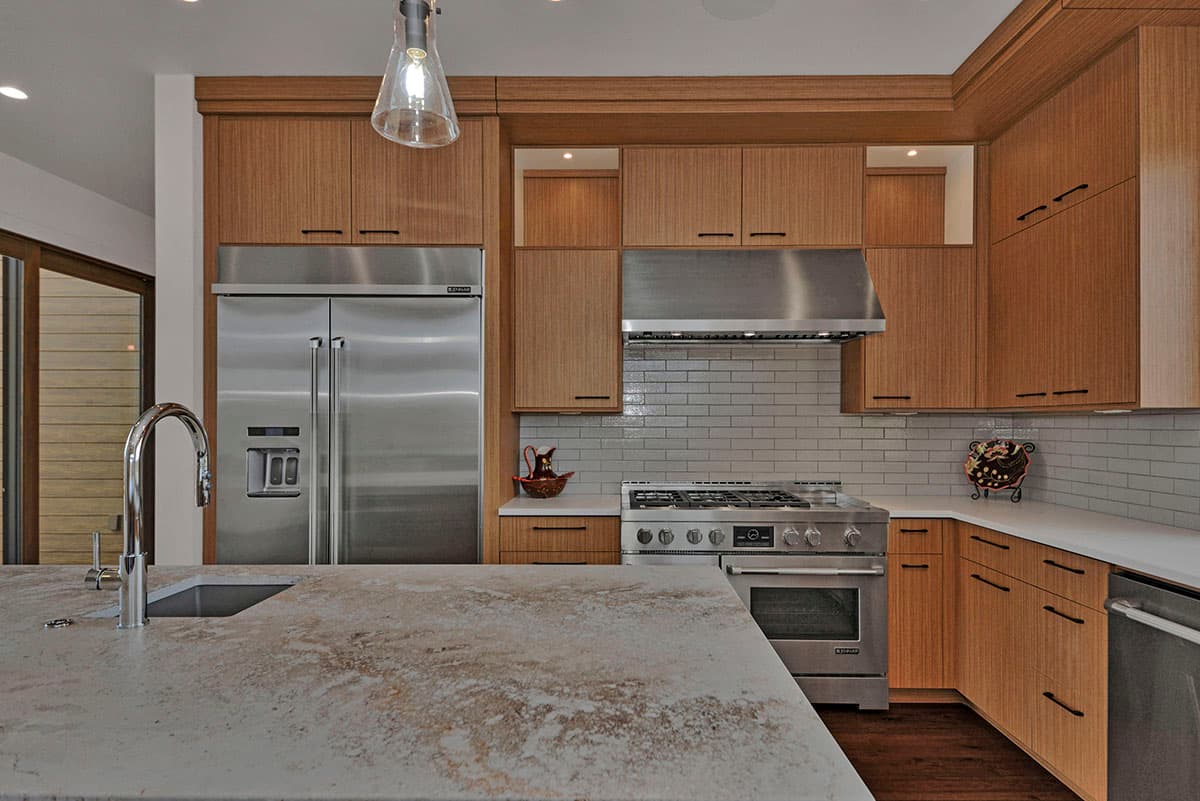

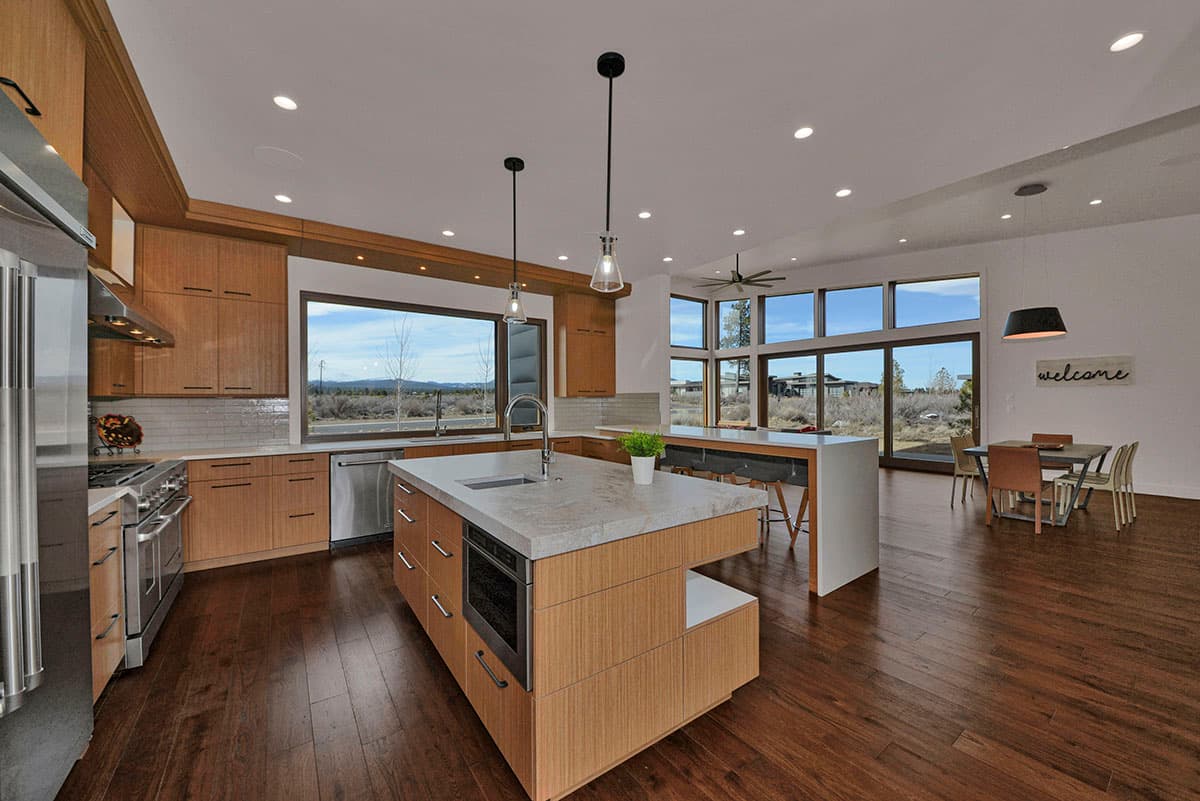

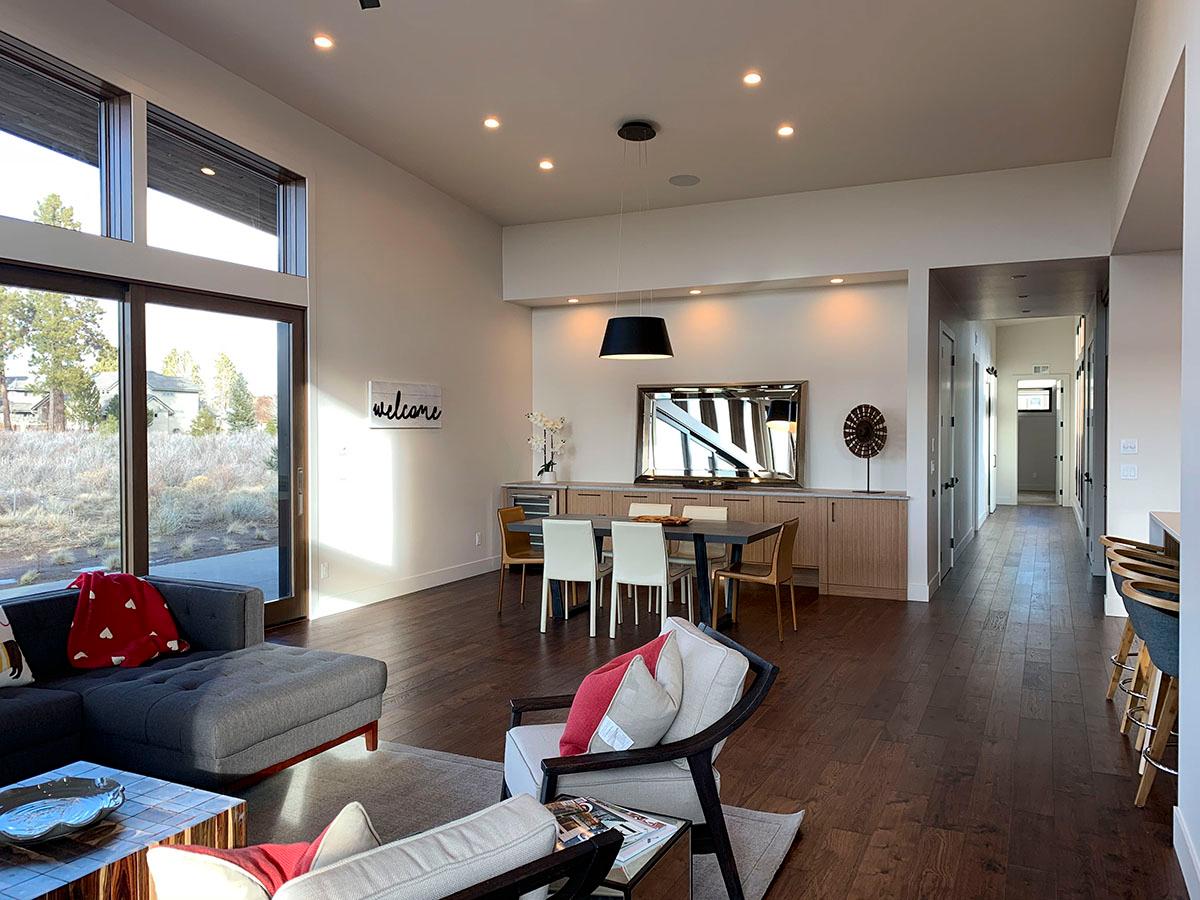

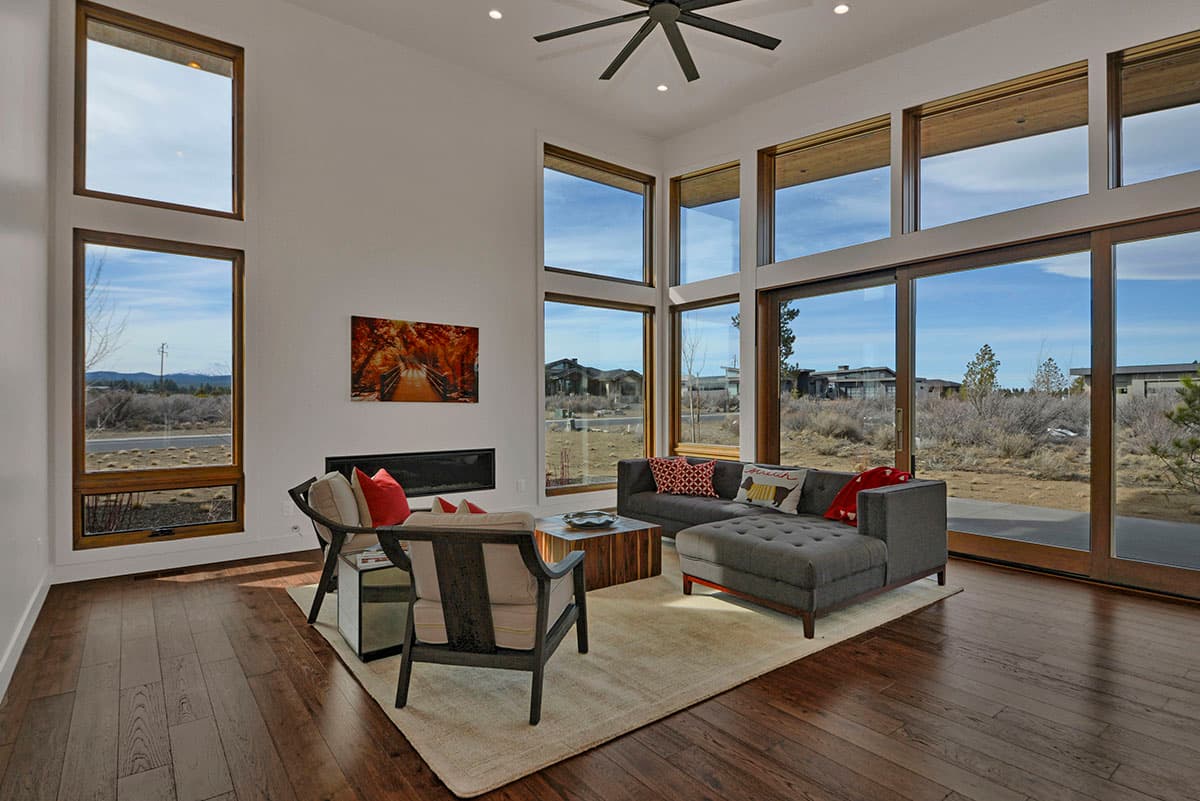

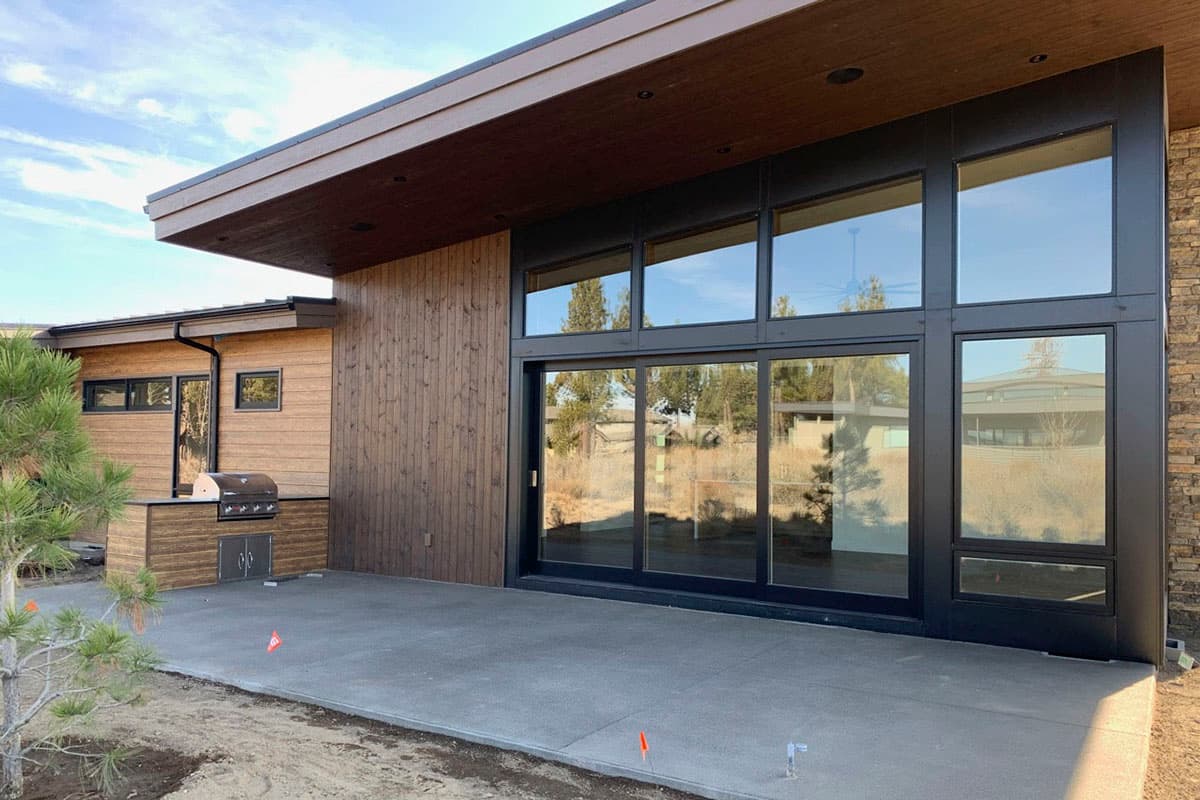

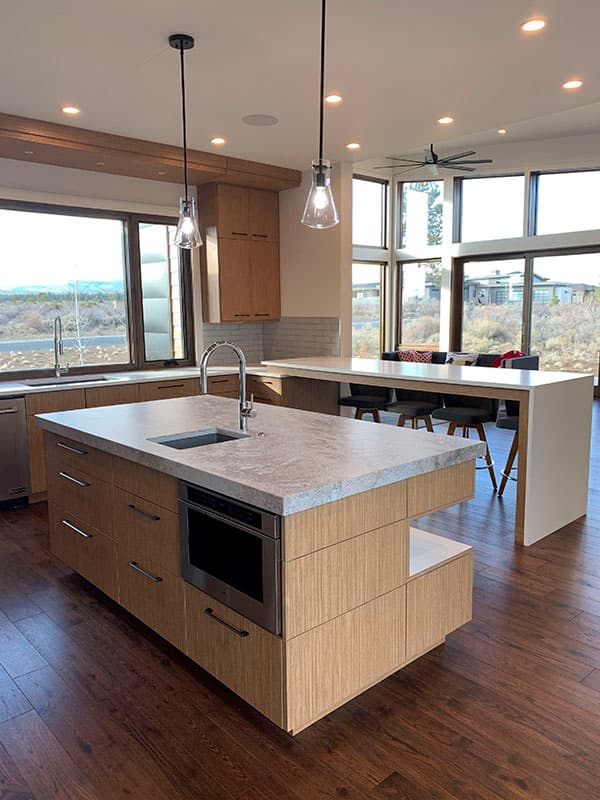

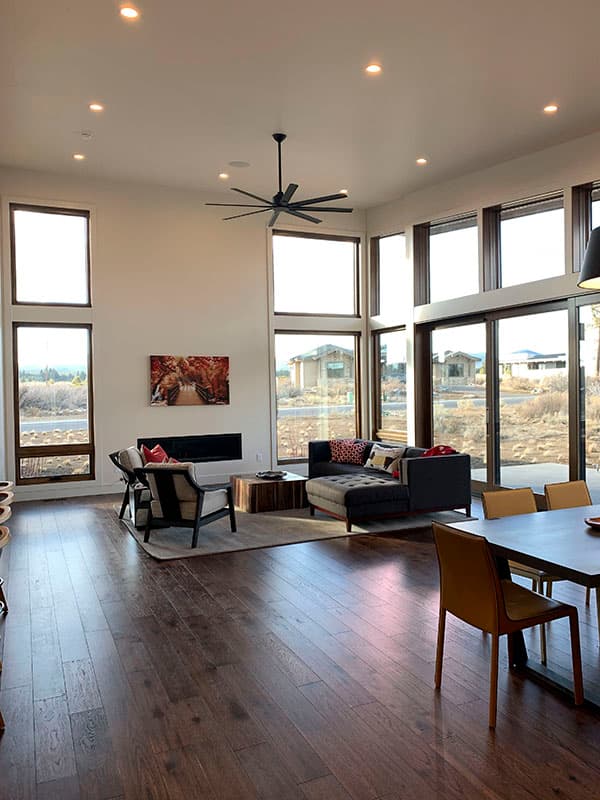

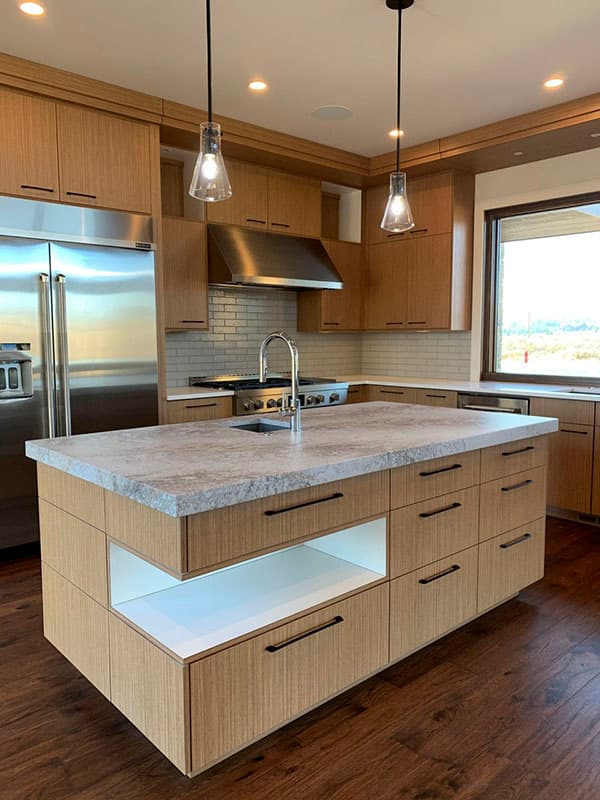

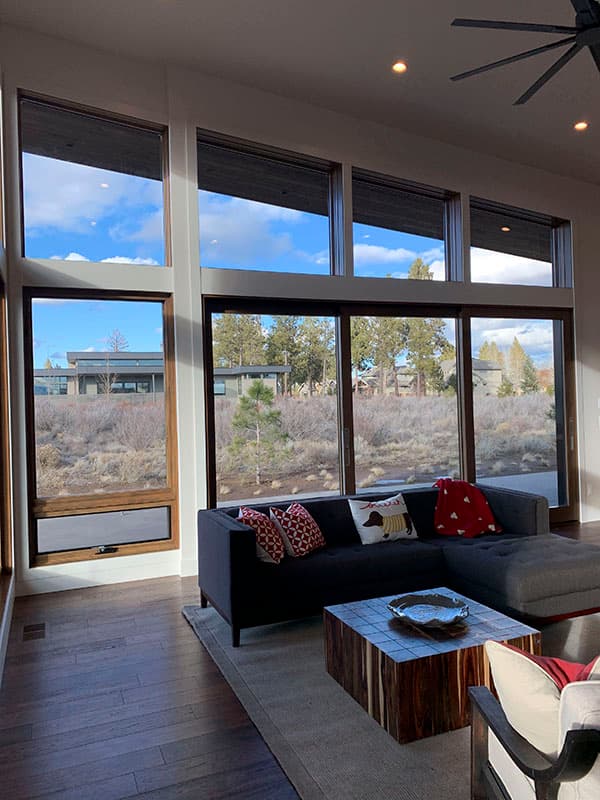

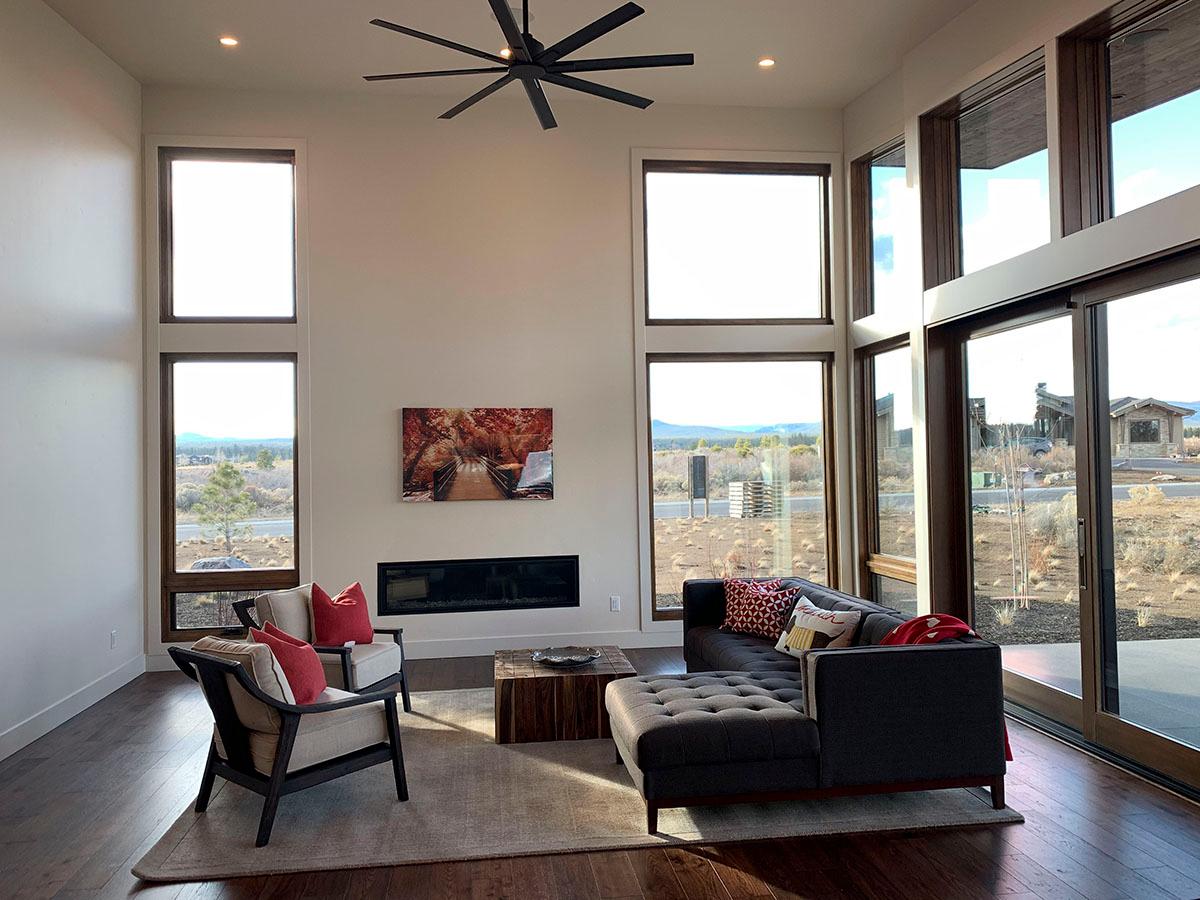

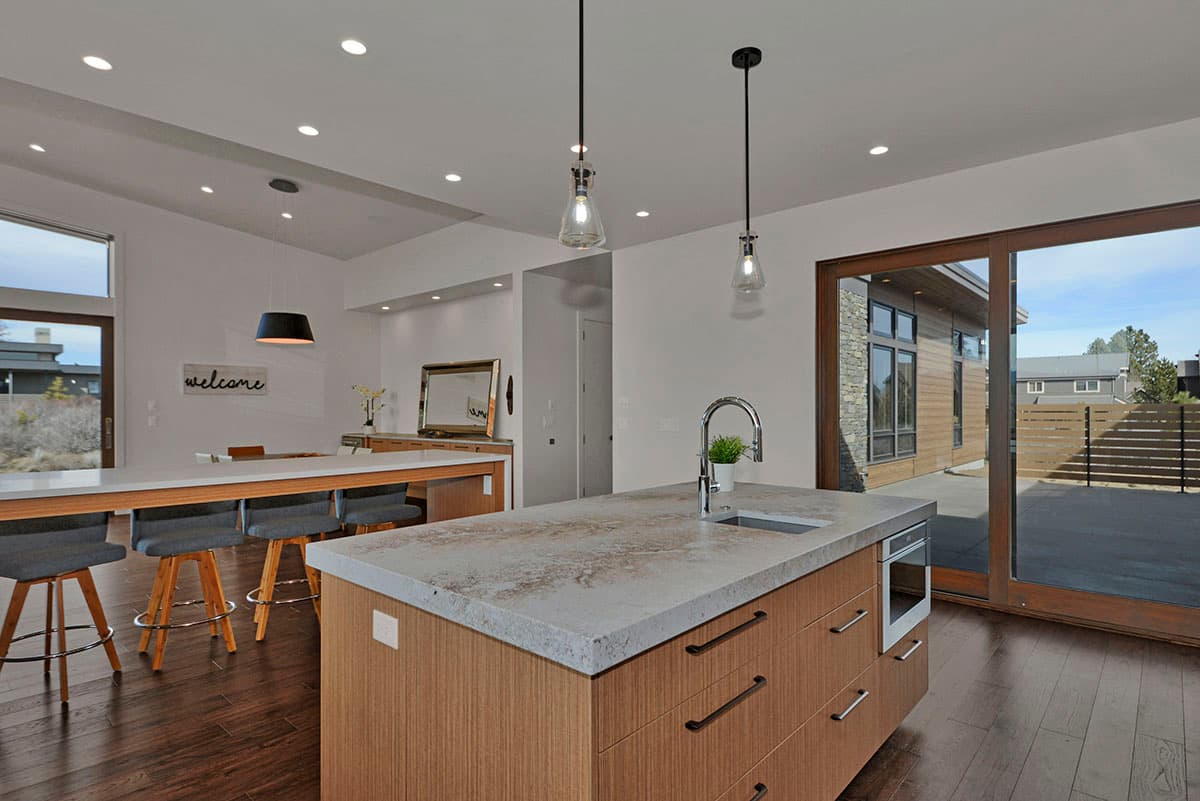

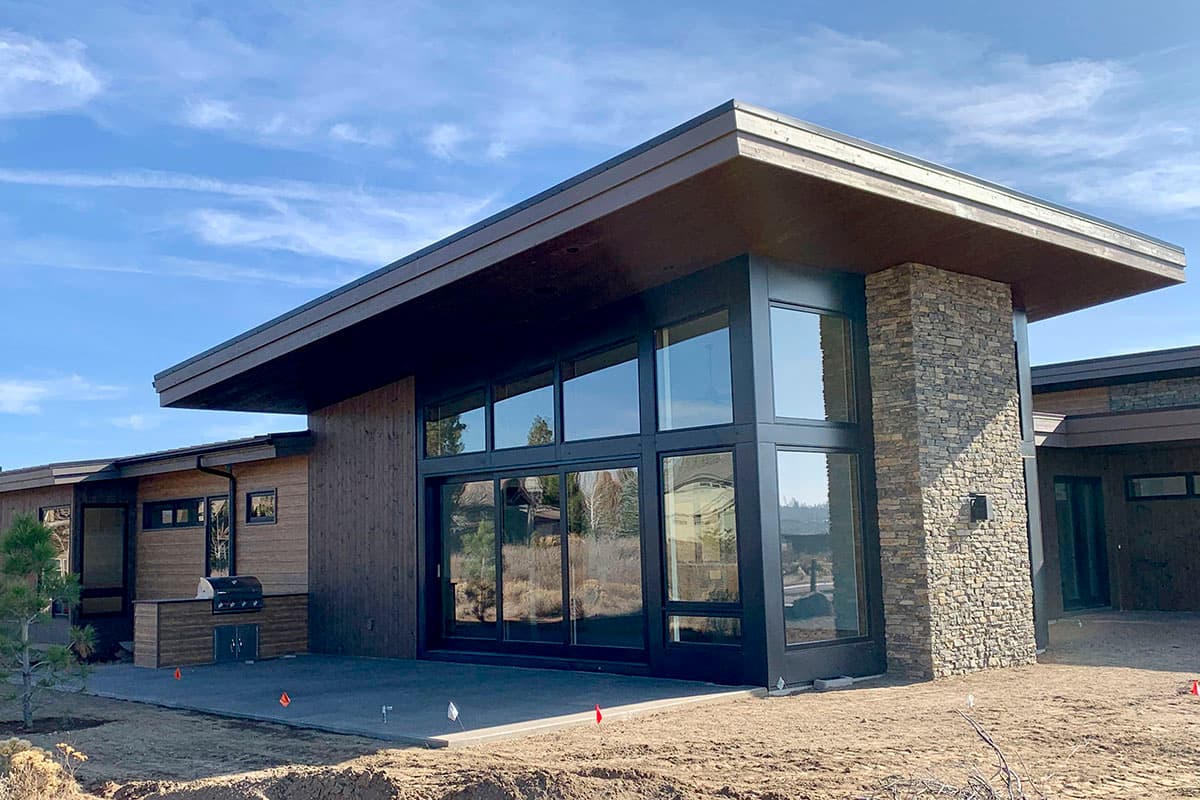

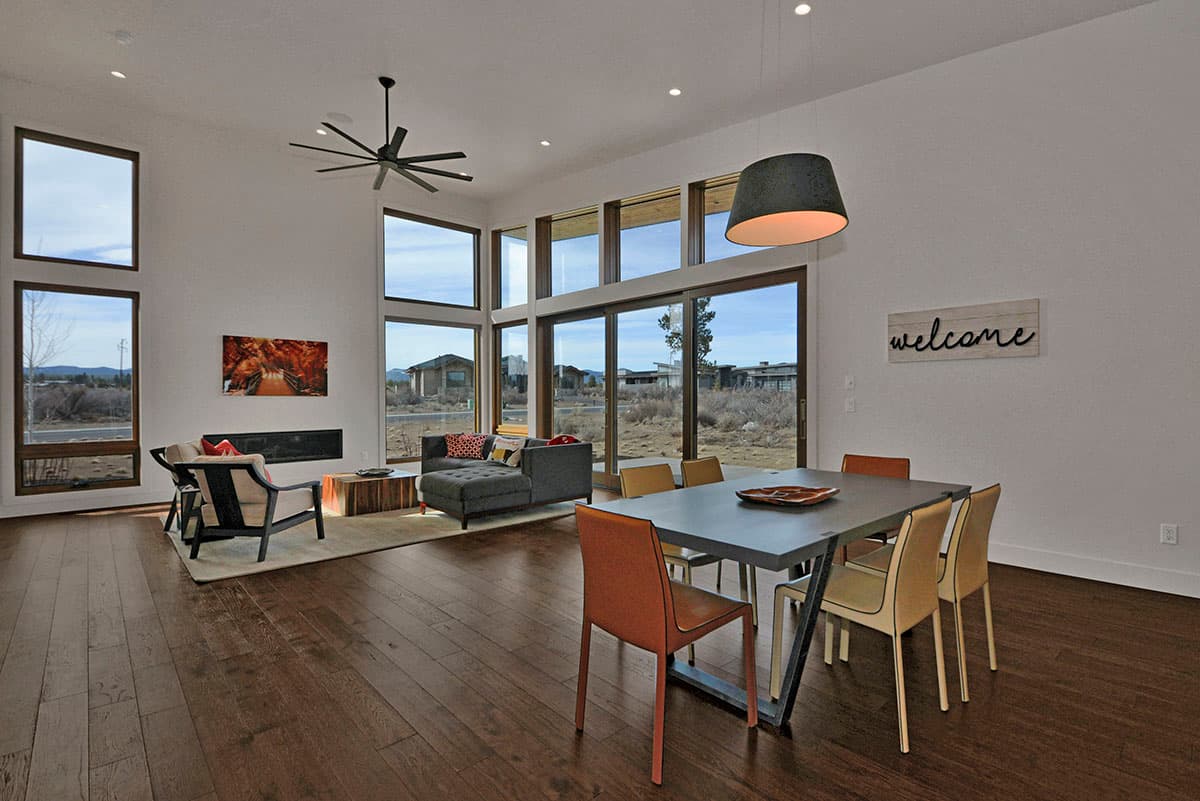

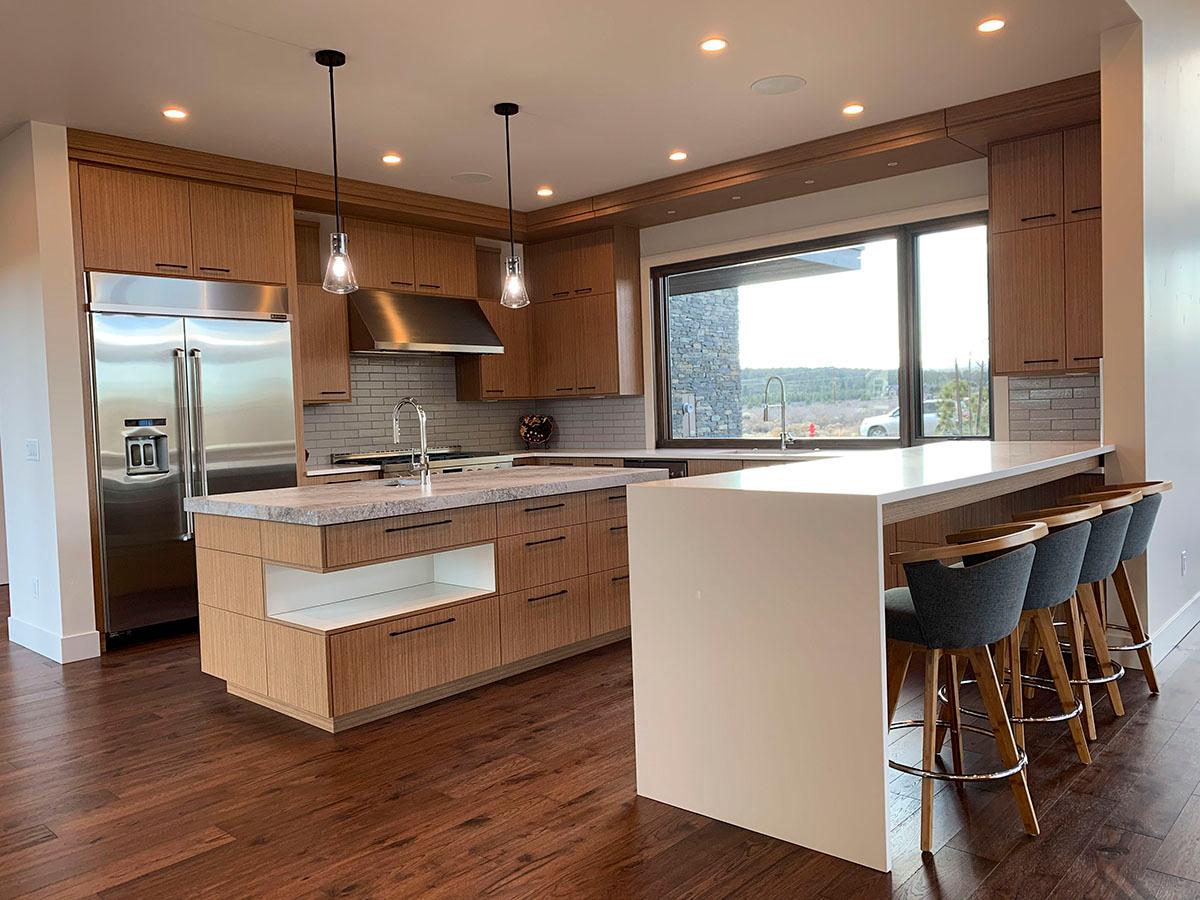

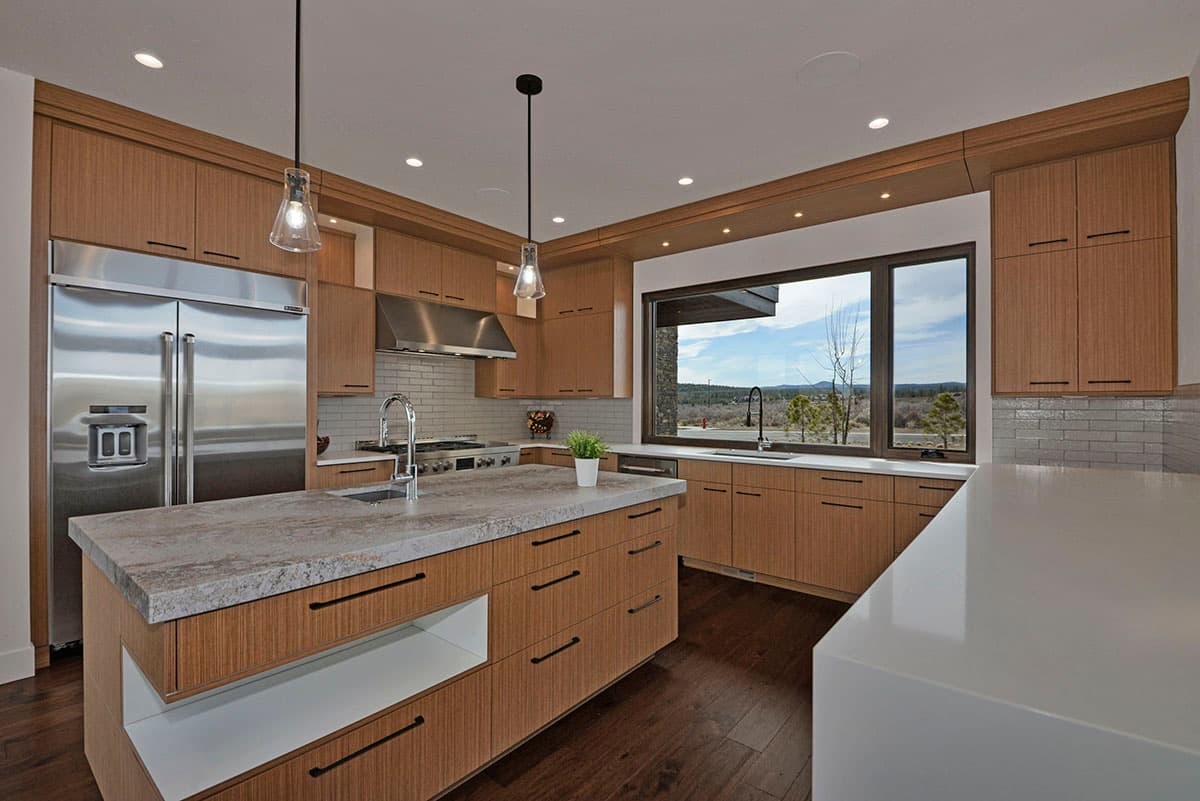

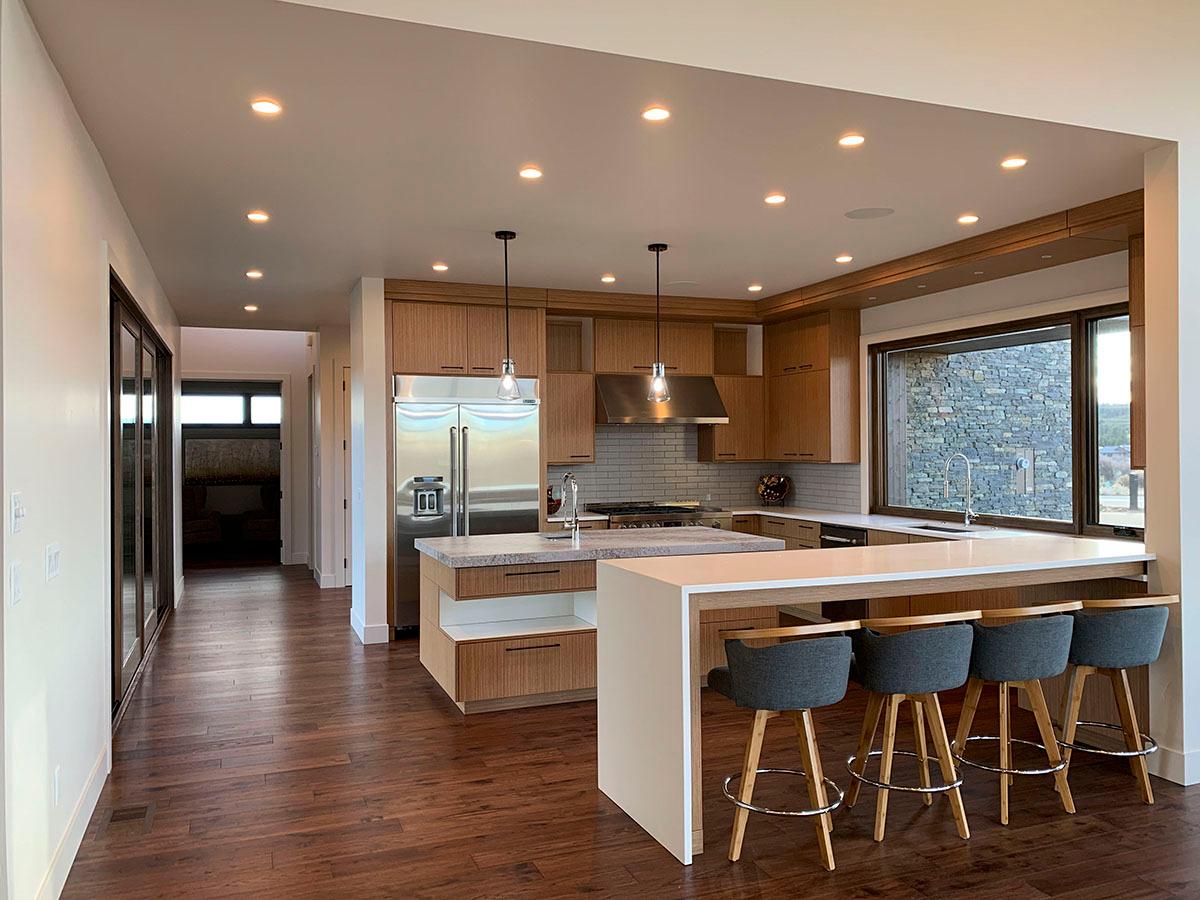

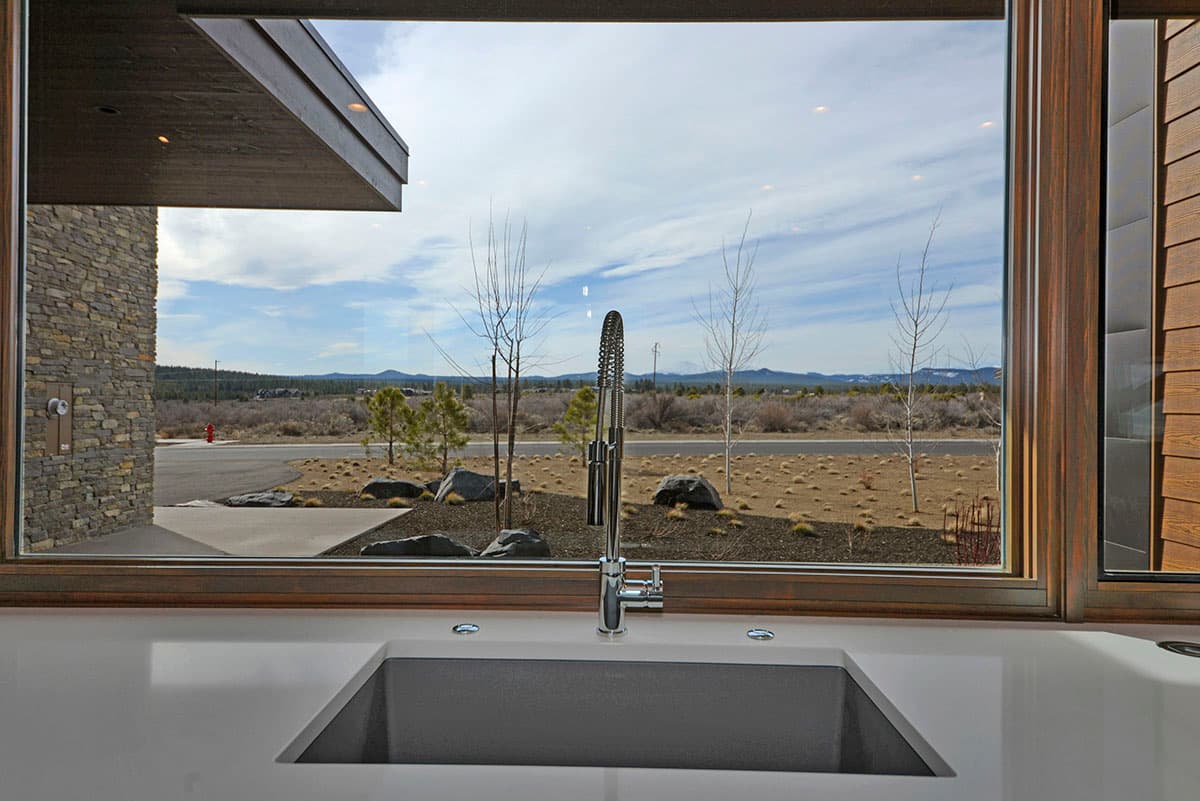

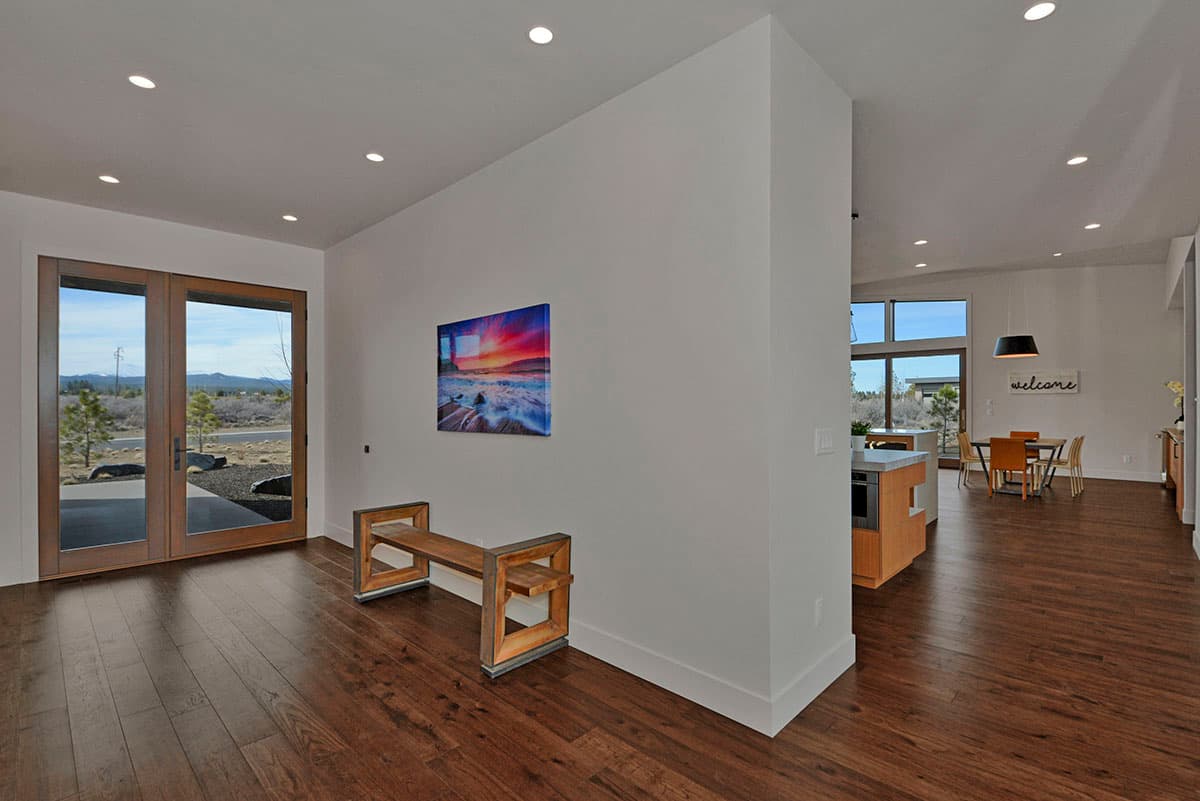

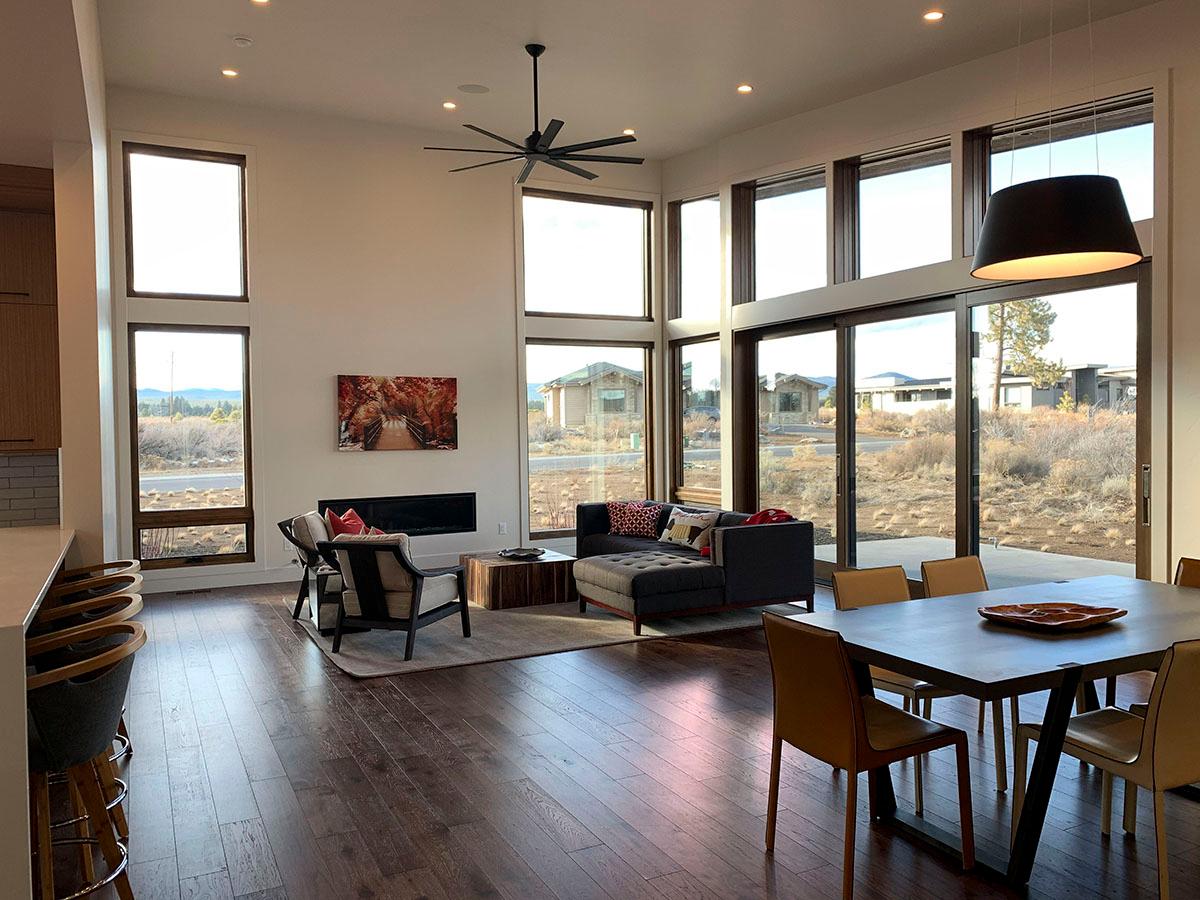

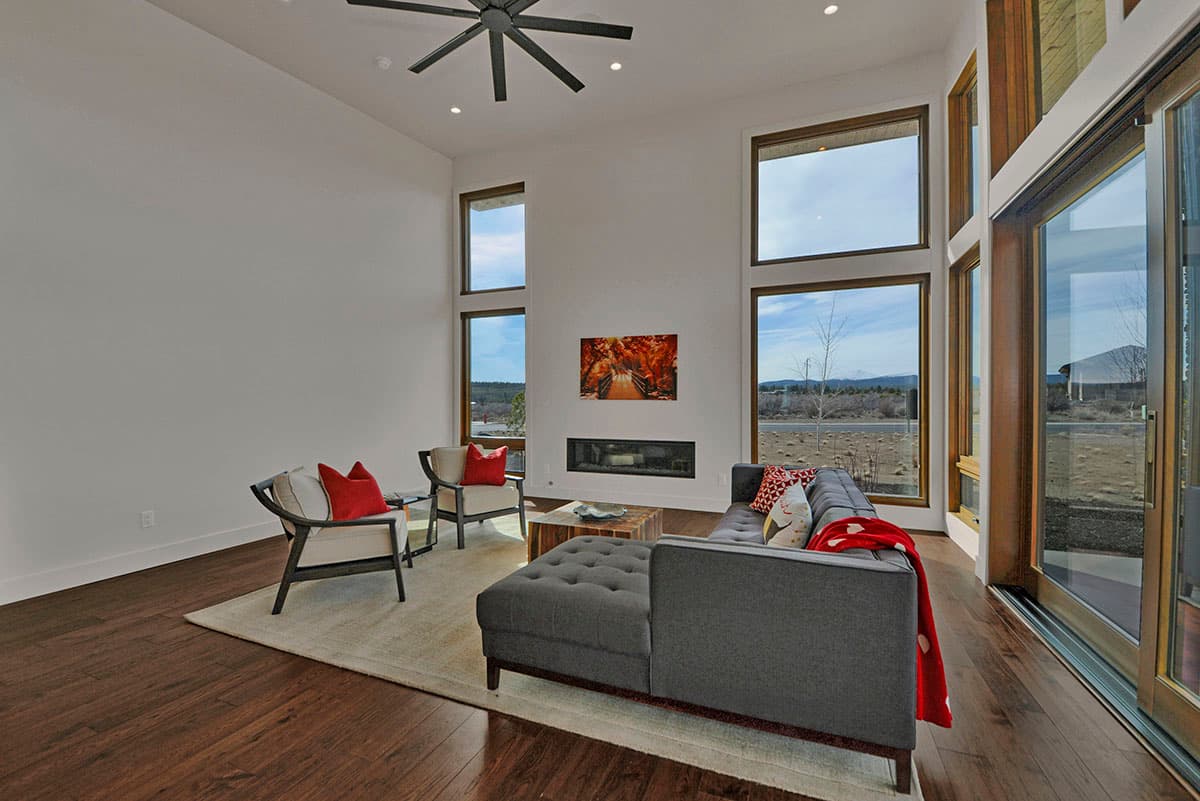

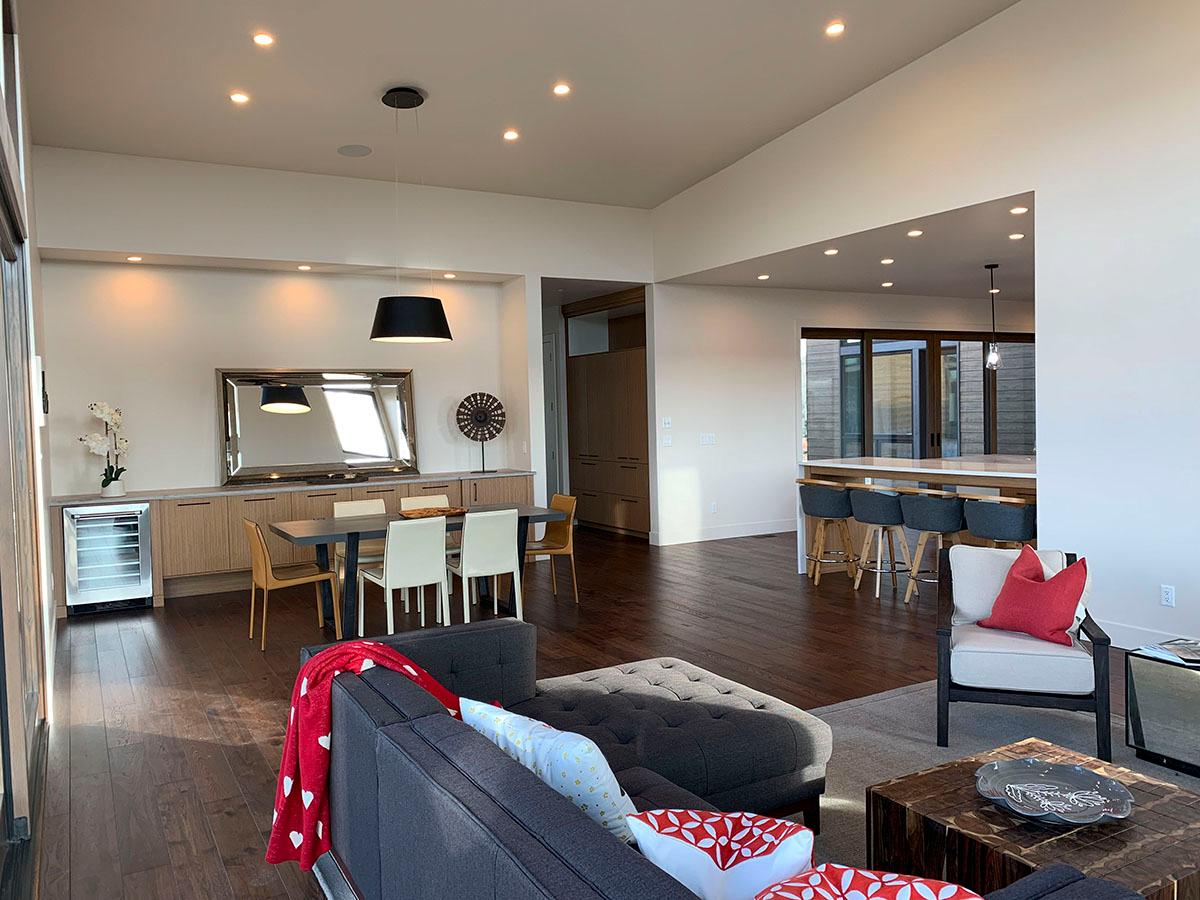

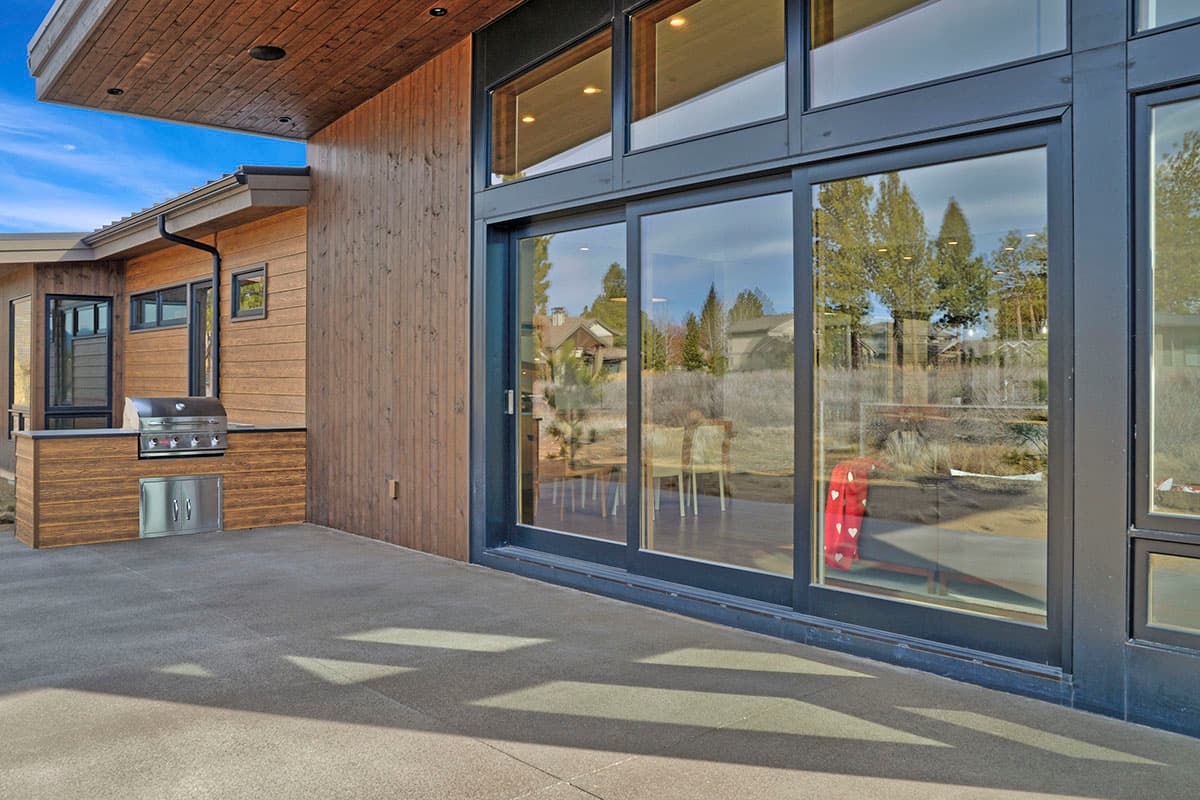

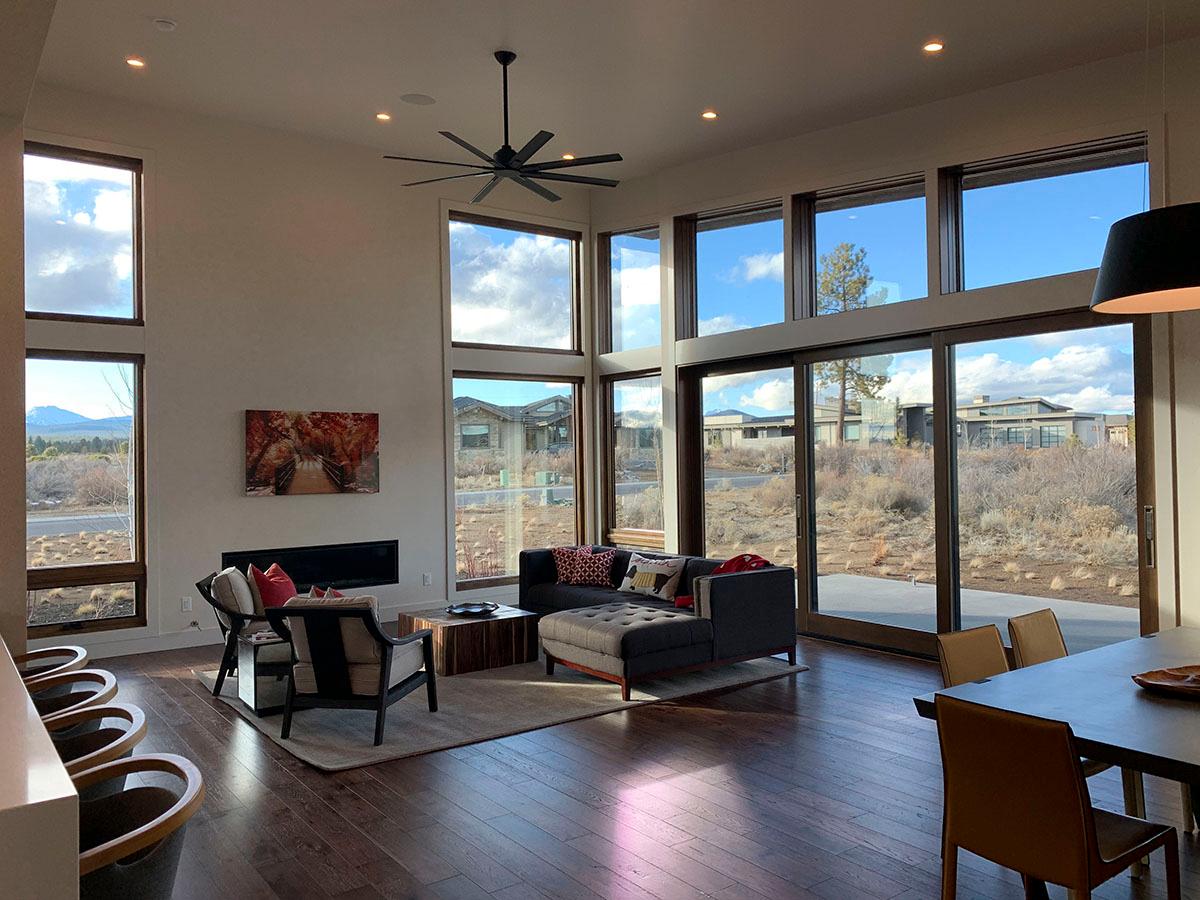

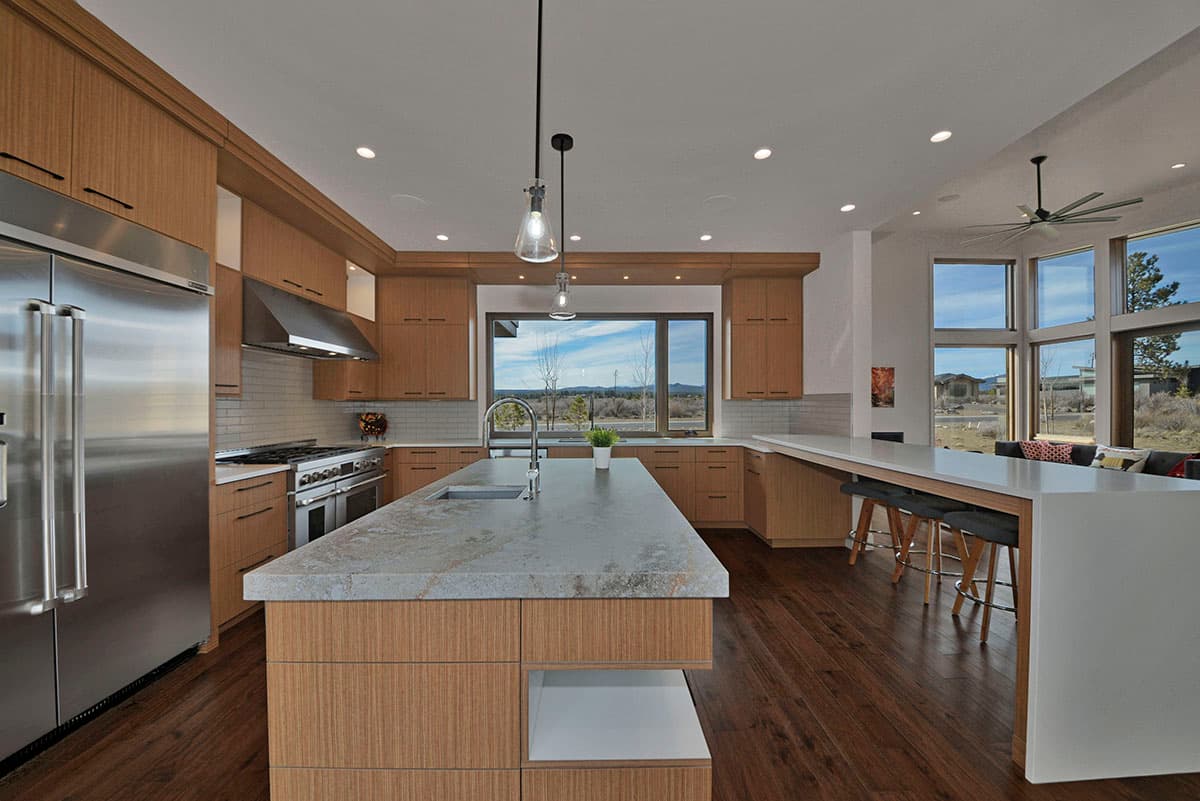

  • The great room is filled with natural light, and extends outdoors onto a large terrace with space for a grill. The open kitchen offers seating at the peninsula, and a central island lends plenty of workspace.

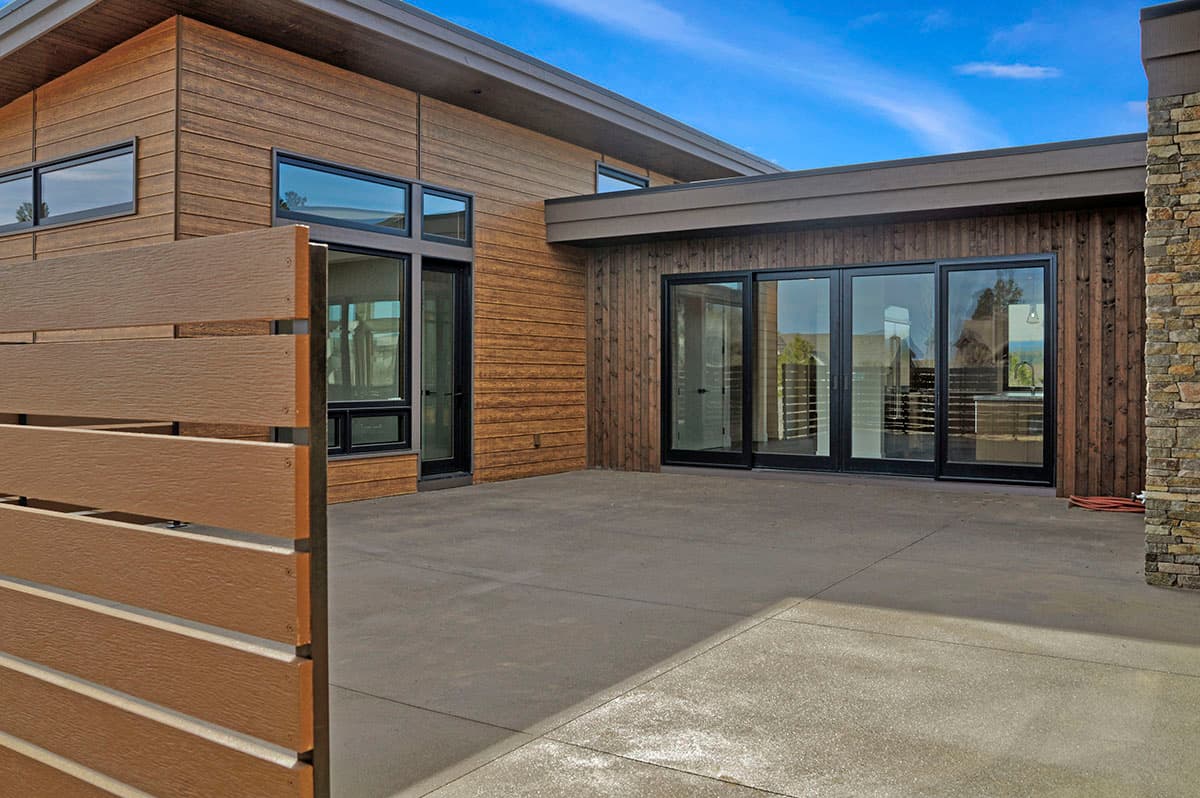

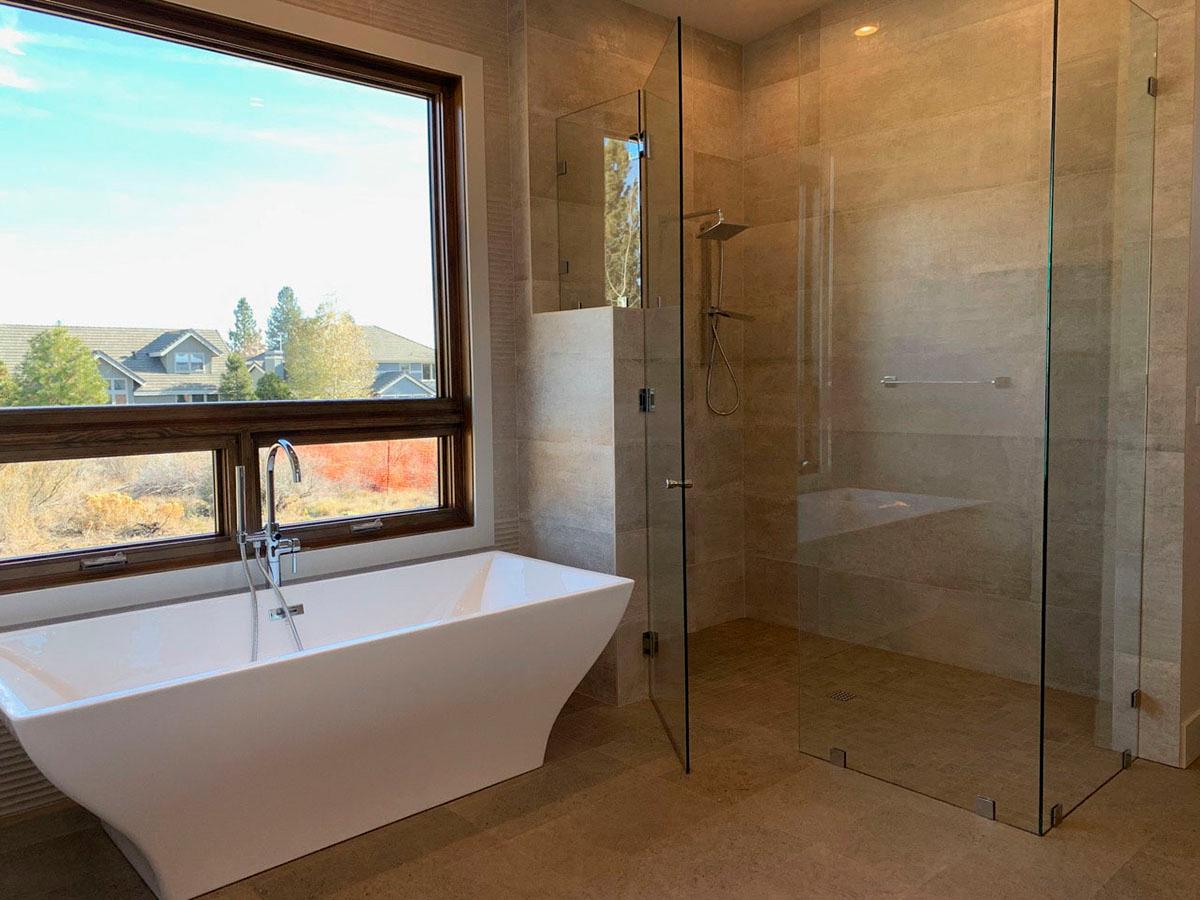

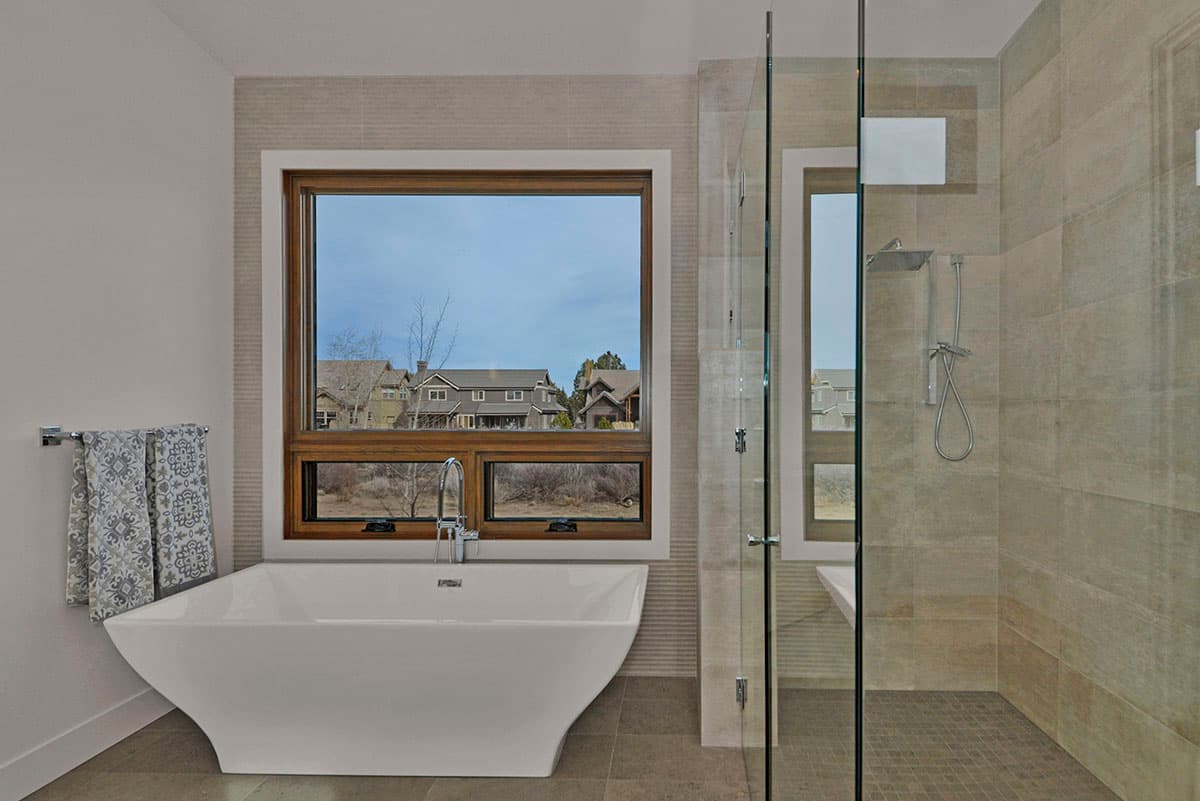

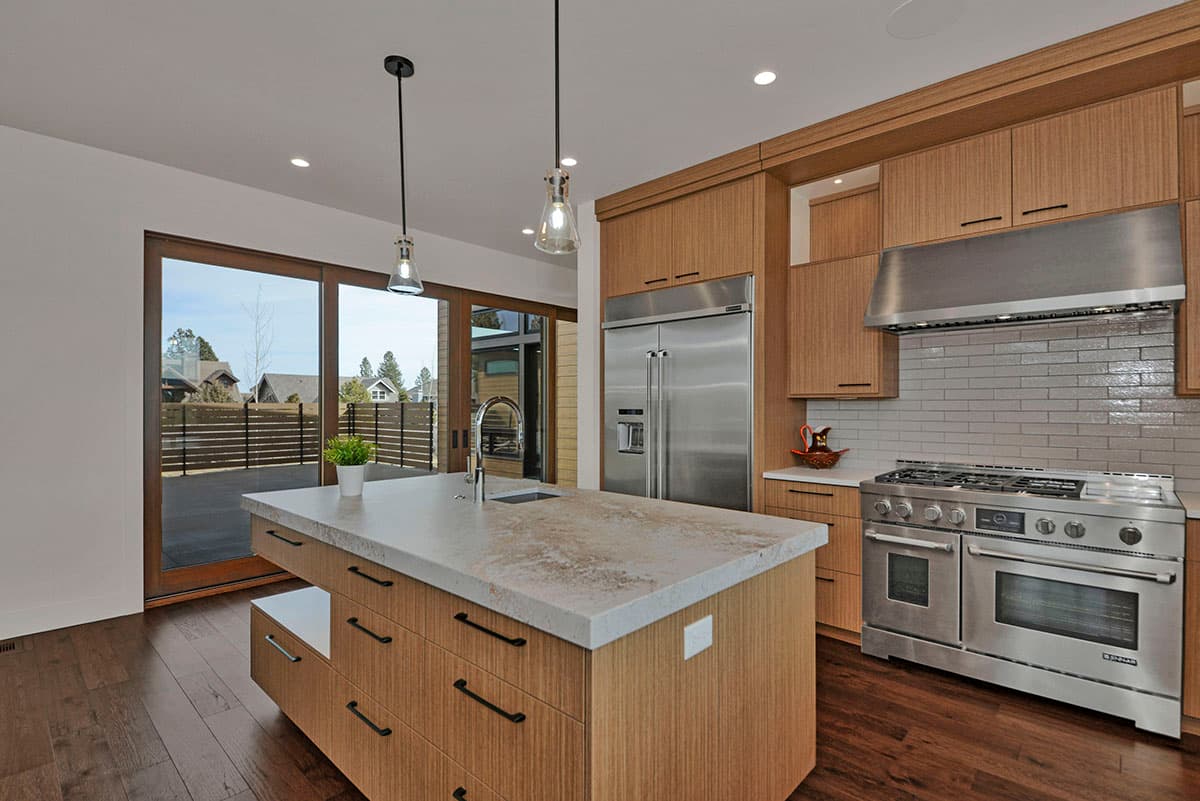

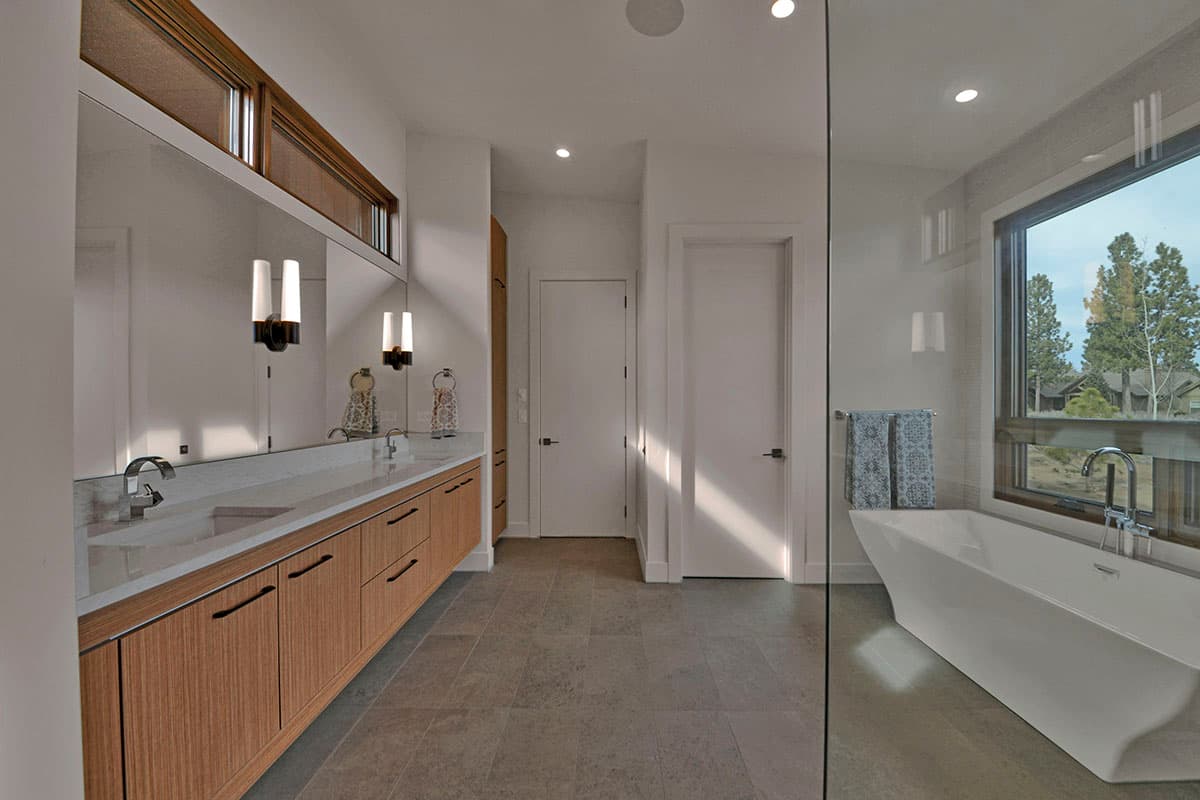

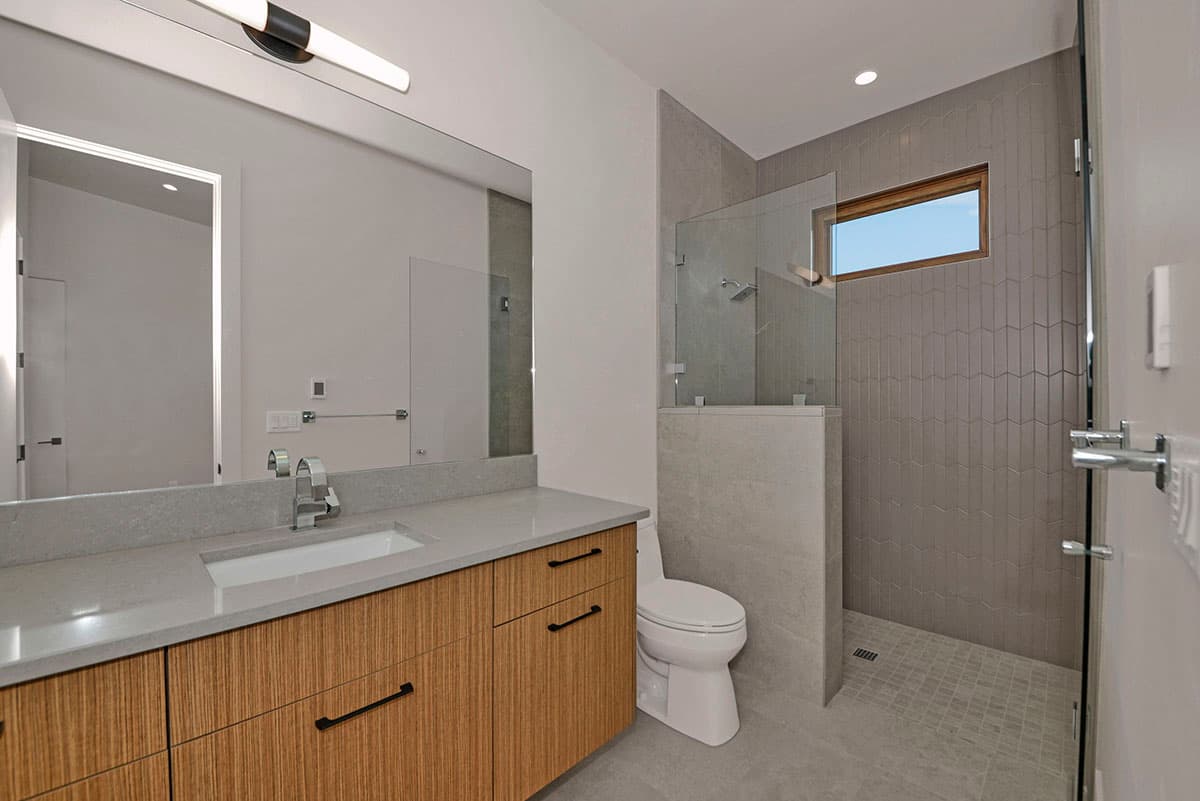

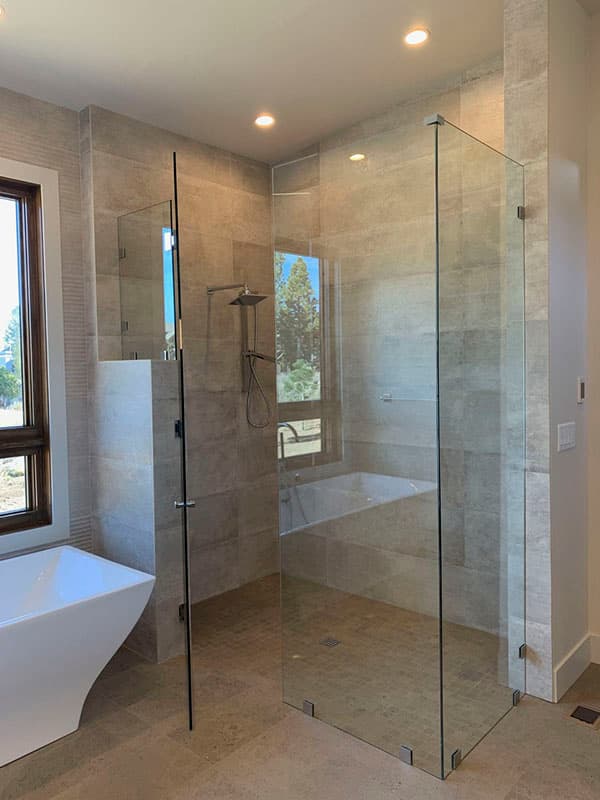

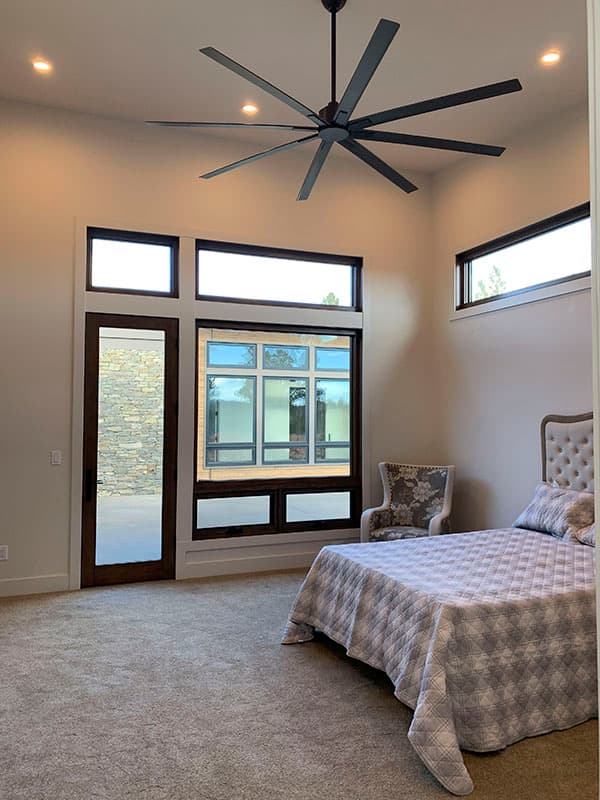

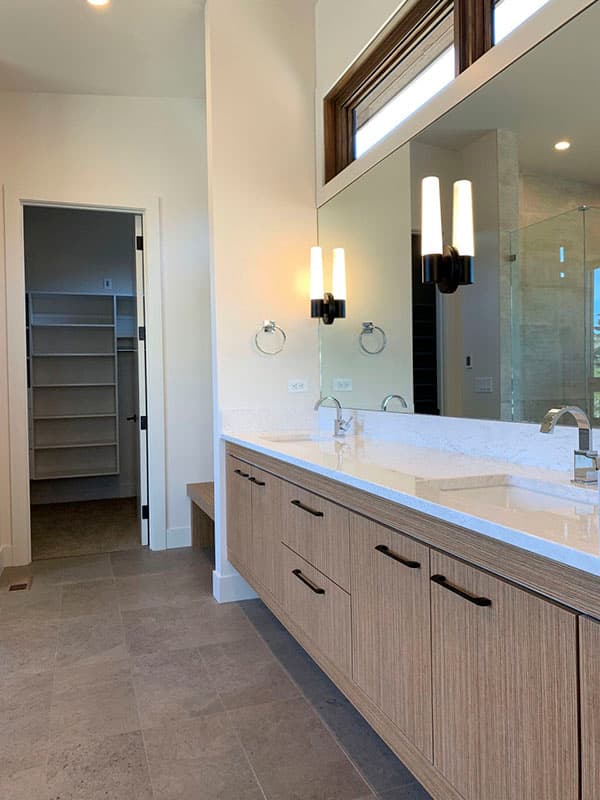

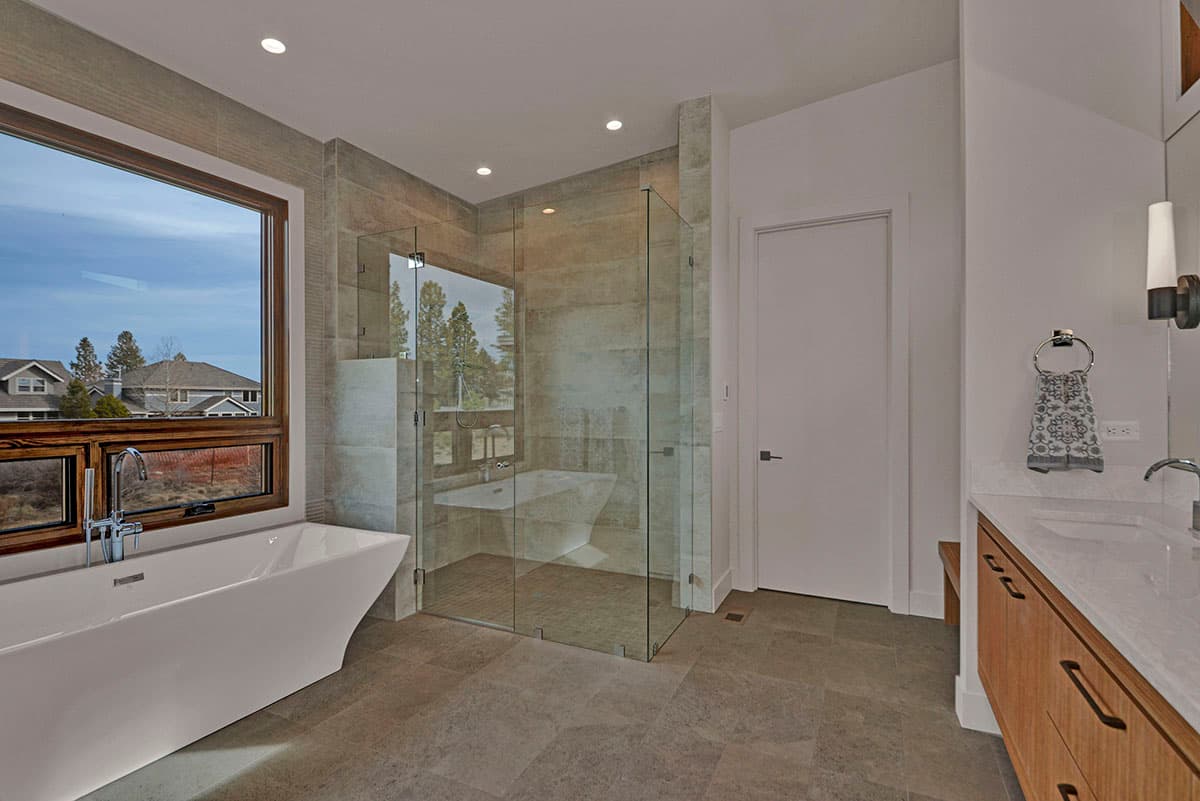

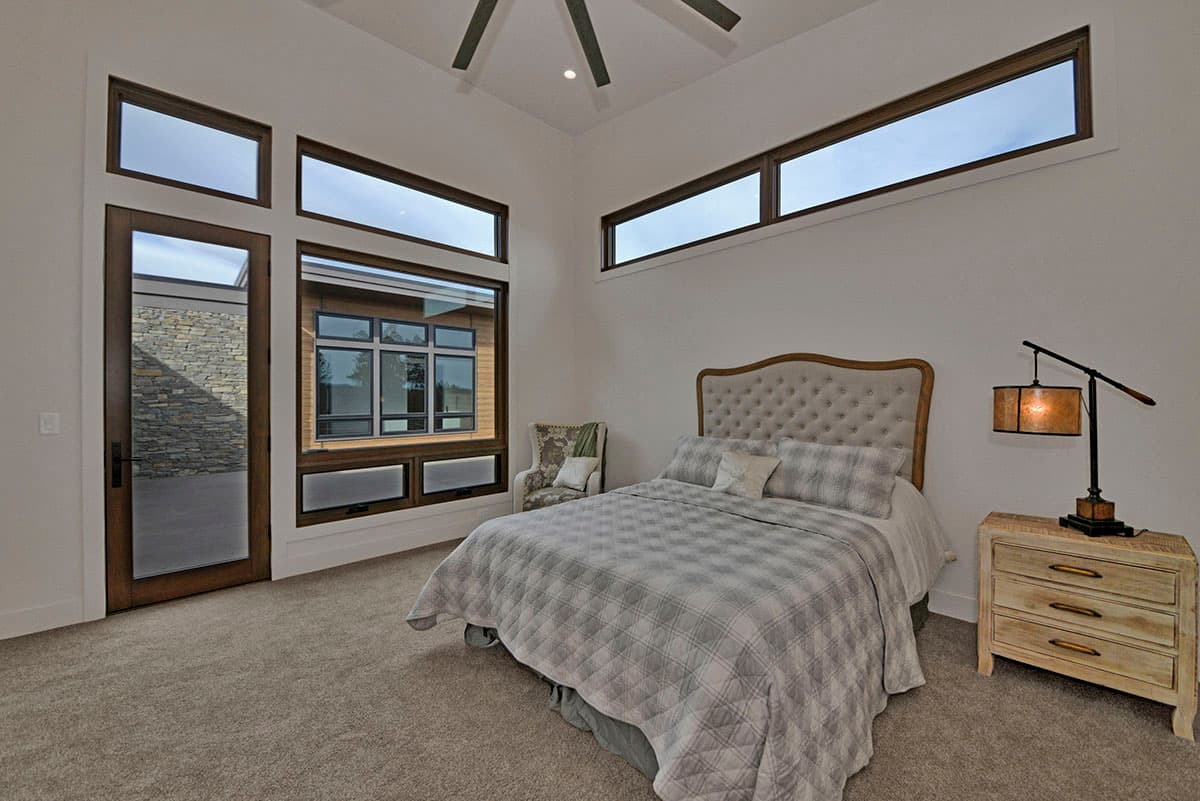

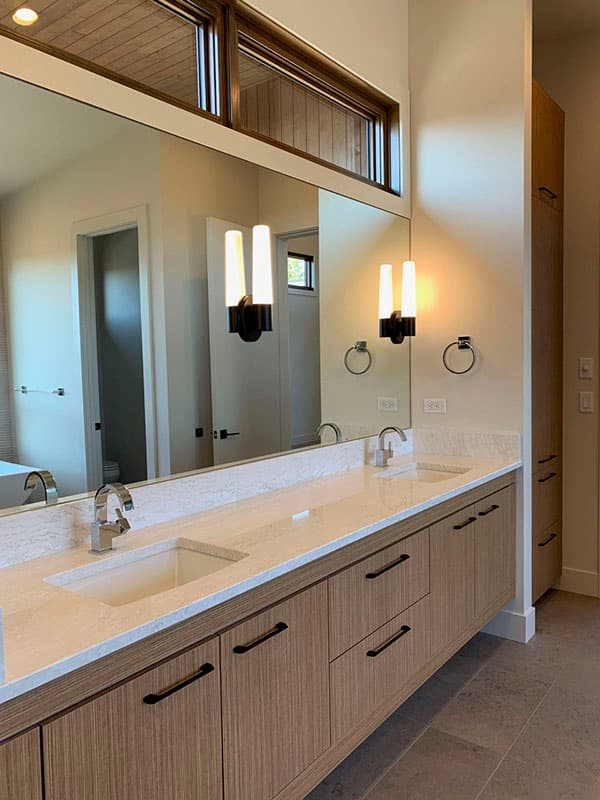

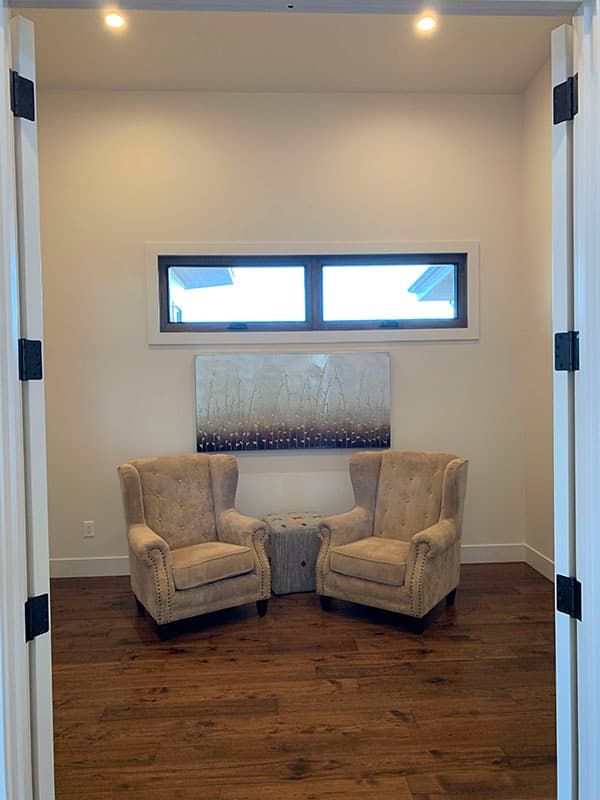

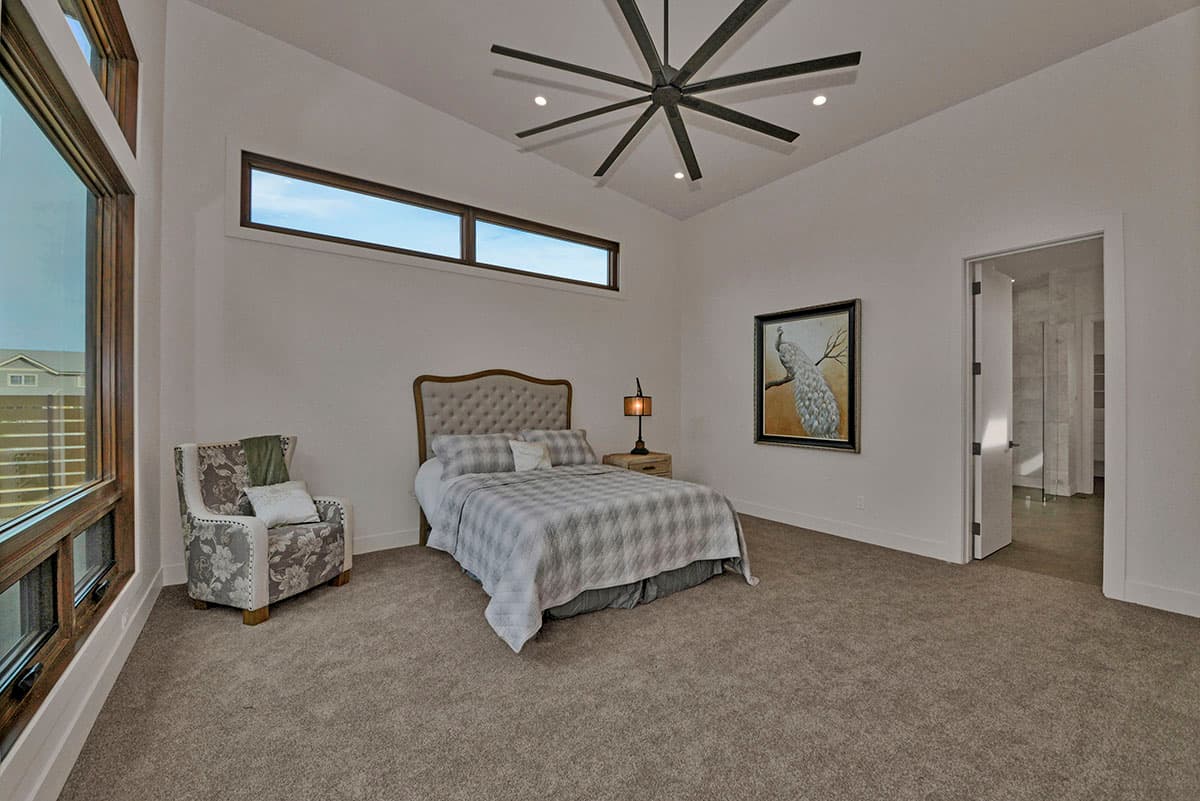

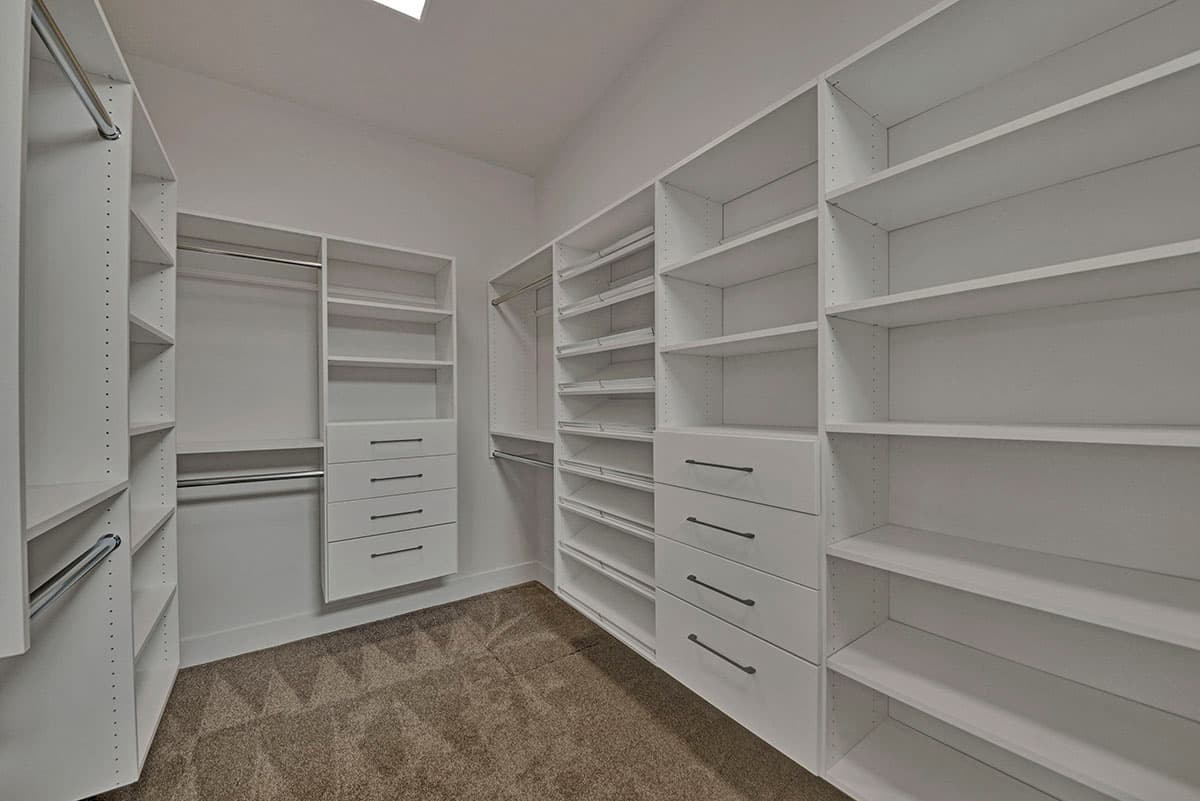

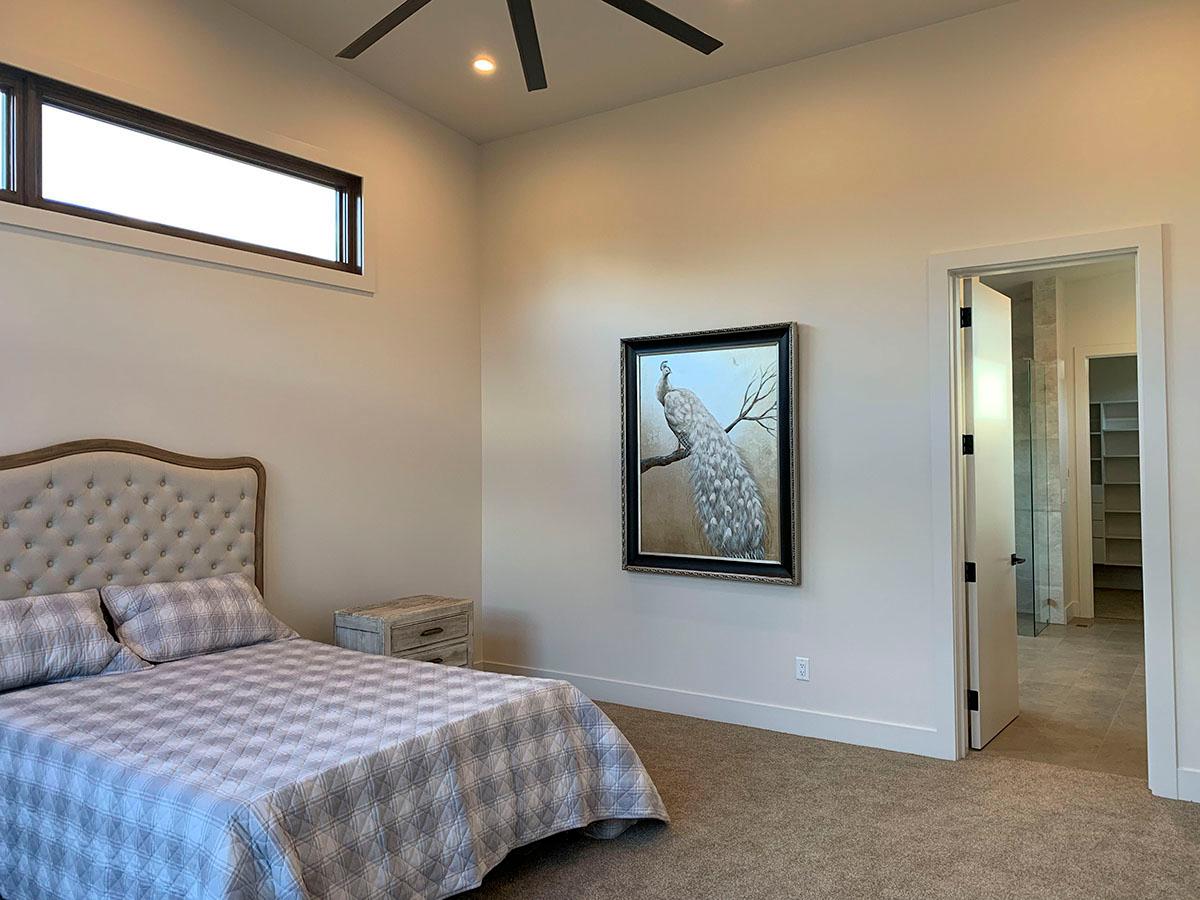

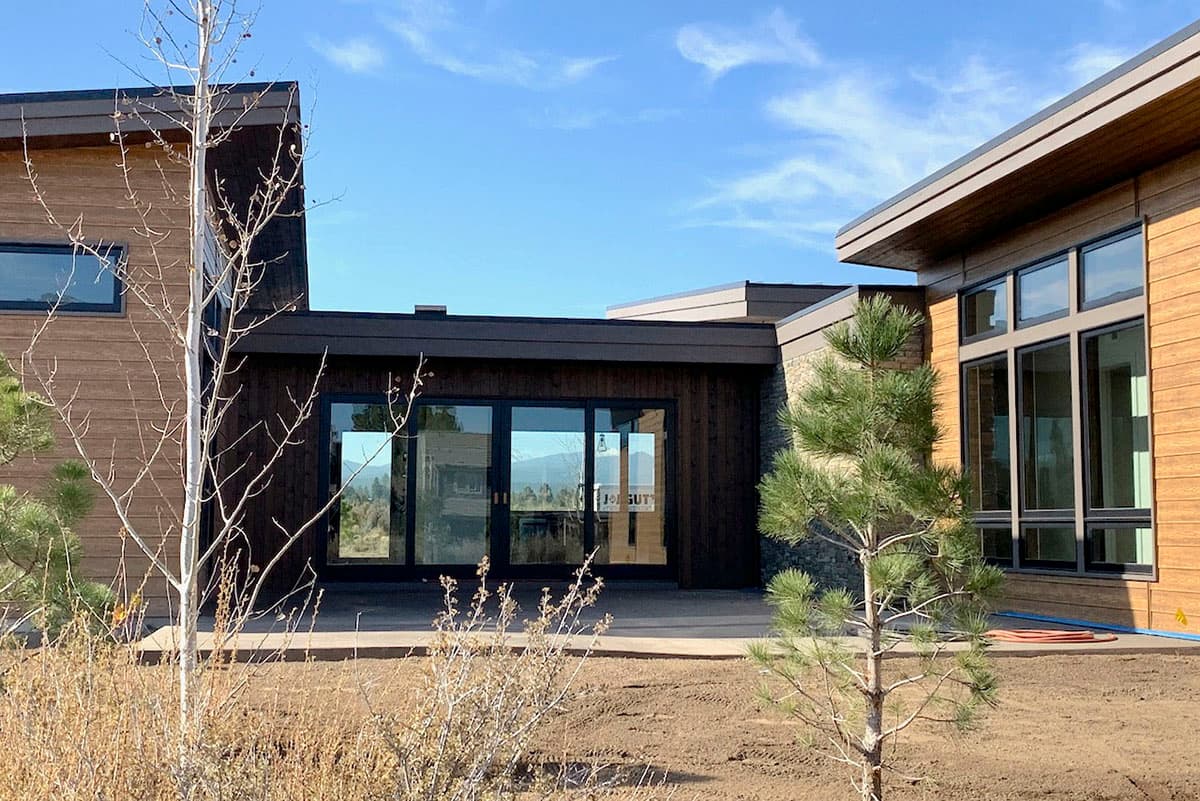

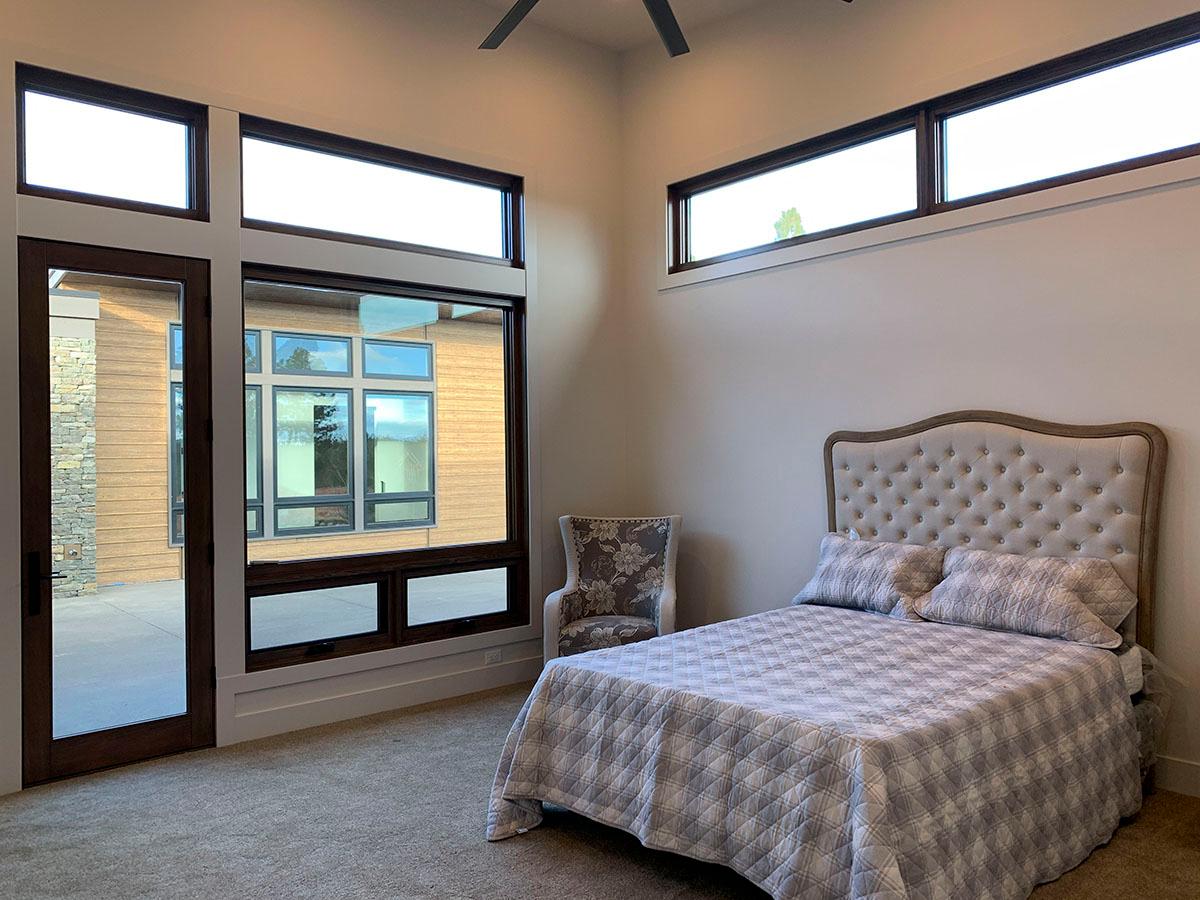

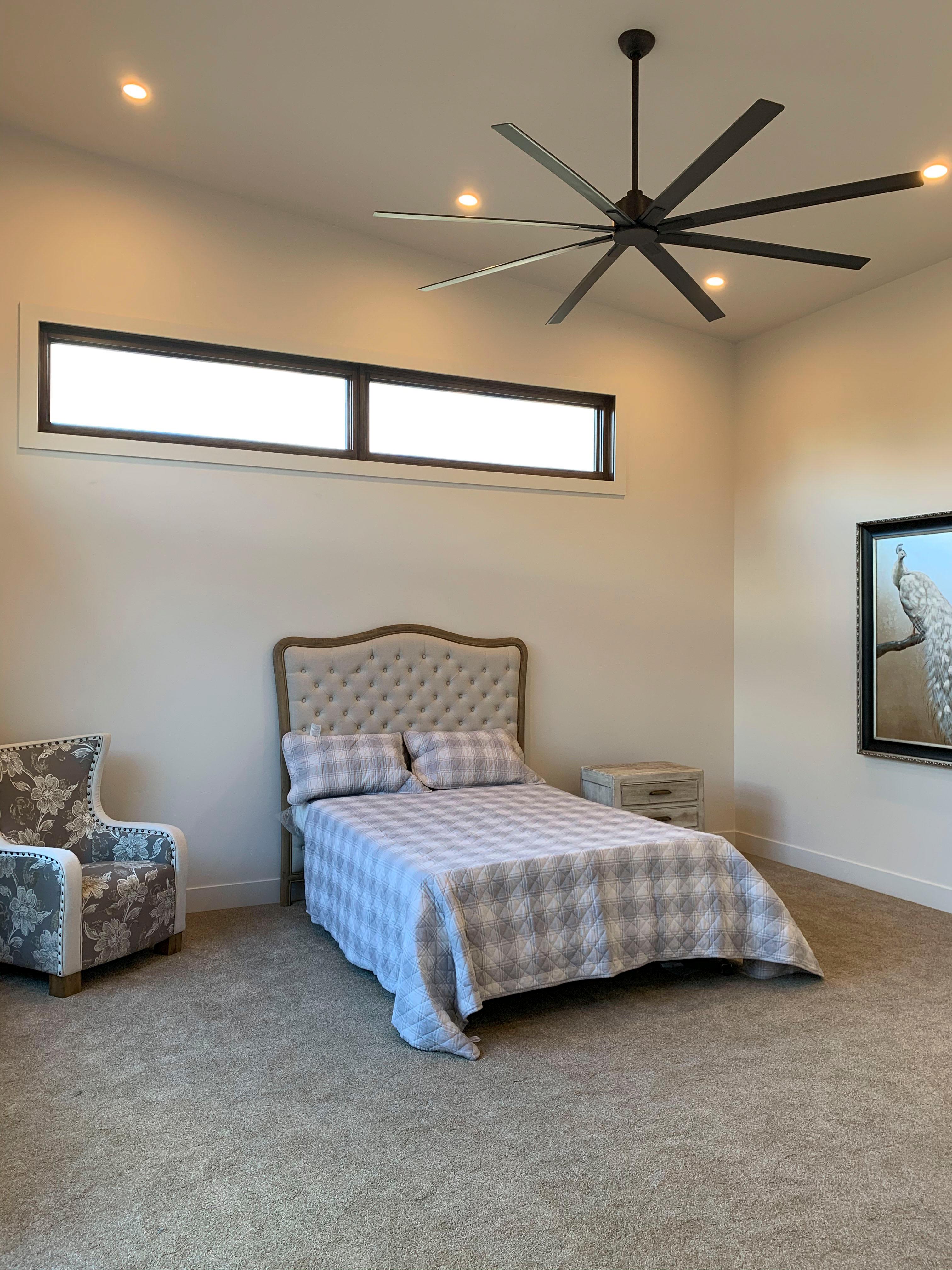

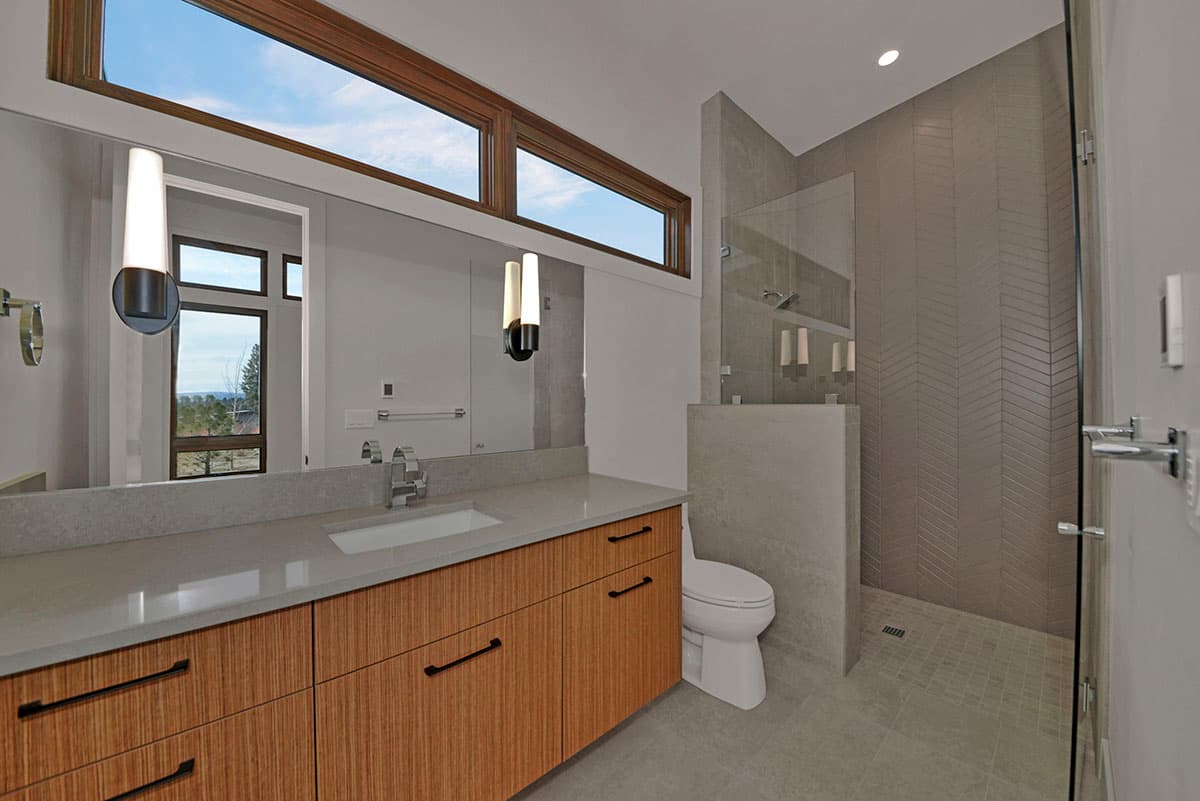

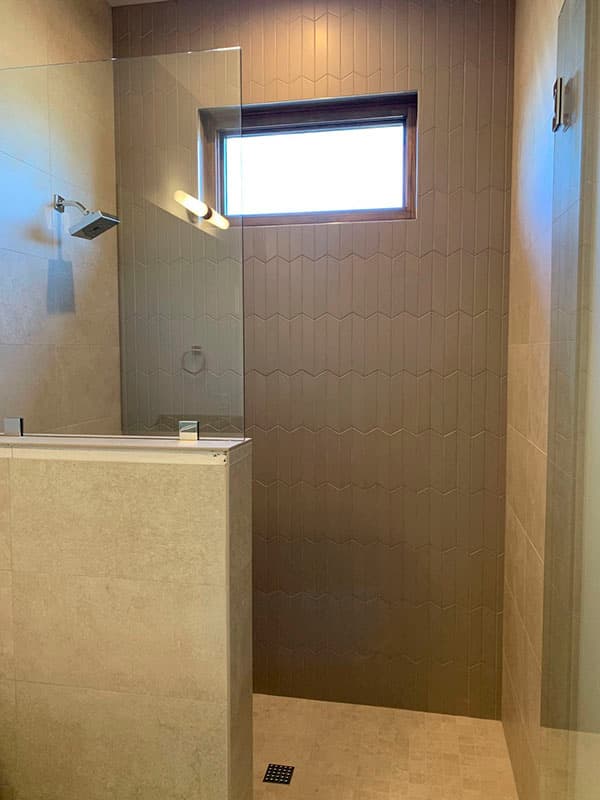

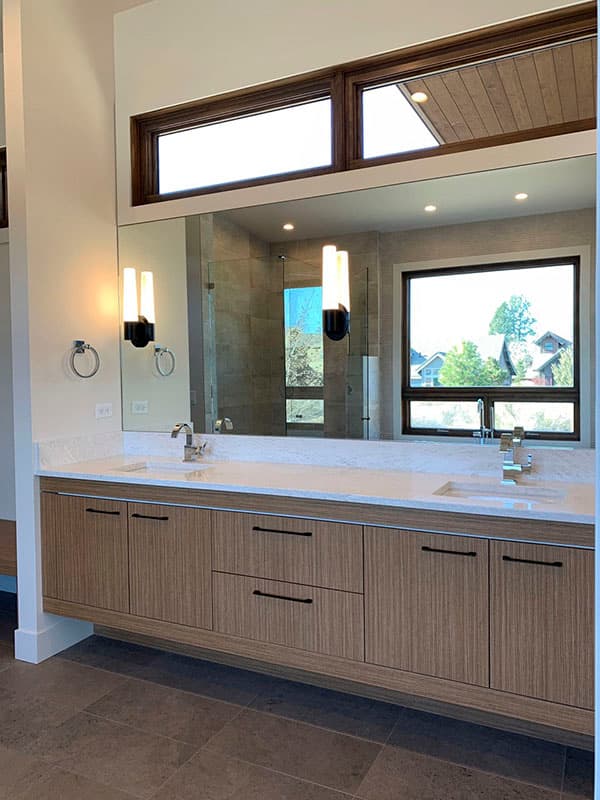

  • An oversized sliding door off the kitchen guides you to the rear courtyard, which is also accessible from the master suite. Enjoy the secluded location of the master suite, complimented by a 5-fixture master bath and walk-in closet. A quiet study can be found next door.

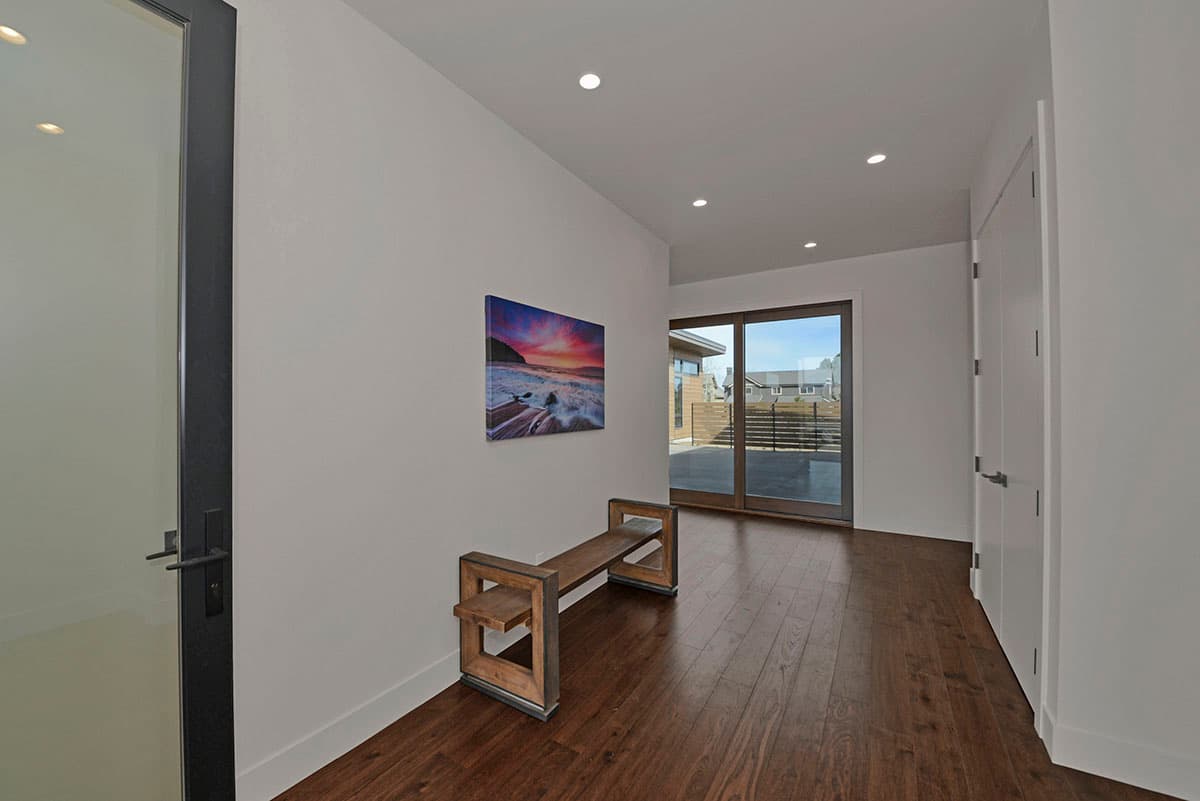

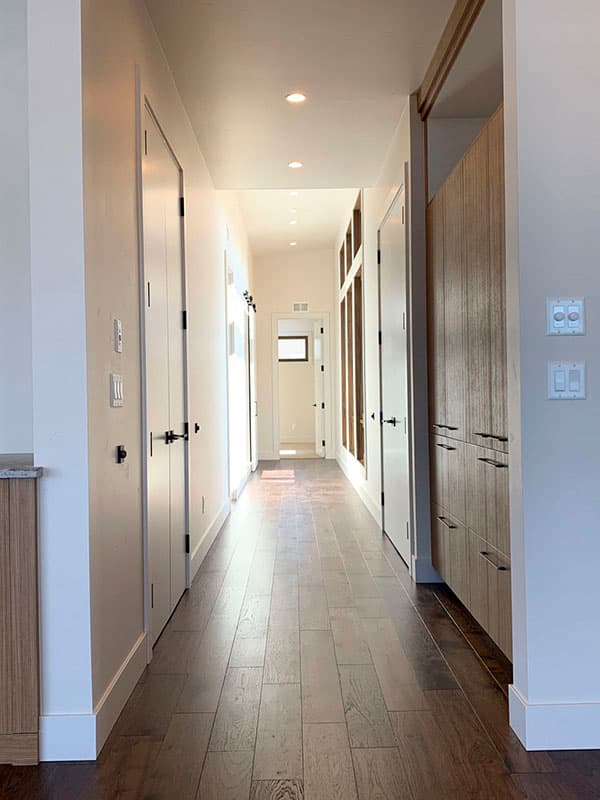

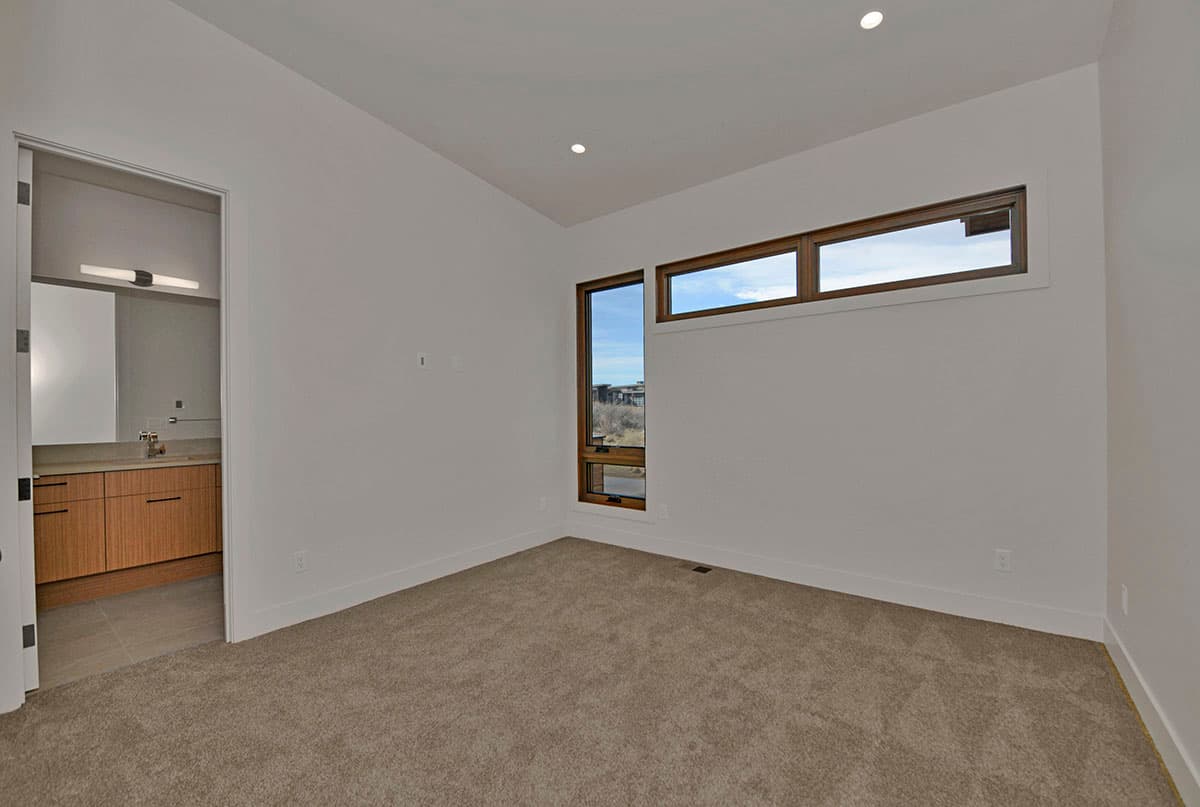

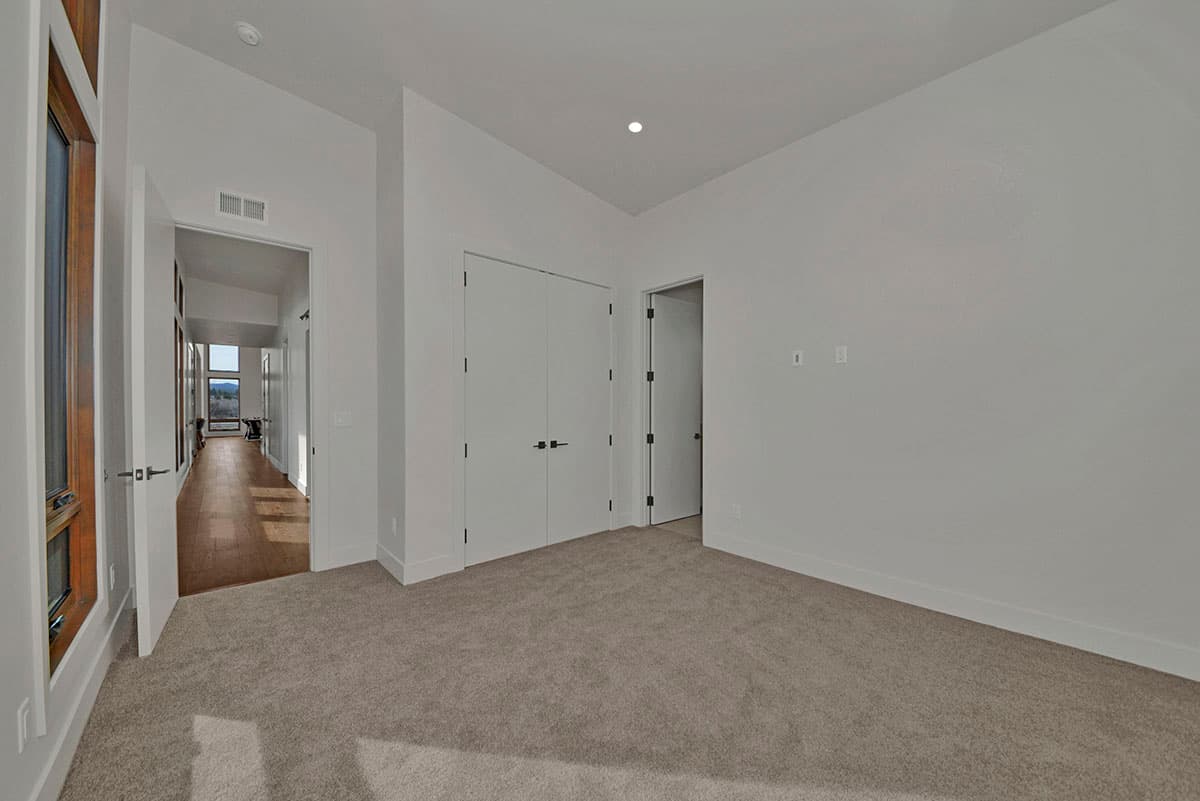

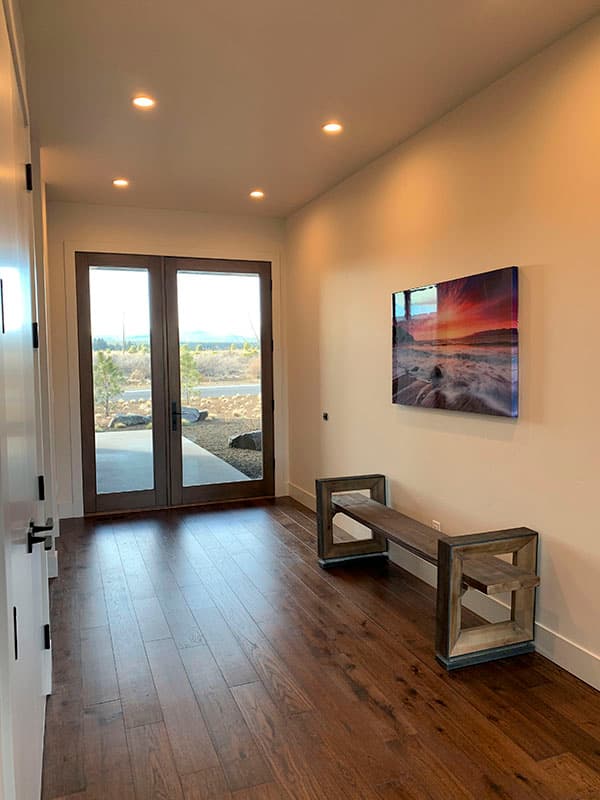

  • A hallway spans the length of the courtyard and leads to a game room that separates two bedroom suites.

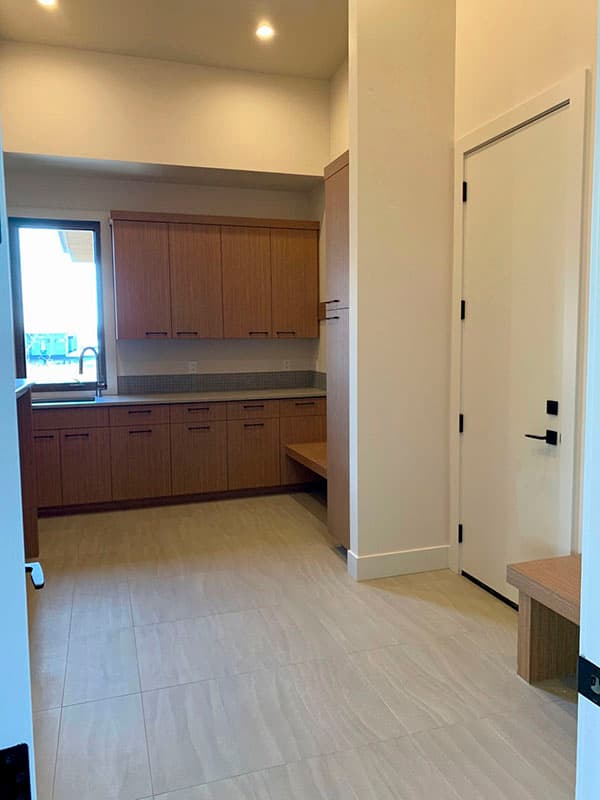

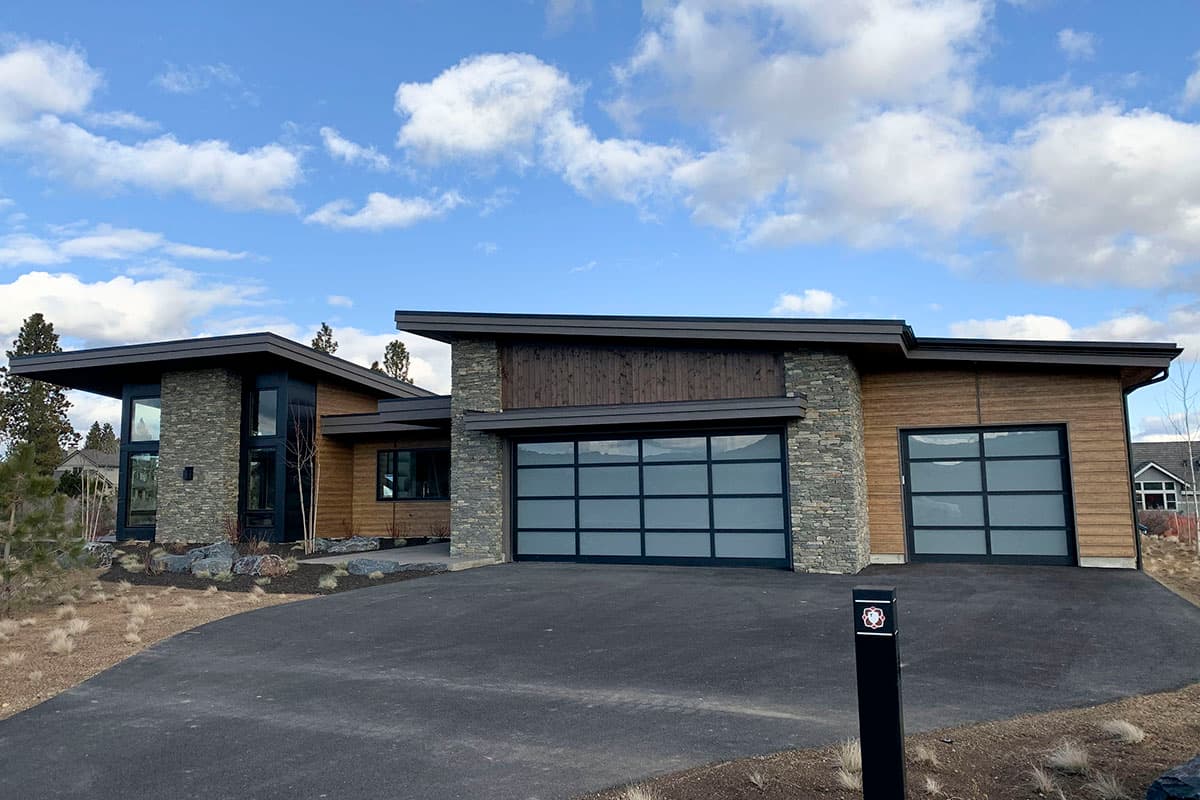

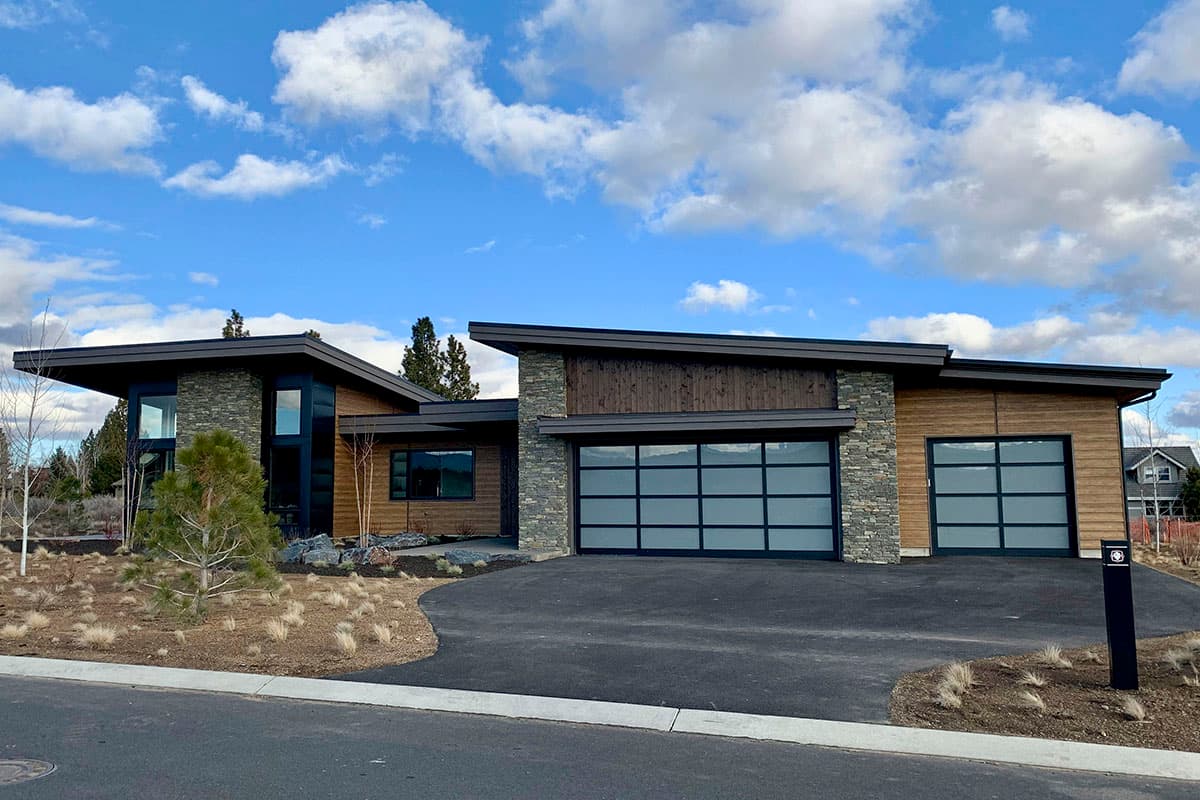

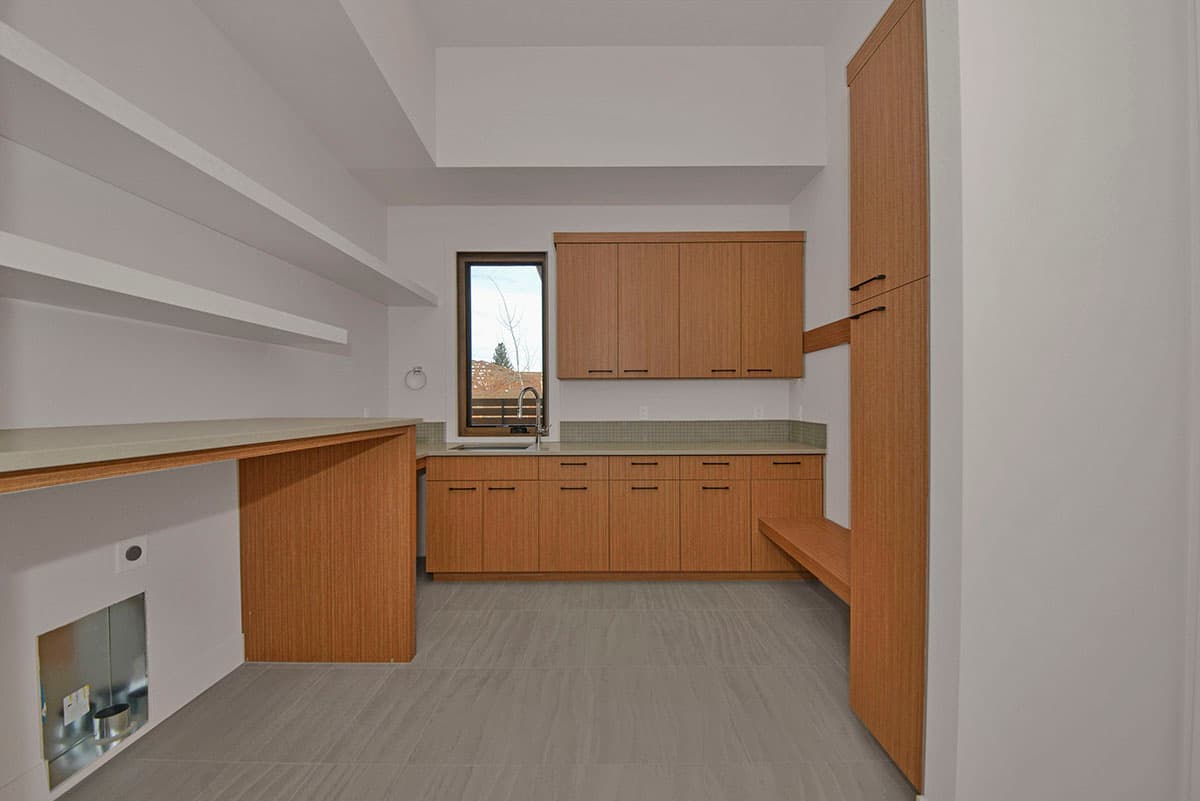

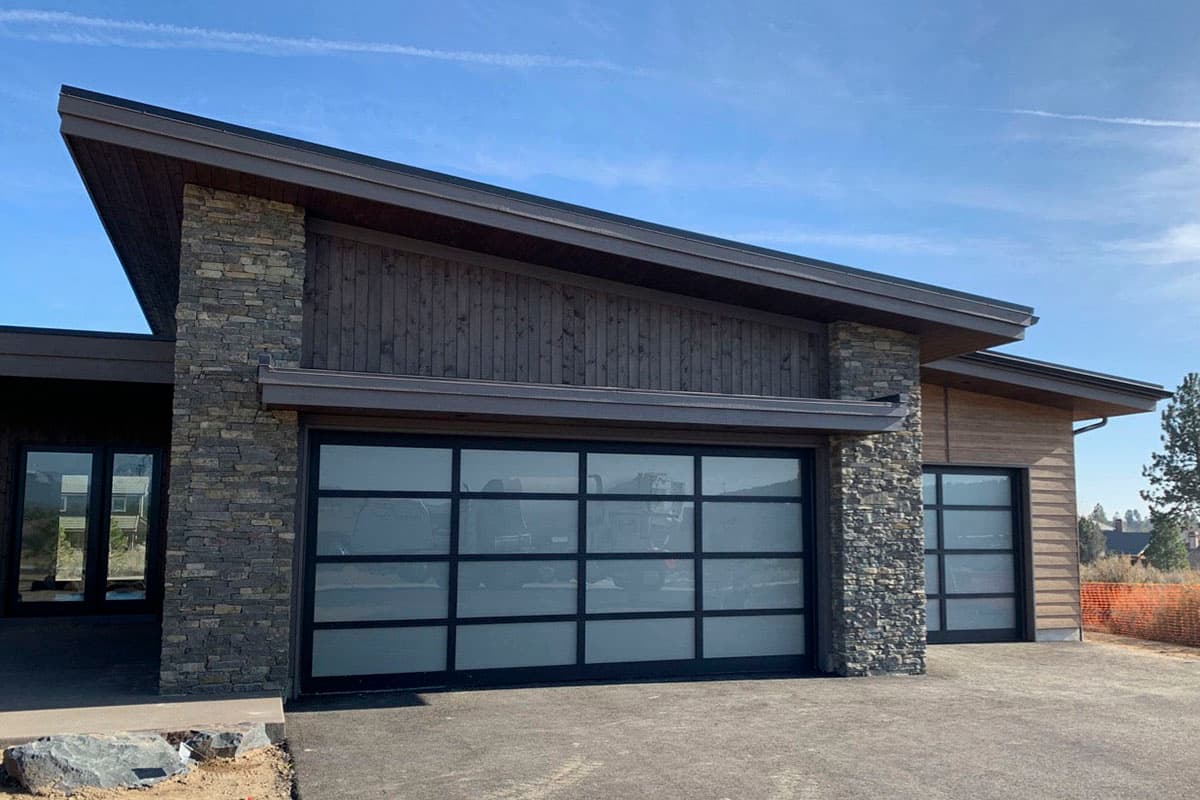

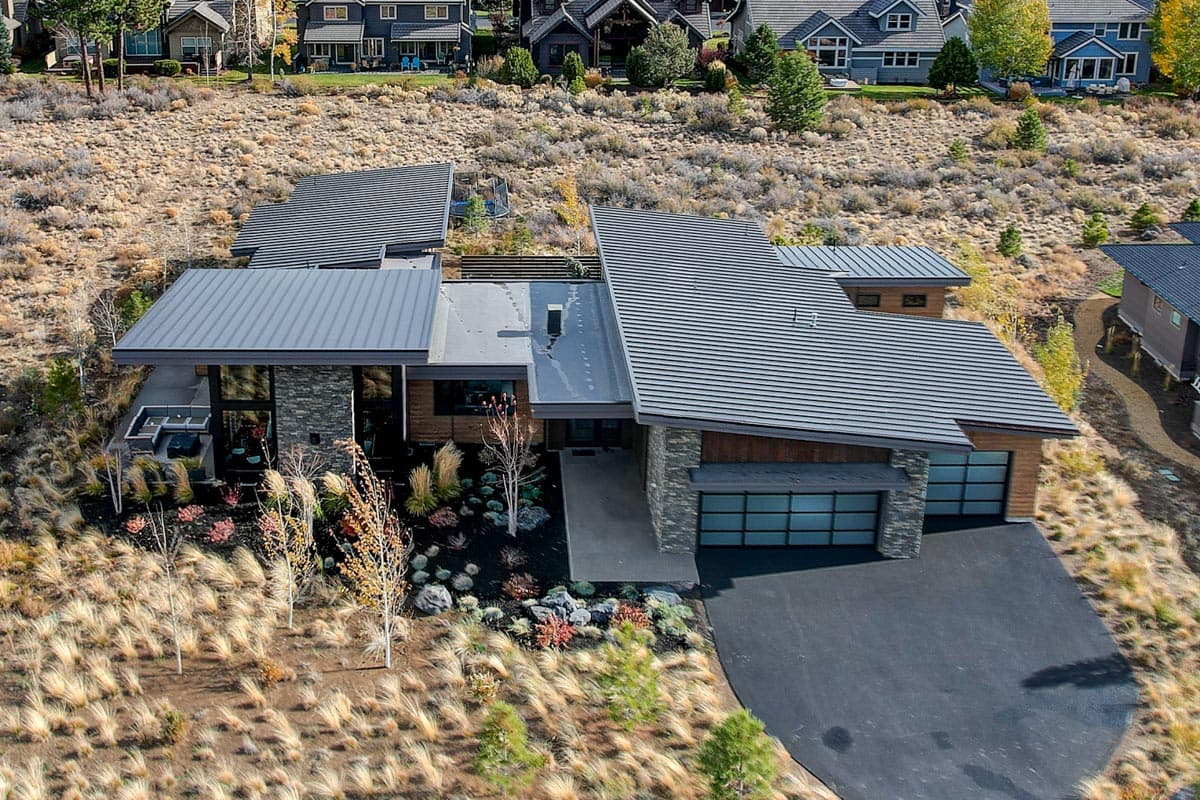

  • Access the 3-garage from the front of the home, and discover a sizable mudroom just inside.

Each plan set includes the following:

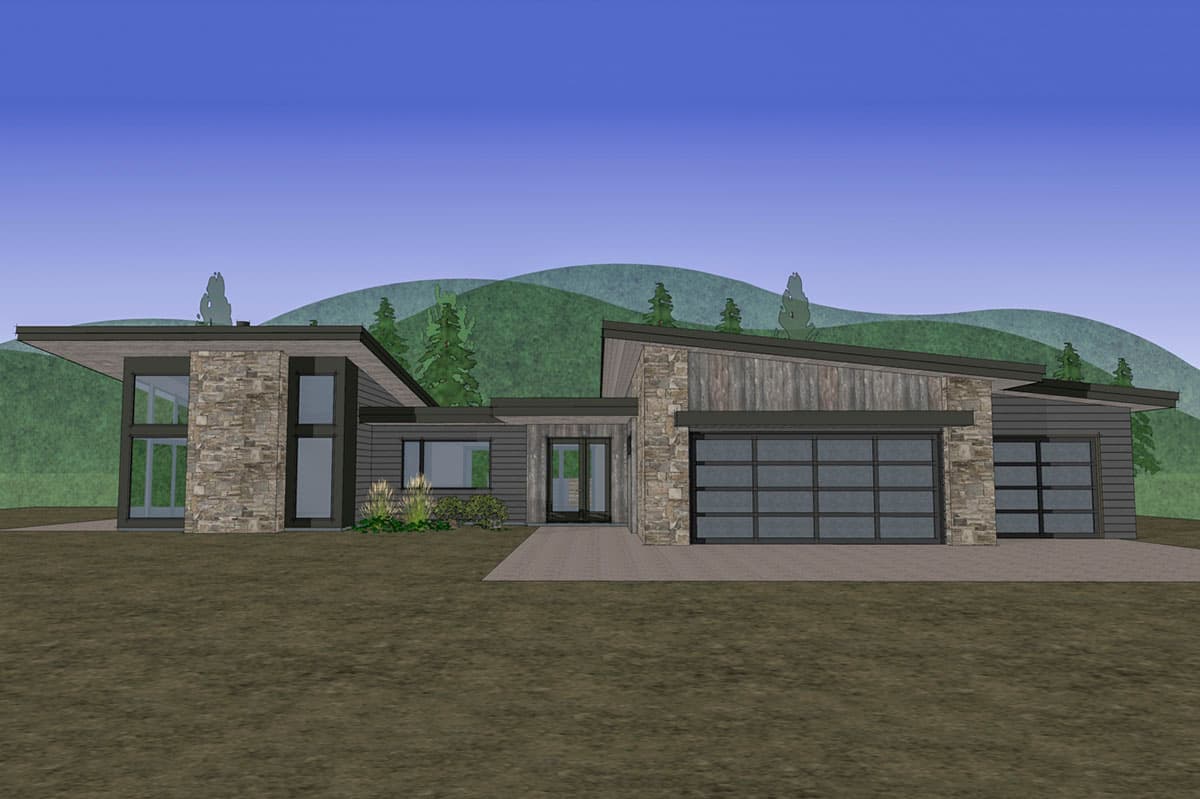

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan

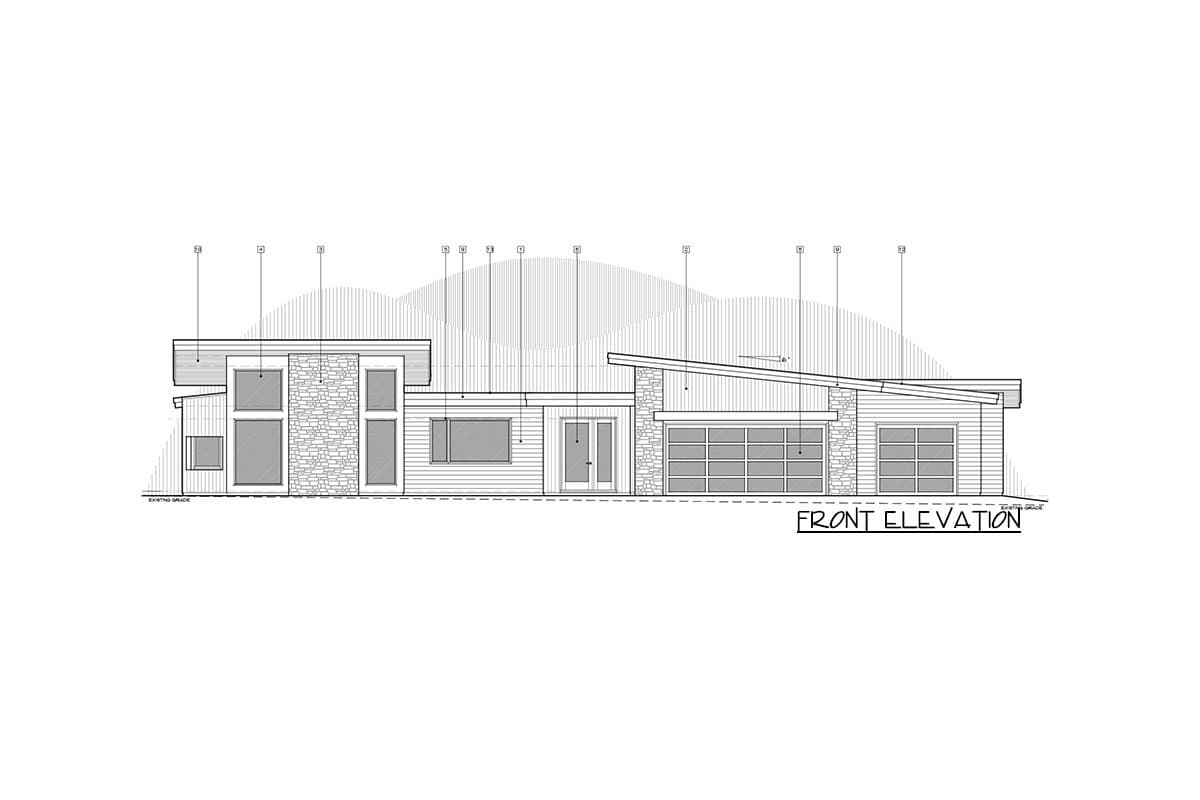

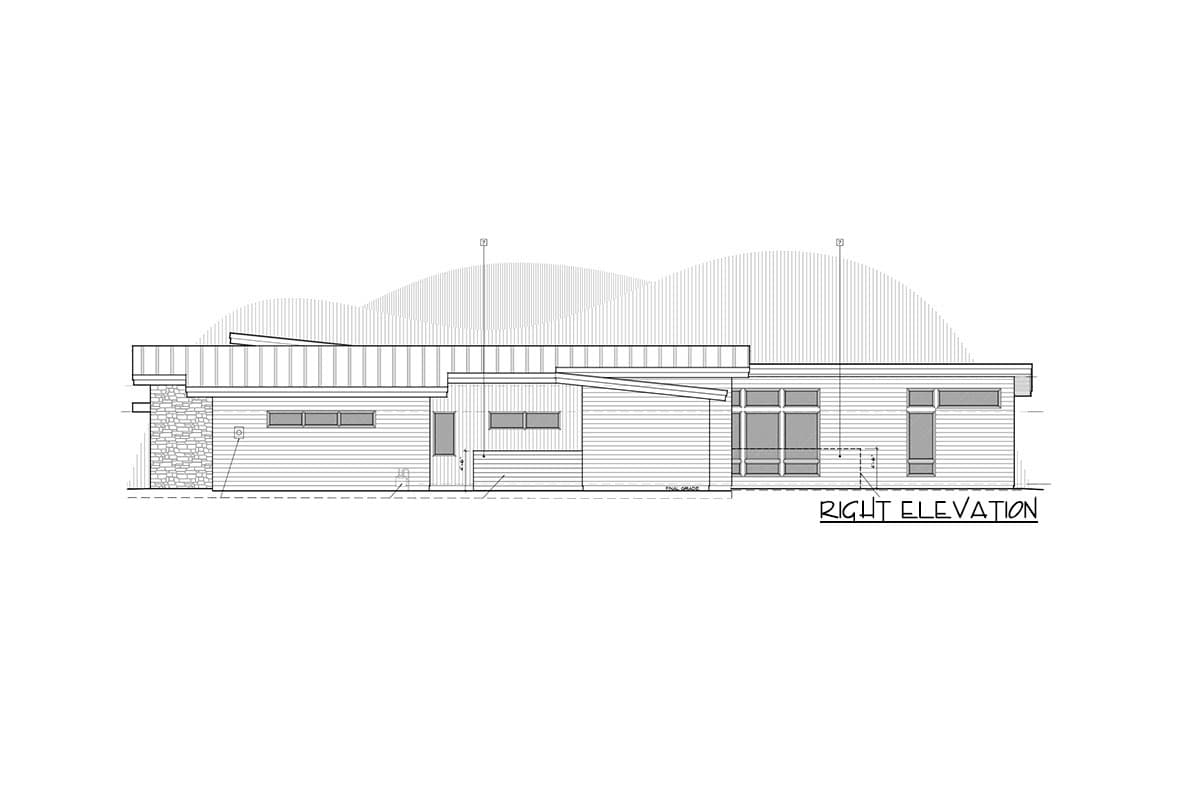

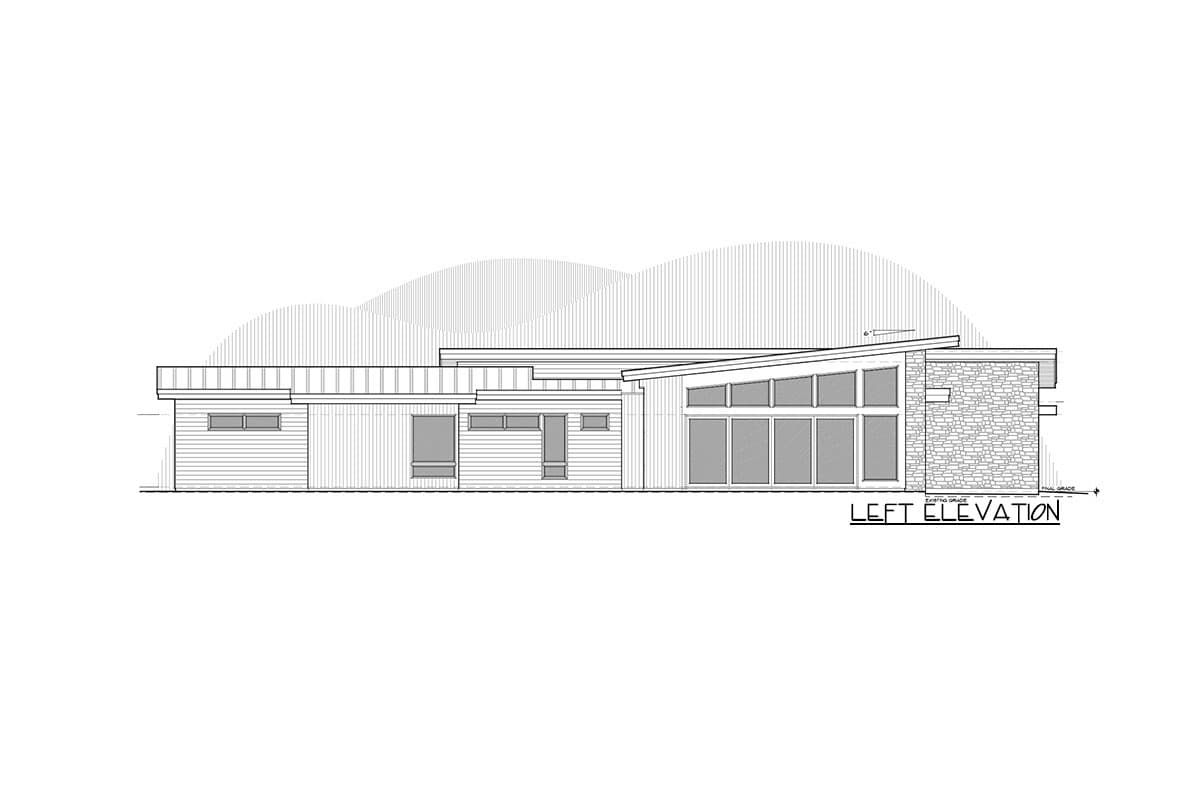

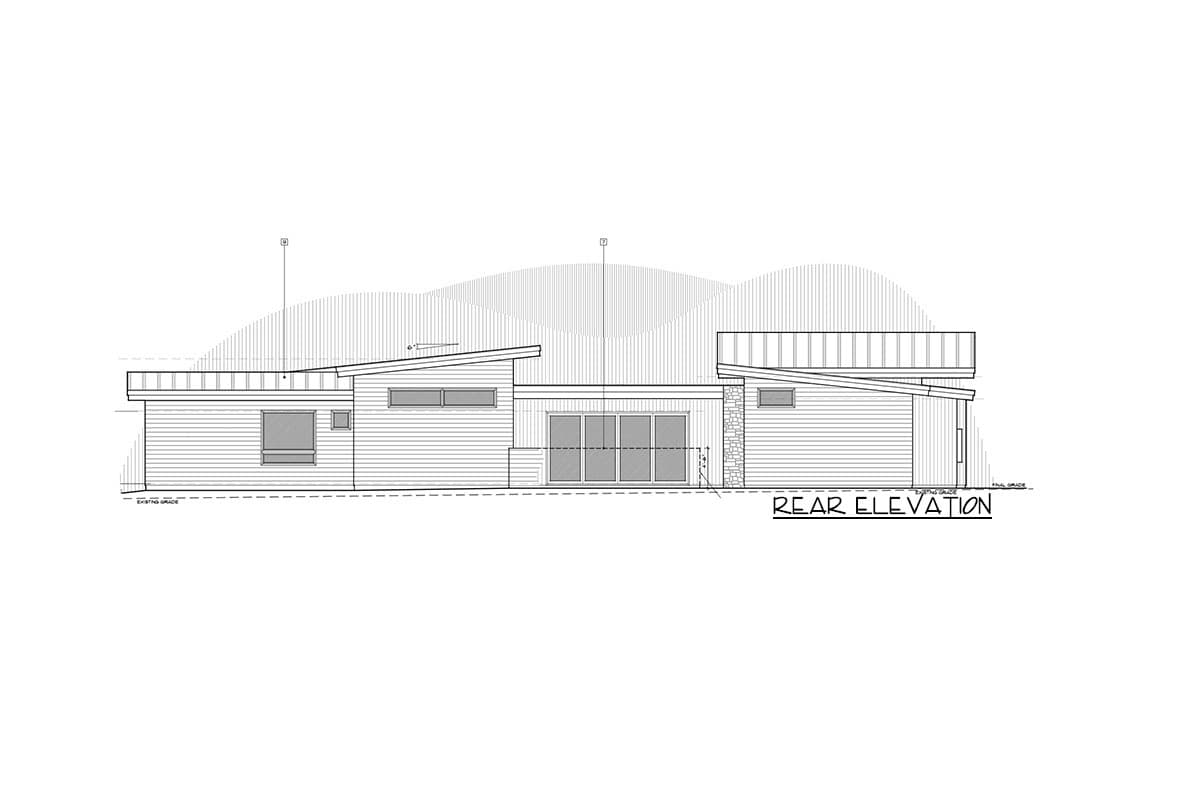

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

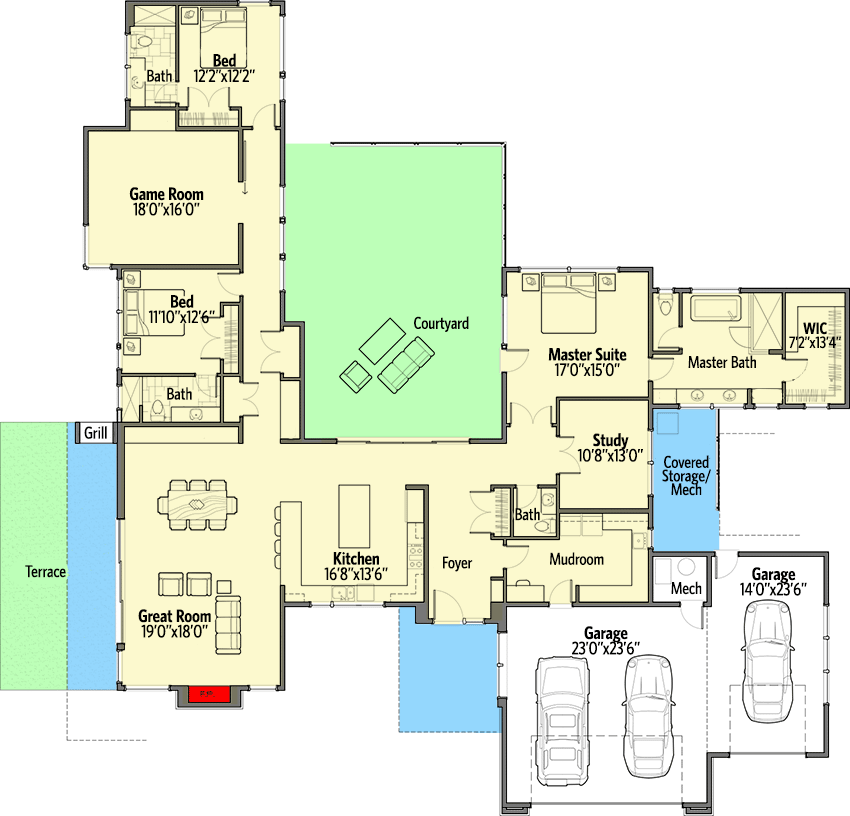

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Contemporary Home Plan with Courtyard - 54241HU floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,338 sq. ft.
  • 1st Floor: 3,338 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 92' 6"
  • Depth: 97' 4"
  • Max ridge height: 17' 0"

Garage

  • Type: Attached
  • Area: 989 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 6"

Roof Details

  • Framing Type: 2x12/TJI

Architectural Style

Special features

Plan Collections

3-Bed Contemporary Home Plan with Courtyard

  • 3,338

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • 5 Sets $2,145
  • 8 Sets $2,245
  • CAD + PDF - Single-Build $2,595
  • View all purchase option online

About This Plan

  • The sprawling footprint of this 3-bedroom, contemporary home plan creates a private courtyard in the center of the u-shape design, while the modern roof has a 6-degree primary pitch and a flat secondary pitch.
  • The great room is filled with natural light, and extends outdoors onto a large terrace with space for a grill. The open kitchen offers seating at the peninsula, and a central island lends plenty of workspace.
  • An oversized sliding door off the kitchen guides you to the rear courtyard, which is also accessible from the master suite. Enjoy the secluded location of the master suite, complimented by a 5-fixture master bath and walk-in closet. A quiet study can be found next door.
  • A hallway spans the length of the courtyard and leads to a game room that separates two bedroom suites.
  • Access the 3-garage from the front of the home, and discover a sizable mudroom just inside.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,338 sq. ft.
  • 1st Floor: 3,338 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 92' 6"
  • Depth: 97' 4"
  • Max ridge height: 17' 0"

Garage

  • Type: Attached
  • Area: 989 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 6"

Roof

  • Framing Type: 2x12/TJI
Plan 54241HU
View this and more for this plan by visiting www.architechtecturaldesigns.com/54241HU
|
