3-Bed Contemporary Home Plan with Lower-Level Garage

Plan 280094JWD

  • 2,509

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Contemporary siding materials enhance the sleek exterior of this 3-bedroom home plan, topped by a shed roof.
  • The lower level is where you'll find the double garage, along with a family room with a full bath.
  • A coat closet and powder bath greet you upon entering the front door. A few steps further, the shared living spaces are completely open to one another, and an angled kitchen island anchors the living space.
  • The master bedroom walls are lined by windows for maximum natural light, and the 5-fixture master bathroom includes a toilet room and walk-in closet.
  • Climb the stairs that wrap around a fireplace in the two-story great room and discover a loft that leads to bedrooms 2 and 3. The bedrooms are identical in size and share the neighboring full bath.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

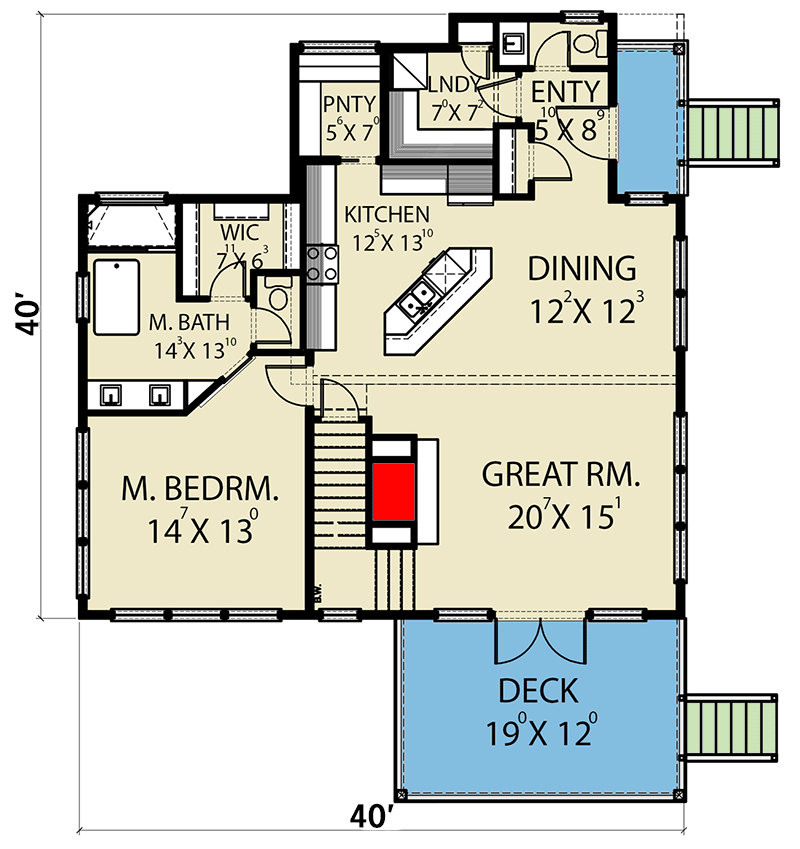

3-Bed Contemporary Home Plan with Lower-Level Garage - 280094JWD floor plan - Main Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

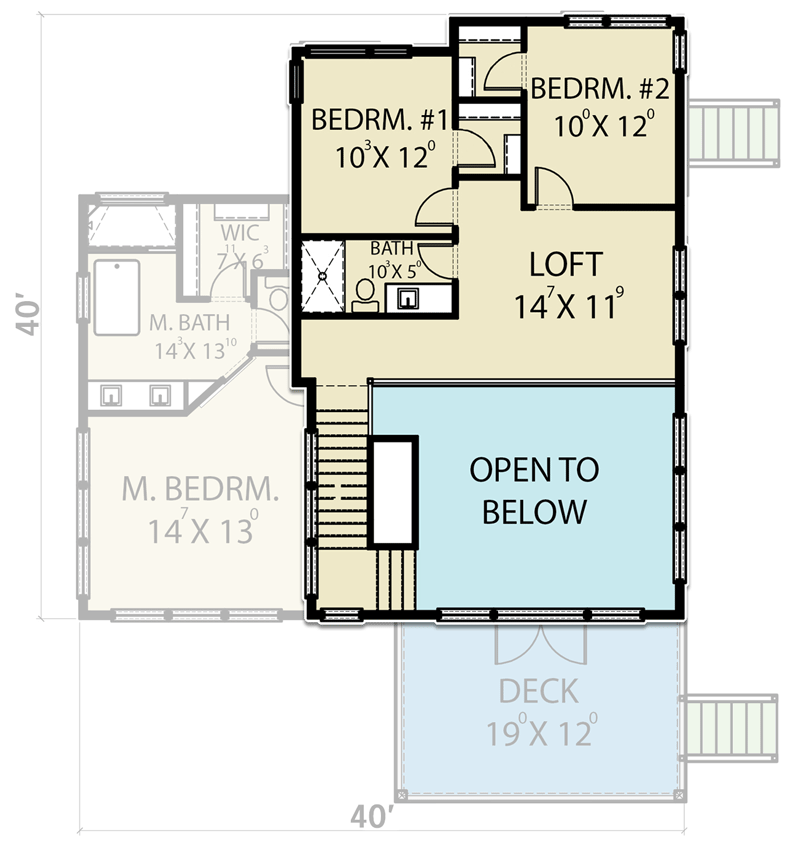

3-Bed Contemporary Home Plan with Lower-Level Garage - 280094JWD floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

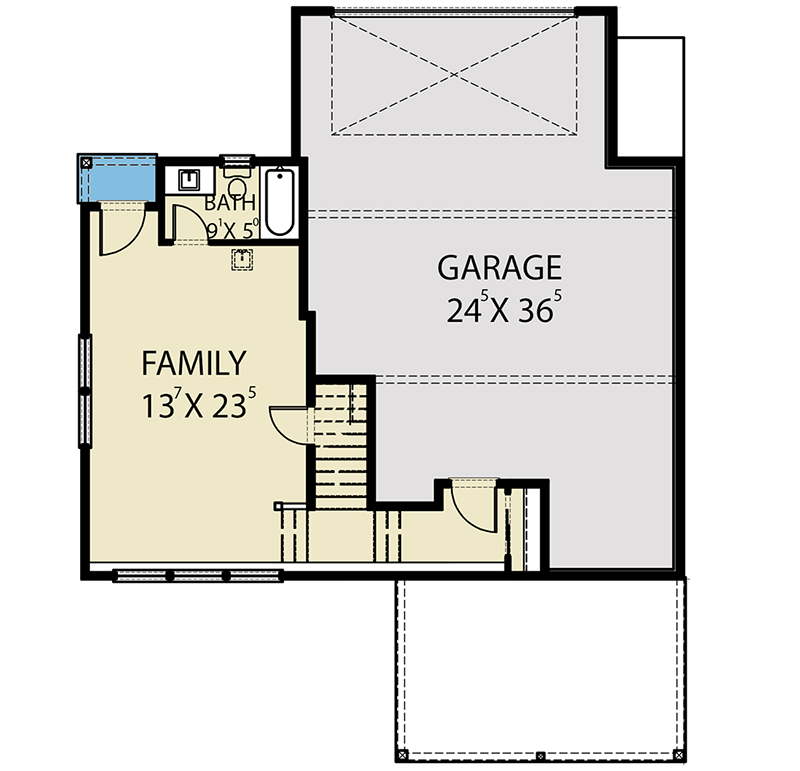

3-Bed Contemporary Home Plan with Lower-Level Garage - 280094JWD floor plan - Lower Level

3-Bed Contemporary Home Plan with Lower-Level Garage

  • 2,509

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Floor

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,509 sq. ft.
  • Lower Level: 536 sq. ft.
  • 1st Floor: 1,357 sq. ft.
  • 2nd Floor: 616 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 40' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Drive Under
  • Area: 788 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 3 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
