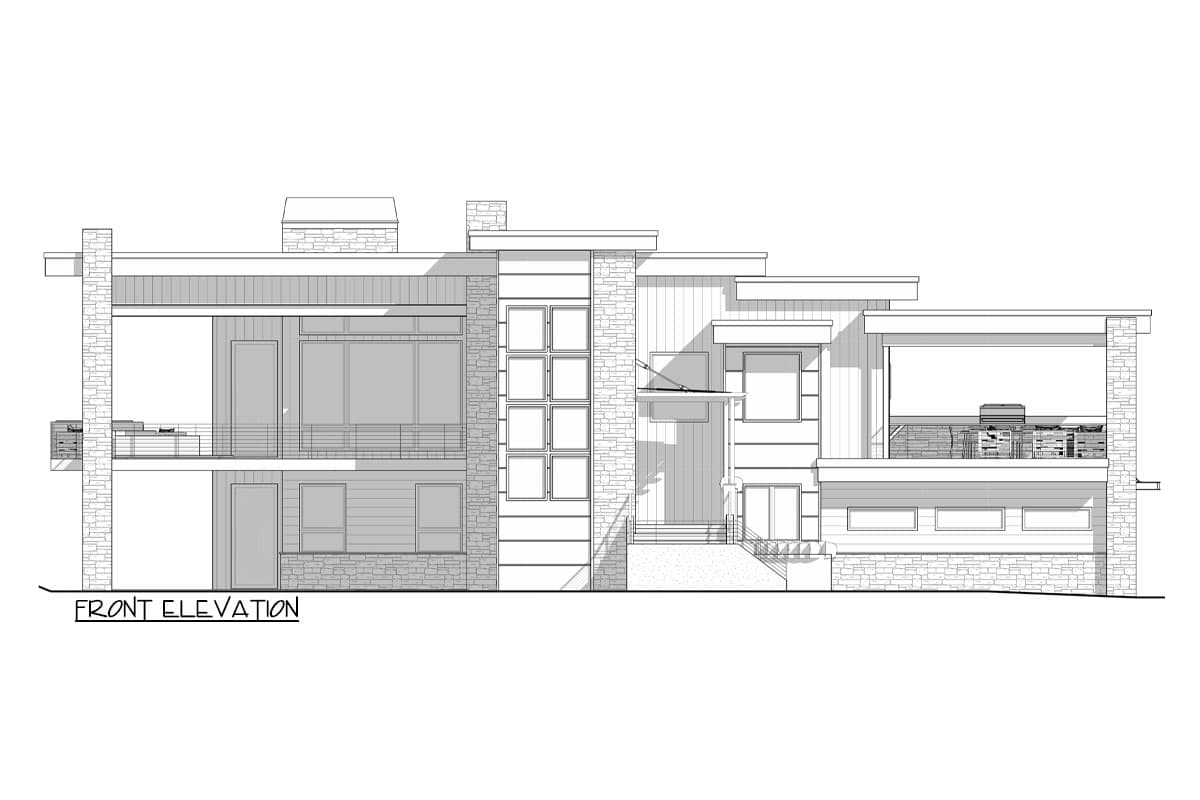

Front elevation drawing of a modern house with layered rooflines, balconies, and stone accents.

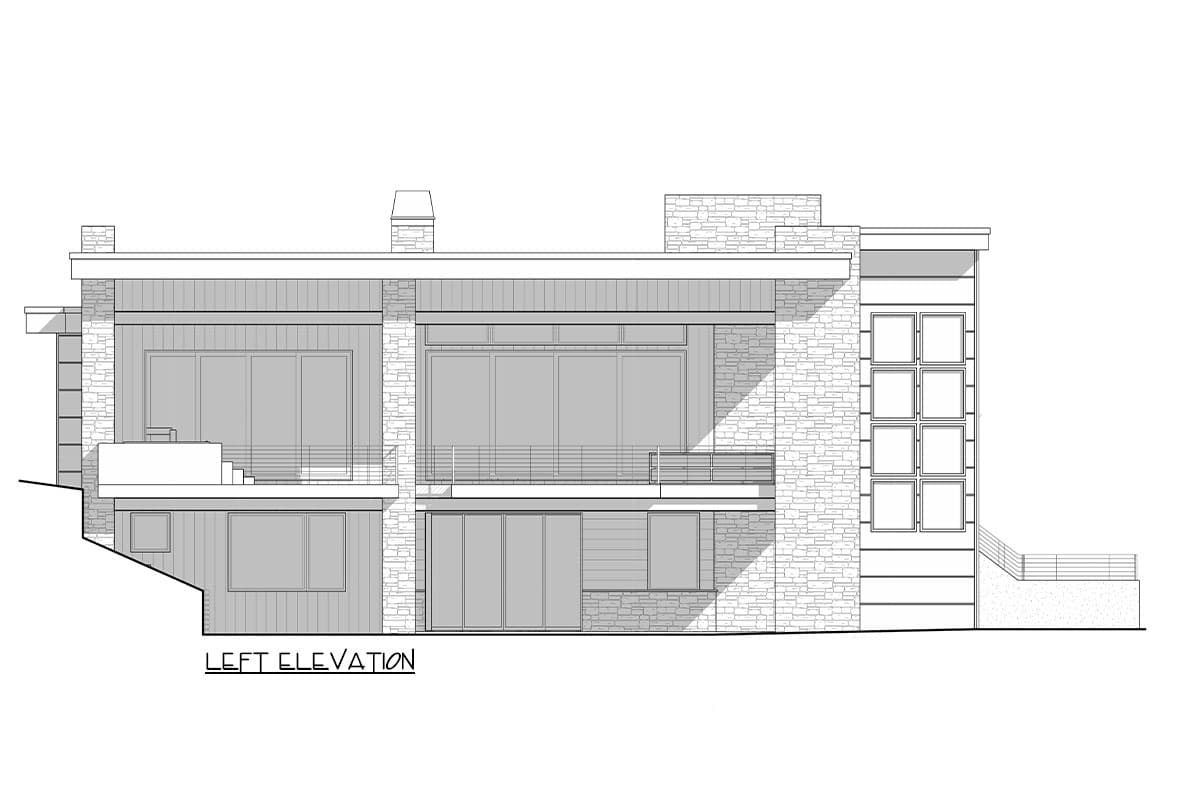

Left elevation drawing of a multi-level modern house with stone and wood siding, large windows, and balconies.

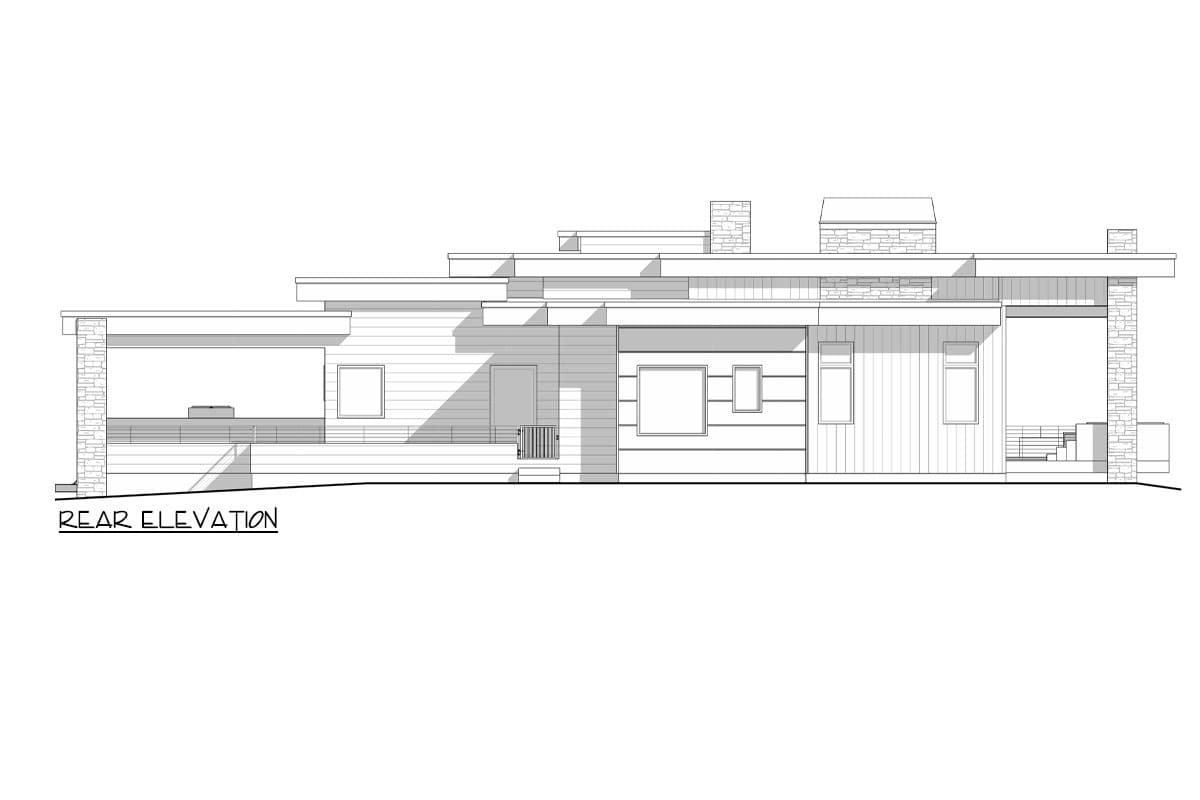

Rear elevation drawing of a modern house with layered rooflines, stone accents, and horizontal siding.

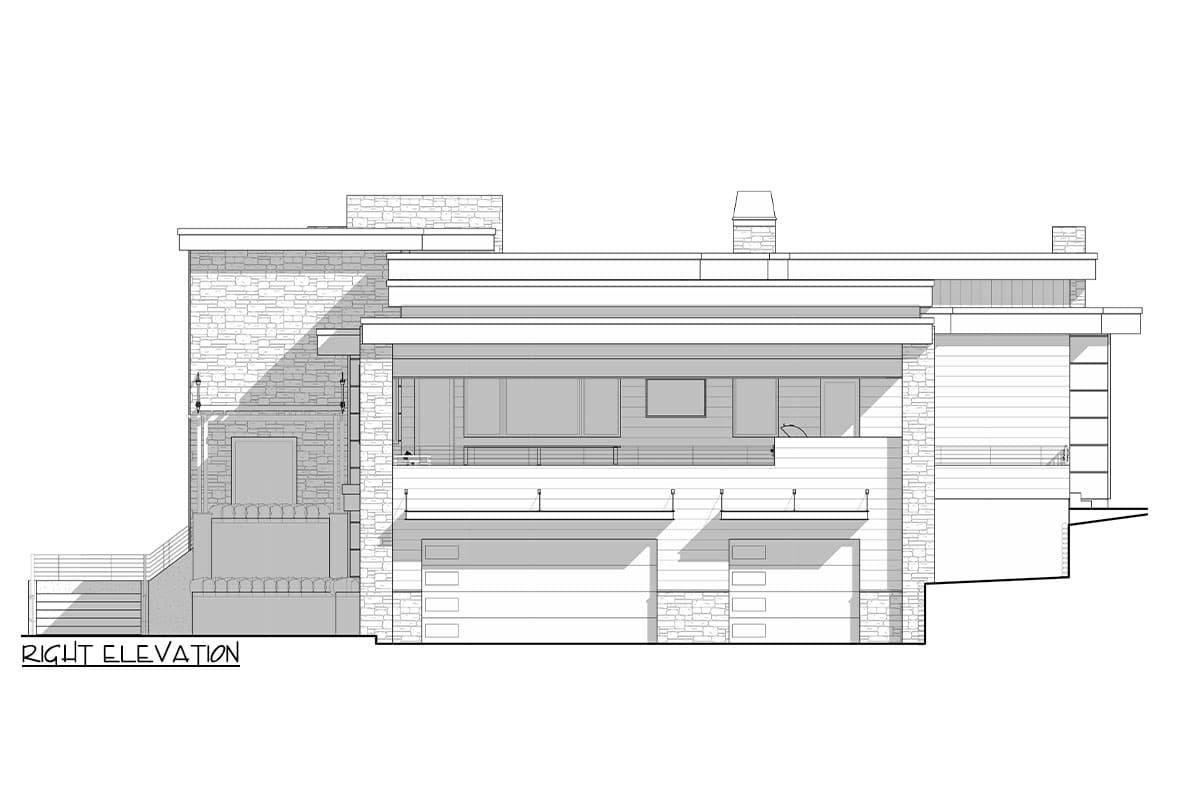

Right elevation drawing of a modern house plan featuring multiple garage bays, a balcony, and stone and wood siding.

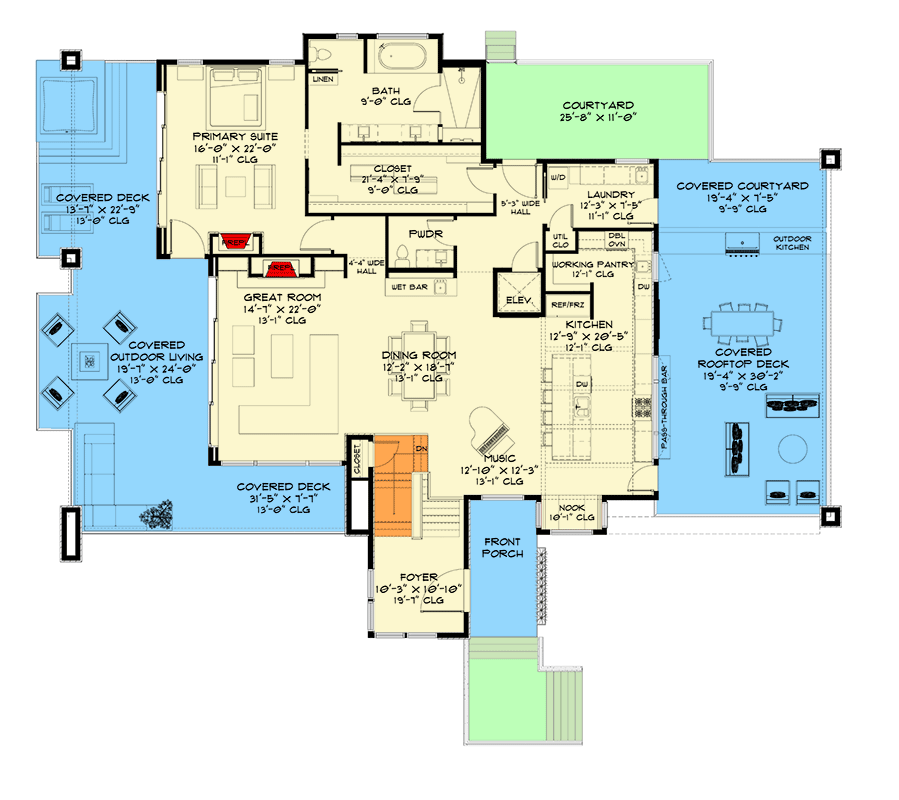

Plan 520016RKY: 3-Bed Contemporary House Plan with Outdoor Kitchen - 5035 Sq Ft - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Northwest

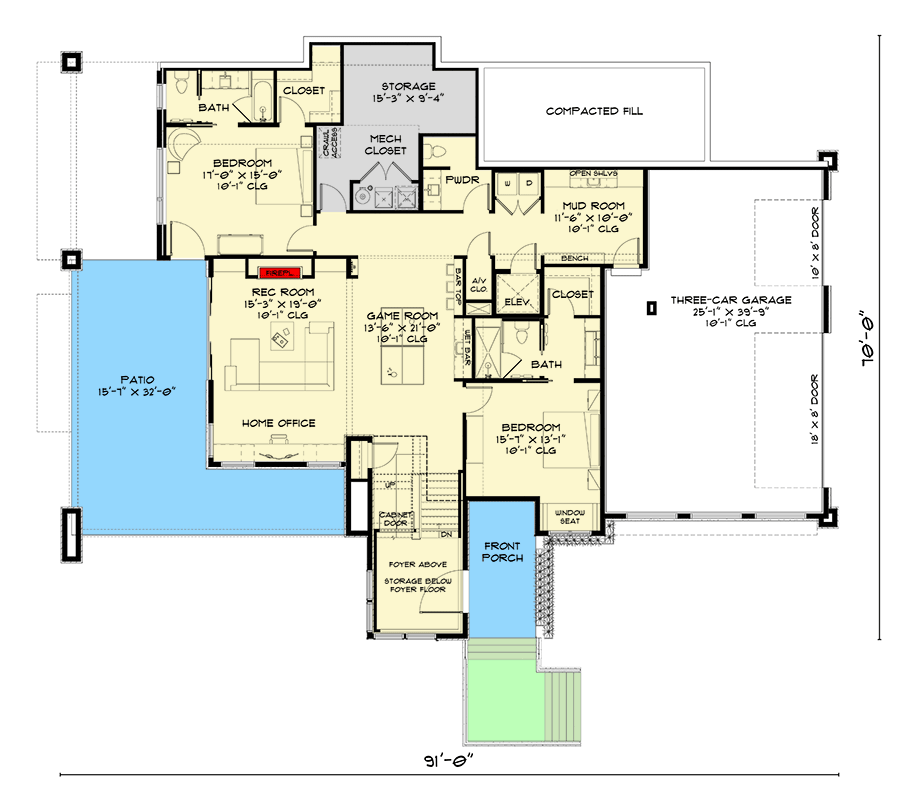

Plan 520016RKY: 3-Bed Contemporary House Plan with Outdoor Kitchen - 5035 Sq Ft - Floor Plan - Lower Level - Contemporary, Mid Century Modern, Modern, Northwest

House plan exterior with modern design, two stories, stone accents, flat rooflines, and covered patios.

Front elevation drawing of a modern house with layered rooflines, balconies, and stone accents.

Left elevation drawing of a multi-level modern house with stone and wood siding, large windows, and balconies.

Rear elevation drawing of a modern house with layered rooflines, stone accents, and horizontal siding.

Right elevation drawing of a modern house plan featuring multiple garage bays, a balcony, and stone and wood siding.

Plan 520016RKY: 3-Bed Contemporary House Plan with Outdoor Kitchen - 5035 Sq Ft - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Northwest

Plan 520016RKY: 3-Bed Contemporary House Plan with Outdoor Kitchen - 5035 Sq Ft - Floor Plan - Lower Level - Contemporary, Mid Century Modern, Modern, Northwest

Plan 520016RKY

3-Bed Contemporary House Plan with Outdoor Kitchen - 5035 Sq Ft

Heated S.F.

5,035

Beds

3

Baths

3.5+

Stories

1-2

Cars

3

Floor Plan

Main Level

Plan 520016RKY: 3-Bed Contemporary House Plan with Outdoor Kitchen - 5035 Sq Ft - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Northwest

Lower Level

Plan 520016RKY: 3-Bed Contemporary House Plan with Outdoor Kitchen - 5035 Sq Ft - Floor Plan - Lower Level - Contemporary, Mid Century Modern, Modern, Northwest

Plan Details

This stunning contemporary house plan offers 5,035 sq ft of living space, with 3 bedrooms, 3.5 bathrooms, and an impressive 1,014 sq ft 3-car garage.
Upon entering, you're welcomed by a grand foyer that opens to a spacious great room and adjacent dining area, ideal for gatherings.
The open-concept design connects the kitchen, featuring a walk-in pantry and breakfast nook, seamlessly with the living spaces.
The luxurious primary suite on the main floor provides privacy, complemented by its own bath and direct access to the outdoor deck.
Additional highlights include a dedicated home office, a versatile rec room, and a game room, perfect for entertainment.
Outdoor living is enhanced by multiple covered decks and a rooftop deck with a kitchen, perfect for alfresco dining.

What's Included

Cover Sheet
Specifications
Foundation Layout Plan
Floor Plans
Sections
Elevations
Roof Ridge Plan
Details sheet(s)
Electrical Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Plumbing & Electrical plans
Mechanical Drawings (location of heating and air equipment and duct work)
Framing layouts with beam sizes and locations
Renderings, photography, or marketing imagery
Energy calculations - handled locally when required

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,035 sq. ft.

Lower Level

2,262 sq. ft.

1st Floor

2,773 sq. ft.

Porch, Front

127 sq. ft.

Deck

1,026 sq. ft.

Deck & Porch

677 sq. ft.

Covered Patio

384 sq. ft.

Courtyard

619 sq. ft.

Storage

313 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

92' 0"

Depth

82' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached, Drive Under

Area

1014 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10' 1"

Second Floor

11' 1"

Room

Ceiling Type

Height

Primary Bedroom

11' 1''

Great Room

13' 1''

Kitchen

12' 1''

Bedroom 2

10' 1''

Bedroom 3

10' 1''

Roof Details

Primary Pitch

.25 on 12

Architectural Style

Mid Century Modern

Special Features

Bedrooms - Split

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen

Stacked Porches

Wraparound Porch

Square Footage Breakdown

Total Heated Area

5,035 sq. ft.

Lower Level

2,262 sq. ft.

1st Floor

2,773 sq. ft.

Porch, Front

127 sq. ft.

Deck

1,026 sq. ft.

Deck & Porch

677 sq. ft.

Covered Patio

384 sq. ft.

Courtyard

619 sq. ft.

Storage

313 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

92' 0"

Depth

82' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached, Drive Under

Area

1014 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10' 1"

Second Floor

11' 1"

Room

Ceiling Type

Height

Primary Bedroom

11' 1''

Great Room

13' 1''

Kitchen

12' 1''

Bedroom 2

10' 1''

Bedroom 3

10' 1''

Roof Details

Primary Pitch

.25 on 12

Architectural Style

Mid Century Modern

Special Features

Bedrooms - Split

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen

Stacked Porches

Wraparound Porch
