Clean horizontal lines, a low-slung hip roof, and a stone-wrapped base give this 2,812 square foot single-story its contemporary Prairie presence — and the layout behind it is built entirely around the outdoors.

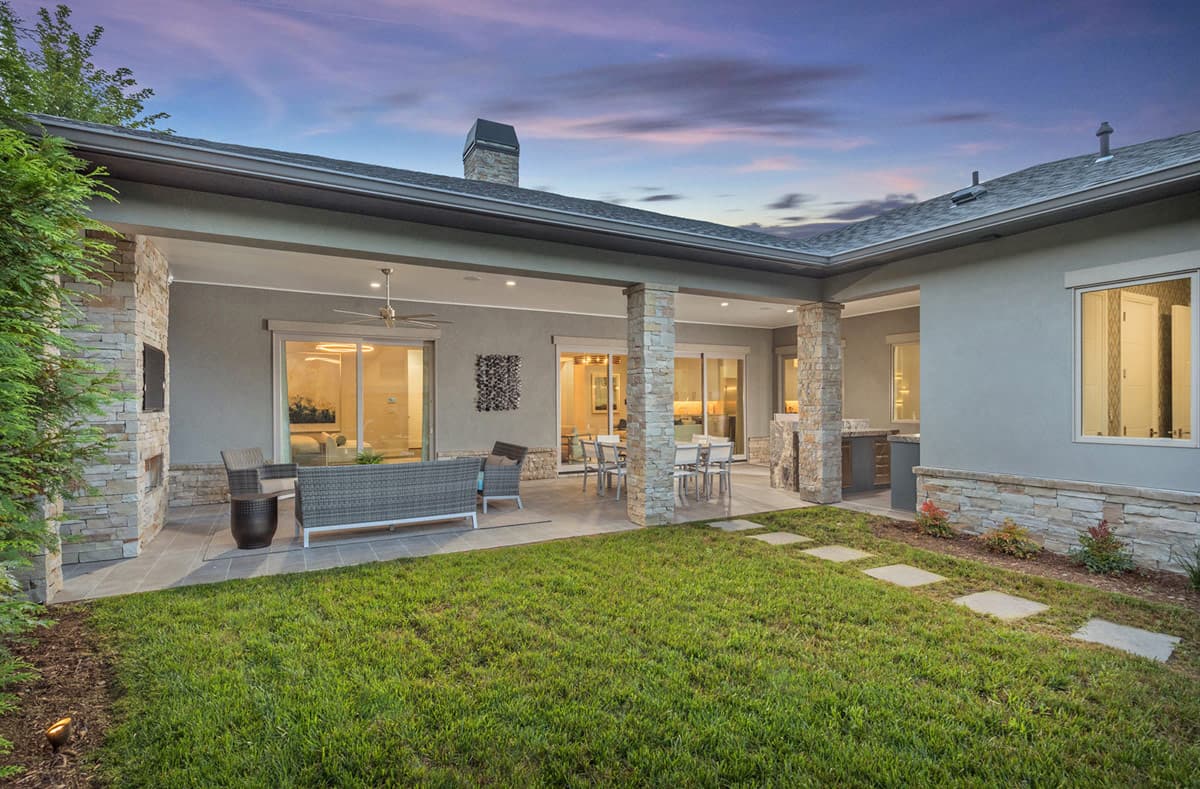

The home wraps a 553 square foot covered lanai in a near-courtyard configuration, so the great room, dining area, and owner's suite all open onto the same protected space through 8-foot sliders and a 16-foot pocketing glass wall. With an outdoor fireplace, it functions as a genuine second living room rather than a patio you pass through.

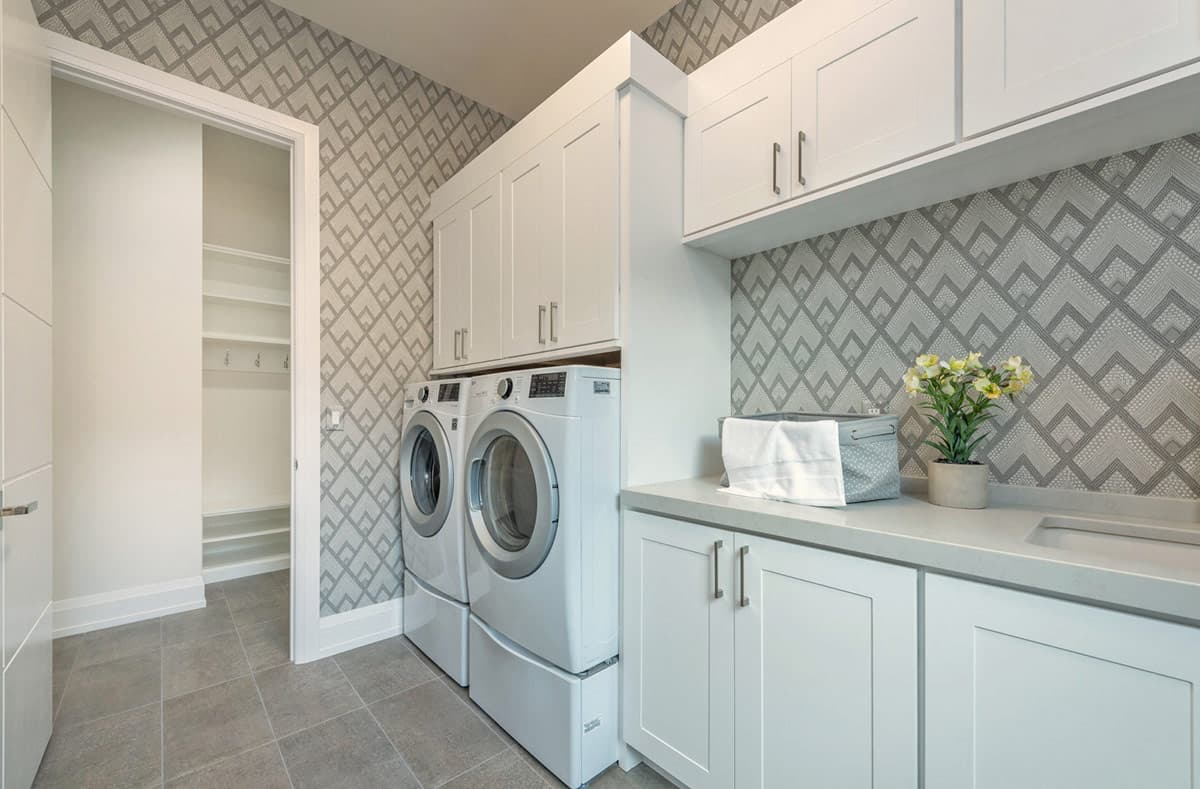

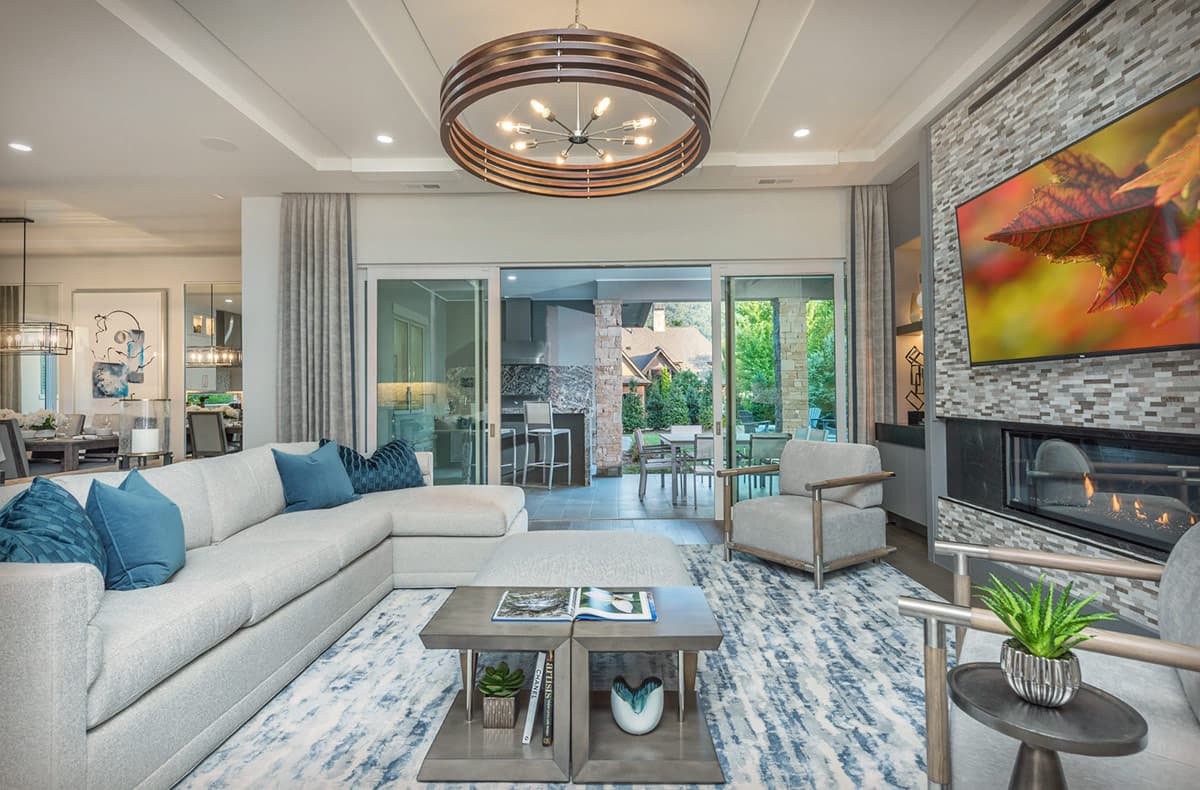

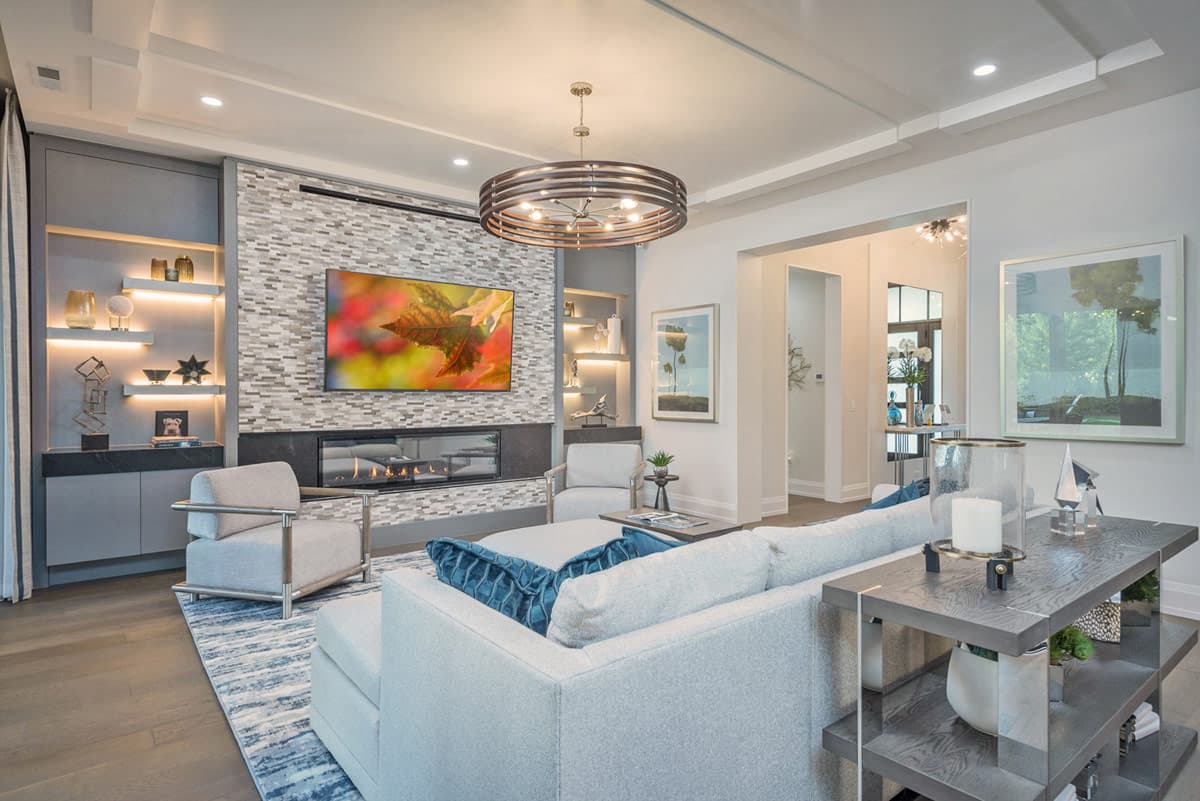

Inside, the great room sits under a 10'-4" tray ceiling with a fireplace flanked by built-ins on both sides. The kitchen anchors the space with a large island, a walk-in pantry, and a wine niche, with the dining room a step away and a mudroom-and-laundry run linking through to the garage.

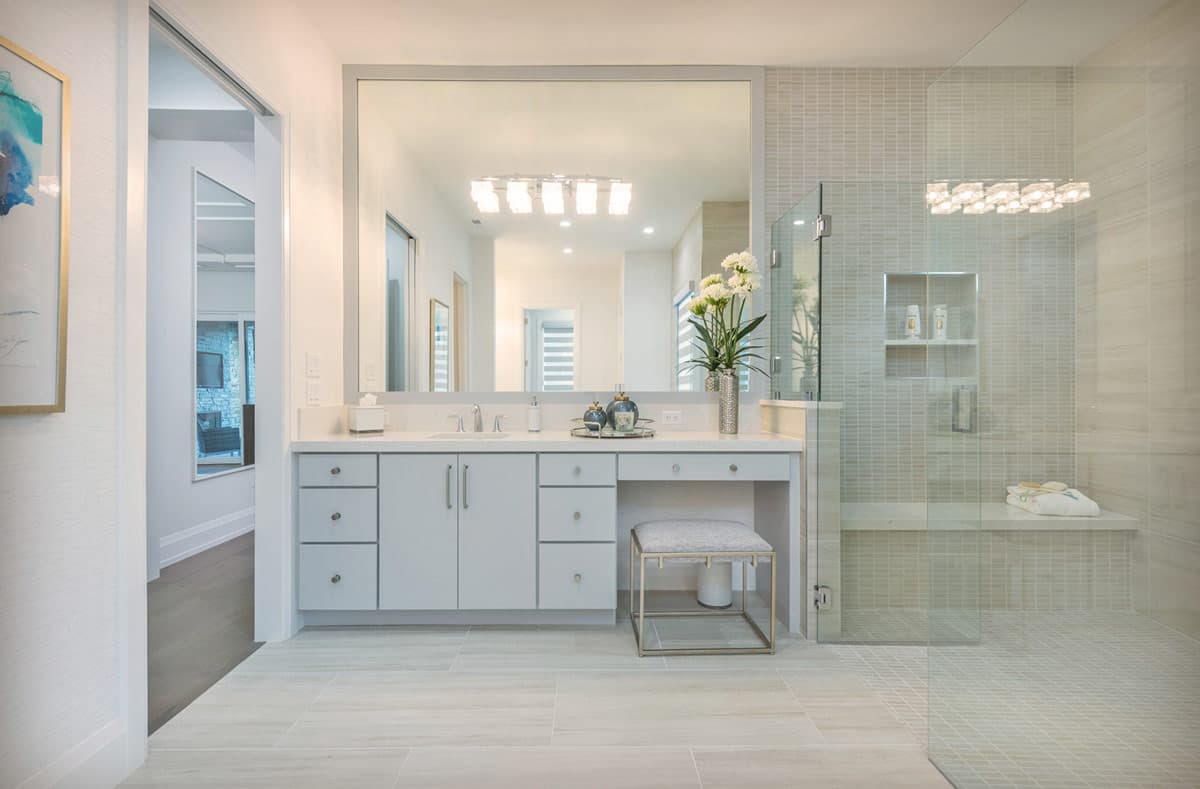

The three bedrooms are split for privacy. The owner's suite takes its own wing with direct lanai access, a compartmented bath with make-up counter, and a walk-in closet running nearly 17 feet.

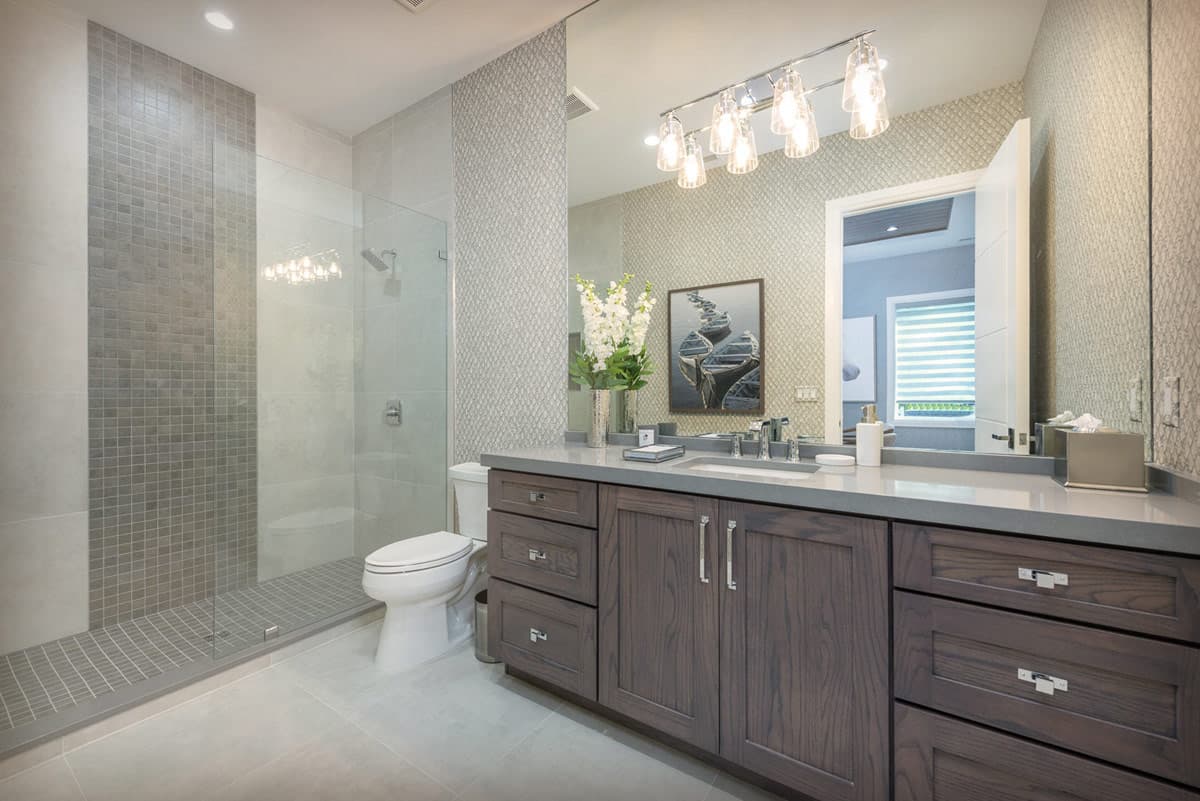

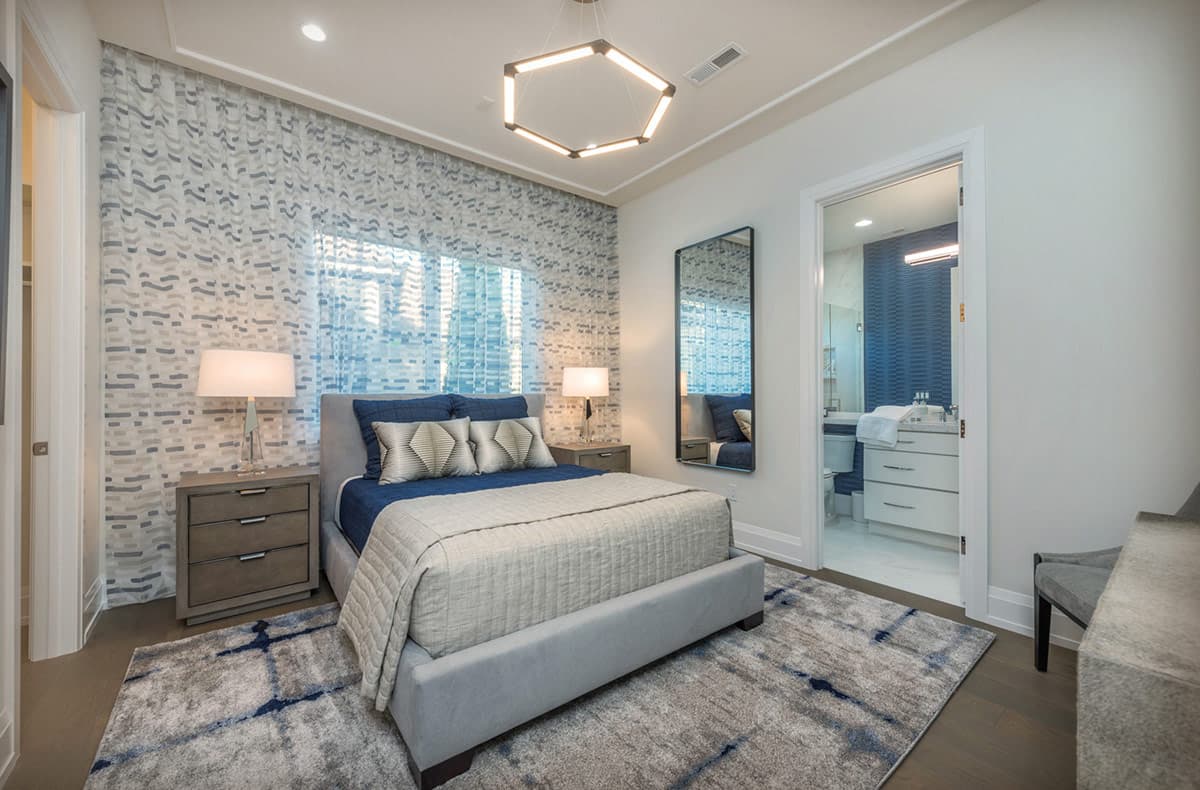

A guest suite with full bath sits off the mudroom, and the front study — also with its own full bath — makes a natural third bedroom when an office needs to double as guest quarters.

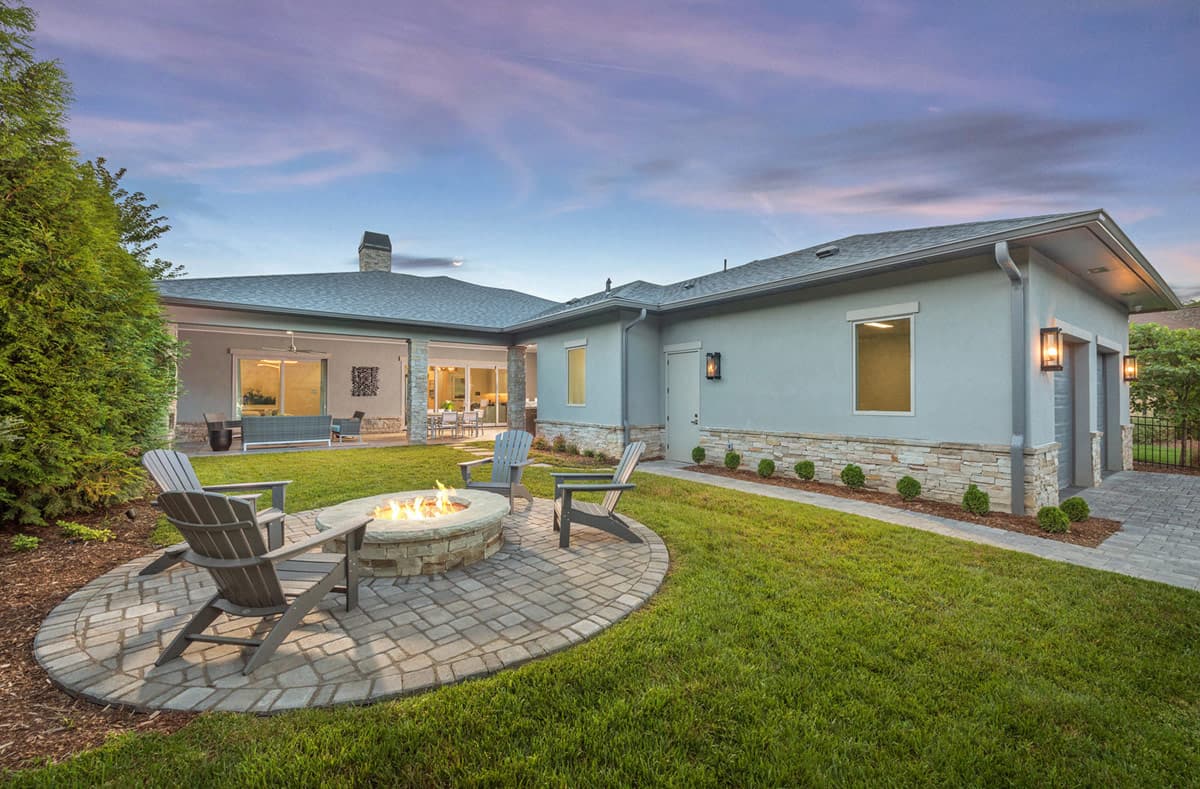

The 2-car garage loads from the rear for alley access, keeping the street elevation uninterrupted. At 58 feet wide and just over 97 feet deep, this one is built for a more narrow, deep lot.

What's Included

COVER SHEET / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the design development set of plans. It will also include a grayscale elevation or rendering depicting the look of the front of the home, and overall roof plan.
WALL SECTIONS - The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

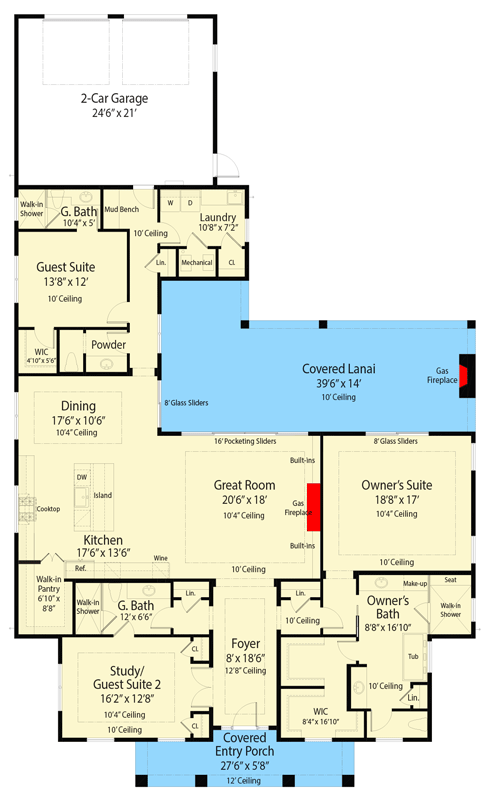

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS).
REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
