Plan: 72828DA

3 Bed Contemporary Townhouse Plan

1,688 3 3 2 2
print
Pageloader

3 Bed Contemporary Townhouse Plan

Plan 72828DA

  • 1,688

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This is a contemporary townhouse with a Florida flavor. As such, it has a fairly narrow footprint, which makes it well-suited for construction among other townhouses.
  •  Its entry is slightly recessed under wide eaves that stretch out to create a covered porch spanning the front. Three squared framed-out columns highlight the ends and the entry.
  • The foyer has a handy mini-bathroom on the right, then leads into a wide open living room, dining area, and kitchen on the left. Windows flank and highlight the living room’s fireplace.
  • Appliances are built into the plentiful cupboards and counter tops that define the C-shaped kitchen. More storage space, deep and wide, nestles under the nearby staircase.
  • The owners’ suite fills out most of the rear.  Pocket doors in the sleeping area access two roomy step-in closets. A similar door opens into a two-section bathroom with an oversized shower and double vanity. The hallway outside of the suite ends at a pass-through utility room that links with the two-car garage.
  • Two bedrooms, a two-section bathroom, a large loft and an even larger bonus room are upstairs. A wide window brightens the loft, which is open to the stairwell over a half wall. Shelves line a large walk-in closet at the rear, and another wide stack of storage shelves hide behind a bi-fold door on the side.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

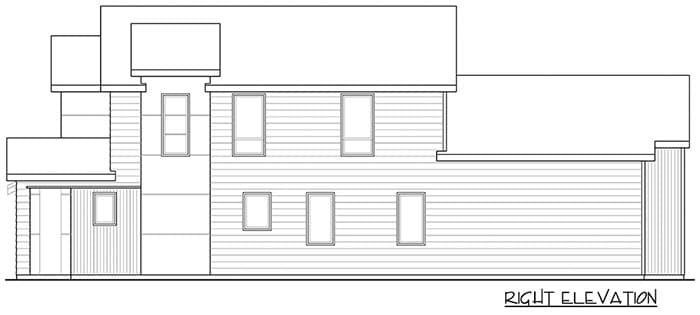

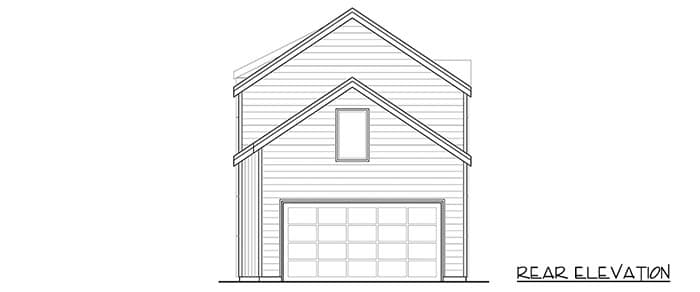

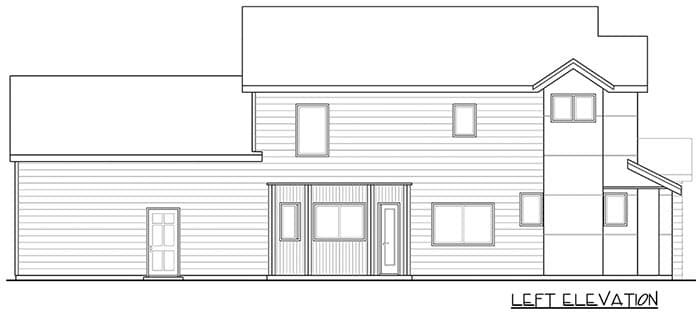

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Main Level

Pinit white
Reverse Floor Plan

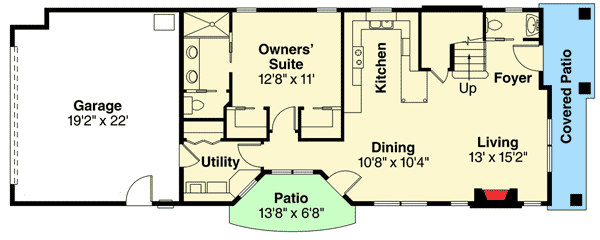

3 Bed Contemporary Townhouse Plan - 72828DA floor plan - Main Level

2nd Floor

Pinit white
Reverse Floor Plan

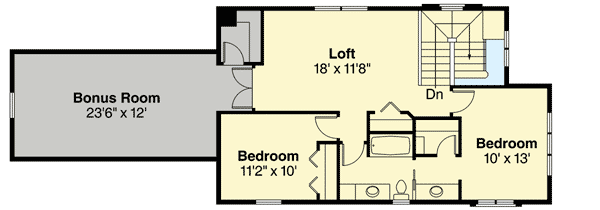

3 Bed Contemporary Townhouse Plan - 72828DA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,688 sq. ft.
  • 1st Floor: 951 sq. ft.
  • 2nd Floor: 737 sq. ft.
  • Bonus: 334 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 23' 0"
  • Depth: 63' 0"
  • Max ridge height: 27' 9"

Garage

  • Type: Attached
  • Area: 444 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof Details

  • Primary Pitch: 8 on 12

Architectural Style

Special features



3 Bed Contemporary Townhouse Plan

  • 1,688

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $700
  • PDF Light $915
  • 5 Sets $915
  • 8 Sets $1,070
  • PDF Plus $1,890
  • CAD $2,025
  • CAD - multi-use $2,245
  • View all purchase option online

About This Plan

  • This is a contemporary townhouse with a Florida flavor. As such, it has a fairly narrow footprint, which makes it well-suited for construction among other townhouses.
  •  Its entry is slightly recessed under wide eaves that stretch out to create a covered porch spanning the front. Three squared framed-out columns highlight the ends and the entry.
  • The foyer has a handy mini-bathroom on the right, then leads into a wide open living room, dining area, and kitchen on the left. Windows flank and highlight the living room’s fireplace.
  • Appliances are built into the plentiful cupboards and counter tops that define the C-shaped kitchen. More storage space, deep and wide, nestles under the nearby staircase.
  • The owners’ suite fills out most of the rear.  Pocket doors in the sleeping area access two roomy step-in closets. A similar door opens into a two-section bathroom with an oversized shower and double vanity. The hallway outside of the suite ends at a pass-through utility room that links with the two-car garage.
  • Two bedrooms, a two-section bathroom, a large loft and an even larger bonus room are upstairs. A wide window brightens the loft, which is open to the stairwell over a half wall. Shelves line a large walk-in closet at the rear, and another wide stack of storage shelves hide behind a bi-fold door on the side.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,688 sq. ft.
  • 1st Floor: 951 sq. ft.
  • 2nd Floor: 737 sq. ft.
  • Bonus: 334 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 23' 0"
  • Depth: 63' 0"
  • Max ridge height: 27' 9"

Garage

  • Type: Attached
  • Area: 444 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 8 on 12

Architectural Style

  • Contemporary
  • Florida

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • CAD Available
  • Jack & Jill Bath
  • Loft
  • PDF

Plan: 72828DA
View this and more for this plan by visiting www.architechtecturaldesigns.com/72828DA
|
