3-Bed Craftsman House Plan with Single-Floor Living and a Dynamic Exterior

Plan 790034GLV

  • 2,167

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

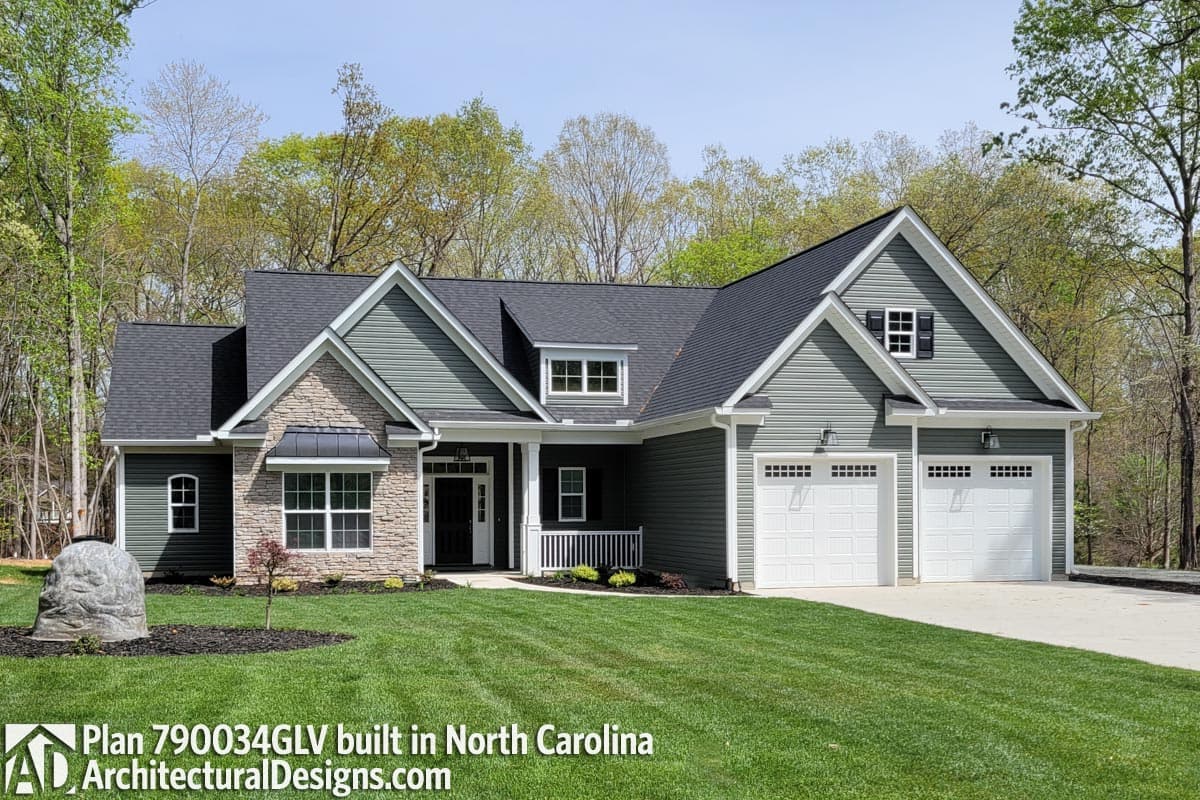

  • Stone, clapboard and board and batten siding give this home a dynamic exterior. Four gables and a shed dormer plus an entry porch add to the curb appeal.
  • The home has an L-shaped open concept area combining the great room, kitchen and dining room together into a great entertaining space.
  • A large island with counter seating, a dual sink and dishwasher make the kitchen an inviting, functional space. Access to the garage nearby and a large pantry make unloading groceries a breeze.
  • The bedrooms are in a split layout with the master suite having a tray ceiling, a walk-in closet with direct laundry room access and twin vanities in the bathroom. The remaining bedrooms share a bath.
  • Related Plan: Get an alternate exterior with house plan 790101GLV.

Plans include the following details:

  • Cover sheet with notes

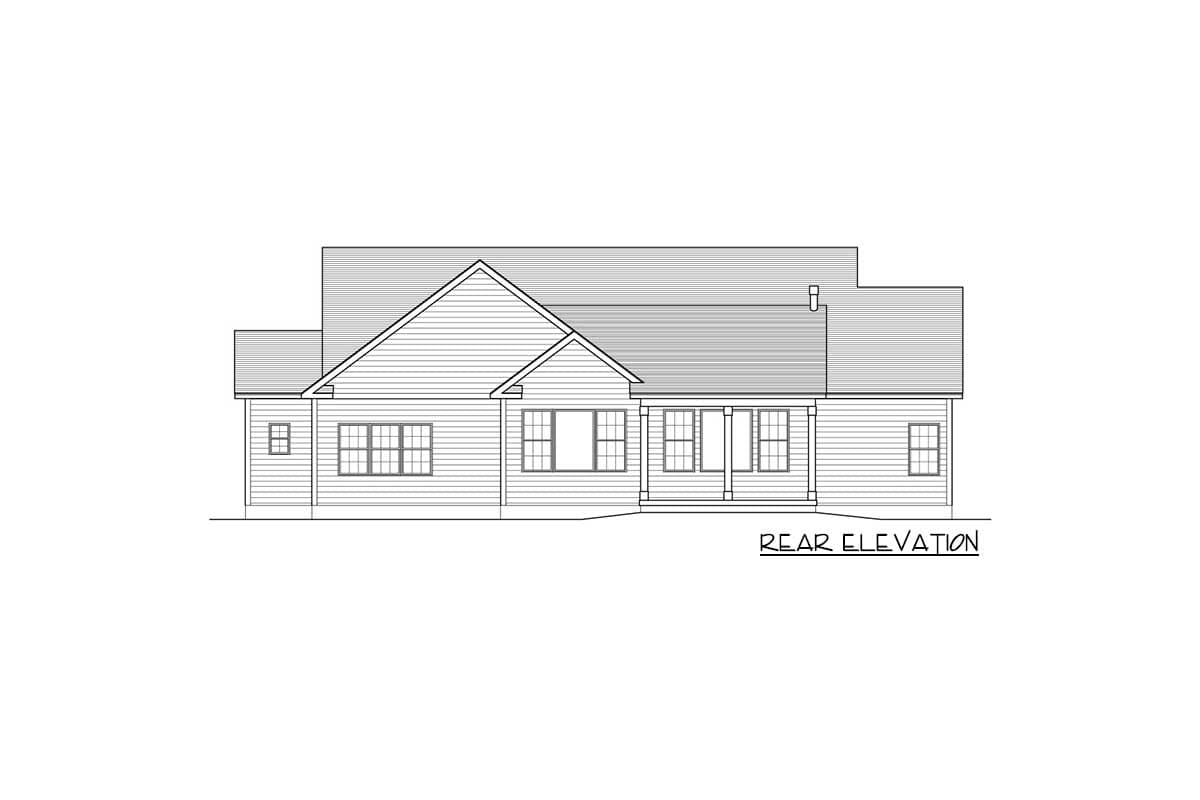

  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
These items are NOT included:
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

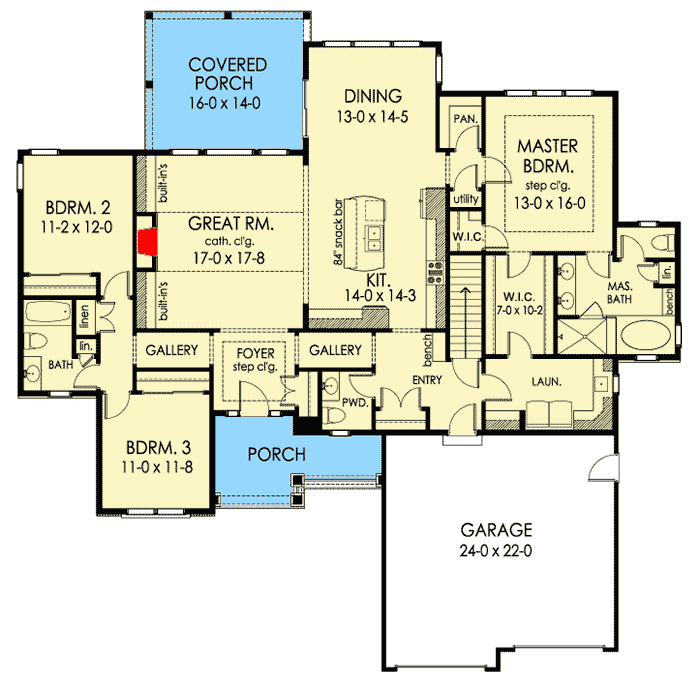

3-Bed Craftsman House Plan with Single-Floor Living and a Dynamic Exterior - 790034GLV floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,167 sq. ft.
  • 1st Floor: 2,167 sq. ft.
  • Deck: 226 sq. ft.
  • Porch, Front: 124 sq. ft.
  • Optional Lower Level: 2,167 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 4"
  • Depth: 67' 0"
  • Max ridge height: 25' 3"

Garage

  • Type: Attached
  • Area: 552 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

3-Bed Craftsman House Plan with Single-Floor Living and a Dynamic Exterior

  • 2,167

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,550
  • 5 Sets $1,600
  • 5 Sets + PDF $1,900
  • CAD - Single-Build $3,100
  • CAD - Unlimited Build $4,100
  • View all purchase option online

About This Plan

  • Stone, clapboard and board and batten siding give this home a dynamic exterior. Four gables and a shed dormer plus an entry porch add to the curb appeal.
  • The home has an L-shaped open concept area combining the great room, kitchen and dining room together into a great entertaining space.
  • A large island with counter seating, a dual sink and dishwasher make the kitchen an inviting, functional space. Access to the garage nearby and a large pantry make unloading groceries a breeze.
  • The bedrooms are in a split layout with the master suite having a tray ceiling, a walk-in closet with direct laundry room access and twin vanities in the bathroom. The remaining bedrooms share a bath.
  • Related Plan: Get an alternate exterior with house plan 790101GLV.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,167 sq. ft.
  • 1st Floor: 2,167 sq. ft.
  • Deck: 226 sq. ft.
  • Porch, Front: 124 sq. ft.
  • Optional Lower Level: 2,167 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 4"
  • Depth: 67' 0"
  • Max ridge height: 25' 3"

Garage

  • Type: Attached
  • Area: 552 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 790034GLV
