Plan 801149PM

3 Bed Duplex with 1566 Square Foot Units

Heated S.F.
3,132
Units
2
Width
Depth

Floor Plan

Plan 801149PM

Main Level
Main Level
Lower Level
Lower Level

Plan 801149PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

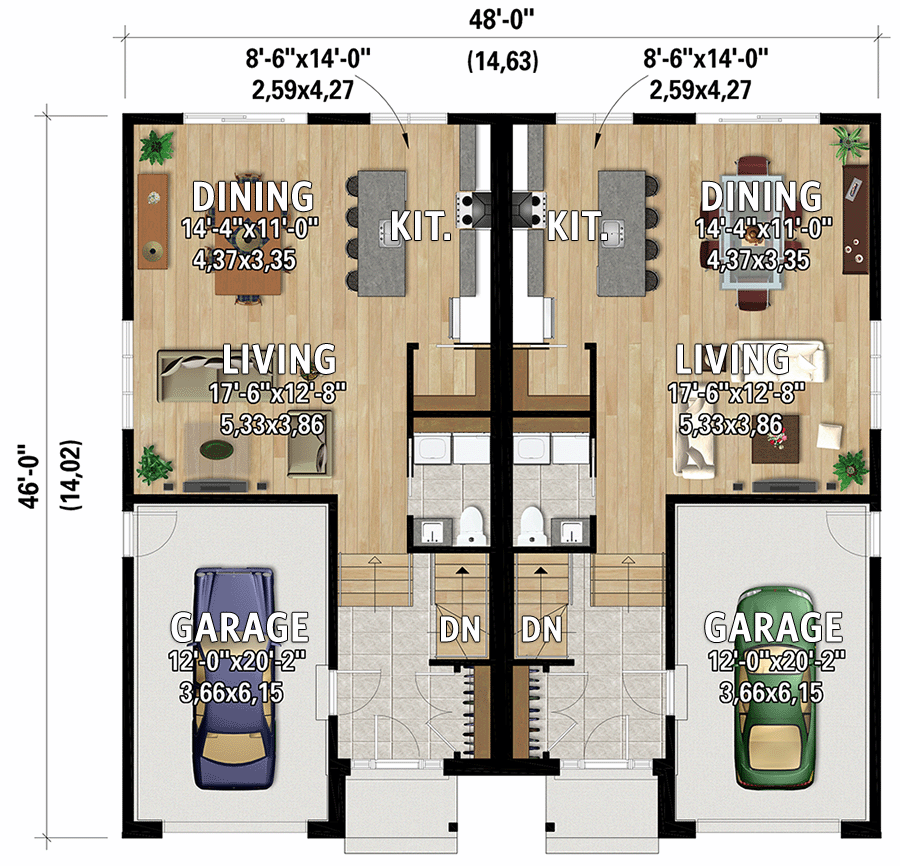

Plan 801149PM: 3 Bed Duplex with 1566 Square Foot Units - Floor Plan - Main Level - New American, Ranch

Lower Level

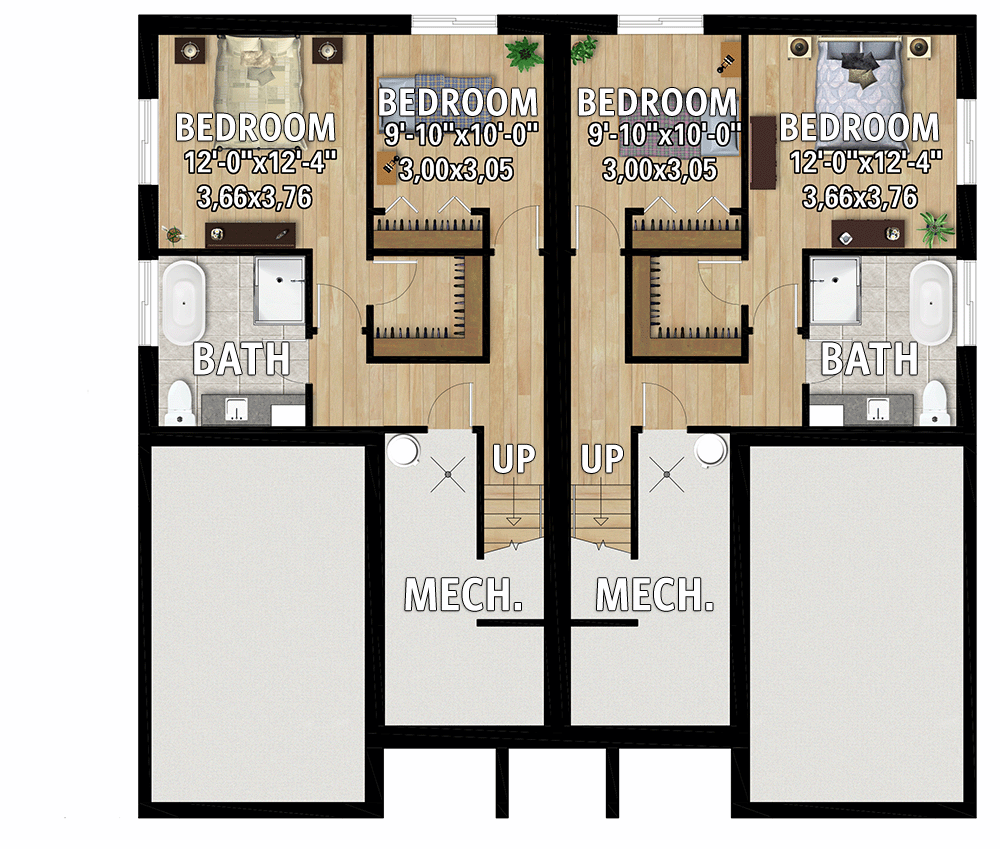

Plan 801149PM: 3 Bed Duplex with 1566 Square Foot Units - Floor Plan - Lower Level - New American, Ranch

Plan Details

  • This duplex house plan gives you matching 1,566 square foot units (783 square feet on each level) with 2 beds and 1.5 baths.
  • A one-car garage gives you 281 square feet of parking and accesses the home in the foyer.
  • Both bedrooms are in the lower level and they have a shared bathroom. The master bedroom has a walk-in closet.
  • On the ground floor, the common areas are all open-concept. Sliding doors in the dining room take you out back.
  • NOTE: Please allow 15 to 20 business days for plan delivery.
Unit A
Heated Area
1,563Sq. Ft.
783 Sq. Ft. LL
783 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
281 Sq. Ft.
Dimensions
24' 6"width
46'depth
24' 6"height
Unfinished Areas
281 Sq. Ft. Garage
Unit B
Heated Area
1,566Sq. Ft.
1566 Sq. Ft. LL
1566 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
281 Sq. Ft.
Dimensions
24' 6"width
46'depth
24' 8"height
Unfinished Areas
281 Sq. Ft. Garage

What's Included

Please note this plan is designed to the National Building Code of Canada.

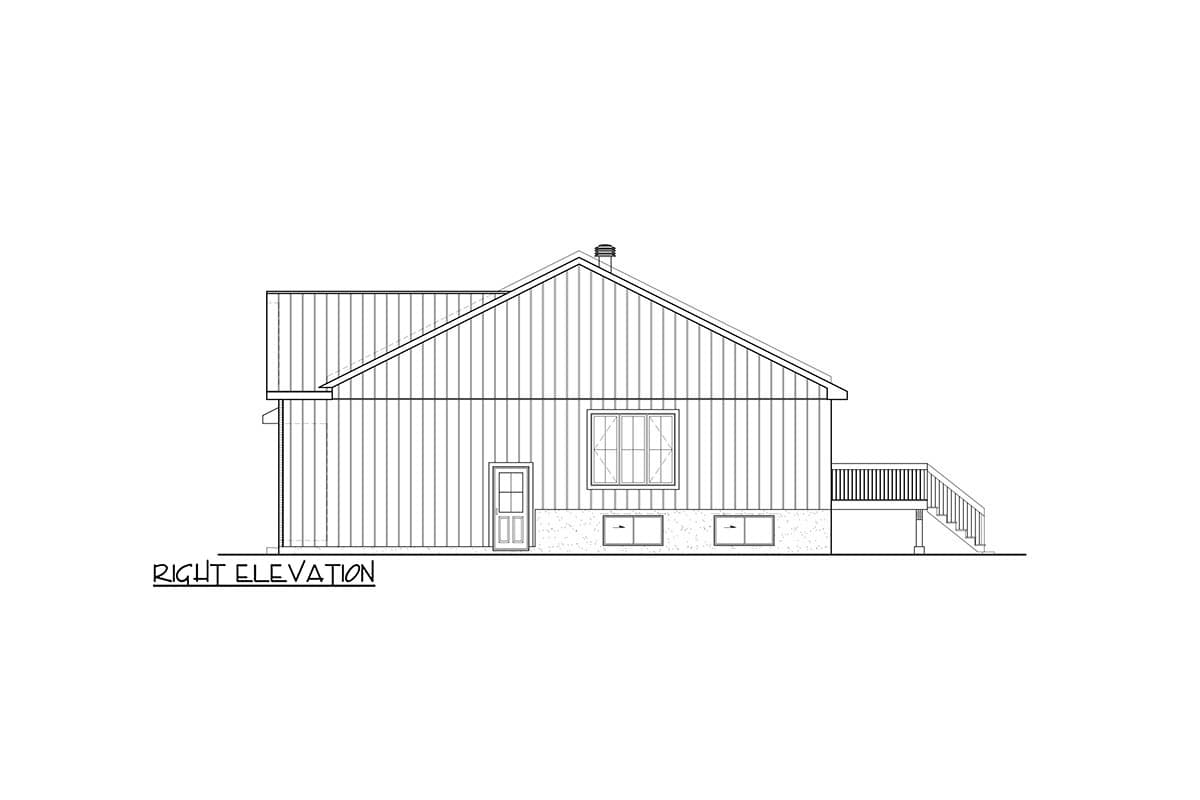

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,132 sq. ft.

Lower Level

1,566 sq. ft.

1st Floor

1,566 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

46' 0"

Max Ridge Height

24' 9"

Garage

Type

Attached

Area

562 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Architectural Style

New American

Ranch

Special Features

Bedrooms - Clustered

Laundry - Lower Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans
