Plan 70506MK
3 Bed European with Vaulted Great Room
Heated S.F.
2,532
Beds
3
Baths
2.5
Stories
1-2
Cars
3
What's Included
Plan Details
  • This 3 bedroom European style house plan has a split bedroom layout and a 3-car courtyard entry garage.
  • Pass through the arched covered entry and you'll find the spacious foyer with the dining room on your left and the great room straight ahead.
  • The great room has a gas fireplace on the side wall and is open to the kitchen and its eat-at island bar. Two sets of French doors open to the rear outdoor living/grilling porch. The ceiling is vaulted ceiling and 8" timber beams add to the charm.
  • The master suite has a vaulted ceiling and your own convenient private office. The bath will gives you a whirlpool tub, a large corner glass shower with a seat and a huge walk in closet that even has access to the laundry room for incredible convenience.
  • Two more bedrooms are on the opposite side of the home, each with a walk-in closet, and sharing a Jack and Jill bath.
  • Over the garage you'll find a large bonus room offering all kinds of possibilities.
  • Related Plans: Remove the bonus room and add a finished lower level with house plan 70502MK (4,035 sq. ft.). Get 4 beds with house plan 70507MK (2,978 sq. ft.).
  • For an alternate version, see house plans - 60617ND
What's Included
Each plan set includes the following:
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Bed European with Vaulted Great Room

  • 2,532

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

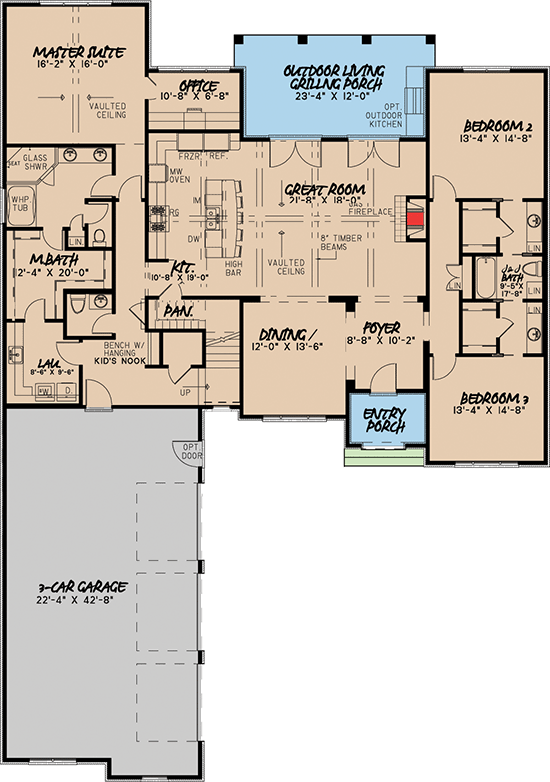

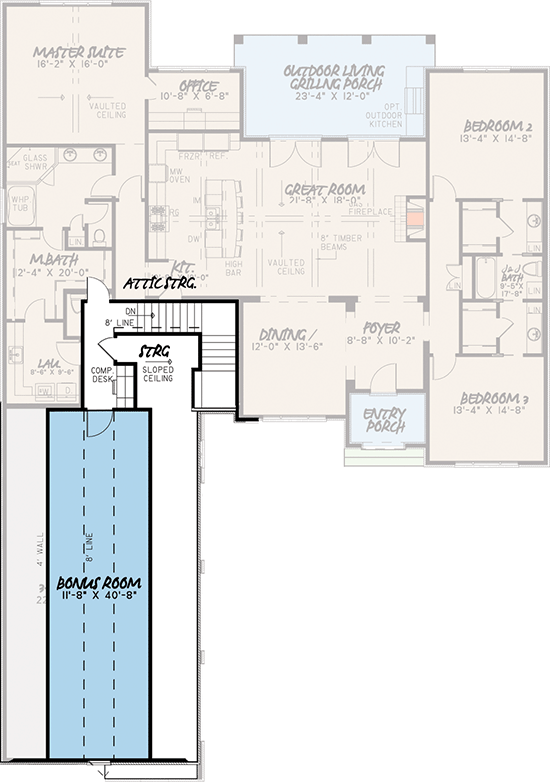

Floor Plan
