Plan 33267ZR

3-Bed Florida-Style House Plan with Study Area - 3017 Sq Ft

Name: Plan 33267ZR: 3-Bed Florida-Style House Plan with Study Area - 3017 Sq Ft
Brand: Architectural Designs
SKU: 33267ZR
Price: 2495.0 USD
Availability: InStock

Heated S.F.

3,017

Beds

Baths

Stories

Cars

Floor Plan

Main Level

Plan Details

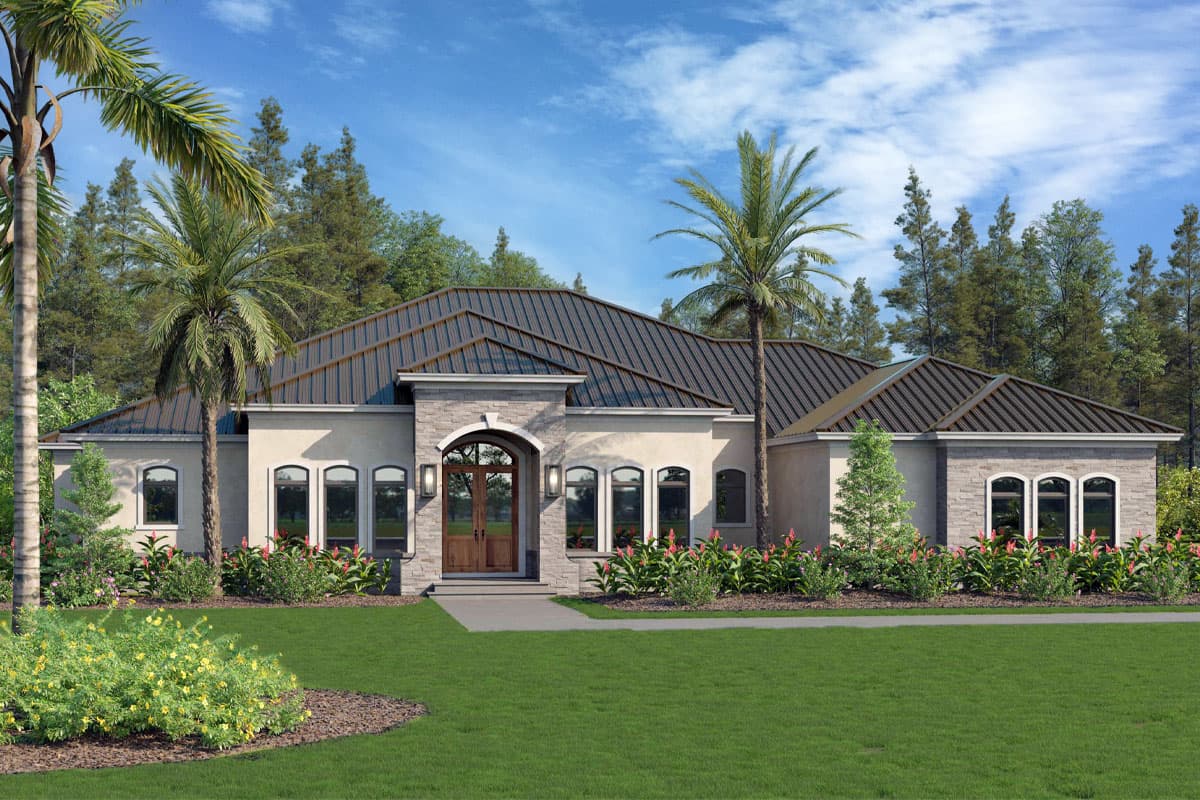

This 3,017 square foot Florida coastal house plan with hipped metal roof and mixed siding gives you 3 beds and 3 bath and a 1,093 square foot, 4-car garage. The slump-arched entry matches the tall casement windows and provides curbside elegance with symmetry.
Inside the foyer opens to the Great Room with a sense of grandeur. Pocket doors open the study to the right. Then just beyond are outdoor views through the 16-foot wall of glass doors. This open concept layout encourages a relaxed lifestyle and is perfect for indoor/outdoor entertaining.
The gourmet kitchen conceals an expansive butler’s pantry and baker’s pantry behind it. Serve up snacks at the kitchen’s island or sit down for an elegant meal in the dining room that overlooks the covered lanai. Sliding glass doors beckon you outside to the rear porch. Lots of room for a wet-bar and even an outdoor kitchen.
The owner’s suite opens to the rear porch, and offers two large walk-in closets, with a generous bath with dual vanities, shower and standing spa tub.
A private entry to the guest room is on the left side of the Foyer, and a second guest bed is all the way to the right side, to the rear of the home. Each guest bed has it’s own bath, the rear bath, doubles as a pool bath.
The laundry room, is accessed through the master bath, but can also be accessed from the guest entrance.
We can modify any house plan you see on our site. Learn more about modifications.
NOTE: Please allow 5 to 7 business days for delivery.

What's Included

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

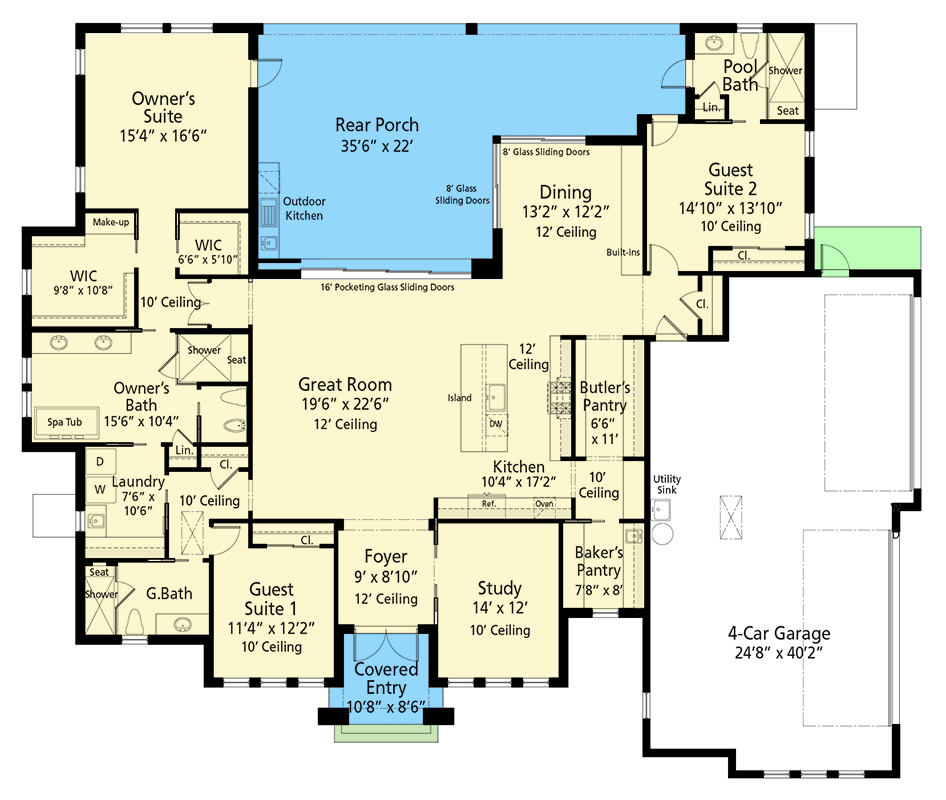

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

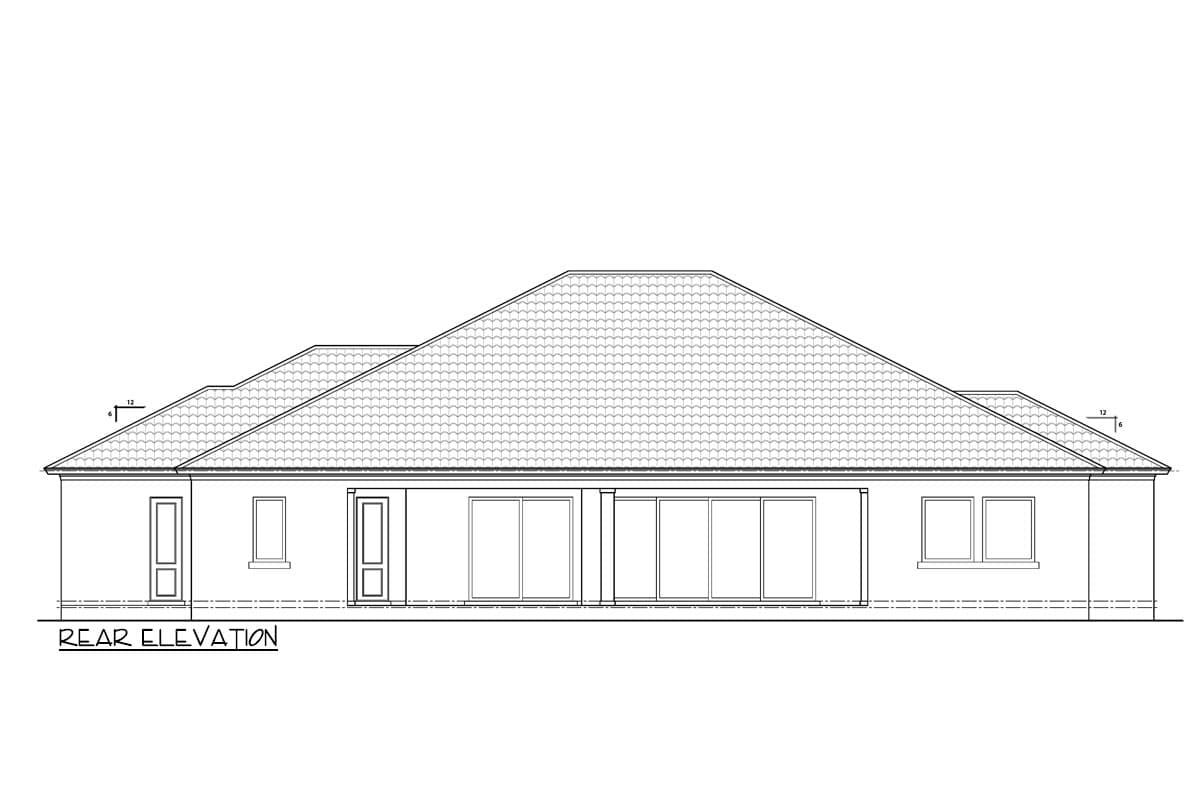

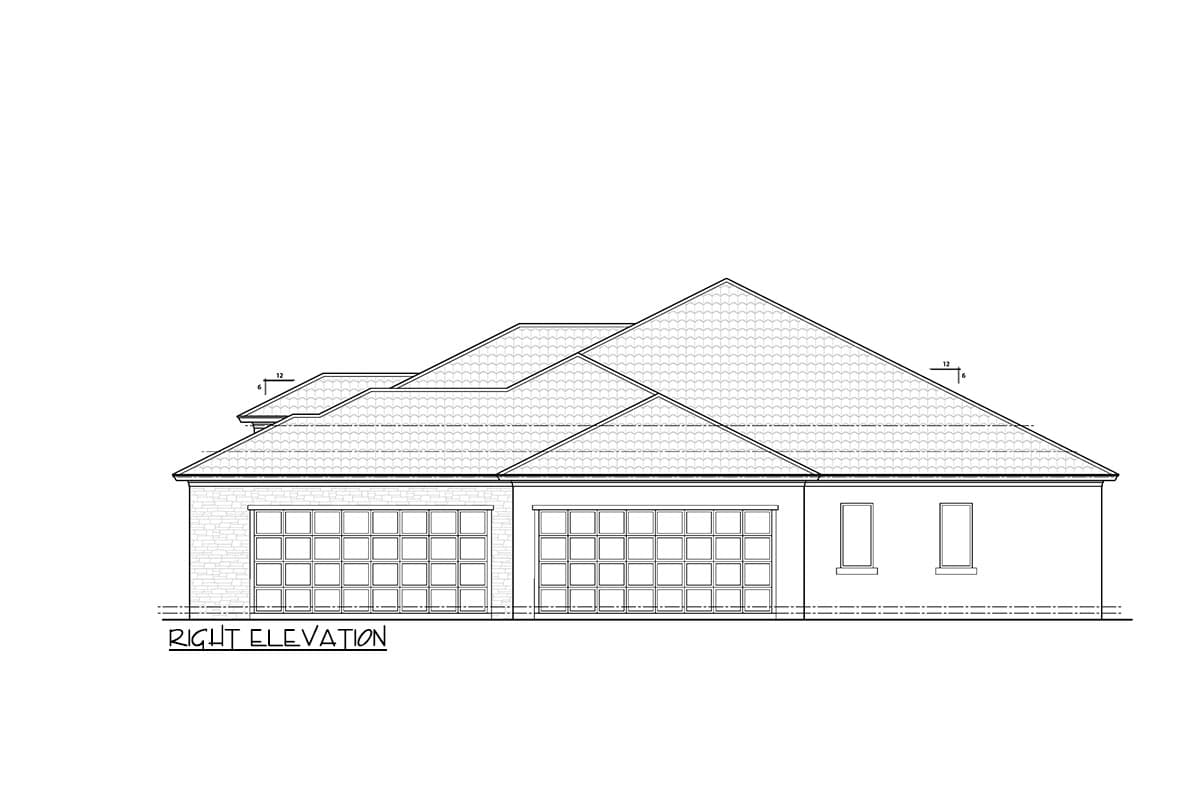

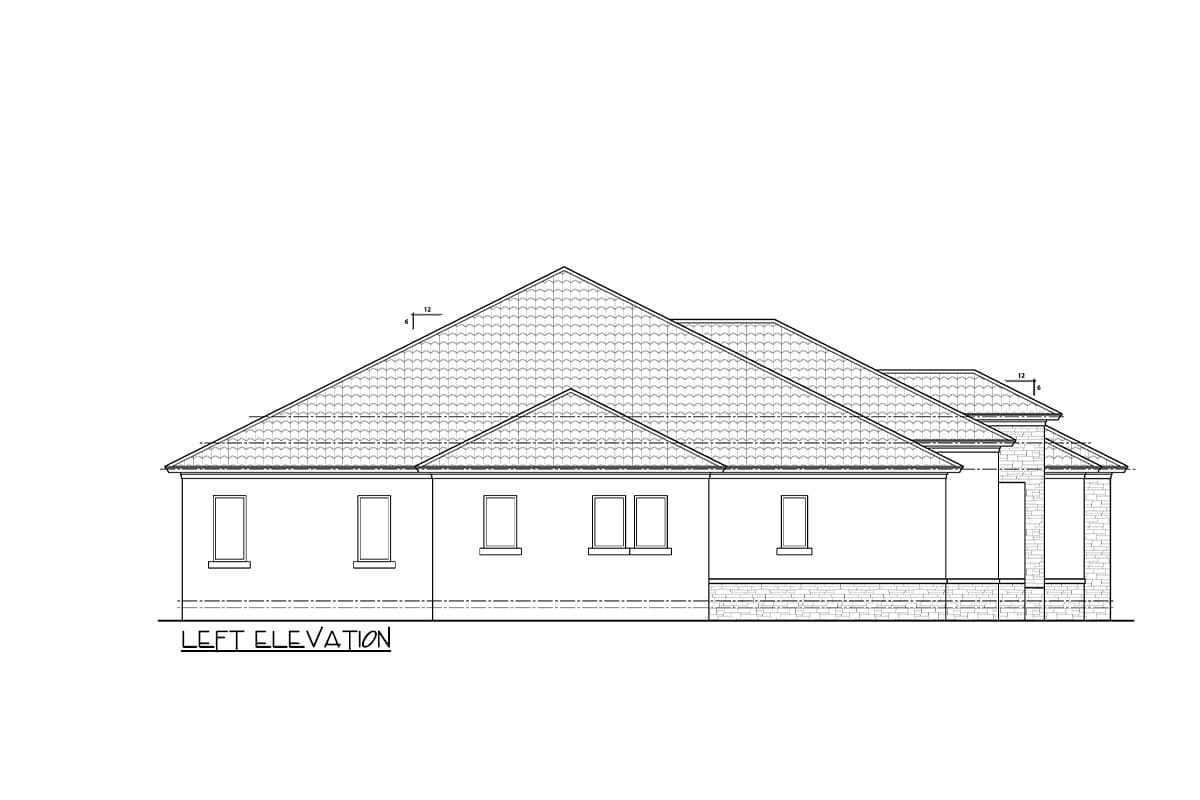

EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
