3-Bed House Plan with 2-Story Entry

Plan 62753DJ

  • 2,746

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 3-bed house plan greets its guests with a 2-story-high entry hall with views into the formal dining room. A few steps farther inside reveal a spacious great room with a fireplace flanked by built-in bookcases.
  • Adjacent to the great room, the breakfast area lies open to the kitchen with its breakfast island, walk-in pantry and built-in desk.
  • Just off the kitchen, a mudroom with walk-in closet and built-in lockers accesses the 3-car garage. The garage features a storage area that could opt as space for a workshop. A secondary rear stairway leads from the kitchen area to the second level.
  • Upstairs, the master bedroom features a cozy, but naturally lit sitting area. The master bath offers pampering features that include his and her vanities, a corner tub, walk-in closet, and compartmented toilet.
  • Bedrooms 2 and 3 have walk-in closets and share a centrally located hall bath. A second-level laundry conveniently serves all bedrooms with plenty of counter space for folding clothes.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

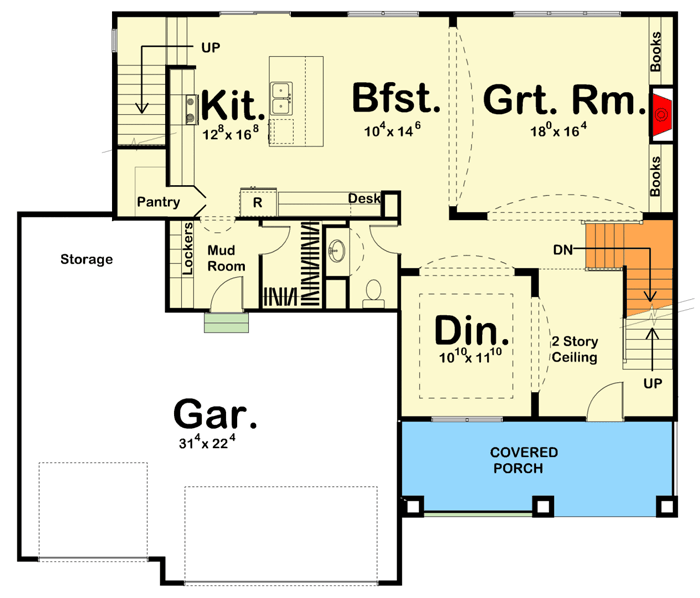

3-Bed House Plan with 2-Story Entry - 62753DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

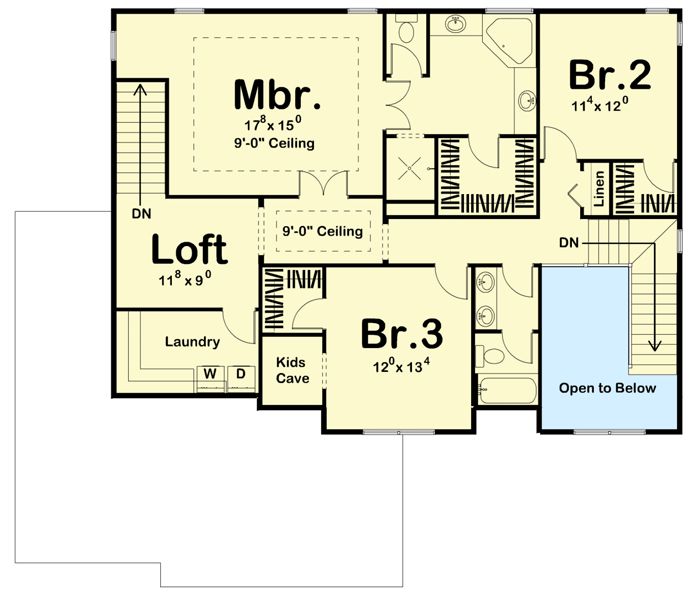

3-Bed House Plan with 2-Story Entry - 62753DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,746 sq. ft.
  • 1st Floor: 1,362 sq. ft.
  • 2nd Floor: 1,384 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 48' 0"

Garage

  • Type: Attached
  • Area: 800 sq. ft.
  • Count: 3 Cars

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12

Architectural Style

Special features

3-Bed House Plan with 2-Story Entry

  • 2,746

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,600
  • 5 Sets + PDF $1,850
  • PDF - Unlimited Build $2,100
  • CAD + PDF - Single-Build $2,100
  • CAD Unlimited + PDF $2,600
  • View all purchase option online

About This Plan

  • This 3-bed house plan greets its guests with a 2-story-high entry hall with views into the formal dining room. A few steps farther inside reveal a spacious great room with a fireplace flanked by built-in bookcases.
  • Adjacent to the great room, the breakfast area lies open to the kitchen with its breakfast island, walk-in pantry and built-in desk.
  • Just off the kitchen, a mudroom with walk-in closet and built-in lockers accesses the 3-car garage. The garage features a storage area that could opt as space for a workshop. A secondary rear stairway leads from the kitchen area to the second level.
  • Upstairs, the master bedroom features a cozy, but naturally lit sitting area. The master bath offers pampering features that include his and her vanities, a corner tub, walk-in closet, and compartmented toilet.
  • Bedrooms 2 and 3 have walk-in closets and share a centrally located hall bath. A second-level laundry conveniently serves all bedrooms with plenty of counter space for folding clothes.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,746 sq. ft.
  • 1st Floor: 1,362 sq. ft.
  • 2nd Floor: 1,384 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 48' 0"

Garage

  • Type: Attached
  • Area: 800 sq. ft.
  • Count: 3 Cars

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
