Plan 21494DR
3-Bed House Plan with Fantastic Family Room
Heated S.F.
1,767
Beds
3
Baths
2.5
Stories
2
Cars
1
What's Included
Plan Details
  • You'll be taken in by the family room with ceilings peaking at nearly 15 feet and the space that opens up to a mezzanine on the second level.
  • The first floor alsio features a closed foyer with coat closet, dining room with access to rear patio, kitchen with island/lunch counter, half-bath and laundry facilities.
  • The nicely-organized second level features the master suite weith walk-in closet and a second bathroom shared by the secondary bedrooms.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed House Plan with Fantastic Family Room

  • 1,767

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

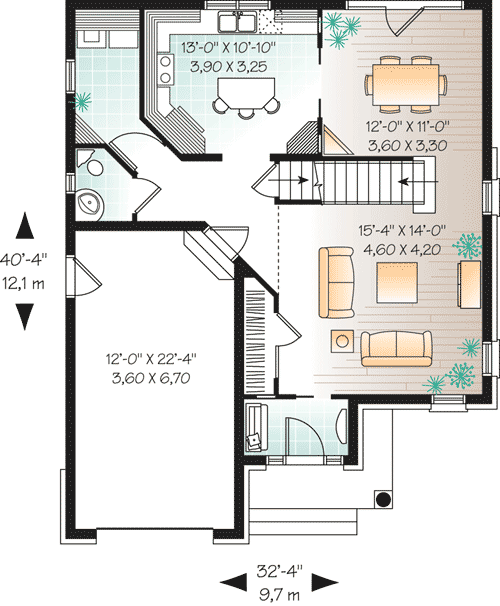

Floor Plan

  • Main Level

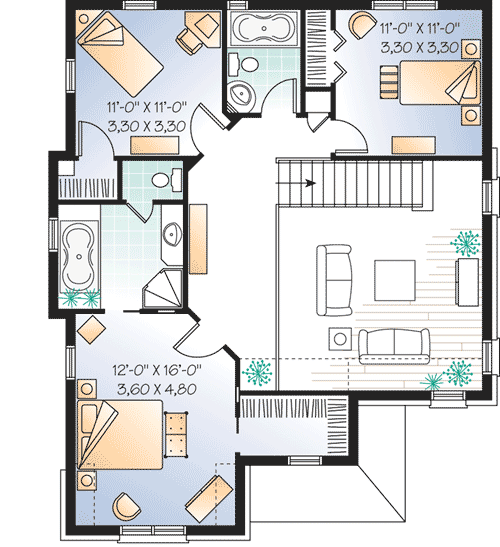

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,767 sq. ft.
  • 1st Floor: 857 sq. ft.
  • 2nd Floor: 910 sq. ft.

Dimensions

  • Width: 32' 4"
  • Depth: 40' 4"
  • Max ridge height: 32' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 300 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
