Plan 12914KN
3 Bed House Plan with Vaulted Living Room and Master Suite
Heated S.F.
1,416
Beds
3
Baths
2
Stories
1
Cars
2
Flyer
Photos
What's Included
Plan Details
  • Enter this rustic Mountain home through a covered front porch.
  • Another big covered porch in the rear has lots of room for table and chairs.
  • The vaulted living room has a corner fireplace that can be seen from the kitchen and dining room, thanks to the open layout.
  • All the bedrooms are on the right wing of the home.
  • The vaulted master suite has a private patio for sipping your morning coffee or enjoying a good book.
  • Width of home including garage is 75'0"
  • Related Plans: Get an alternate elevation with house plan 12924KN and remove the 2-car garage with house plans 12913KN and 11542KN.
What's Included
This house plan has 7 pages as follows:
  1. Foundation Plan

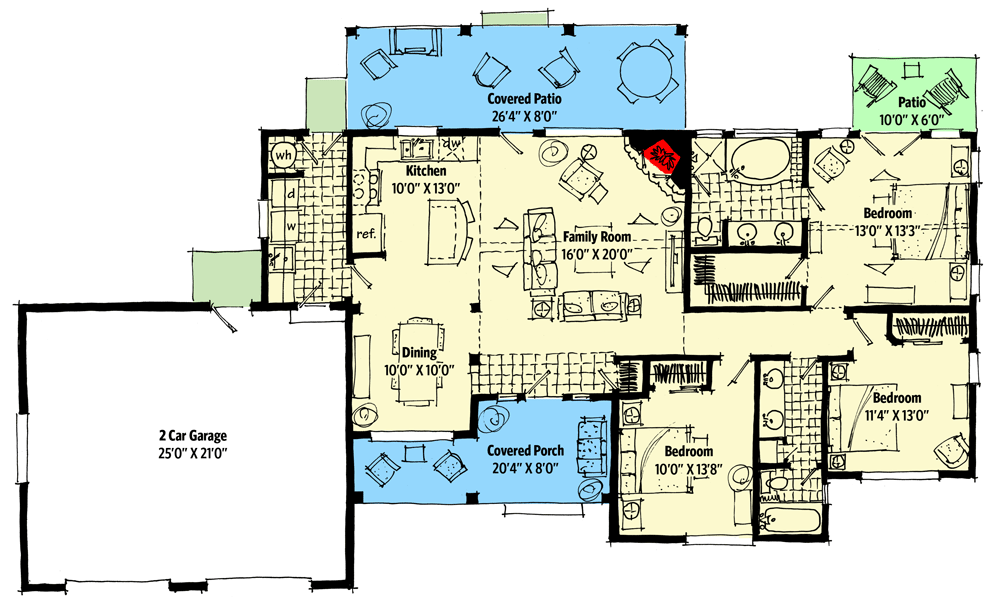

  2. Floor plan with window schedule
  3. Electrical plan
  4. Floor framing plan
  5. Roof plan and framing

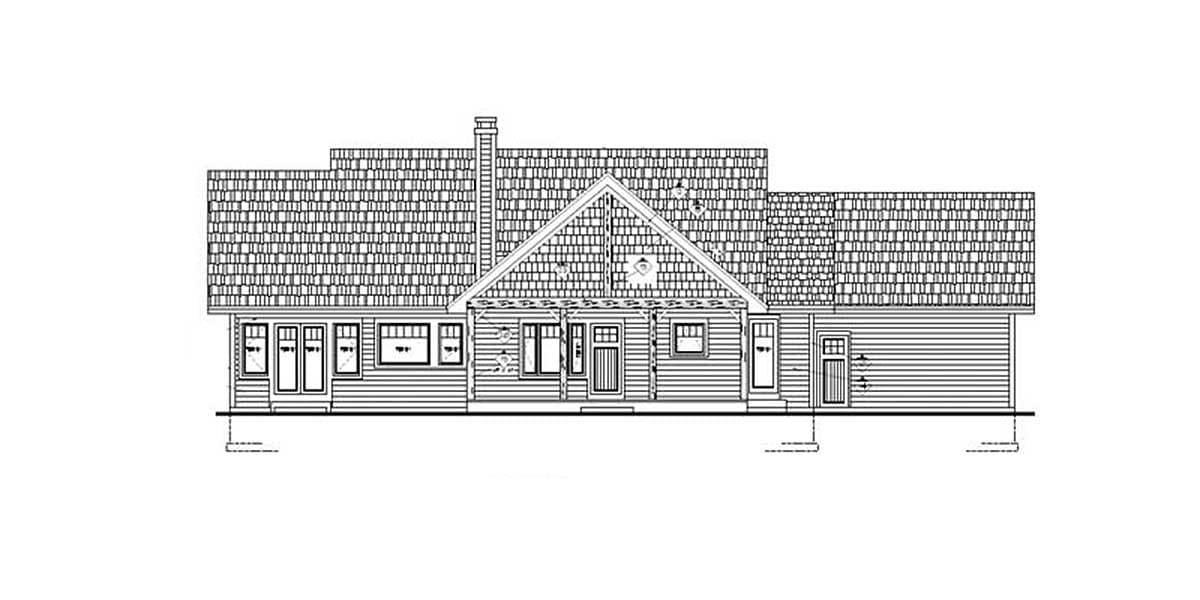

  6. Right and left elevations
  7. Front and rear elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Bed House Plan with Vaulted Living Room and Master Suite

  • 1,416

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,416 sq. ft.
  • 1st Floor: 1,416 sq. ft.

Dimensions

  • Width: 56' 0"
  • Depth: 40' 0"
  • Max ridge height: 25' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 525 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
