Plan 12924KN

Mountain Getaway

1,416 3 2 1 2
Pageloader

Mountain Getaway

Plan 12924KN

  • 1,416

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

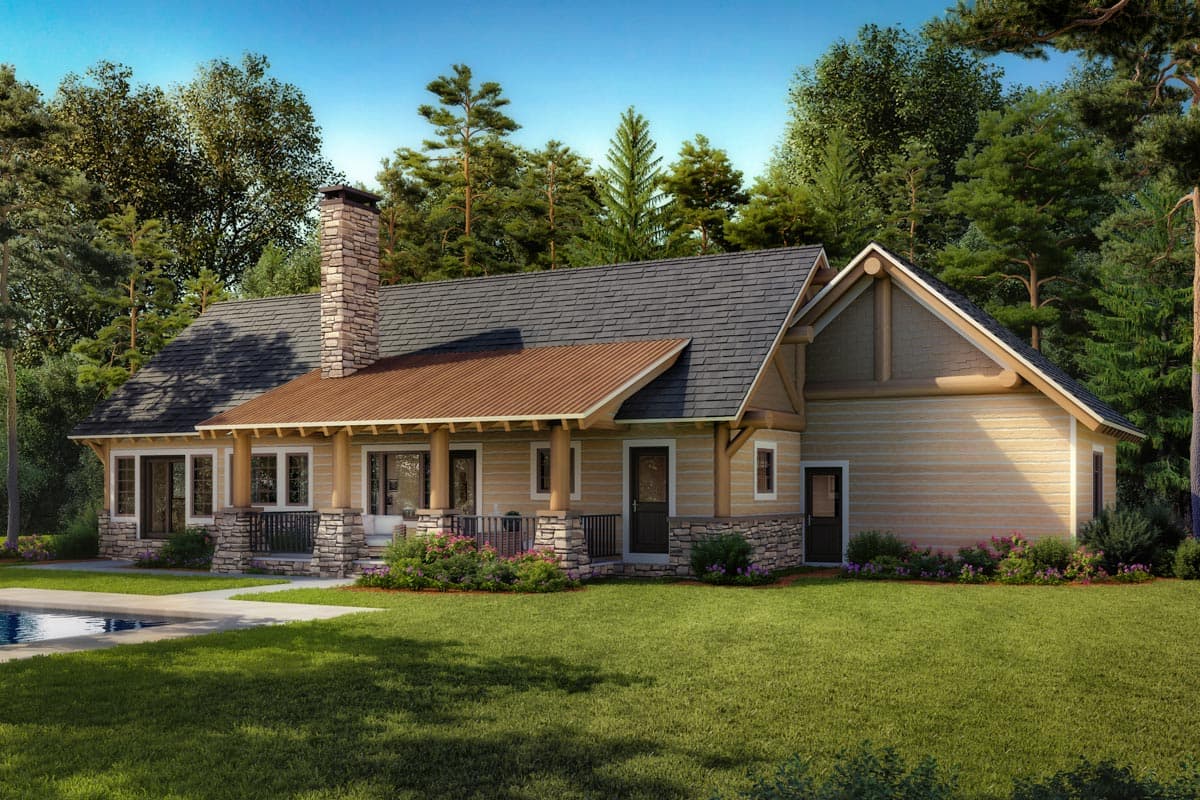

  • Rustic logs frame the gables of this comfortable Mountain getaway home.
  • The big, open floor plan is a delight with a vaulted ceiling that soars up in the great room.
  • Enjoy the warmth of the corner fireplace as you overlook the rear covered porch that beckons you to relax in the fresh air.
  • The master suite also has a wonderful vaulted ceiling and a private porch for sipping your morning coffee.
  • Two additional bedrooms give you room for family and friends.

Floor plans at ¼" scale

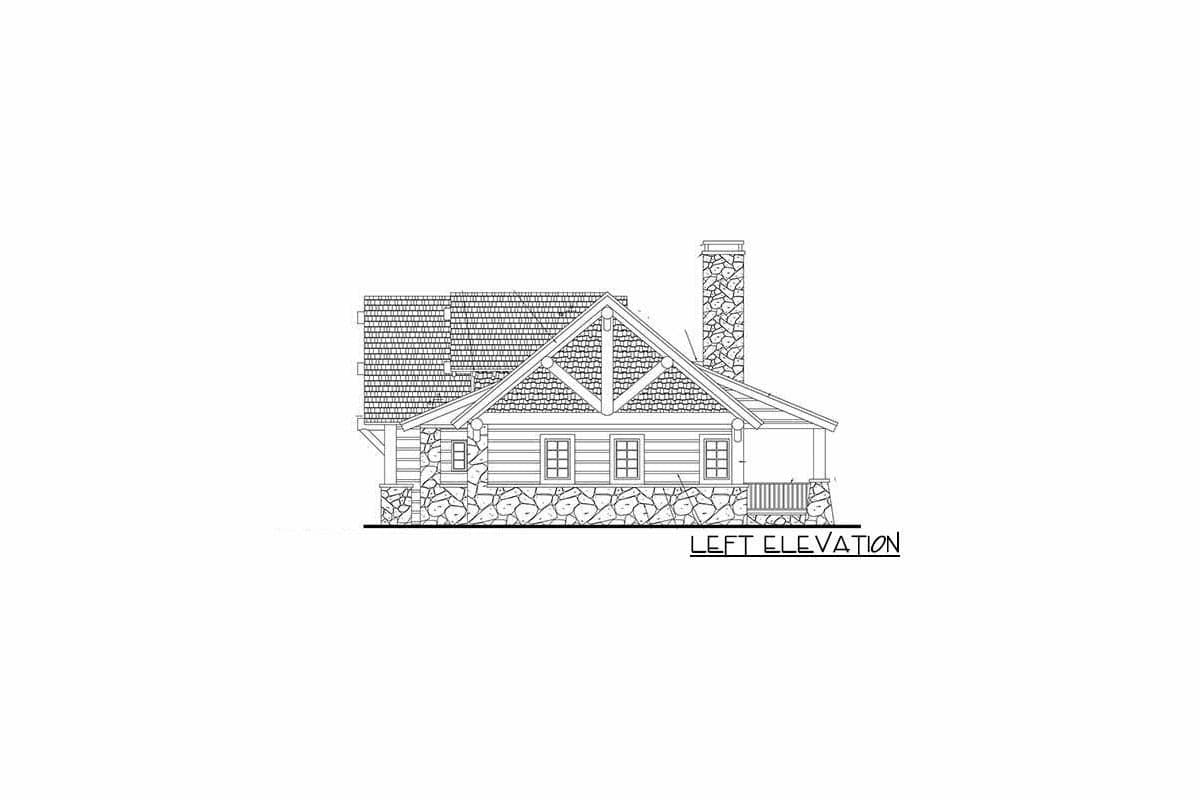

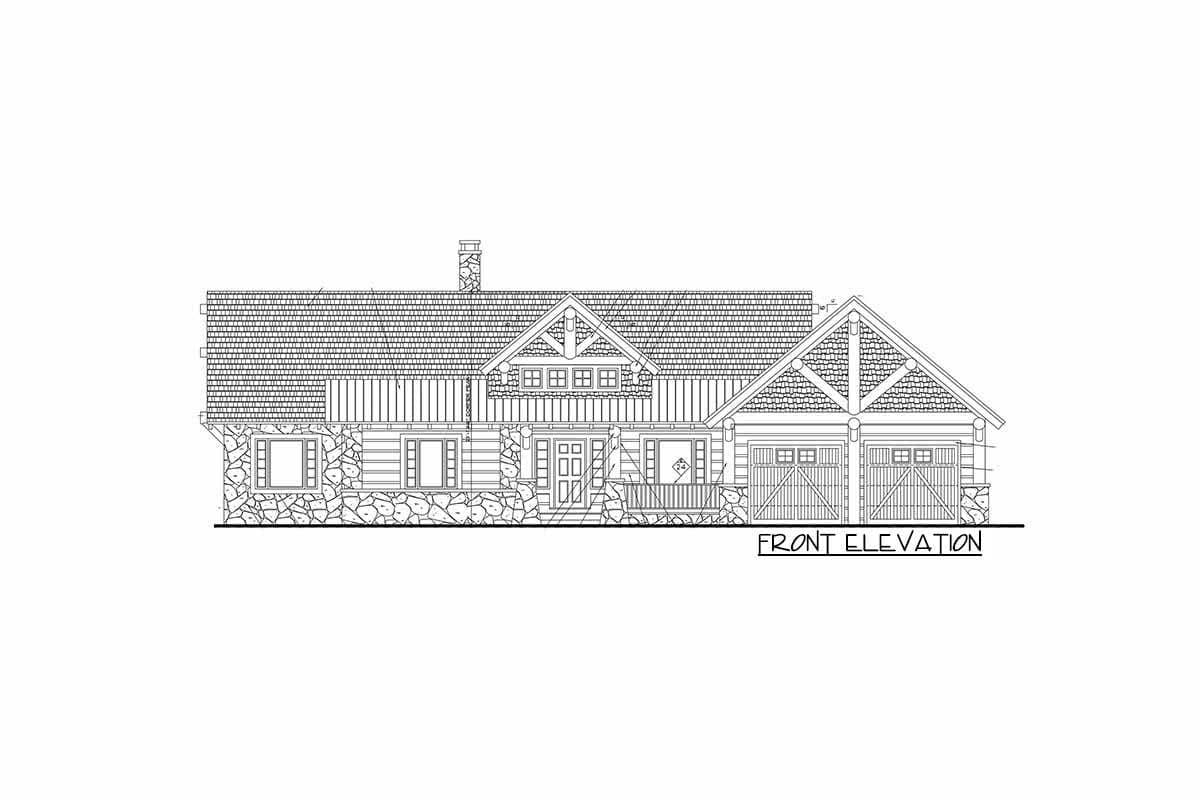

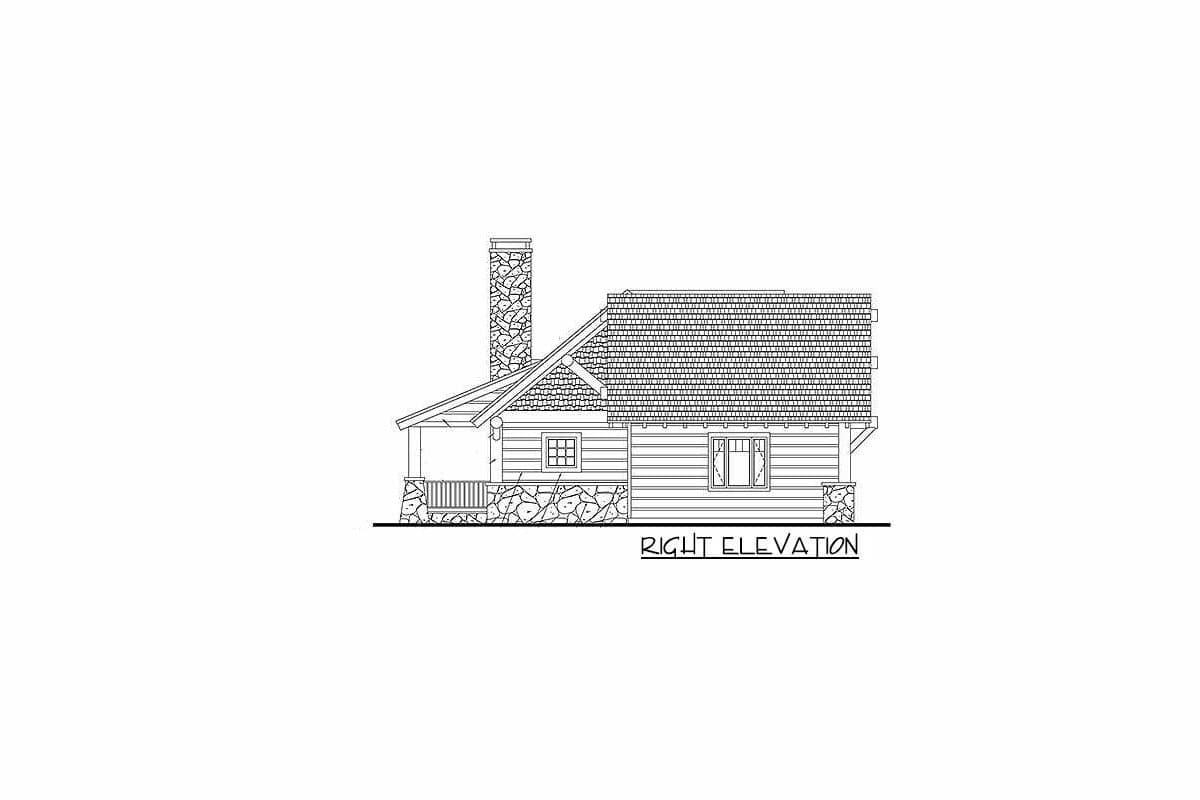

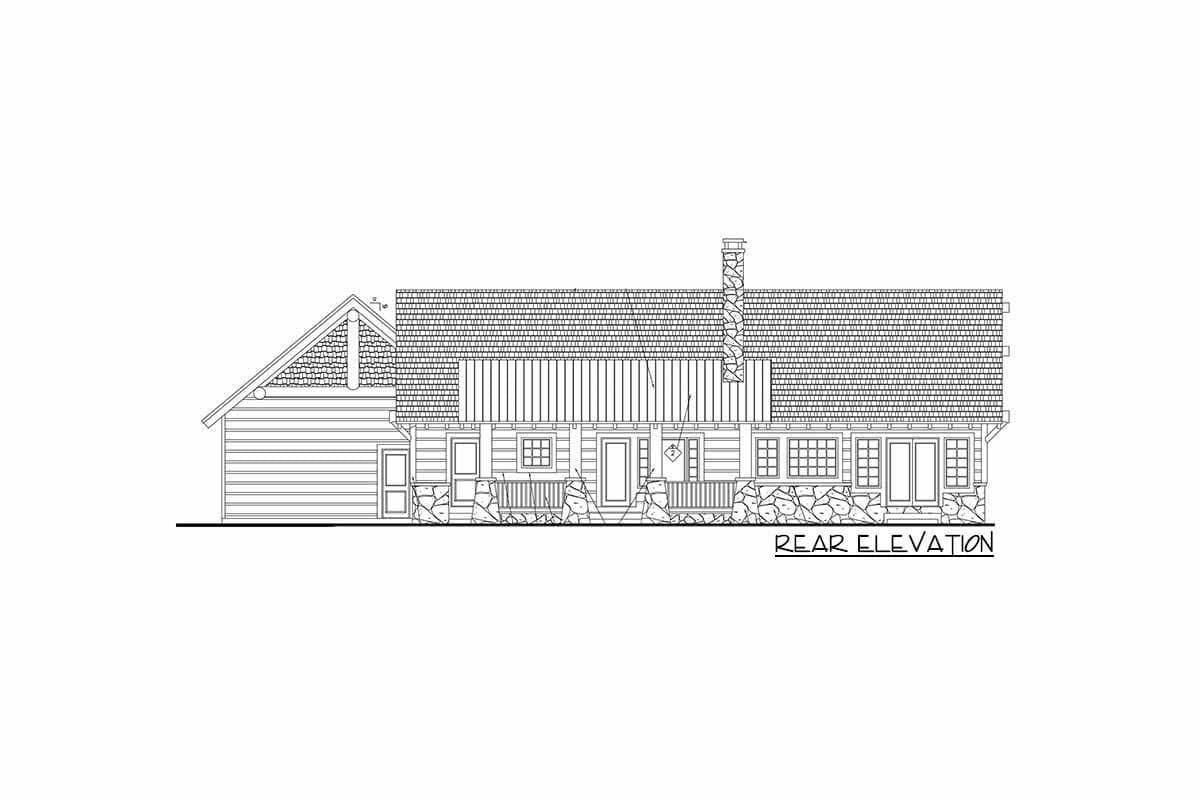

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

Floor Plan

Plan details

Architectural Style



Mountain Getaway

  • 1,416

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,500
  • 5 Sets $1,900
  • CAD $3,500
  • View all purchase option online

About This Plan

  • Rustic logs frame the gables of this comfortable Mountain getaway home.
  • The big, open floor plan is a delight with a vaulted ceiling that soars up in the great room.
  • Enjoy the warmth of the corner fireplace as you overlook the rear covered porch that beckons you to relax in the fresh air.
  • The master suite also has a wonderful vaulted ceiling and a private porch for sipping your morning coffee.
  • Two additional bedrooms give you room for family and friends.

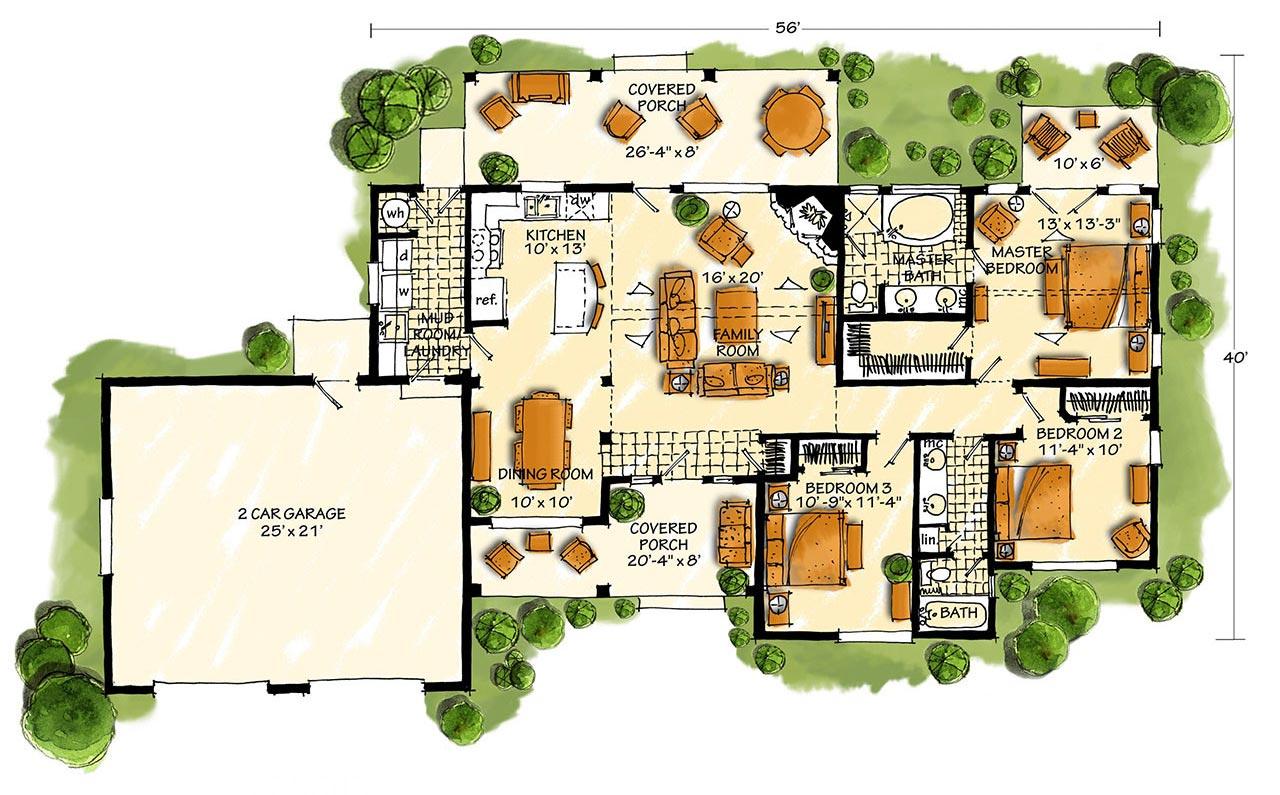

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,416 sq. ft.
  • 1st Floor: 1,416 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 40' 0"

Garage

  • Type: Attached
  • Area: 525 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
