Plan 12743MA

3-Bed Mediterranean House Plan with 750 Square Foot Patio

Heated S.F.
1,752
Beds
3
Baths
2
Stories
2
Cars
2

Floor Plan

Plan 12743MA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 12743MA

M-F 9am-5pm EST |

1-203-761-8500

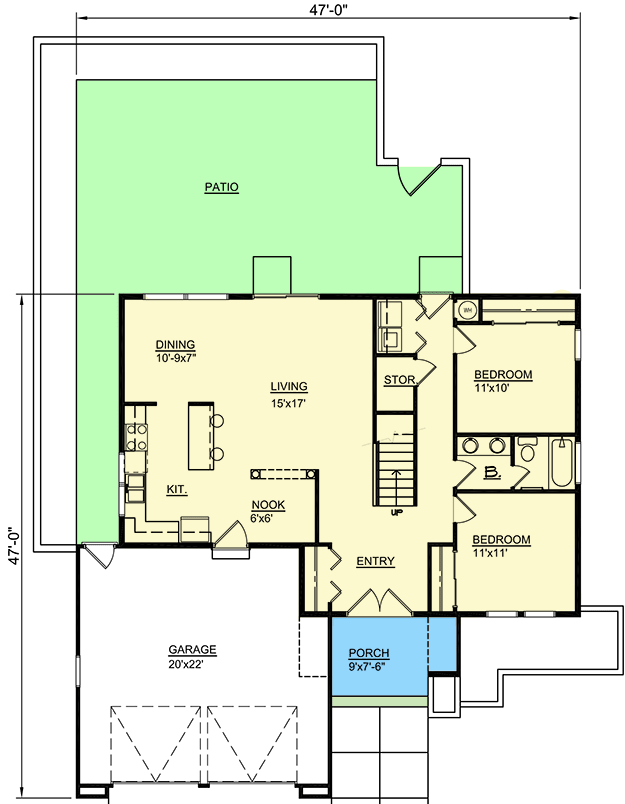

Main Level

Plan 12743MA: 3-Bed Mediterranean House Plan with 750 Square Foot Patio - Floor Plan - Main Level - European, Mediterranean, Spanish, Tuscan

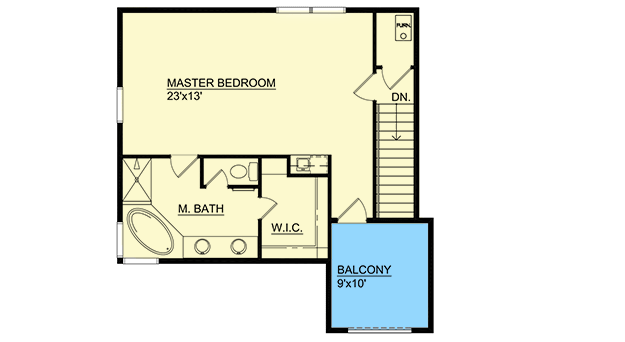

2nd Floor

Plan 12743MA: 3-Bed Mediterranean House Plan with 750 Square Foot Patio - Floor Plan - 2nd Floor - European, Mediterranean, Spanish, Tuscan

Plan Details

  • Clay roof tiles and a stucco exterior are character-defining features of the Mediterranean-style house plan.
  • Step inside to find a coat closet in the entry. The heart of the home is located behind the double garage, and extends outdoors onto a 750 square foot patio.
  • Keep the chef in the home company when sitting at the peninsula-style counter. An eating nook and formal dining area provide plenty of options when it comes to enjoying meals with family and friends.
  • Two family bedrooms line the right side of the main level, across from a dedicated storage room and laundry closet.
  • The master bedroom consumes the entire second level - a total of 566 sq ft. Paired with the master bedroom, you will find a 5-fixture bath and walk-in closet.

What's Included

  • Cover Sheet
  • IRC Notes
  • Floor Plan
  • Exterior Elevations
  • Building Sections
  • Foundation
  • Details
  • Air Barrier Details
  • Optional Solar Details
  • Framing Plan
  • Electrical Floor Plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally if required
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,752 sq. ft.

1st Floor

1,186 sq. ft.

2nd Floor

566 sq. ft.

Basement Unfinished

1,192 sq. ft.

Porch, Combined

56 sq. ft.

Balcony / Veranda

104 sq. ft.

Covered Patio

750 sq. ft.

Storage

60 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

47' 0"

Max Ridge Height

24' 9"

Garage

Type

Attached

Area

524 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

European

Mediterranean

Spanish

Tuscan

Special Features

Breakfast Nook

Formal Dining

Master Suite - Upstairs
