Plan 62723DJ
3-Bed Mediterranean Style House Plan With 2nd Level Laundry
Heated S.F.
2,217
Beds
3
Baths
2.5
Stories
2
Cars
3
What's Included
Plan Details
  • Gracefully arched details are repeated throughout the exterior of this 2,217 sq. ft., Mediterranean-style, 2 Story house plan.
  • The sense of open space makes an immediate impression upon entering the home.
  • The large great room is warmed by a fireplace that is flanked by built-in bookshelves.
  • In the kitchen, you will find an island work area with breakfast bar and a large walk-in pantry.
  • Just off the kitchen is a large dining room that leads to the covered patio.
  • Upstairs you will find the large master suite that includes a sitting area and a luxurious bathroom that has his/her vanities, a soaking tub, a walk-in shower and a large walk-in closet with a bench.
  • Just outside the master suite is a functional laundry area with a soaking sink and folding counter.
  • Bedrooms 2 and 3 each have their own walk-in closet and share a conveniently located bathroom.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

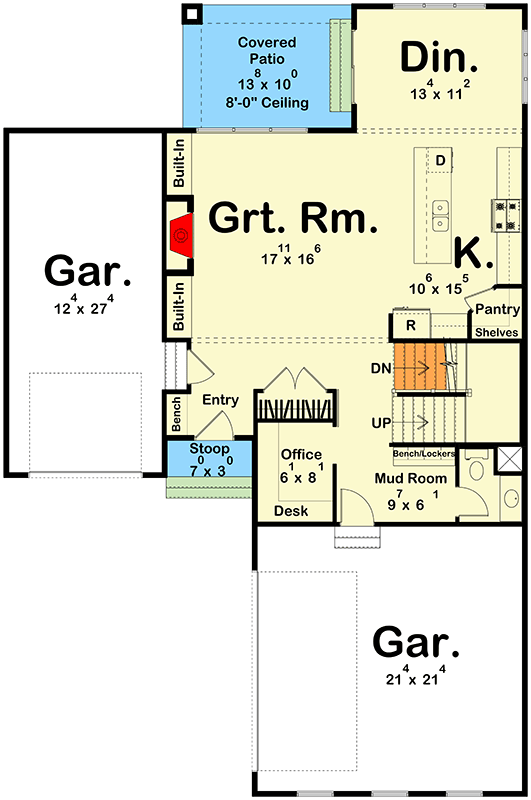

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Mediterranean Style House Plan With 2nd Level Laundry

  • 2,217

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,217 sq. ft.
  • 1st Floor: 1,023 sq. ft.
  • 2nd Floor: 1,194 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 63' 8"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 839 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
