3-Bed Mediterranean-style House Plan with Home Office

Plan 62913DJ

  • 2,073

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This elegant Mediterranean-style 1-story home plan has a white stucco exterior with a contrasting black clay tile roof. An arched entry and wood garage doors help give it great curb appeal.
  • Upon entry to the home, you'll step into the large great room with a tray ceiling and a fireplace with built-in bookshelves to one side. The great room flows seamlessly with the kitchen and dining room in a wide-open layout. The kitchen includes a large island and a 4'9" by 5'4" walk-in pantry.
  • On the right side of the home, you'll find a large primary suite that includes his/her vanities, a wet room, an enclosed toilet, and a walk-in shower. Just outside the suite, a convenient office is a perfect place to work from home. On the opposite side of the home, 2 bedrooms share a conveniently located hall bathroom.
  • Attached to the rear of the home, your outdoor entertainment will be taken to the next level with a large 441 square foot covered lanai that features an outdoor cooktop and its own bathroom.

This plan set has 8 pages and includes the following details:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinet elevations (3)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

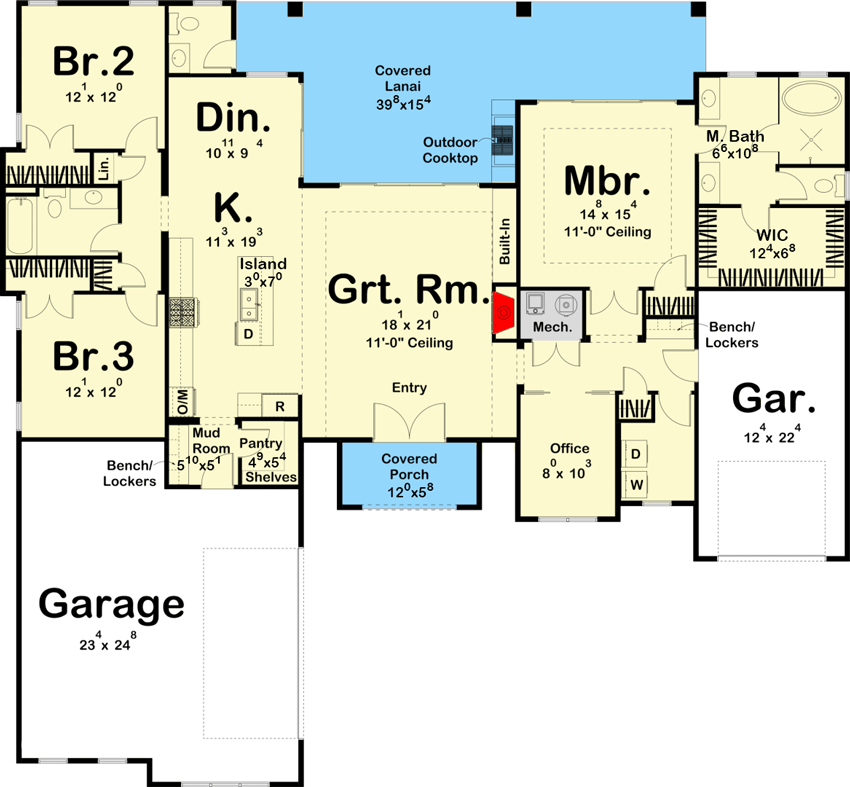

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Mediterranean-style House Plan with Home Office - 62913DJ floor plan - Main Level

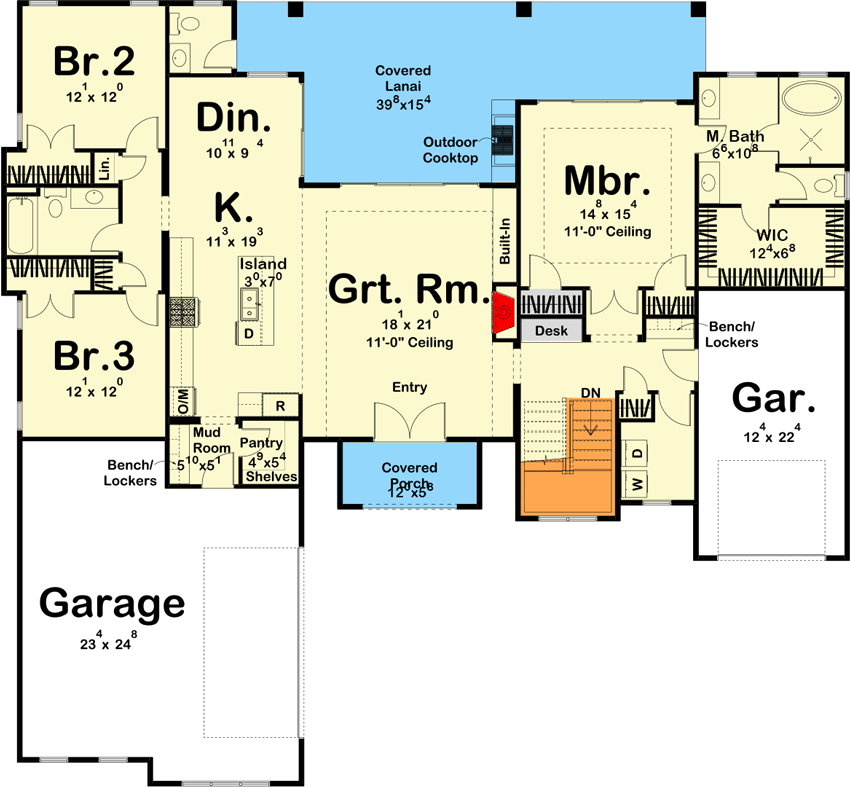

Main Floor - Basement Version

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Mediterranean-style House Plan with Home Office - 62913DJ floor plan - Main Floor - Basement Version
