Plan 22475DR 3-Bed Modern Craftsman Ranch Home Plan

1,631 3 2 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed Modern Craftsman Ranch Home Plan

Plan 22475DR

  • 1,631

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • This 3-bed Craftsman ranch home plan has exposed decorative wood beams and supporting the covered front entry and decorative brackets at the peak of the two gables in front.
  • The design of the foyer is great for cold climates as it can be sealed off from the home, containing not only clutter but also the cold.
  • The open concept floor plan gives you a combined, kitchen, dining and living room with fireplace.
  • The master suite has a private shower room and a walk-in closet. Two secondary bedrooms sharing a full bathroom.
  • Related Plans: Get a front-facing garage with house plans 22494DR and 22542DR and a side-entry garage with house plans 22540DR and 22541DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

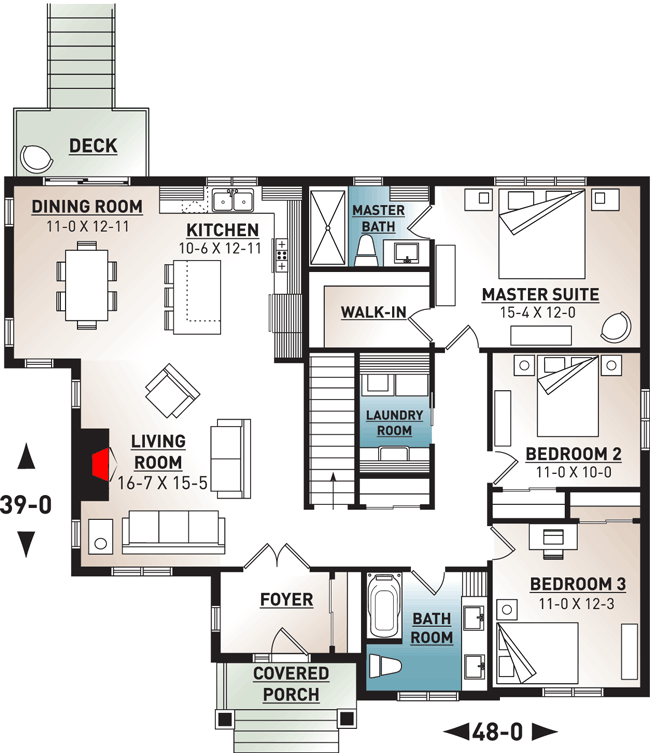

3-Bed Modern Craftsman Ranch Home Plan - 22475DR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,631 sq. ft.
  • 1st Floor: 1,631 sq. ft.
  • Porch, Front: 41 sq. ft.
  • Basement Unfinished: 1,361 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 39' 0"
  • Max ridge height: 22' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

3-Bed Modern Craftsman Ranch Home Plan

  • 1,631

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,450
  • 3 Sets + PDF $1,575
  • CAD + PDF - Single-Build $2,050
  • View all purchase option online

About This Plan

  • This 3-bed Craftsman ranch home plan has exposed decorative wood beams and supporting the covered front entry and decorative brackets at the peak of the two gables in front.
  • The design of the foyer is great for cold climates as it can be sealed off from the home, containing not only clutter but also the cold.
  • The open concept floor plan gives you a combined, kitchen, dining and living room with fireplace.
  • The master suite has a private shower room and a walk-in closet. Two secondary bedrooms sharing a full bathroom.
  • Related Plans: Get a front-facing garage with house plans 22494DR and 22542DR and a side-entry garage with house plans 22540DR and 22541DR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,631 sq. ft.
  • 1st Floor: 1,631 sq. ft.
  • Porch, Front: 41 sq. ft.
  • Basement Unfinished: 1,361 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 39' 0"
  • Max ridge height: 22' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
