Plan 62545DJ 3 Bed Modern Home Plan with Covered Patio

2,001 3-4 2.5 2 2
Print
Compare
...

3 Bed Modern Home Plan with Covered Patio

Plan 62545DJ

  • 2,001

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

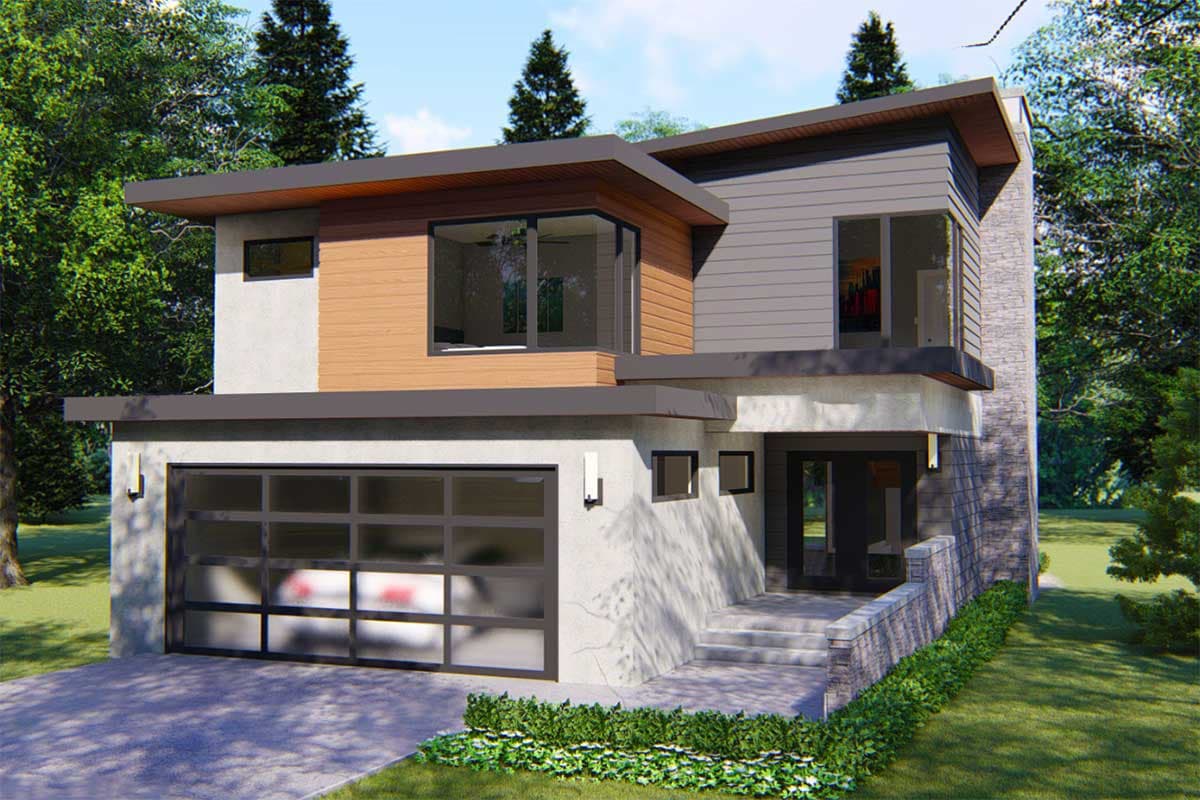

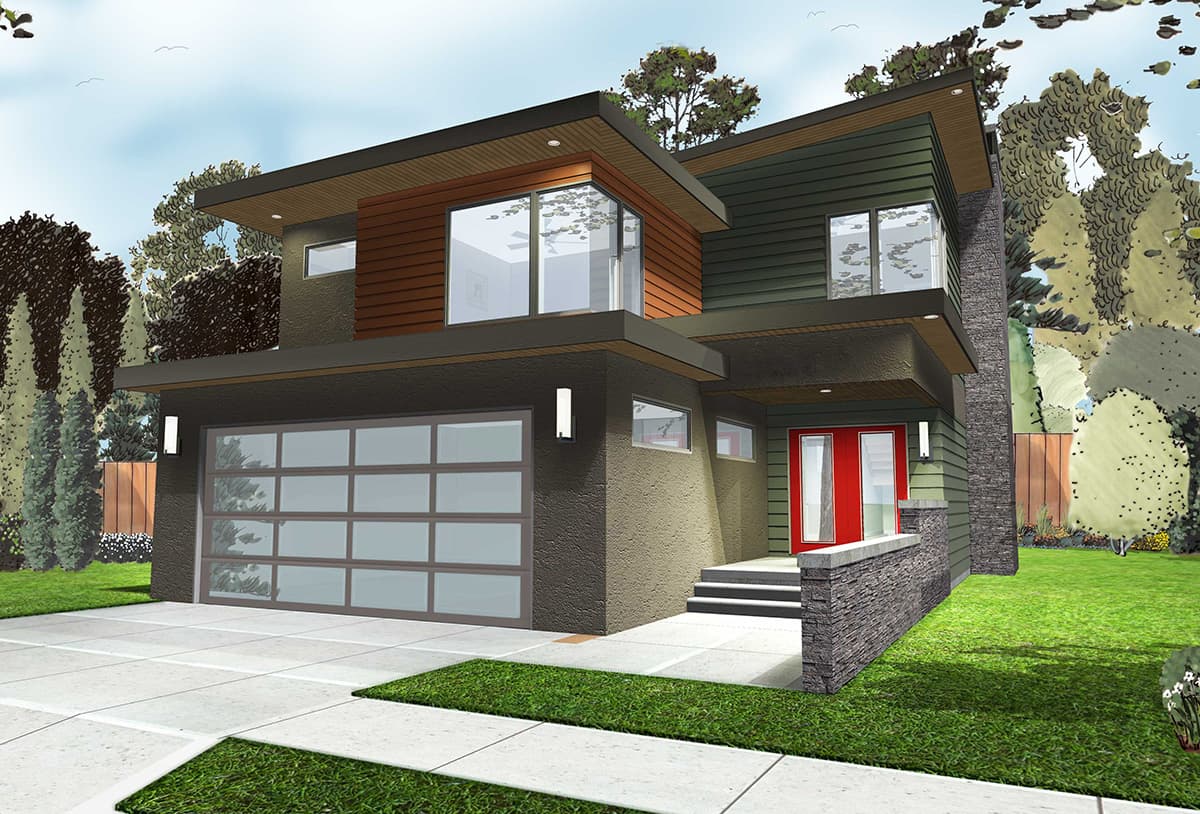

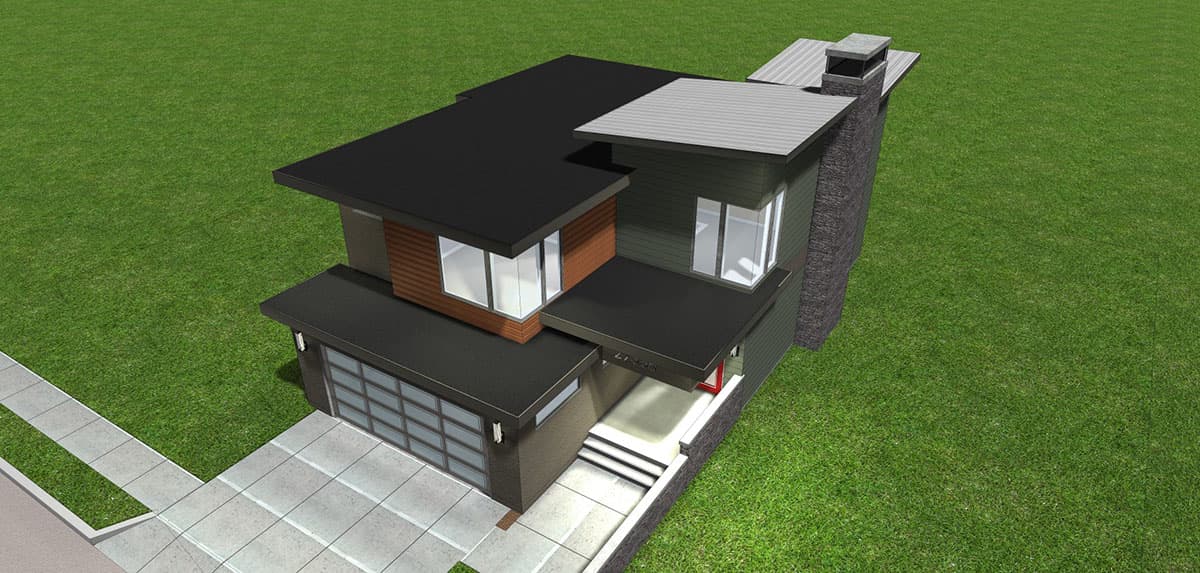

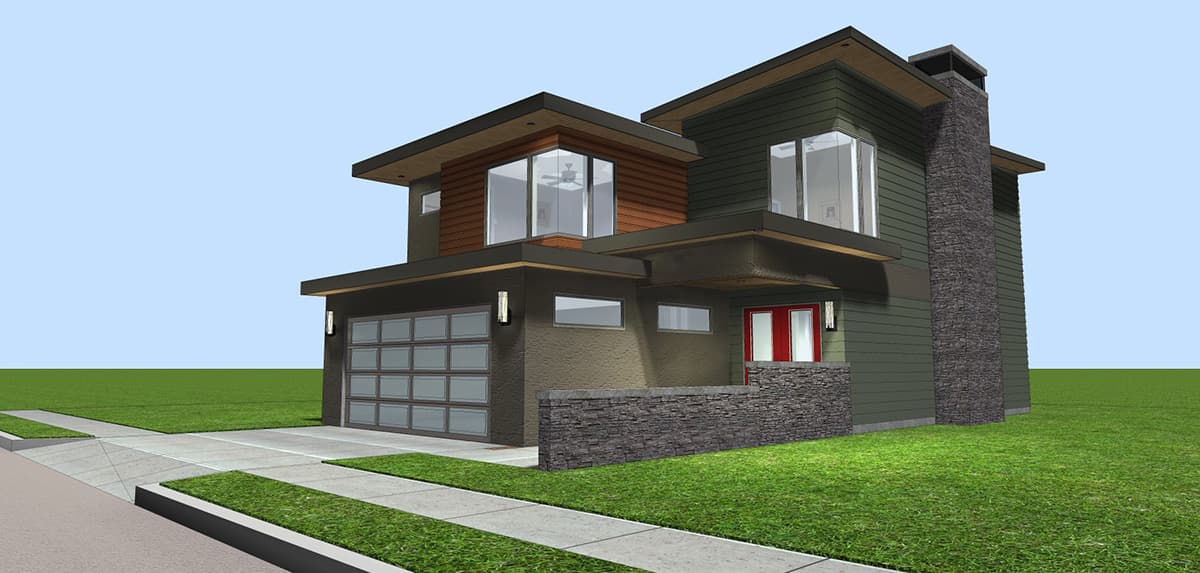

  • With careful attention to detail, and a functional floor plan, this house plan stands out from the crowd. The exterior has clean lines, deep overhangs, and simple finishes. And inside, this modern home plan boasts of a unique facade, open livings spaces, and a grand staircase.

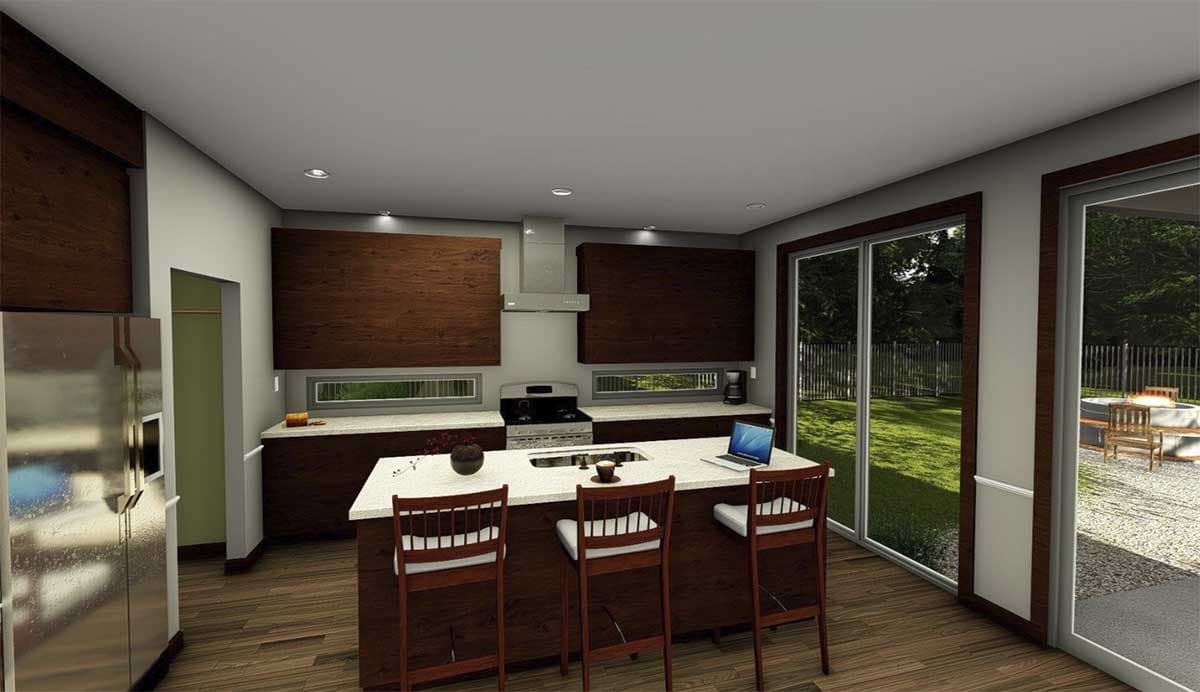

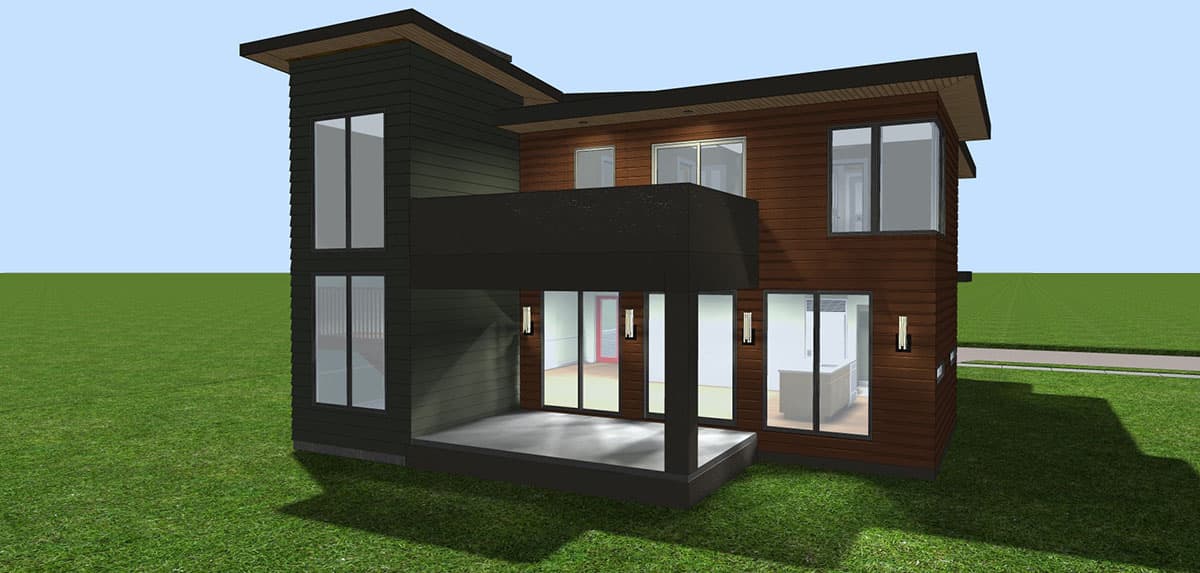

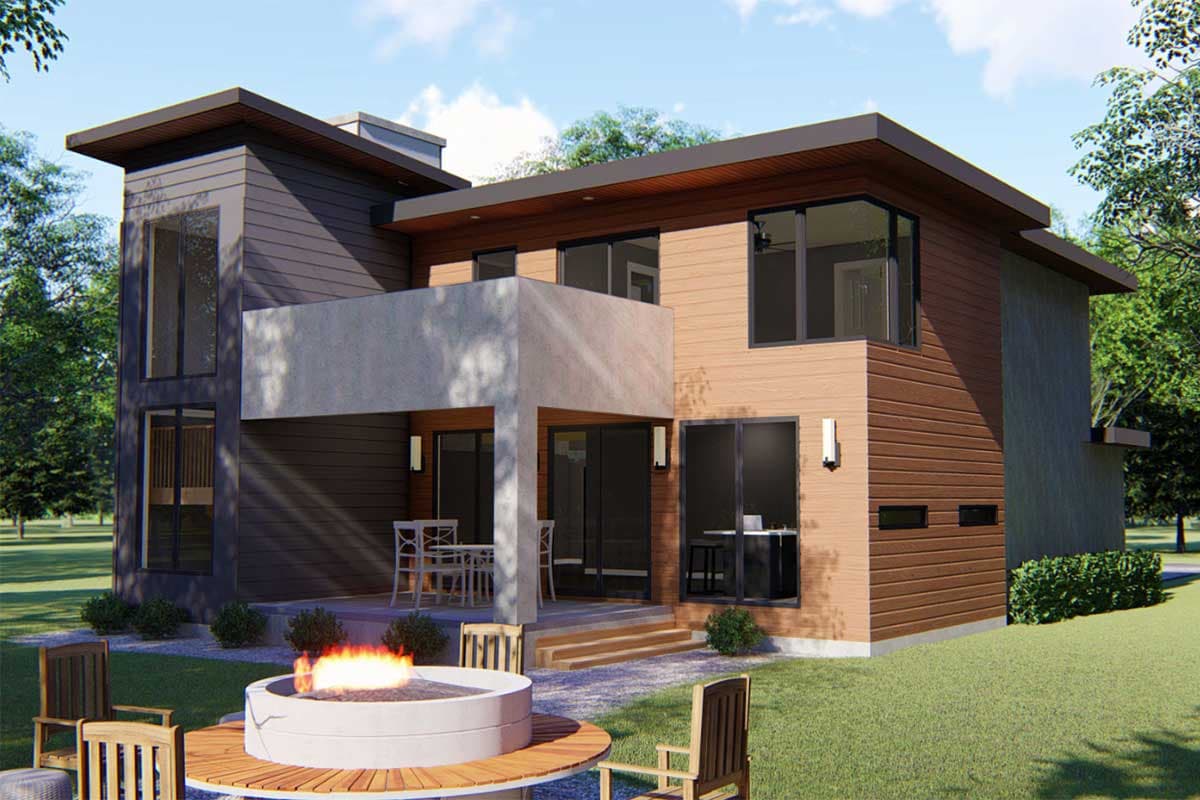

  • The main floor ha a great open floor plan. The kitchen, dining room and living room are all open to each other. And the patio in back offers you more room to entertain in comfort.
  • The stairs are open to above and below. Upstairs, you'll find 2 secondary bedrooms - each with spacious walk-in closets - in addition to the master suite with a large glass and tile shower. The laundry is conveniently located across the hall.
  • The roof has a 1:12 pitch.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

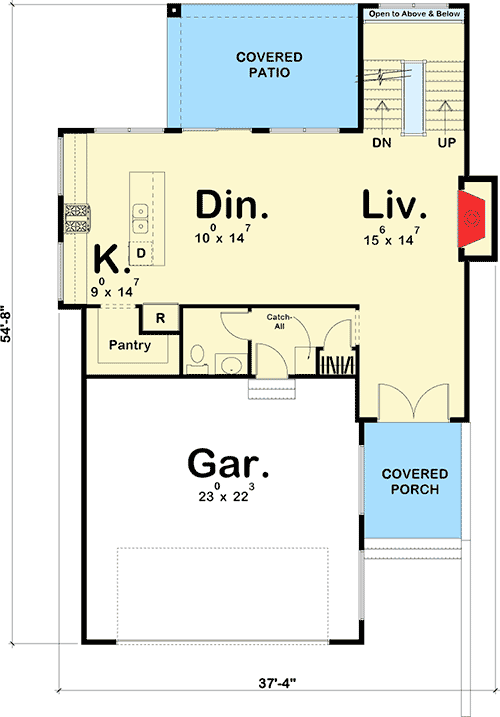

3 Bed Modern Home Plan with Covered Patio - 62545DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

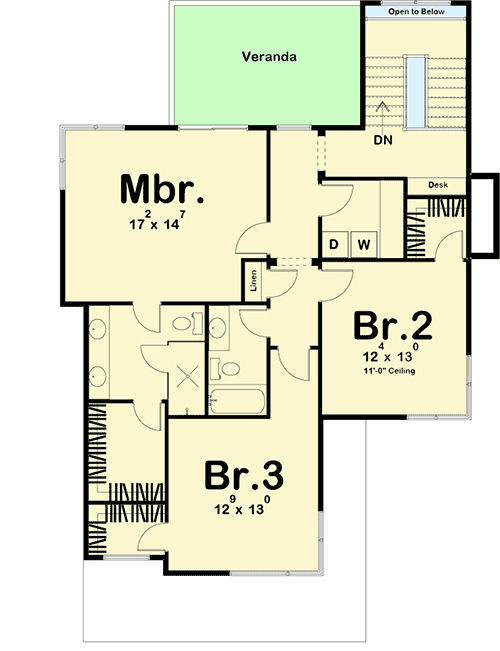

3 Bed Modern Home Plan with Covered Patio - 62545DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,001 sq. ft.
  • 1st Floor: 873 sq. ft.
  • 2nd Floor: 1,128 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 55' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 542 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Architectural Style

Special features

3 Bed Modern Home Plan with Covered Patio

  • 2,001

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • 5 Sets + PDF $1,450
  • PDF - Unlimited Build $1,700
  • CAD - Single-Build $1,700
  • CAD - Unlimited Build $2,200
  • View all purchase option online

About This Plan

  • With careful attention to detail, and a functional floor plan, this house plan stands out from the crowd. The exterior has clean lines, deep overhangs, and simple finishes. And inside, this modern home plan boasts of a unique facade, open livings spaces, and a grand staircase.
  • The main floor ha a great open floor plan. The kitchen, dining room and living room are all open to each other. And the patio in back offers you more room to entertain in comfort.
  • The stairs are open to above and below. Upstairs, you'll find 2 secondary bedrooms - each with spacious walk-in closets - in addition to the master suite with a large glass and tile shower. The laundry is conveniently located across the hall.
  • The roof has a 1:12 pitch.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,001 sq. ft.
  • 1st Floor: 873 sq. ft.
  • 2nd Floor: 1,128 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 55' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 542 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"
Plan 62545DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/62545DJ
|
