Plan 570010LEF
3-Bed Modern Home Plan with Office and Flex Room
Heated S.F.
2,989
Beds
3
Baths
3.5
Stories
2
Cars
2
What's Included
Plan Details
  • This 3-bedroom Modern home plan features a fabulous outdoor living area with fireplace and built-in grill.
  • The main living area is an open floor plan combining the kitchen, living, dining, and outdoor area to create a connected environment between all.
  • The kitchen expands into a walk-in pantry to maximize workspace and an eating bar at the island is perfect for quick meals.
  • Enjoy the convenience of a main-level master bedroom with an oversized shower and roomy closet, and the home office is perfect for the work-at-home resident.
  • A loft upstairs provides access to bedroom suites 2 and 3, as well as a flex space and storage room.
What's Included
  • Exterior elevations
  • Detailed floor plans
  • Roof plans
  • Foundation plans
  • Electrical plans
  • Typical Wall Section
  • Typical Stair Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Modern Home Plan with Office and Flex Room

  • 2,989

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

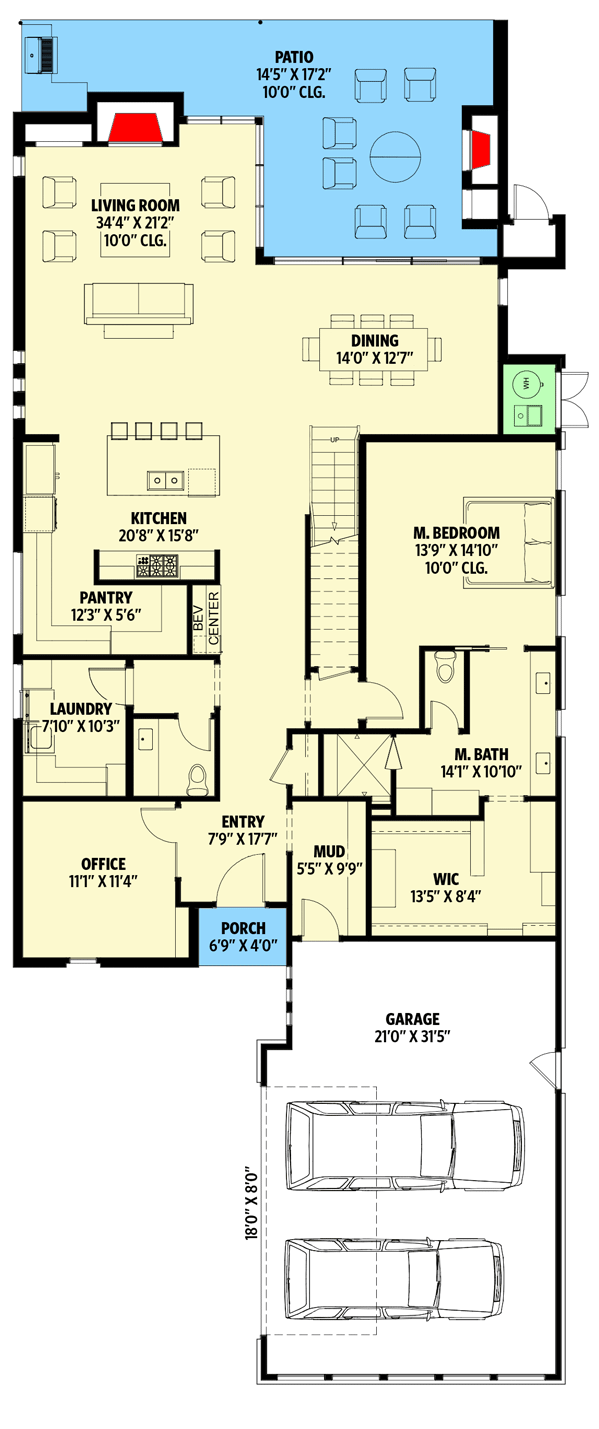

  • Main Level

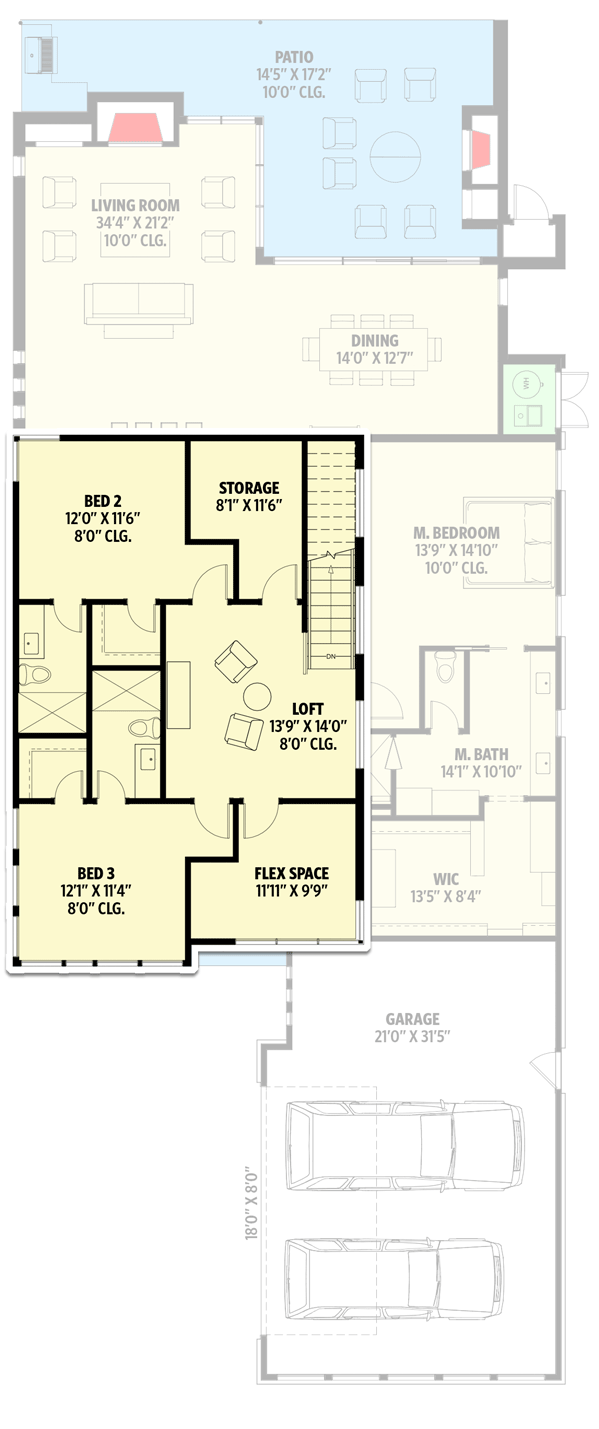

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,989 sq. ft.
  • 1st Floor: 2,112 sq. ft.
  • 2nd Floor: 877 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 99' 6"
  • Max ridge height: 23' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 645 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab, Stem Wall

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0" Living 11' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Stick And Truss
